ICM Controls SC 2311 User Manual

10
SimpleComfort
®

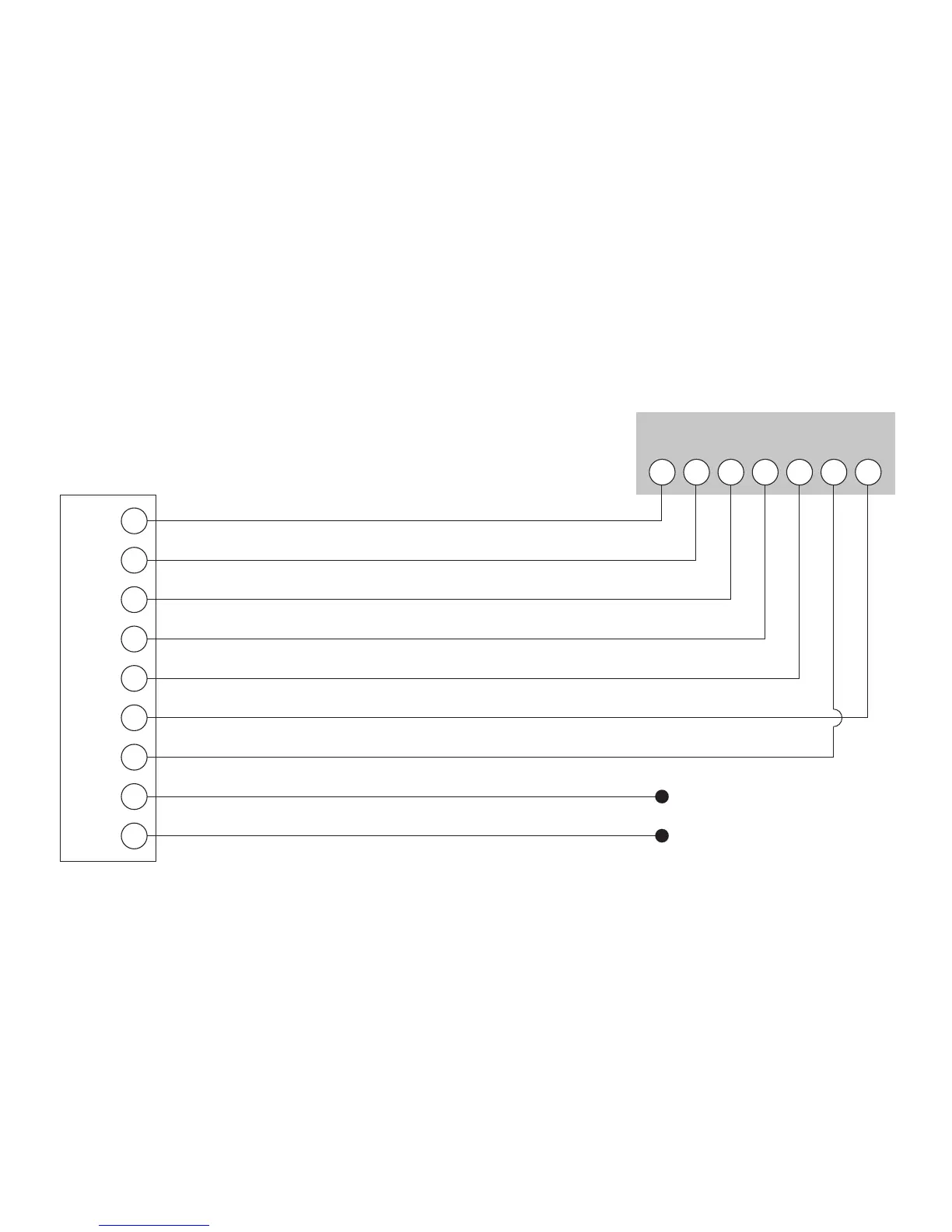

2311 Electronic Thermostat Conversion to:
Coleman 3000 Series Heat Pump Systems
R
X
B
Y
W2
G
E
L
W3
Coleman 3000
Low Voltage Terminal Board
SC 2311
Electronic Thermostat
24 VAC, return
24 VAC, common
Reversing valve (cooling mode)
Compressor contactor
2nd stage heating circuit
Fan contactor circuit
Emergency heating circuit
System monitor LED
(capped)
Note 1: L terminal on PCB capped
Note 2: W3 terminal on PCB capped
R C
W1
O/B
Y W2 E G
(capped)
