ICM Controls SC 2311 User Manual

11
SimpleComfort
®

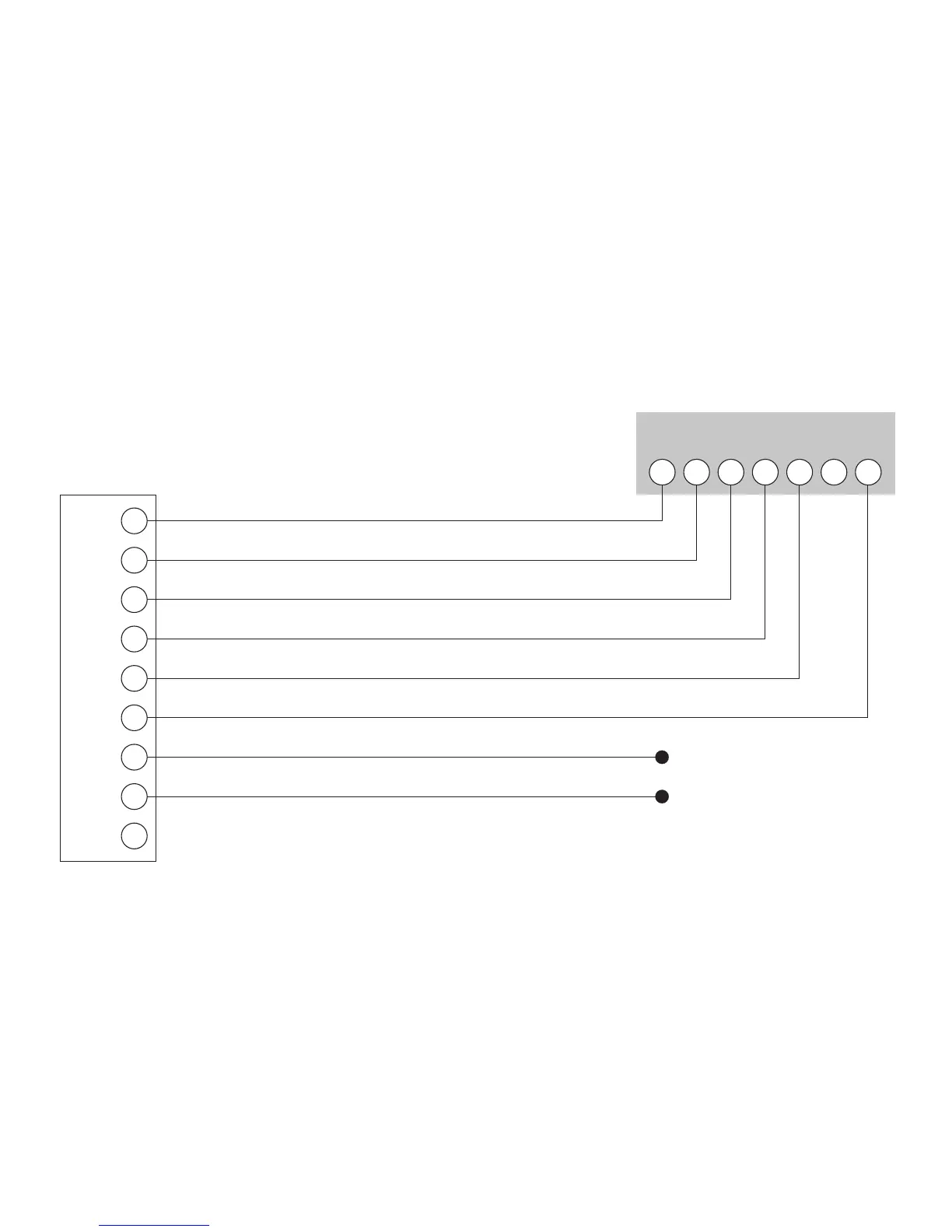

2311 Electronic Thermostat Conversion to:
ComfortMaker CYC Series Heat Pump Systems
SC 2311
Electronic Thermostat
R C
W1
O/B
Y W2 E G
24 VAC, return
24 VAC, common
Reversing valve (cooling mode)
Compressor contactor
2nd stage heating circuit
Fan contactor circuit
Outdoor thermostat
Defrost sensor
(capped)
(capped)
Note 1: W2 terminal on PCB capped
Note 2: X terminal on PCB capped
R
C
O
Y
W1
G
W2
X
ComfortMaker CYC
Low Voltage Terminal Board

ICM Controls SC 2311 Specifications

General

Brand	ICM Controls
Model	SC 2311
Category	Thermostat
Language	English
