2-1

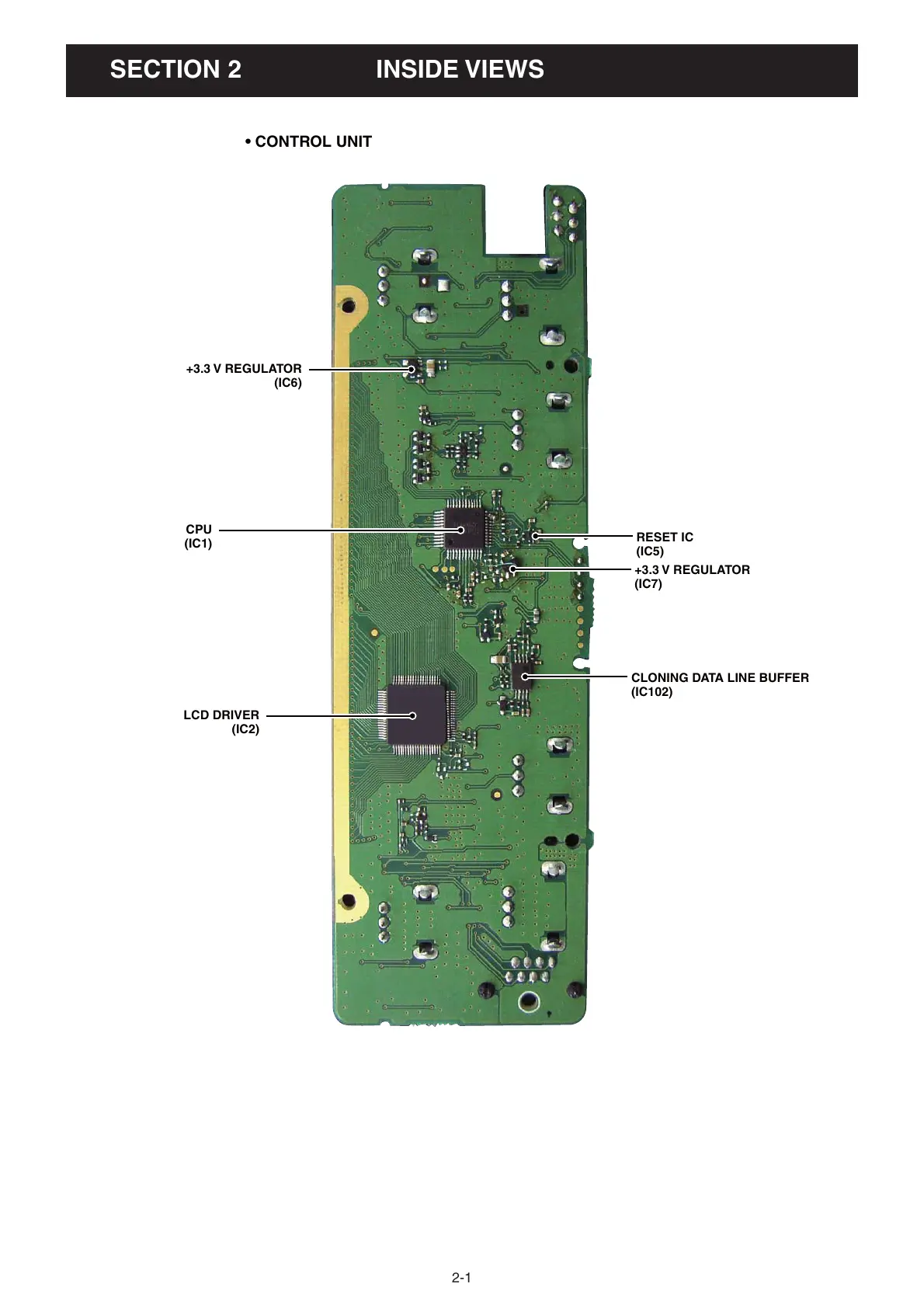

SECTION 2. INSIDE VIEWS
• CONTROL UNIT
RESET IC
(IC5)
+3.3 V REGULATOR
(IC7)
CLONING DATA LINE BUFFER
(IC102)
LCD DRIVER
(IC2)
CPU
(IC1)
+3.3 V REGULATOR
(IC6)
