4 - 14

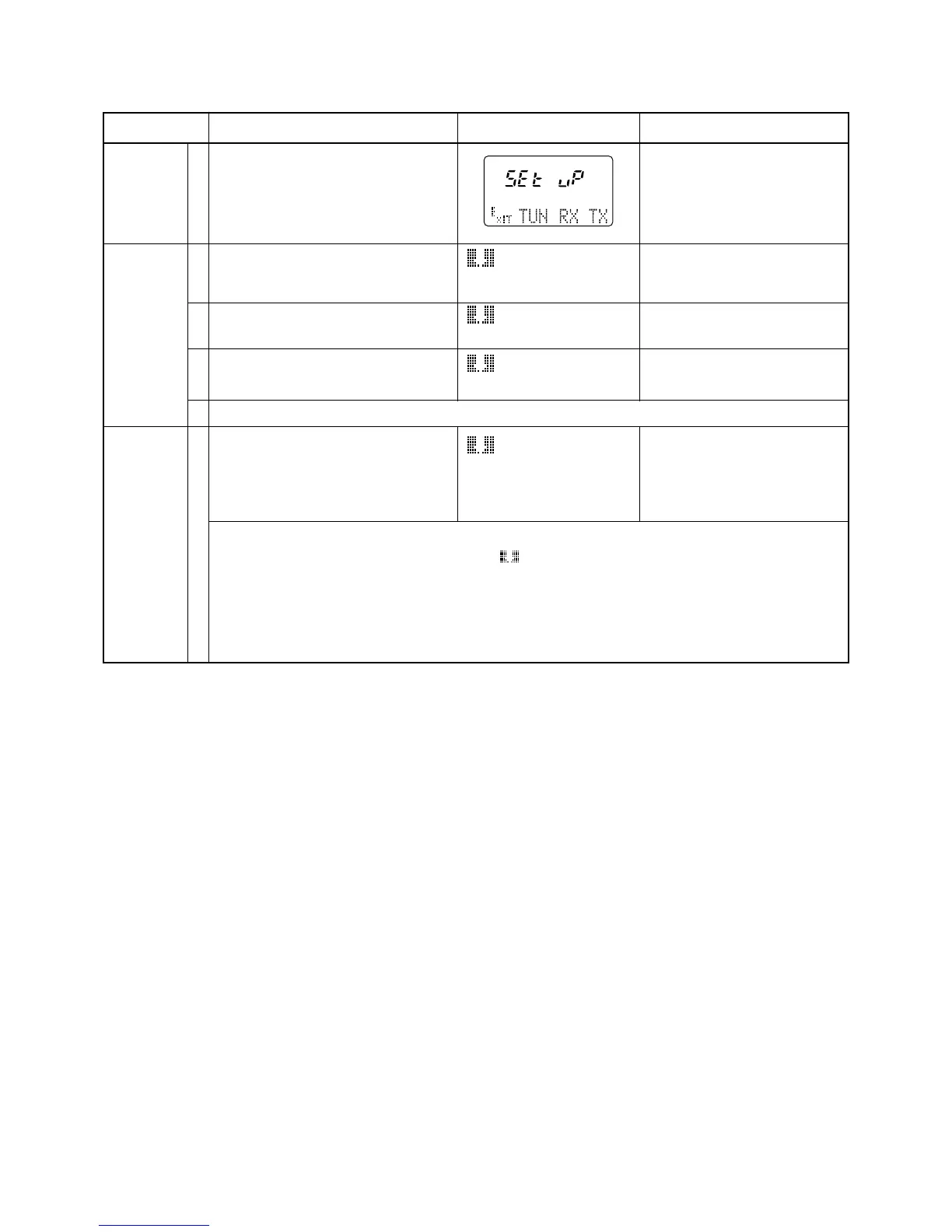

4-7 SET MODE ADJUSTMENTS (No.2)
ENTERING
ADJUSTMENT
SET MODE
ANTENNA
TUNER
TUNER
RELAY
ADJUSTMENT ADJUSTMENT CONDITION DISPLAY OPERATION
• Enter tuner adjustment set mode:
1 Turn power OFF.
2 Terminate the [REMOTE] jack with a
3.5(d) mm shorten-plug.
3 While pushing [P.AMP/ATT] and
[TUNER], turn power ON.
• Disconnect the plug P1 from the J642, and
then connect P1 to the J641.
• Receiving
• Receiving
• Disconnect the plug P1 from the J641, and
then connect P1 to the J640.
• Receiving
1
1
2
3
4
1
GO TUN CHK PO
GO TUN CHK Z55
GO TUN CHK Z45
Push [F-1 (TUN)] to enter the anten-
na tuner adj. setting mode.
Then advance to the following set-
ting, or push [UP]/[DN] to scroll the
display.
Push [MENU (GO)] to set adjust-
ment value.
Push [MENU (GO)] to set adjust-
ment value.
Push [MENU (GO)] to set adjust-
ment value.
NOTE: In case of not continuous relay sounds, verify the follow practice.
1. Return to the tuner relay check mode (Displayed
GO TUN CHK RL
).
2. Push the “RIT” key for 2 seconds, then “
GO
” is blinking on the display.
3. Find the wrong relay by verifying the each relay sounds.
Turn the sub dial when switching to the other relays.
• Disconnect the plug P1 from the J641, and then connect P1 to the J642 after adjustment is finished.
• Enter tuner relay check mode.
• Receiving
GO TUN CHK RL
• Push [MENU (GO)], and listen to
the relay sounds while relay is
working at even intervals.
• Verify the sounds which is whether
continuous sounds or not.
To Next Page
