Icom IC-703 - Jack Board; Screw Abbreviations A,BT: Self-Tapping PH: Pan Head; Vr Board

R1 7210002780 Variable resistor RV-300 (RK0972210) 1
R2 7210002940 Variable resistor 1
TP96D231E20-20F-10KB-1897
S1 2220000540 Switch SW-162 (SSSS22-2-11) 1
[VR BOARD]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
MP1 8950004181 1691 contact base (A)-1 1
[JACK BOARD]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
WS1 8970024110 ICOM shield (B) 1
J6801 6510016170 Connector 52018-8835 (MIC) 1
J6851 6450001840 Connector TCS7568-43-201 (DATA) 1
J6901 6450000140 Connector HSJ0807-01-010 (REMOTE) 1
J6921 6450001790 Connector HLJ7000-01-3010 (KEY) 1
J6951 6450001640 Connector TCS5044-01-4111(ACC) 1
J7371 6450000140 Connector HSJ0807-01-010 (EXT-SP) 1
MP701 8510012400 2177 D/A case 1
MP5901 8510015080 2591 shield case 1
MP5902 8930060200 Sheet (CJ) 3
MP5903 8930060210 Sheet (CK) 1
MP9201 8510015070 2591 VCO case 1
MP9621 8930060030 2591 A-PLL case assembly 1
MP9624 8510015360 2591 A-PLL cover 1
MP9625 8810003960 Setscrew A M2.6 × 53
MP9700 8930059950 Sponge (HE) 1
MP9701 8930059940 Sponge (HF) 1
MP9702 8930059930 Sponge (HG) 1
MP9703 8930045530 Magic tape (F) 1
MP9704 8930060170 Rubber sheet (BE) 1
MP9705 8930060180 Rubber sheet (BF) 1
MP9961 8510015390 2591 reg plate 1
[MAIN UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
EP901 6910000640 Bead FSOH090RN 1
EP902 6910000640 Bead FSOH090RN 1
EP903 9010000630 Tube
J901 6510001920 Connector 1490R (TUNER) 1
W80 8900011990 Cable OPC-1215 1
MP200 8410002430 2494 PA heatsink 1
MP201 8860001310 2591 rug 1
[EUR/-1],[FRA/-1],[ESP/-1],[ITR-1] only
MP400 8510002280 VCO shield plate (A) 1
MP401 8930008680 Insulation plate (AH) 1
MP402 8510002280 VCO shield plate (A) 1
MP403 8930008680 Insulation plate (AH) 1
MP900 8950000180 Cable tie-80 1
MP901 8950000180 Cable tie-80 1
[PA UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
P1 5610000050 Connector AP-330 1
P2 5610000170 Connector AP-370B 1
F1 5210000130 Fuse FGB 4A 3
W1 8900012050 DC power cable OPC-1229 1
W2 8900006110 ACC cable OPC-596 1
MC1 7700002000 Hand microphone HM-103 ACC 1
MP1 8930007300 Mic hunger 1

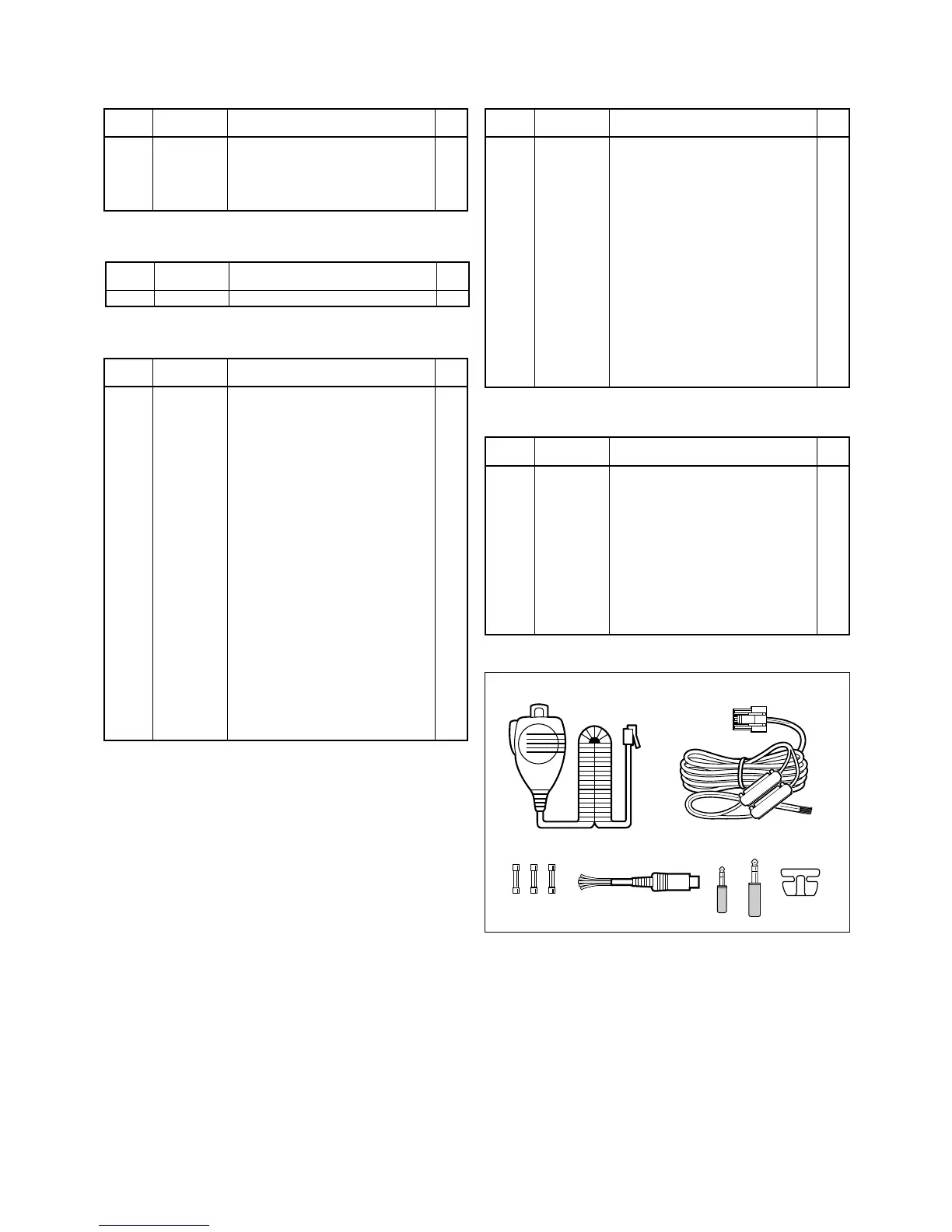

[ACCESSORIES]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
6 - 2
Screw abbreviations A,BT: Self-tapping PH: Pan head
FH: Flat head ZK: Black
BS: Brass NI: Nickel
NI-ZU: Nickel-Zinc
P1P2F1
W1
W2
MC1
MP1
