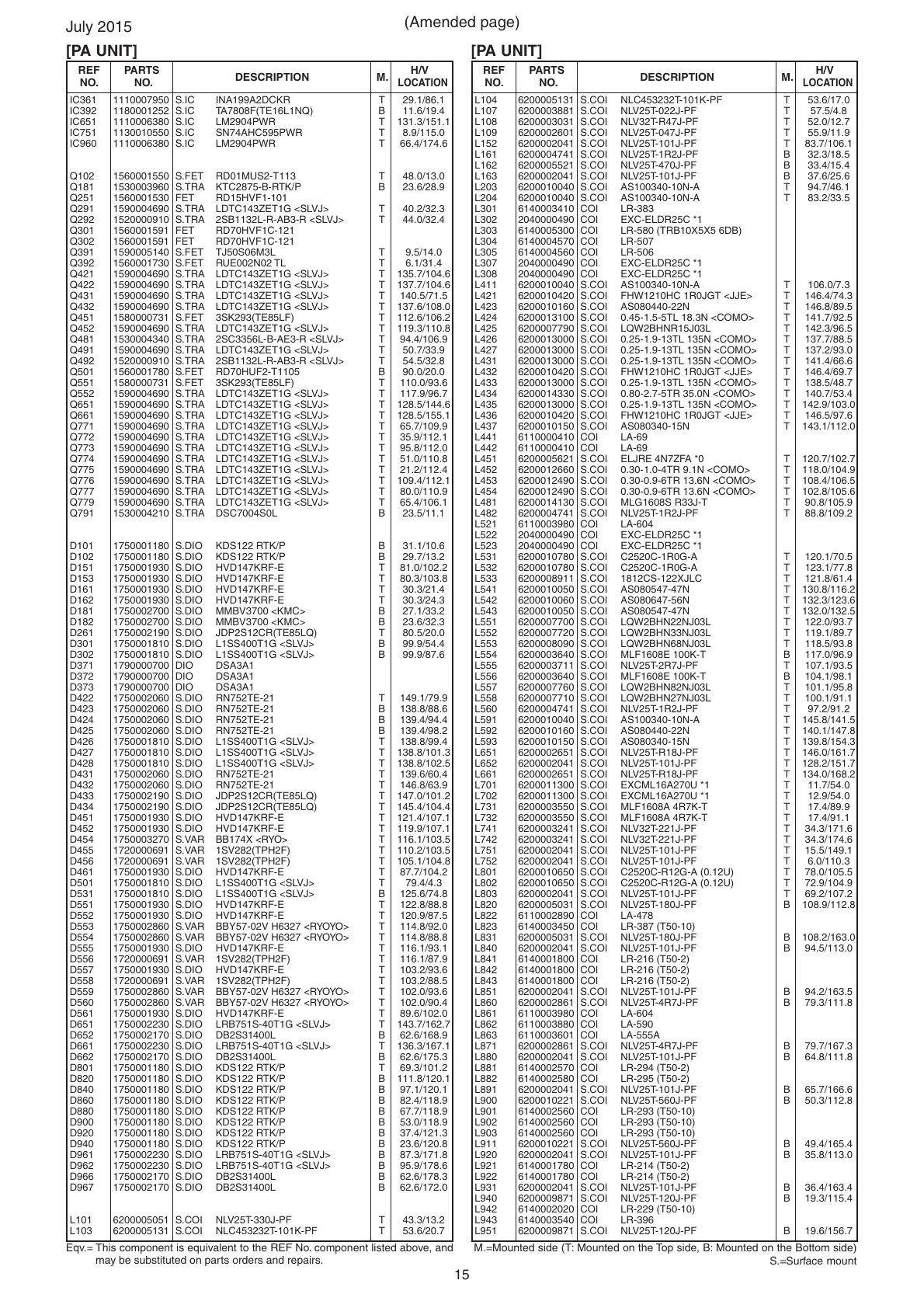

15
July 2015
(Amended page)
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[PA UNIT]
IC361 1110007950 S.IC INA199A2DCKR T 29.1/86.1
IC392 1180001252 S.IC TA7808F(TE16L1NQ) B 11.6/19.4
IC651 1110006380 S.IC LM2904PWR T 131.3/151.1
IC751 1130010550 S.IC SN74AHC595PWR T 8.9/115.0
IC960 1110006380 S.IC LM2904PWR T 66.4/174.6
Q102 1560001550 S.FET RD01MUS2-T113 T 48.0/13.0
Q181 1530003960 S.TRA KTC2875-B-RTK/P B 23.6/28.9
Q251 1560001530 FET RD15HVF1-101
Q291 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 40.2/32.3
Q292 1520000910 S.TRA 2SB1132L-R-AB3-R <SLVJ> T 44.0/32.4
Q301 1560001591 FET RD70HVF1C-121
Q302 1560001591 FET RD70HVF1C-121
Q391 1590005140 S.FET TJ50S06M3L T 9.5/14.0
Q392 1560001730 S.FET RUE002N02 TL T 6.1/31.4
Q421 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 135.7/104.6
Q422 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 137.7/104.6
Q431 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 140.5/71.5
Q432 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 137.6/108.0
Q451 1580000731 S.FET 3SK293(TE85LF) T 112.6/106.2
Q452 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 119.3/110.8
Q481 1530004340 S.TRA 2SC3356L-B-AE3-R <SLVJ> T 94.4/106.9
Q491 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 50.7/33.9
Q492 1520000910 S.TRA 2SB1132L-R-AB3-R <SLVJ> T 54.5/32.8
Q501 1560001780 S.FET RD70HUF2-T1105 B 90.0/20.0
Q551 1580000731 S.FET 3SK293(TE85LF) T 110.0/93.6
Q552 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 117.9/96.7
Q651 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 128.5/144.6
Q661 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 128.5/155.1
Q771 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 65.7/109.9
Q772 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 35.9/112.1
Q773 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 95.8/112.0
Q774 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 51.0/110.8
Q775 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 21.2/112.4
Q776 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 109.4/112.1
Q777 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 80.0/110.9
Q779 1590004690 S.TRA LDTC143ZET1G <SLVJ> T 65.4/106.1
Q791 1530004210 S.TRA DSC7004S0L B 23.5/11.1
D101 1750001180 S.DIO KDS122 RTK/P B 31.1/10.6
D102 1750001180 S.DIO KDS122 RTK/P B 29.7/13.2
D151 1750001930 S.DIO HVD147KRF-E T 81.0/102.2
D153 1750001930 S.DIO HVD147KRF-E T 80.3/103.8
D161 1750001930 S.DIO HVD147KRF-E T 30.3/21.4
D162 1750001930 S.DIO HVD147KRF-E T 30.3/24.3
D181 1750002700 S.DIO MMBV3700 <KMC> B 27.1/33.2
D182 1750002700 S.DIO MMBV3700 <KMC> B 23.6/32.3
D261 1750002190 S.DIO JDP2S12CR(TE85LQ) T 80.5/20.0
D301 1750001810 S.DIO L1SS400T1G <SLVJ> B 99.9/54.4
D302 1750001810 S.DIO L1SS400T1G <SLVJ> B 99.9/87.6
D371 1790000700 DIO DSA3A1
D372 1790000700 DIO DSA3A1
D373 1790000700 DIO DSA3A1
D422 1750002060 S.DIO RN752TE-21 T 149.1/79.9
D423 1750002060 S.DIO RN752TE-21 B 138.8/88.6
D424 1750002060 S.DIO RN752TE-21 B 139.4/94.4
D425 1750002060 S.DIO RN752TE-21 B 139.4/98.2
D426 1750001810 S.DIO L1SS400T1G <SLVJ> T 138.8/99.4
D427 1750001810 S.DIO L1SS400T1G <SLVJ> T 138.8/101.3
D428 1750001810 S.DIO L1SS400T1G <SLVJ> T 138.8/102.5
D431 1750002060 S.DIO RN752TE-21 T 139.6/60.4
D432 1750002060 S.DIO RN752TE-21 T 146.8/63.9
D433 1750002190 S.DIO JDP2S12CR(TE85LQ) T 147.0/101.2
D434 1750002190 S.DIO JDP2S12CR(TE85LQ) T 145.4/104.4
D451 1750001930 S.DIO HVD147KRF-E T 121.4/107.1
D452 1750001930 S.DIO HVD147KRF-E T 119.9/107.1
D454 1750003270 S.VAR BB174X <RYO> T 116.1/103.5
D455 1720000691 S.VAR 1SV282(TPH2F) T 110.2/103.5
D456 1720000691 S.VAR 1SV282(TPH2F) T 105.1/104.8
D461 1750001930 S.DIO HVD147KRF-E T 87.7/104.2
D501 1750001810 S.DIO L1SS400T1G <SLVJ> T 79.4/4.3
D531 1750001810 S.DIO L1SS400T1G <SLVJ> B 125.6/74.8
D551 1750001930 S.DIO HVD147KRF-E T 122.8/88.8
D552 1750001930 S.DIO HVD147KRF-E T 120.9/87.5
D553 1750002860 S.VAR BBY57-02V H6327 <RYOYO> T 114.8/92.0
D554 1750002860 S.VAR BBY57-02V H6327 <RYOYO> T 114.8/88.8
D555 1750001930 S.DIO HVD147KRF-E T 116.1/93.1
D556 1720000691 S.VAR 1SV282(TPH2F) T 116.1/87.9
D557 1750001930 S.DIO HVD147KRF-E T 103.2/93.6
D558 1720000691 S.VAR 1SV282(TPH2F) T 103.2/88.5
D559 1750002860 S.VAR BBY57-02V H6327 <RYOYO> T 102.0/93.6
D560 1750002860 S.VAR BBY57-02V H6327 <RYOYO> T 102.0/90.4
D561 1750001930 S.DIO HVD147KRF-E T 89.6/102.0
D651 1750002230 S.DIO LRB751S-40T1G <SLVJ> T 143.7/162.7
D652 1750002170 S.DIO DB2S31400L B 62.6/168.9
D661 1750002230 S.DIO LRB751S-40T1G <SLVJ> T 136.3/167.1
D662 1750002170 S.DIO DB2S31400L B 62.6/175.3
D801 1750001180 S.DIO KDS122 RTK/P T 69.3/101.2
D820 1750001180 S.DIO KDS122 RTK/P B 111.8/120.1
D840 1750001180 S.DIO KDS122 RTK/P B 97.1/120.1
D860 1750001180 S.DIO KDS122 RTK/P B 82.4/118.9
D880 1750001180 S.DIO KDS122 RTK/P B 67.7/118.9
D900 1750001180 S.DIO KDS122 RTK/P B 53.0/118.9
D920 1750001180 S.DIO KDS122 RTK/P B 37.4/121.3
D940 1750001180 S.DIO KDS122 RTK/P B 23.6/120.8
D961 1750002230 S.DIO LRB751S-40T1G <SLVJ> B 87.3/171.8
D962 1750002230 S.DIO LRB751S-40T1G <SLVJ> B 95.9/178.6
D966 1750002170 S.DIO DB2S31400L B 62.6/178.3
D967 1750002170 S.DIO DB2S31400L B 62.6/172.0
L101 6200005051 S.COI NLV25T-330J-PF T 43.3/13.2
L103 6200005131 S.COI NLC453232T-101K-PF T 53.6/20.7
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[PA UNIT]
L104 6200005131 S.COI NLC453232T-101K-PF T 53.6/17.0
L107 6200003881 S.COI NLV25T-022J-PF T 57.5/4.8
L108 6200003031 S.COI NLV32T-R47J-PF T 52.0/12.7
L109 6200002601 S.COI NLV25T-047J-PF T 55.9/11.9
L152 6200002041 S.COI NLV25T-101J-PF T 83.7/106.1
L161 6200004741 S.COI NLV25T-1R2J-PF B 32.3/18.5
L162 6200005521 S.COI NLV25T-470J-PF B 33.4/15.4
L163 6200002041 S.COI NLV25T-101J-PF B 37.6/25.6
L203 6200010040 S.COI AS100340-10N-A T 94.7/46.1
L204 6200010040 S.COI AS100340-10N-A T 83.2/33.5
L301 6140003410 COI LR-383
L302 2040000490 COI EXC-ELDR25C *1
L303 6140005300 COI LR-580 (TRB10X5X5 6DB)
L304 6140004570 COI LR-507
L305 6140004560 COI LR-506
L307 2040000490 COI EXC-ELDR25C *1
L308 2040000490 COI EXC-ELDR25C *1
L411 6200010040 S.COI AS100340-10N-A T 106.0/7.3
L421 6200010420 S.COI FHW1210HC 1R0JGT <JJE> T 146.4/74.3
L423 6200010160 S.COI AS080440-22N T 146.8/89.5
L424 6200013100 S.COI 0.45-1.5-5TL 18.3N <COMO> T 141.7/92.5
L425 6200007790 S.COI LQW2BHNR15J03L T 142.3/96.5
L426 6200013000 S.COI 0.25-1.9-13TL 135N <COMO> T 137.7/88.5
L427 6200013000 S.COI 0.25-1.9-13TL 135N <COMO> T 137.2/93.0
L431 6200013000 S.COI 0.25-1.9-13TL 135N <COMO> T 141.4/66.6
L432 6200010420 S.COI FHW1210HC 1R0JGT <JJE> T 146.4/69.7
L433 6200013000 S.COI 0.25-1.9-13TL 135N <COMO> T 138.5/48.7
L434 6200014330 S.COI 0.80-2.7-5TR 35.0N <COMO> T 140.7/53.4
L435 6200013000 S.COI 0.25-1.9-13TL 135N <COMO> T 142.9/103.0
L436 6200010420 S.COI FHW1210HC 1R0JGT <JJE> T 146.5/97.6
L437 6200010150 S.COI AS080340-15N T 143.1/112.0
L441 6110000410 COI LA-69
L442 6110000410 COI LA-69
L451 6200005621 S.COI ELJRE 4N7ZFA *0 T 120.7/102.7
L452 6200012660 S.COI 0.30-1.0-4TR 9.1N <COMO> T 118.0/104.9
L453 6200012490 S.COI 0.30-0.9-6TR 13.6N <COMO> T 108.4/106.5
L454 6200012490 S.COI 0.30-0.9-6TR 13.6N <COMO> T 102.8/105.6
L481 6200014130 S.COI MLG1608S R33J-T T 90.8/105.9
L482 6200004741 S.COI NLV25T-1R2J-PF T 88.8/109.2
L521 6110003980 COI LA-604
L522 2040000490 COI EXC-ELDR25C *1
L523 2040000490 COI EXC-ELDR25C *1
L531 6200010780 S.COI C2520C-1R0G-A T 120.1/70.5
L532 6200010780 S.COI C2520C-1R0G-A T 123.1/77.8
L533 6200008911 S.COI 1812CS-122XJLC T 121.8/61.4
L541 6200010050 S.COI AS080547-47N T 130.8/116.2
L542 6200010060 S.COI AS080647-56N T 132.3/123.6
L543 6200010050 S.COI AS080547-47N T 132.0/132.5
L551 6200007700 S.COI LQW2BHN22NJ03L T 122.0/93.7
L552 6200007720 S.COI LQW2BHN33NJ03L T 119.1/89.7
L553 6200008090 S.COI LQW2BHN68NJ03L T 118.5/93.8
L554 6200003640 S.COI MLF1608E 100K-T B 117.0/96.9
L555 6200003711 S.COI NLV25T-2R7J-PF T 107.1/93.5
L556 6200003640 S.COI MLF1608E 100K-T B 104.1/98.1
L557 6200007760 S.COI LQW2BHN82NJ03L T 101.1/95.8
L558 6200007710 S.COI LQW2BHN27NJ03L T 100.1/91.1
L560 6200004741 S.COI NLV25T-1R2J-PF T 97.2/91.2
L591 6200010040 S.COI AS100340-10N-A T 145.8/141.5
L592 6200010160 S.COI AS080440-22N T 140.1/147.8
L593 6200010150 S.COI AS080340-15N T 139.8/154.3
L651 6200002651 S.COI NLV25T-R18J-PF T 146.0/161.7
L652 6200002041 S.COI NLV25T-101J-PF T 128.2/151.7
L661 6200002651 S.COI NLV25T-R18J-PF T 134.0/168.2
L701 6200011300 S.COI EXCML16A270U *1 T 11.7/54.0
L702 6200011300 S.COI EXCML16A270U *1 T 12.9/54.0
L731 6200003550 S.COI MLF1608A 4R7K-T T 17.4/89.9
L732 6200003550 S.COI MLF1608A 4R7K-T T 17.4/91.1
L741 6200003241 S.COI NLV32T-221J-PF T 34.3/171.6
L742 6200003241 S.COI NLV32T-221J-PF T 34.3/174.6
L751 6200002041 S.COI NLV25T-101J-PF T 15.5/149.1
L752 6200002041 S.COI NLV25T-101J-PF T 6.0/110.3
L801 6200010650 S.COI C2520C-R12G-A (0.12U) T 78.0/105.5
L802 6200010650 S.COI C2520C-R12G-A (0.12U) T 72.9/104.9
L803 6200002041 S.COI NLV25T-101J-PF T 69.2/107.2
L820 6200005031 S.COI NLV25T-180J-PF B 108.9/112.8
L822 6110002890 COI LA-478
L823 6140003450 COI LR-387 (T50-10)
L831 6200005031 S.COI NLV25T-180J-PF B 108.2/163.0
L840 6200002041 S.COI NLV25T-101J-PF B 94.5/113.0
L841 6140001800 COI LR-216 (T50-2)
L842 6140001800 COI LR-216 (T50-2)
L843 6140001800 COI LR-216 (T50-2)
L851 6200002041 S.COI NLV25T-101J-PF B 94.2/163.5
L860 6200002861 S.COI NLV25T-4R7J-PF B 79.3/111.8
L861 6110003980 COI LA-604
L862 6110003880 COI LA-590
L863 6110003601 COI LA-555A
L871 6200002861 S.COI NLV25T-4R7J-PF B 79.7/167.3
L880 6200002041 S.COI NLV25T-101J-PF B 64.8/111.8
L881 6140002570 COI LR-294 (T50-2)
L882 6140002580 COI LR-295 (T50-2)
L891 6200002041 S.COI NLV25T-101J-PF B 65.7/166.6
L900 6200010221 S.COI NLV25T-560J-PF B 50.3/112.8
L901 6140002560 COI LR-293 (T50-10)
L902 6140002560 COI LR-293 (T50-10)
L903 6140002560 COI LR-293 (T50-10)
L911 6200010221 S.COI NLV25T-560J-PF B 49.4/165.4
L920 6200002041 S.COI NLV25T-101J-PF B 35.8/113.0
L921 6140001780 COI LR-214 (T50-2)
L922 6140001780 COI LR-214 (T50-2)
L931 6200002041 S.COI NLV25T-101J-PF B 36.4/163.4
L940 6200009871 S.COI NLV25T-120J-PF B 19.3/115.4
L942 6140002020 COI LR-229 (T50-10)
L943 6140003540 COI LR-396
L951 6200009871 S.COI NLV25T-120J-PF B 19.6/156.7
Eqv.= This component is equivalent to the REF No. component listed above, and
may be substituted on parts orders and repairs.
