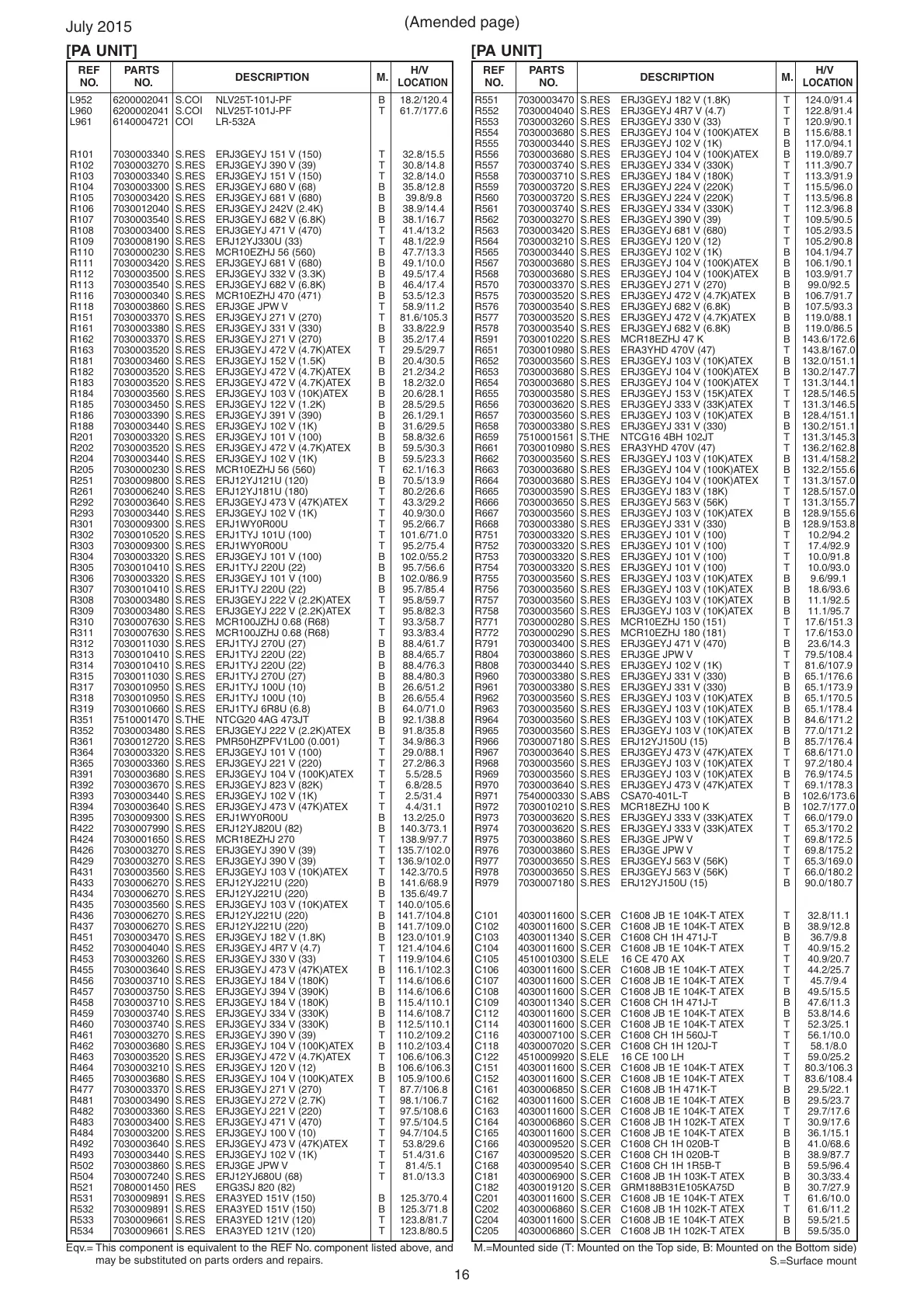

Icom IC-7100

16
July 2015
(Amended page)
REF PARTS
DESCRIPTION M.
H/V
NO. NO.
LOCATION
[PA UNIT]
L952 6200002041 S.COI NLV25T-101J-PF B 18.2/120.4
L960 6200002041 S.COI NLV25T-101J-PF T 61.7/177.6
L961 6140004721 COI LR-532A
R101 7030003340 S.RES ERJ3GEYJ 151 V (150) T 32.8/15.5
R102 7030003270 S.RES ERJ3GEYJ 390 V (39) T 30.8/14.8
R103 7030003340 S.RES ERJ3GEYJ 151 V (150) T 32.8/14.0
R104 7030003300 S.RES ERJ3GEYJ 680 V (68) B 35.8/12.8
R105 7030003420 S.RES ERJ3GEYJ 681 V (680) B 39.8/9.8
R106 7030012040 S.RES ERJ3GEYJ 242V (2.4K) B 38.9/14.4
R107 7030003540 S.RES ERJ3GEYJ 682 V (6.8K) B 38.1/16.7
R108 7030003400 S.RES ERJ3GEYJ 471 V (470) T 41.4/13.2
R109 7030008190 S.RES ERJ12YJ330U (33) T 48.1/22.9
R110 7030000230 S.RES MCR10EZHJ 56 (560) B 47.7/13.3
R111 7030003420 S.RES ERJ3GEYJ 681 V (680) B 49.1/10.0
R112 7030003500 S.RES ERJ3GEYJ 332 V (3.3K) B 49.5/17.4
R113 7030003540 S.RES ERJ3GEYJ 682 V (6.8K) B 46.4/17.4
R116 7030000340 S.RES MCR10EZHJ 470 (471) B 53.5/12.3
R118 7030003860 S.RES ERJ3GE JPW V T 58.9/11.2
R151 7030003370 S.RES ERJ3GEYJ 271 V (270) T 81.6/105.3
R161 7030003380 S.RES ERJ3GEYJ 331 V (330) B 33.8/22.9
R162 7030003370 S.RES ERJ3GEYJ 271 V (270) B 35.2/17.4
R163 7030003520 S.RES ERJ3GEYJ 472 V (4.7K)ATEX T 29.5/29.7
R181 7030003460 S.RES ERJ3GEYJ 152 V (1.5K) B 20.4/30.5
R182 7030003520 S.RES ERJ3GEYJ 472 V (4.7K)ATEX B 21.2/34.2
R183 7030003520 S.RES ERJ3GEYJ 472 V (4.7K)ATEX B 18.2/32.0
R184 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 20.6/28.1
R185 7030003450 S.RES ERJ3GEYJ 122 V (1.2K) B 28.5/29.5
R186 7030003390 S.RES ERJ3GEYJ 391 V (390) B 26.1/29.1
R188 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 31.6/29.5
R201 7030003320 S.RES ERJ3GEYJ 101 V (100) B 58.8/32.6
R202 7030003520 S.RES ERJ3GEYJ 472 V (4.7K)ATEX B 59.5/30.3
R204 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 59.5/23.3
R205 7030000230 S.RES MCR10EZHJ 56 (560) T 62.1/16.3
R251 7030009800 S.RES ERJ12YJ121U (120) B 70.5/13.9
R261 7030006240 S.RES ERJ12YJ181U (180) T 80.2/26.6
R292 7030003640 S.RES ERJ3GEYJ 473 V (47K)ATEX T 43.3/29.2
R293 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 40.9/30.0
R301 7030009300 S.RES ERJ1WY0R00U T 95.2/66.7
R302 7030010520 S.RES ERJ1TYJ 101U (100) T 101.6/71.0
R303 7030009300 S.RES ERJ1WY0R00U T 95.2/75.4
R304 7030003320 S.RES ERJ3GEYJ 101 V (100) B 102.0/55.2
R305 7030010410 S.RES ERJ1TYJ 220U (22) B 95.7/56.6
R306 7030003320 S.RES ERJ3GEYJ 101 V (100) B 102.0/86.9
R307 7030010410 S.RES ERJ1TYJ 220U (22) B 95.7/85.4
R308 7030003480 S.RES ERJ3GEYJ 222 V (2.2K)ATEX T 95.8/59.7
R309 7030003480 S.RES ERJ3GEYJ 222 V (2.2K)ATEX T 95.8/82.3
R310 7030007630 S.RES MCR100JZHJ 0.68 (R68) T 93.3/58.7
R311 7030007630 S.RES MCR100JZHJ 0.68 (R68) T 93.3/83.4
R312 7030011030 S.RES ERJ1TYJ 270U (27) B 88.4/61.7
R313 7030010410 S.RES ERJ1TYJ 220U (22) B 88.4/65.7
R314 7030010410 S.RES ERJ1TYJ 220U (22) B 88.4/76.3
R315 7030011030 S.RES ERJ1TYJ 270U (27) B 88.4/80.3
R317 7030010950 S.RES ERJ1TYJ 100U (10) B 26.6/51.2
R318 7030010950 S.RES ERJ1TYJ 100U (10) B 26.6/55.4
R319 7030010660 S.RES ERJ1TYJ 6R8U (6.8) B 64.0/71.0
R351 7510001470 S.THE NTCG20 4AG 473JT B 92.1/38.8
R352 7030003480 S.RES ERJ3GEYJ 222 V (2.2K)ATEX B 91.8/35.8
R361 7030012720 S.RES PMR50HZPFV1L00 (0.001) T 34.9/86.3
R364 7030003320 S.RES ERJ3GEYJ 101 V (100) T 29.0/88.1
R365 7030003360 S.RES ERJ3GEYJ 221 V (220) T 27.2/86.3
R391 7030003680 S.RES ERJ3GEYJ 104 V (100K)ATEX T 5.5/28.5
R392 7030003670 S.RES ERJ3GEYJ 823 V (82K) T 6.8/28.5
R393 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 2.5/31.4
R394 7030003640 S.RES ERJ3GEYJ 473 V (47K)ATEX T 4.4/31.1
R395 7030009300 S.RES ERJ1WY0R00U B 13.2/25.0
R422 7030007990 S.RES ERJ12YJ820U (82) B 140.3/73.1
R424 7030001650 S.RES MCR18EZHJ 270 T 138.9/97.7
R426 7030003270 S.RES ERJ3GEYJ 390 V (39) T 135.7/102.0
R429 7030003270 S.RES ERJ3GEYJ 390 V (39) T 136.9/102.0
R431 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX T 142.3/70.5
R433 7030006270 S.RES ERJ12YJ221U (220) B 141.6/68.9
R434 7030006270 S.RES ERJ12YJ221U (220) B 135.6/49.7
R435 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX T 140.0/105.6
R436 7030006270 S.RES ERJ12YJ221U (220) B 141.7/104.8
R437 7030006270 S.RES ERJ12YJ221U (220) B 141.7/109.0
R451 7030003470 S.RES ERJ3GEYJ 182 V (1.8K) B 123.0/101.9
R452 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) T 121.4/104.6
R453 7030003260 S.RES ERJ3GEYJ 330 V (33) T 119.9/104.6
R455 7030003640 S.RES ERJ3GEYJ 473 V (47K)ATEX B 116.1/102.3
R456 7030003710 S.RES ERJ3GEYJ 184 V (180K) T 114.6/106.6
R457 7030003750 S.RES ERJ3GEYJ 394 V (390K) B 114.6/106.6
R458 7030003710 S.RES ERJ3GEYJ 184 V (180K) B 115.4/110.1
R459 7030003740 S.RES ERJ3GEYJ 334 V (330K) B 114.6/108.7
R460 7030003740 S.RES ERJ3GEYJ 334 V (330K) B 112.5/110.1
R461 7030003270 S.RES ERJ3GEYJ 390 V (39) T 110.2/109.2
R462 7030003680 S.RES ERJ3GEYJ 104 V (100K)ATEX B 110.2/103.4
R463 7030003520 S.RES ERJ3GEYJ 472 V (4.7K)ATEX T 106.6/106.3
R464 7030003210 S.RES ERJ3GEYJ 120 V (12) B 106.6/106.3
R465 7030003680 S.RES ERJ3GEYJ 104 V (100K)ATEX B 105.9/100.6
R477 7030003370 S.RES ERJ3GEYJ 271 V (270) T 87.7/106.8
R481 7030003490 S.RES ERJ3GEYJ 272 V (2.7K) T 98.1/106.7
R482 7030003360 S.RES ERJ3GEYJ 221 V (220) T 97.5/108.6
R483 7030003400 S.RES ERJ3GEYJ 471 V (470) T 97.5/104.5
R484 7030003200 S.RES ERJ3GEYJ 100 V (10) T 94.7/104.5
R492 7030003640 S.RES ERJ3GEYJ 473 V (47K)ATEX T 53.8/29.6
R493 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 51.4/31.6
R502 7030003860 S.RES ERJ3GE JPW V T 81.4/5.1
R504 7030007240 S.RES ERJ12YJ680U (68) T 81.0/13.3
R521 7080001450 RES ERG3SJ 820 (82)
R531 7030009891 S.RES ERA3YED 151V (150) B 125.3/70.4
R532 7030009891 S.RES ERA3YED 151V (150) B 125.3/71.8
R533 7030009661 S.RES ERA3YED 121V (120) T 123.8/81.7
R534 7030009661 S.RES ERA3YED 121V (120) T 123.8/80.5
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS
DESCRIPTION M.
H/V
NO. NO.
LOCATION
[PA UNIT]
R551 7030003470 S.RES ERJ3GEYJ 182 V (1.8K) T 124.0/91.4
R552 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) T 122.8/91.4
R553 7030003260 S.RES ERJ3GEYJ 330 V (33) T 120.9/90.1
R554 7030003680 S.RES ERJ3GEYJ 104 V (100K)ATEX B 115.6/88.1
R555 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 117.0/94.1
R556 7030003680 S.RES ERJ3GEYJ 104 V (100K)ATEX B 119.0/89.7
R557 7030003740 S.RES ERJ3GEYJ 334 V (330K) T 111.3/90.7
R558 7030003710 S.RES ERJ3GEYJ 184 V (180K) T 113.3/91.9
R559 7030003720 S.RES ERJ3GEYJ 224 V (220K) T 115.5/96.0
R560 7030003720 S.RES ERJ3GEYJ 224 V (220K) T 113.5/96.8
R561 7030003740 S.RES ERJ3GEYJ 334 V (330K) T 112.3/96.8
R562 7030003270 S.RES ERJ3GEYJ 390 V (39) T 109.5/90.5
R563 7030003420 S.RES ERJ3GEYJ 681 V (680) T 105.2/93.5
R564 7030003210 S.RES ERJ3GEYJ 120 V (12) T 105.2/90.8
R565 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 104.1/94.7
R567 7030003680 S.RES ERJ3GEYJ 104 V (100K)ATEX B 106.1/90.1
R568 7030003680 S.RES ERJ3GEYJ 104 V (100K)ATEX B 103.9/91.7
R570 7030003370 S.RES ERJ3GEYJ 271 V (270) B 99.0/92.5
R575 7030003520 S.RES ERJ3GEYJ 472 V (4.7K)ATEX B 106.7/91.7
R576 7030003540 S.RES ERJ3GEYJ 682 V (6.8K) B 107.5/93.3
R577 7030003520 S.RES ERJ3GEYJ 472 V (4.7K)ATEX B 119.0/88.1
R578 7030003540 S.RES ERJ3GEYJ 682 V (6.8K) B 119.0/86.5
R591 7030010220 S.RES MCR18EZHJ 47 K B 143.6/172.6
R651 7030010980 S.RES ERA3YHD 470V (47) T 143.8/167.0
R652 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 132.0/151.1
R653 7030003680 S.RES ERJ3GEYJ 104 V (100K)ATEX B 130.2/147.7
R654 7030003680 S.RES ERJ3GEYJ 104 V (100K)ATEX T 131.3/144.1
R655 7030003580 S.RES ERJ3GEYJ 153 V (15K)ATEX T 128.5/146.5
R656 7030003620 S.RES ERJ3GEYJ 333 V (33K)ATEX T 131.3/146.5
R657 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 128.4/151.1
R658 7030003380 S.RES ERJ3GEYJ 331 V (330) B 130.2/151.1
R659 7510001561 S.THE NTCG16 4BH 102JT T 131.3/145.3
R661 7030010980 S.RES ERA3YHD 470V (47) T 136.2/162.8
R662 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 131.4/158.2
R663 7030003680 S.RES ERJ3GEYJ 104 V (100K)ATEX B 132.2/155.6
R664 7030003680 S.RES ERJ3GEYJ 104 V (100K)ATEX T 131.3/157.0
R665 7030003590 S.RES ERJ3GEYJ 183 V (18K) T 128.5/157.0
R666 7030003650 S.RES ERJ3GEYJ 563 V (56K) T 131.3/155.7
R667 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 128.9/155.6
R668 7030003380 S.RES ERJ3GEYJ 331 V (330) B 128.9/153.8
R751 7030003320 S.RES ERJ3GEYJ 101 V (100) T 10.2/94.2
R752 7030003320 S.RES ERJ3GEYJ 101 V (100) T 17.4/92.9
R753 7030003320 S.RES ERJ3GEYJ 101 V (100) T 10.0/91.8
R754 7030003320 S.RES ERJ3GEYJ 101 V (100) T 10.0/93.0
R755 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 9.6/99.1
R756 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 18.6/93.6
R757 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 11.1/92.5
R758 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 11.1/95.7
R771 7030000280 S.RES MCR10EZHJ 150 (151) T 17.6/151.3
R772 7030000290 S.RES MCR10EZHJ 180 (181) T 17.6/153.0
R791 7030003400 S.RES ERJ3GEYJ 471 V (470) B 23.6/14.3
R804 7030003860 S.RES ERJ3GE JPW V T 79.5/108.4
R808 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 81.6/107.9
R960 7030003380 S.RES ERJ3GEYJ 331 V (330) B 65.1/176.6
R961 7030003380 S.RES ERJ3GEYJ 331 V (330) B 65.1/173.9
R962 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 65.1/170.5
R963 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 65.1/178.4
R964 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 84.6/171.2
R965 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 77.0/171.2
R966 7030007180 S.RES ERJ12YJ150U (15) B 85.7/176.4
R967 7030003640 S.RES ERJ3GEYJ 473 V (47K)ATEX T 68.6/171.0
R968 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX T 97.2/180.4
R969 7030003560 S.RES ERJ3GEYJ 103 V (10K)ATEX B 76.9/174.5
R970 7030003640 S.RES ERJ3GEYJ 473 V (47K)ATEX T 69.1/178.3
R971 7540000330 S.ABS CSA70-401L-T B 102.6/173.6
R972 7030010210 S.RES MCR18EZHJ 100 K B 102.7/177.0
R973 7030003620 S.RES ERJ3GEYJ 333 V (33K)ATEX T 66.0/179.0
R974 7030003620 S.RES ERJ3GEYJ 333 V (33K)ATEX T 65.3/170.2
R975 7030003860 S.RES ERJ3GE JPW V T 69.8/172.5
R976 7030003860 S.RES ERJ3GE JPW V T 69.8/175.2
R977 7030003650 S.RES ERJ3GEYJ 563 V (56K) T 65.3/169.0
R978 7030003650 S.RES ERJ3GEYJ 563 V (56K) T 66.0/180.2
R979 7030007180 S.RES ERJ12YJ150U (15) B 90.0/180.7
C101 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 32.8/11.1
C102 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 38.9/12.8
C103 4030011340 S.CER C1608 CH 1H 471J-T B 36.7/9.8
C104 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 40.9/15.2
C105 4510010300 S.ELE 16 CE 470 AX T 40.9/20.7
C106 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 44.2/25.7
C107 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 45.7/9.4
C108 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 49.5/15.5
C109 4030011340 S.CER C1608 CH 1H 471J-T B 47.6/11.3
C112 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 53.8/14.6
C114 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 52.3/25.1
C116 4030007100 S.CER C1608 CH 1H 560J-T T 56.1/10.0
C118 4030007020 S.CER C1608 CH 1H 120J-T T 58.1/8.0
C122 4510009920 S.ELE 16 CE 100 LH T 59.0/25.2
C151 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 80.3/106.3
C152 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 83.6/108.4
C161 4030006850 S.CER C1608 JB 1H 471K-T B 29.5/22.1
C162 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 29.5/23.7
C163 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 29.7/17.6
C164 4030006860 S.CER C1608 JB 1H 102K-T ATEX T 30.9/17.6
C165 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 36.1/15.1
C166 4030009520 S.CER C1608 CH 1H 020B-T B 41.0/68.6
C167 4030009520 S.CER C1608 CH 1H 020B-T B 38.9/87.7
C168 4030009540 S.CER C1608 CH 1H 1R5B-T B 59.5/96.4
C181 4030006900 S.CER C1608 JB 1H 103K-T ATEX B 30.3/33.4
C182 4030019120 S.CER GRM188B31E105KA75D B 30.7/27.9
C201 4030011600 S.CER C1608 JB 1E 104K-T ATEX T 61.6/10.0
C202 4030006860 S.CER C1608 JB 1H 102K-T ATEX T 61.6/11.2
C204 4030011600 S.CER C1608 JB 1E 104K-T ATEX B 59.5/21.5
C205 4030006860 S.CER C1608 JB 1H 102K-T ATEX B 59.5/35.0
Eqv.= This component is equivalent to the REF No. component listed above, and
may be substituted on parts orders and repairs.
