7
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.

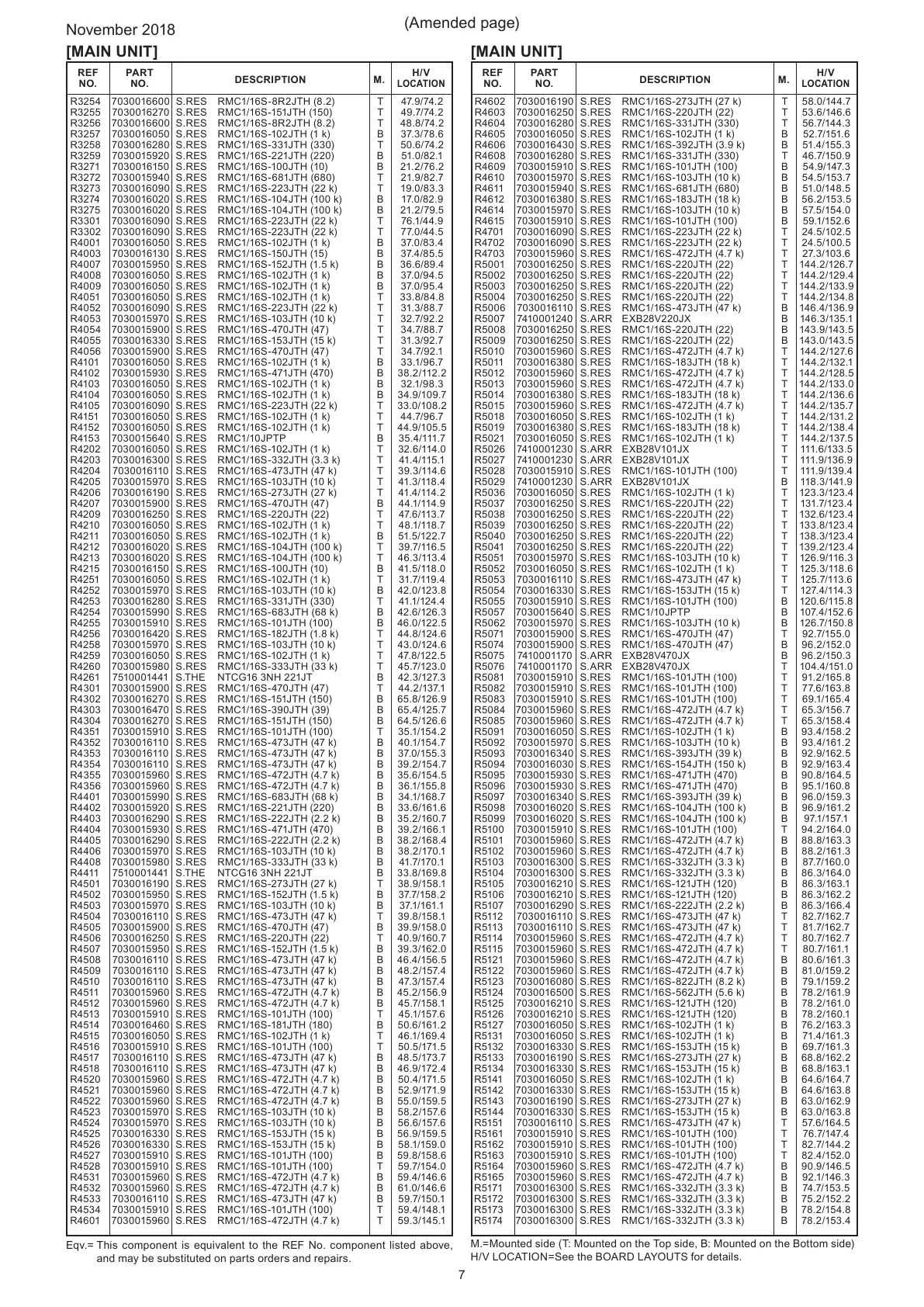

[MAIN UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
(Amended page)
November 2018
R3254 7030016600 S.RES RMC1/16S-8R2JTH (8.2) T 47.9/74.2
R3255 7030016270 S.RES RMC1/16S-151JTH (150) T 49.7/74.2
R3256 7030016600 S.RES RMC1/16S-8R2JTH (8.2) T 48.8/74.2
R3257 7030016050 S.RES RMC1/16S-102JTH (1 k) B 37.3/78.6
R3258 7030016280 S.RES RMC1/16S-331JTH (330) T 50.6/74.2
R3259 7030015920 S.RES RMC1/16S-221JTH (220) B 51.0/82.1
R3271 7030016150 S.RES RMC1/16S-100JTH (10) B 21.2/76.2
R3272 7030015940 S.RES RMC1/16S-681JTH (680) T 21.9/82.7
R3273 7030016090 S.RES RMC1/16S-223JTH (22 k) T 19.0/83.3
R3274 7030016020 S.RES RMC1/16S-104JTH (100 k) B 17.0/82.9
R3275 7030016020 S.RES RMC1/16S-104JTH (100 k) B 21.2/79.5
R3301 7030016090 S.RES RMC1/16S-223JTH (22 k) T 76.1/44.9
R3302 7030016090 S.RES RMC1/16S-223JTH (22 k) T 77.0/44.5
R4001 7030016050 S.RES RMC1/16S-102JTH (1 k) B 37.0/83.4
R4003 7030016130 S.RES RMC1/16S-150JTH (15) B 37.4/85.5
R4007 7030015950 S.RES RMC1/16S-152JTH (1.5 k) B 36.6/89.4
R4008 7030016050 S.RES RMC1/16S-102JTH (1 k) B 37.0/94.5
R4009 7030016050 S.RES RMC1/16S-102JTH (1 k) B 37.0/95.4
R4051 7030016050 S.RES RMC1/16S-102JTH (1 k) T 33.8/84.8
R4052 7030016090 S.RES RMC1/16S-223JTH (22 k) T 31.3/88.7
R4053 7030015970 S.RES RMC1/16S-103JTH (10 k) T 32.7/92.2
R4054 7030015900 S.RES RMC1/16S-470JTH (47) T 34.7/88.7
R4055 7030016330 S.RES RMC1/16S-153JTH (15 k) T 31.3/92.7
R4056 7030015900 S.RES RMC1/16S-470JTH (47) T 34.7/92.1
R4101 7030016050 S.RES RMC1/16S-102JTH (1 k) B 33.1/96.7
R4102 7030015930 S.RES RMC1/16S-471JTH (470) B 38.2/112.2
R4103 7030016050 S.RES RMC1/16S-102JTH (1 k) B 32.1/98.3
R4104 7030016050 S.RES RMC1/16S-102JTH (1 k) B 34.9/109.7
R4105 7030016090 S.RES RMC1/16S-223JTH (22 k) T 33.0/108.2
R4151 7030016050 S.RES RMC1/16S-102JTH (1 k) T 44.7/96.7
R4152 7030016050 S.RES RMC1/16S-102JTH (1 k) T 44.9/105.5
R4153 7030015640 S.RES RMC1/10JPTP B 35.4/111.7
R4202 7030016050 S.RES RMC1/16S-102JTH (1 k) T 32.6/114.0
R4203 7030016300 S.RES RMC1/16S-332JTH (3.3 k) T 41.4/115.1
R4204 7030016110 S.RES RMC1/16S-473JTH (47 k) T 39.3/114.6
R4205 7030015970 S.RES RMC1/16S-103JTH (10 k) T 41.3/118.4
R4206 7030016190 S.RES RMC1/16S-273JTH (27 k) T 41.4/114.2
R4207 7030015900 S.RES RMC1/16S-470JTH (47) B 44.1/114.9
R4209 7030016250 S.RES RMC1/16S-220JTH (22) T 47.6/113.7
R4210 7030016050 S.RES RMC1/16S-102JTH (1 k) T 48.1/118.7
R4211 7030016050 S.RES RMC1/16S-102JTH (1 k) B 51.5/122.7
R4212 7030016020 S.RES RMC1/16S-104JTH (100 k) T 39.7/116.5
R4213 7030016020 S.RES RMC1/16S-104JTH (100 k) T 46.3/113.4
R4215 7030016150 S.RES RMC1/16S-100JTH (10) B 41.5/118.0
R4251 7030016050 S.RES RMC1/16S-102JTH (1 k) T 31.7/119.4
R4252 7030015970 S.RES RMC1/16S-103JTH (10 k) B 42.0/123.8
R4253 7030016280 S.RES RMC1/16S-331JTH (330) T 41.1/124.4
R4254 7030015990 S.RES RMC1/16S-683JTH (68 k) B 42.6/126.3
R4255 7030015910 S.RES RMC1/16S-101JTH (100) B 46.0/122.5
R4256 7030016420 S.RES RMC1/16S-182JTH (1.8 k) T 44.8/124.6
R4258 7030015970 S.RES RMC1/16S-103JTH (10 k) T 43.0/124.6
R4259 7030016050 S.RES RMC1/16S-102JTH (1 k) T 47.8/122.5
R4260 7030015980 S.RES RMC1/16S-333JTH (33 k) T 45.7/123.0
R4261 7510001441 S.THE NTCG16 3NH 221JT B 42.3/127.3
R4301 7030015900 S.RES RMC1/16S-470JTH (47) T 44.2/137.1
R4302 7030016270 S.RES RMC1/16S-151JTH (150) B 65.8/126.9
R4303 7030016470 S.RES RMC1/16S-390JTH (39) B 65.4/125.7
R4304 7030016270 S.RES RMC1/16S-151JTH (150) B 64.5/126.6
R4351 7030015910 S.RES RMC1/16S-101JTH (100) T 35.1/154.2
R4352 7030016110 S.RES RMC1/16S-473JTH (47 k) B 40.1/154.7
R4353 7030016110 S.RES RMC1/16S-473JTH (47 k) B 37.0/155.3
R4354 7030016110 S.RES RMC1/16S-473JTH (47 k) B 39.2/154.7
R4355 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 35.6/154.5
R4356 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 36.1/155.8
R4401 7030015990 S.RES RMC1/16S-683JTH (68 k) B 34.1/168.7
R4402 7030015920 S.RES RMC1/16S-221JTH (220) B 33.6/161.6
R4403 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 35.2/160.7
R4404 7030015930 S.RES RMC1/16S-471JTH (470) B 39.2/166.1
R4405 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 38.2/168.4
R4406 7030015970 S.RES RMC1/16S-103JTH (10 k) B 38.2/170.1
R4408 7030015980 S.RES RMC1/16S-333JTH (33 k) B 41.7/170.1
R4411 7510001441 S.THE NTCG16 3NH 221JT B 33.8/169.8
R4501 7030016190 S.RES RMC1/16S-273JTH (27 k) T 38.9/158.1
R4502 7030015950 S.RES RMC1/16S-152JTH (1.5 k) B 37.7/158.2
R4503 7030015970 S.RES RMC1/16S-103JTH (10 k) B 37.1/161.1
R4504 7030016110 S.RES RMC1/16S-473JTH (47 k) T 39.8/158.1
R4505 7030015900 S.RES RMC1/16S-470JTH (47) B 39.9/158.0
R4506 7030016250 S.RES RMC1/16S-220JTH (22) T 40.9/160.7
R4507 7030015950 S.RES RMC1/16S-152JTH (1.5 k) B 39.3/162.0
R4508 7030016110 S.RES RMC1/16S-473JTH (47 k) B 46.4/156.5
R4509 7030016110 S.RES RMC1/16S-473JTH (47 k) B 48.2/157.4
R4510 7030016110 S.RES RMC1/16S-473JTH (47 k) B 47.3/157.4
R4511 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 45.2/156.9
R4512 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 45.7/158.1
R4513 7030015910 S.RES RMC1/16S-101JTH (100) T 45.1/157.6
R4514 7030016460 S.RES RMC1/16S-181JTH (180) B 50.6/161.2
R4515 7030016050 S.RES RMC1/16S-102JTH (1 k) T 46.1/169.4
R4516 7030015910 S.RES RMC1/16S-101JTH (100) T 50.5/171.5
R4517 7030016110 S.RES RMC1/16S-473JTH (47 k) B 48.5/173.7
R4518 7030016110 S.RES RMC1/16S-473JTH (47 k) B 46.9/172.4
R4520 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 50.4/171.5
R4521 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 52.9/171.9
R4522 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 55.0/159.5
R4523 7030015970 S.RES RMC1/16S-103JTH (10 k) B 58.2/157.6
R4524 7030015970 S.RES RMC1/16S-103JTH (10 k) B 56.6/157.6
R4525 7030016330 S.RES RMC1/16S-153JTH (15 k) B 56.9/159.5
R4526 7030016330 S.RES RMC1/16S-153JTH (15 k) B 58.1/159.0
R4527 7030015910 S.RES RMC1/16S-101JTH (100) B 59.8/158.6
R4528 7030015910 S.RES RMC1/16S-101JTH (100) T 59.7/154.0
R4531 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 59.4/146.6
R4532 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 61.0/146.6
R4533 7030016110 S.RES RMC1/16S-473JTH (47 k) B 59.7/150.1
R4534 7030015910 S.RES RMC1/16S-101JTH (100) T 59.4/148.1
R4601 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 59.3/145.1
R4602 7030016190 S.RES RMC1/16S-273JTH (27 k) T 58.0/144.7
R4603 7030016250 S.RES RMC1/16S-220JTH (22) T 53.6/146.6
R4604 7030016280 S.RES RMC1/16S-331JTH (330) T 56.7/144.3
R4605 7030016050 S.RES RMC1/16S-102JTH (1 k) B 52.7/151.6
R4606 7030016430 S.RES RMC1/16S-392JTH (3.9 k) B 51.4/155.3
R4608 7030016280 S.RES RMC1/16S-331JTH (330) T 46.7/150.9
R4609 7030015910 S.RES RMC1/16S-101JTH (100) B 54.9/147.3
R4610 7030015970 S.RES RMC1/16S-103JTH (10 k) B 54.5/153.7
R4611 7030015940 S.RES RMC1/16S-681JTH (680) B 51.0/148.5
R4612 7030016380 S.RES RMC1/16S-183JTH (18 k) B 56.2/153.5
R4614 7030015970 S.RES RMC1/16S-103JTH (10 k) B 57.5/154.0
R4615 7030015910 S.RES RMC1/16S-101JTH (100) B 59.1/152.6
R4701 7030016090 S.RES RMC1/16S-223JTH (22 k) T 24.5/102.5
R4702 7030016090 S.RES RMC1/16S-223JTH (22 k) T 24.5/100.5
R4703 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 27.3/103.6
R5001 7030016250 S.RES RMC1/16S-220JTH (22) T 144.2/126.7
R5002 7030016250 S.RES RMC1/16S-220JTH (22) T 144.2/129.4
R5003 7030016250 S.RES RMC1/16S-220JTH (22) T 144.2/133.9
R5004 7030016250 S.RES RMC1/16S-220JTH (22) T 144.2/134.8
R5006 7030016110 S.RES RMC1/16S-473JTH (47 k) B 146.4/136.9
R5007 7410001240 S.ARR EXB28V220JX B 146.3/135.1
R5008 7030016250 S.RES RMC1/16S-220JTH (22) B 143.9/143.5
R5009 7030016250 S.RES RMC1/16S-220JTH (22) B 143.0/143.5
R5010 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 144.2/127.6
R5011 7030016380 S.RES RMC1/16S-183JTH (18 k) T 144.2/132.1
R5012 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 144.2/128.5
R5013 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 144.2/133.0
R5014 7030016380 S.RES RMC1/16S-183JTH (18 k) T 144.2/136.6
R5015 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 144.2/135.7
R5018 7030016050 S.RES RMC1/16S-102JTH (1 k) T 144.2/131.2
R5019 7030016380 S.RES RMC1/16S-183JTH (18 k) T 144.2/138.4
R5021 7030016050 S.RES RMC1/16S-102JTH (1 k) T 144.2/137.5
R5026 7410001230 S.ARR EXB28V101JX T 111.6/133.5
R5027 7410001230 S.ARR EXB28V101JX T 111.9/136.9
R5028 7030015910 S.RES RMC1/16S-101JTH (100) T 111.9/139.4
R5029 7410001230 S.ARR EXB28V101JX B 118.3/141.9
R5036 7030016050 S.RES RMC1/16S-102JTH (1 k) T 123.3/123.4
R5037 7030016250 S.RES RMC1/16S-220JTH (22) T 131.7/123.4
R5038 7030016250 S.RES RMC1/16S-220JTH (22) T 132.6/123.4
R5039 7030016250 S.RES RMC1/16S-220JTH (22) T 133.8/123.4
R5040 7030016250 S.RES RMC1/16S-220JTH (22) T 138.3/123.4
R5041 7030016250 S.RES RMC1/16S-220JTH (22) T 139.2/123.4
R5051 7030015970 S.RES RMC1/16S-103JTH (10 k) T 126.9/116.3
R5052 7030016050 S.RES RMC1/16S-102JTH (1 k) T 125.3/118.6
R5053 7030016110 S.RES RMC1/16S-473JTH (47 k) T 125.7/113.6
R5054 7030016330 S.RES RMC1/16S-153JTH (15 k) T 127.4/114.3
R5055 7030015910 S.RES RMC1/16S-101JTH (100) B 120.6/115.8
R5057 7030015640 S.RES RMC1/10JPTP B 107.4/152.6
R5062 7030015970 S.RES RMC1/16S-103JTH (10 k) B 126.7/150.8
R5071 7030015900 S.RES RMC1/16S-470JTH (47) T 92.7/155.0
R5074 7030015900 S.RES RMC1/16S-470JTH (47) B 96.2/152.0
R5075 7410001170 S.ARR EXB28V470JX B 96.2/150.3
R5076 7410001170 S.ARR EXB28V470JX T 104.4/151.0
R5081 7030015910 S.RES RMC1/16S-101JTH (100) T 91.2/165.8
R5082 7030015910 S.RES RMC1/16S-101JTH (100) T 77.6/163.8
R5083 7030015910 S.RES RMC1/16S-101JTH (100) T 69.1/165.4
R5084 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 65.3/156.7
R5085 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 65.3/158.4
R5091 7030016050 S.RES RMC1/16S-102JTH (1 k) B 93.4/158.2
R5092 7030015970 S.RES RMC1/16S-103JTH (10 k) B 93.4/161.2
R5093 7030016340 S.RES RMC1/16S-393JTH (39 k) B 92.9/162.5
R5094 7030016030 S.RES RMC1/16S-154JTH (150 k) B 92.9/163.4
R5095 7030015930 S.RES RMC1/16S-471JTH (470) B 90.8/164.5
R5096 7030015930 S.RES RMC1/16S-471JTH (470) B 95.1/160.8
R5097 7030016340 S.RES RMC1/16S-393JTH (39 k) B 96.0/159.3
R5098 7030016020 S.RES RMC1/16S-104JTH (100 k) B 96.9/161.2
R5099 7030016020 S.RES RMC1/16S-104JTH (100 k) B 97.1/157.1
R5100 7030015910 S.RES RMC1/16S-101JTH (100) T 94.2/164.0
R5101 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 88.8/163.3
R5102 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 88.2/161.3
R5103 7030016300 S.RES RMC1/16S-332JTH (3.3 k) B 87.7/160.0
R5104 7030016300 S.RES RMC1/16S-332JTH (3.3 k) B 86.3/164.0
R5105 7030016210 S.RES RMC1/16S-121JTH (120) B 86.3/163.1
R5106 7030016210 S.RES RMC1/16S-121JTH (120) B 86.3/162.2
R5107 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 86.3/166.4
R5112 7030016110 S.RES RMC1/16S-473JTH (47 k) T 82.7/162.7
R5113 7030016110 S.RES RMC1/16S-473JTH (47 k) T 81.7/162.7
R5114 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 80.7/162.7
R5115 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 80.7/161.1
R5121 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 80.6/161.3
R5122 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 81.0/159.2
R5123 7030016080 S.RES RMC1/16S-822JTH (8.2 k) B 79.1/159.2
R5124 7030016500 S.RES RMC1/16S-562JTH (5.6 k) B 78.2/161.9
R5125 7030016210 S.RES RMC1/16S-121JTH (120) B 78.2/161.0
R5126 7030016210 S.RES RMC1/16S-121JTH (120) B 78.2/160.1
R5127 7030016050 S.RES RMC1/16S-102JTH (1 k) B 76.2/163.3
R5131 7030016050 S.RES RMC1/16S-102JTH (1 k) B 71.4/161.3
R5132 7030016330 S.RES RMC1/16S-153JTH (15 k) B 69.7/161.3
R5133 7030016190 S.RES RMC1/16S-273JTH (27 k) B 68.8/162.2
R5134 7030016330 S.RES RMC1/16S-153JTH (15 k) B 68.8/163.1
R5141 7030016050 S.RES RMC1/16S-102JTH (1 k) B 64.6/164.7
R5142 7030016330 S.RES RMC1/16S-153JTH (15 k) B 64.6/163.8
R5143 7030016190 S.RES RMC1/16S-273JTH (27 k) B 63.0/162.9
R5144 7030016330 S.RES RMC1/16S-153JTH (15 k) B 63.0/163.8
R5151 7030016110 S.RES RMC1/16S-473JTH (47 k) T 57.6/164.5
R5161 7030015910 S.RES RMC1/16S-101JTH (100) T 76.7/147.4
R5162 7030015910 S.RES RMC1/16S-101JTH (100) T 82.7/144.2
R5163 7030015910 S.RES RMC1/16S-101JTH (100) T 82.4/152.0
R5164 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 90.9/146.5
R5165 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 92.1/146.3
R5171 7030016300 S.RES RMC1/16S-332JTH (3.3 k) B 74.7/153.5
R5172 7030016300 S.RES RMC1/16S-332JTH (3.3 k) B 75.2/152.2
R5173 7030016300 S.RES RMC1/16S-332JTH (3.3 k) B 78.2/154.8
R5174 7030016300 S.RES RMC1/16S-332JTH (3.3 k) B 78.2/153.4
To Next Page
Loading...
