6
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
(Amended page)
November 2018
R2111 7030016050 S.RES RMC1/16S-102JTH (1 k) B 74.4/130.1
R2112 7030015930 S.RES RMC1/16S-471JTH (470) B 72.6/126.9
R2151 7030016590 S.RES RMC1/16S-120JTH (12) T 88.1/126.4
R2152 7030015910 S.RES RMC1/16S-101JTH (100) T 89.3/126.6
R2153 7030016590 S.RES RMC1/16S-120JTH (12) T 89.3/125.7
R2154 7030015970 S.RES RMC1/16S-103JTH (10 k) B 92.1/120.8
R2155 7030016150 S.RES RMC1/16S-100JTH (10) B 92.6/122.0
R2156 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 92.1/124.1
R2157 7030016280 S.RES RMC1/16S-331JTH (330) B 96.2/122.4
R2158 7030015910 S.RES RMC1/16S-101JTH (100) B 90.8/122.8
R2159 7030015910 S.RES RMC1/16S-101JTH (100) B 84.7/122.6
R2160 7030016050 S.RES RMC1/16S-102JTH (1 k) B 85.2/121.4
R2161 7030015930 S.RES RMC1/16S-471JTH (470) B 86.9/122.8
R2162 7030015930 S.RES RMC1/16S-471JTH (470) B 85.6/120.2
R2163 7030015900 S.RES RMC1/16S-470JTH (47) B 88.8/122.8
R2164 7030016150 S.RES RMC1/16S-100JTH (10) B 82.0/120.3
R2165 7030015930 S.RES RMC1/16S-471JTH (470) B 82.6/121.7
R2166 7030015930 S.RES RMC1/16S-471JTH (470) B 80.8/120.6
R2201 7030016050 S.RES RMC1/16S-102JTH (1 k) B 67.4/117.5
R2203 7030015900 S.RES RMC1/16S-470JTH (47) B 71.6/119.7
R2205 7030015920 S.RES RMC1/16S-221JTH (220) B 64.4/114.3
R2207 7030016210 S.RES RMC1/16S-121JTH (120) B 77.5/110.5
R2208 7030016210 S.RES RMC1/16S-121JTH (120) B 76.6/111.0
R2212 7030016560 S.RES RMC1/16SJPTH B 96.1/113.5
R2214 7030015920 S.RES RMC1/16S-221JTH (220) B 64.4/110.5
R2215 7030015920 S.RES RMC1/16S-221JTH (220) B 64.4/109.6
R2216 7030015920 S.RES RMC1/16S-221JTH (220) B 64.4/108.7
R2219 7030016430 S.RES RMC1/16S-392JTH (3.9 k) B 76.9/108.2
R2221 7030015920 S.RES RMC1/16S-221JTH (220) B 66.7/106.6
R2223 7030016050 S.RES RMC1/16S-102JTH (1 k) B 97.1/105.2
R2224 7030016130 S.RES RMC1/16S-150JTH (15) B 98.0/109.9
R2225 7030016560 S.RES RMC1/16SJPTH B 94.9/99.2
R2228 7030016050 S.RES RMC1/16S-102JTH (1 k) B 98.8/104.0
R2251 7030016370 S.RES RMC1/16S-271JTH (270) B 88.2/107.0
R2252 7030016020 S.RES RMC1/16S-104JTH (100 k) B 88.2/106.1
R2261 7030015920 S.RES RMC1/16S-221JTH (220) B 85.5/109.1
R2262 7030016270 S.RES RMC1/16S-151JTH (150) B 86.1/114.8
R2263 7030016470 S.RES RMC1/16S-390JTH (39) B 86.9/115.7
R2264 7030016270 S.RES RMC1/16S-151JTH (150) B 88.2/115.4
R2265 7030015920 S.RES RMC1/16S-221JTH (220) B 92.0/111.4
R2266 7030016370 S.RES RMC1/16S-271JTH (270) B 89.1/114.5
R2267 7030016020 S.RES RMC1/16S-104JTH (100 k) B 90.0/114.5
R2301 7030015920 S.RES RMC1/16S-221JTH (220) B 96.1/97.5
R2302 7030016410 S.RES RMC1/16S-561JTH (560) T 94.5/94.3
R2303 7030016410 S.RES RMC1/16S-561JTH (560) T 94.5/89.2
R2304 7030015920 S.RES RMC1/16S-221JTH (220) B 94.9/85.2
R2305 7030016020 S.RES RMC1/16S-104JTH (100 k) T 94.9/91.4
R2321 7030016410 S.RES RMC1/16S-561JTH (560) T 91.1/96.9
R2322 7030016410 S.RES RMC1/16S-561JTH (560) T 91.1/88.1
R2323 7030016020 S.RES RMC1/16S-104JTH (100 k) T 91.6/89.3
R2324 7030016470 S.RES RMC1/16S-390JTH (39) T 95.1/84.7
R2325 7030016270 S.RES RMC1/16S-151JTH (150) T 96.3/85.1
R2326 7030016270 S.RES RMC1/16S-151JTH (150) T 96.3/84.2
R2351 7030016150 S.RES RMC1/16S-100JTH (10) T 91.7/82.8
R2401 7030016480 S.RES RMC1/16S-821JTH (820) B 87.9/77.9
R2402 7030016410 S.RES RMC1/16S-561JTH (560) B 88.0/82.1
R2403 7030016020 S.RES RMC1/16S-104JTH (100 k) B 77.4/82.7
R2404 7030016150 S.RES RMC1/16S-100JTH (10) T 75.3/84.0
R2405 7030016160 S.RES RMC1/16S-820JTH (82) B 85.6/77.1
R2407 7030016560 S.RES RMC1/16SJPTH B 84.3/78.4
R2410 7030015920 S.RES RMC1/16S-221JTH (220) B 86.8/76.7
R2411 7030016410 S.RES RMC1/16S-561JTH (560) B 79.0/82.7
R2413 7030016480 S.RES RMC1/16S-821JTH (820) B 79.3/79.3
R2414 7030016470 S.RES RMC1/16S-390JTH (39) T 78.1/81.9
R2415 7030016270 S.RES RMC1/16S-151JTH (150) T 78.5/80.6
R2416 7030016270 S.RES RMC1/16S-151JTH (150) T 77.6/80.6
R2419 7030015900 S.RES RMC1/16S-470JTH (47) B 79.9/89.0
R2501 7030016410 S.RES RMC1/16S-561JTH (560) T 65.5/90.2
R2502 7030016210 S.RES RMC1/16S-121JTH (120) B 56.0/90.8
R2503 7030016160 S.RES RMC1/16S-820JTH (82) B 56.5/89.5
R2504 7030016160 S.RES RMC1/16S-820JTH (82) B 55.6/89.5
R2505 7030016410 S.RES RMC1/16S-561JTH (560) T 55.8/90.2
R2506 7030016020 S.RES RMC1/16S-104JTH (100 k) T 63.4/89.7
R2551 7030016410 S.RES RMC1/16S-561JTH (560) T 67.0/85.3
R2552 7030016410 S.RES RMC1/16S-561JTH (560) T 55.9/85.3
R2553 7030016020 S.RES RMC1/16S-104JTH (100 k) T 64.9/84.9
R2555 7030016560 S.RES RMC1/16SJPTH B 55.6/86.3
R2601 7030016410 S.RES RMC1/16S-561JTH (560) T 66.9/80.8
R2602 7030016410 S.RES RMC1/16S-561JTH (560) T 56.0/80.8
R2603 7030016020 S.RES RMC1/16S-104JTH (100 k) T 64.8/80.3
R2604 7030016460 S.RES RMC1/16S-181JTH (180) B 57.5/80.1
R2605 7030016260 S.RES RMC1/16S-330JTH (33) B 56.2/81.3
R2606 7030016460 S.RES RMC1/16S-181JTH (180) B 55.7/80.1
R2651 7030016410 S.RES RMC1/16S-561JTH (560) T 66.5/76.8
R2652 7030016260 S.RES RMC1/16S-330JTH (33) B 56.1/76.9
R2653 7030016460 S.RES RMC1/16S-181JTH (180) B 56.5/75.5
R2654 7030016460 S.RES RMC1/16S-181JTH (180) B 55.6/75.5
R2655 7030016410 S.RES RMC1/16S-561JTH (560) T 55.7/76.8
R2656 7030016020 S.RES RMC1/16S-104JTH (100 k) T 64.0/76.3
R2701 7030016410 S.RES RMC1/16S-561JTH (560) T 65.7/73.1
R2702 7030016470 S.RES RMC1/16S-390JTH (39) B 56.1/71.9
R2703 7030016270 S.RES RMC1/16S-151JTH (150) B 56.6/70.7
R2704 7030016270 S.RES RMC1/16S-151JTH (150) B 55.7/70.7
R2705 7030016410 S.RES RMC1/16S-561JTH (560) T 55.5/73.1
R2706 7030016020 S.RES RMC1/16S-104JTH (100 k) T 64.0/72.7
R2751 7030016480 S.RES RMC1/16S-821JTH (820) B 70.0/87.4
R2752 7030016410 S.RES RMC1/16S-561JTH (560) B 73.5/78.4
R2753 7030016410 S.RES RMC1/16S-561JTH (560) T 55.8/68.2
R2754 7030016480 S.RES RMC1/16S-821JTH (820) B 52.4/91.2
R2755 7030016020 S.RES RMC1/16S-104JTH (100 k) T 57.9/67.7
R2771 7030016160 S.RES RMC1/16S-820JTH (82) B 75.5/67.2
R2772 7030016160 S.RES RMC1/16S-820JTH (82) B 74.3/66.7
R2773 7030016160 S.RES RMC1/16S-820JTH (82) B 75.5/66.3
R2774 7030016370 S.RES RMC1/16S-271JTH (270) B 66.7/65.9
R2775 7030016570 S.RES RMC1/16S-180JTH (18) B 66.2/67.2
R2776 7030016370 S.RES RMC1/16S-271JTH (270) B 65.8/65.9
R2801 7030016560 S.RES RMC1/16SJPTH B 51.6/89.3
R2803 7030016130 S.RES RMC1/16S-150JTH (15) B 47.9/91.7
R3001 7030019460 S.RES RMC1/8-561JTP (560) T 10.1/54.0
R3011 7030016570 S.RES RMC1/16S-180JTH (18) T 15.8/51.8
R3012 7030016370 S.RES RMC1/16S-271JTH (270) T 14.7/50.8
R3013 7030016370 S.RES RMC1/16S-271JTH (270) T 14.7/52.4
R3014 7030015910 S.RES RMC1/16S-101JTH (100) T 17.2/52.1
R3015 7030015910 S.RES RMC1/16S-101JTH (100) T 32.1/51.7
R3016 7030016090 S.RES RMC1/16S-223JTH (22 k) T 32.1/49.7
R3017 7030016090 S.RES RMC1/16S-223JTH (22 k) T 12.2/56.0
R3018 7030016280 S.RES RMC1/16S-331JTH (330) T 23.9/45.8
R3021 7030015910 S.RES RMC1/16S-101JTH (100) B 22.4/40.4
R3022 7030016600 S.RES RMC1/16S-8R2JTH (8.2) B 25.1/40.7
R3023 7030016600 S.RES RMC1/16S-8R2JTH (8.2) B 27.0/40.7
R3024 7030016210 S.RES RMC1/16S-121JTH (120) B 25.6/39.5
R3025 7030016270 S.RES RMC1/16S-151JTH (150) B 24.4/39.1
R3031 7030016150 S.RES RMC1/16S-100JTH (10) B 28.8/55.6
R3032 7030016280 S.RES RMC1/16S-331JTH (330) T 24.3/54.0
R3033 7030015920 S.RES RMC1/16S-221JTH (220) T 24.5/67.7
R3034 7030016090 S.RES RMC1/16S-223JTH (22 k) T 26.4/68.4
R3035 7030016570 S.RES RMC1/16S-180JTH (18) B 24.1/68.1
R3036 7030016370 S.RES RMC1/16S-271JTH (270) B 25.0/68.1
R3037 7030016370 S.RES RMC1/16S-271JTH (270) B 24.5/69.3
R3051 7030016150 S.RES RMC1/16S-100JTH (10) T 18.4/66.8
R3052 7030016150 S.RES RMC1/16S-100JTH (10) B 20.9/67.4
R3053 7030016150 S.RES RMC1/16S-100JTH (10) B 20.5/68.7
R3054 7030016210 S.RES RMC1/16S-121JTH (120) B 19.3/67.4
R3055 7030016280 S.RES RMC1/16S-331JTH (330) B 21.8/50.1
R3056 7030016270 S.RES RMC1/16S-151JTH (150) T 15.4/68.8
R3057 7030016090 S.RES RMC1/16S-223JTH (22 k) T 15.0/70.0
R3071 7030015910 S.RES RMC1/16S-101JTH (100) T 16.4/41.4
R3073 7030016090 S.RES RMC1/16S-223JTH (22 k) T 6.1/55.0
R3074 7030015920 S.RES RMC1/16S-221JTH (220) T 6.3/49.6
R3075 7030015970 S.RES RMC1/16S-103JTH (10 k) T 18.1/42.6
R3076 7030015970 S.RES RMC1/16S-103JTH (10 k) T 19.2/41.7
R3077 7030016050 S.RES RMC1/16S-102JTH (1 k) T 18.7/40.4
R3081 7030019460 S.RES RMC1/8-561JTP (560) B 17.6/33.8
R3082 7030016110 S.RES RMC1/16S-473JTH (47 k) T 18.7/36.2
R3083 7030016470 S.RES RMC1/16S-390JTH (39) B 19.6/30.6
R3084 7030016470 S.RES RMC1/16S-390JTH (39) B 20.8/31.1
R3085 7030016600 S.RES RMC1/16S-8R2JTH (8.2) B 19.6/29.7
R3086 7030019460 S.RES RMC1/8-561JTP (560) T 16.6/31.7
R3087 7030016110 S.RES RMC1/16S-473JTH (47 k) T 19.6/31.3
R3091 7030015920 S.RES RMC1/16S-221JTH (220) T 12.1/68.9
R3092 7030016090 S.RES RMC1/16S-223JTH (22 k) T 11.0/63.6
R3093 7030015920 S.RES RMC1/16S-221JTH (220) T 12.5/70.1
R3111 7030016460 S.RES RMC1/16S-181JTH (180) T 30.1/35.2
R3112 7030016460 S.RES RMC1/16S-181JTH (180) T 30.5/39.2
R3113 7030016090 S.RES RMC1/16S-223JTH (22 k) T 34.4/33.2
R3121 7030016210 S.RES RMC1/16S-121JTH (120) T 36.2/30.5
R3122 7030016460 S.RES RMC1/16S-181JTH (180) T 36.2/39.4
R3123 7030016090 S.RES RMC1/16S-223JTH (22 k) T 38.0/29.1
R3131 7030016210 S.RES RMC1/16S-121JTH (120) T 40.0/32.0
R3132 7030016460 S.RES RMC1/16S-181JTH (180) T 40.3/38.9
R3133 7030016090 S.RES RMC1/16S-223JTH (22 k) T 43.3/29.1
R3141 7030016210 S.RES RMC1/16S-121JTH (120) T 46.6/31.5
R3142 7030016460 S.RES RMC1/16S-181JTH (180) T 46.6/39.3
R3143 7030016090 S.RES RMC1/16S-223JTH (22 k) T 50.2/29.1
R3151 7030016210 S.RES RMC1/16S-121JTH (120) T 52.2/32.4
R3152 7030016460 S.RES RMC1/16S-181JTH (180) T 52.2/38.4
R3153 7030016090 S.RES RMC1/16S-223JTH (22 k) T 55.7/29.1
R3161 7030016210 S.RES RMC1/16S-121JTH (120) T 57.4/32.4
R3162 7030016460 S.RES RMC1/16S-181JTH (180) T 57.4/38.4
R3163 7030016090 S.RES RMC1/16S-223JTH (22 k) T 61.4/29.2
R3171 7030016210 S.RES RMC1/16S-121JTH (120) T 62.7/32.5
R3172 7030016460 S.RES RMC1/16S-181JTH (180) T 63.0/38.1
R3173 7030016090 S.RES RMC1/16S-223JTH (22 k) T 66.7/29.2
R3181 7030016210 S.RES RMC1/16S-121JTH (120) T 68.4/32.0
R3182 7030016460 S.RES RMC1/16S-181JTH (180) T 68.4/37.4
R3183 7030016090 S.RES RMC1/16S-223JTH (22 k) T 70.7/28.9
R3191 7030016210 S.RES RMC1/16S-121JTH (120) T 73.7/31.8
R3192 7030016460 S.RES RMC1/16S-181JTH (180) T 74.4/37.6
R3193 7030016090 S.RES RMC1/16S-223JTH (22 k) T 77.3/29.1
R3201 7030019460 S.RES RMC1/8-561JTP (560) T 48.6/52.6
R3202 7030019460 S.RES RMC1/8-561JTP (560) T 55.7/53.6
R3203 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 57.2/47.3
R3204 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 60.2/47.0
R3205 7030016150 S.RES RMC1/16S-100JTH (10) B 56.3/51.4
R3206 7030016180 S.RES RMC1/16S-680JTH (68) T 65.4/58.6
R3207 7030015910 S.RES RMC1/16S-101JTH (100) T 70.6/55.6

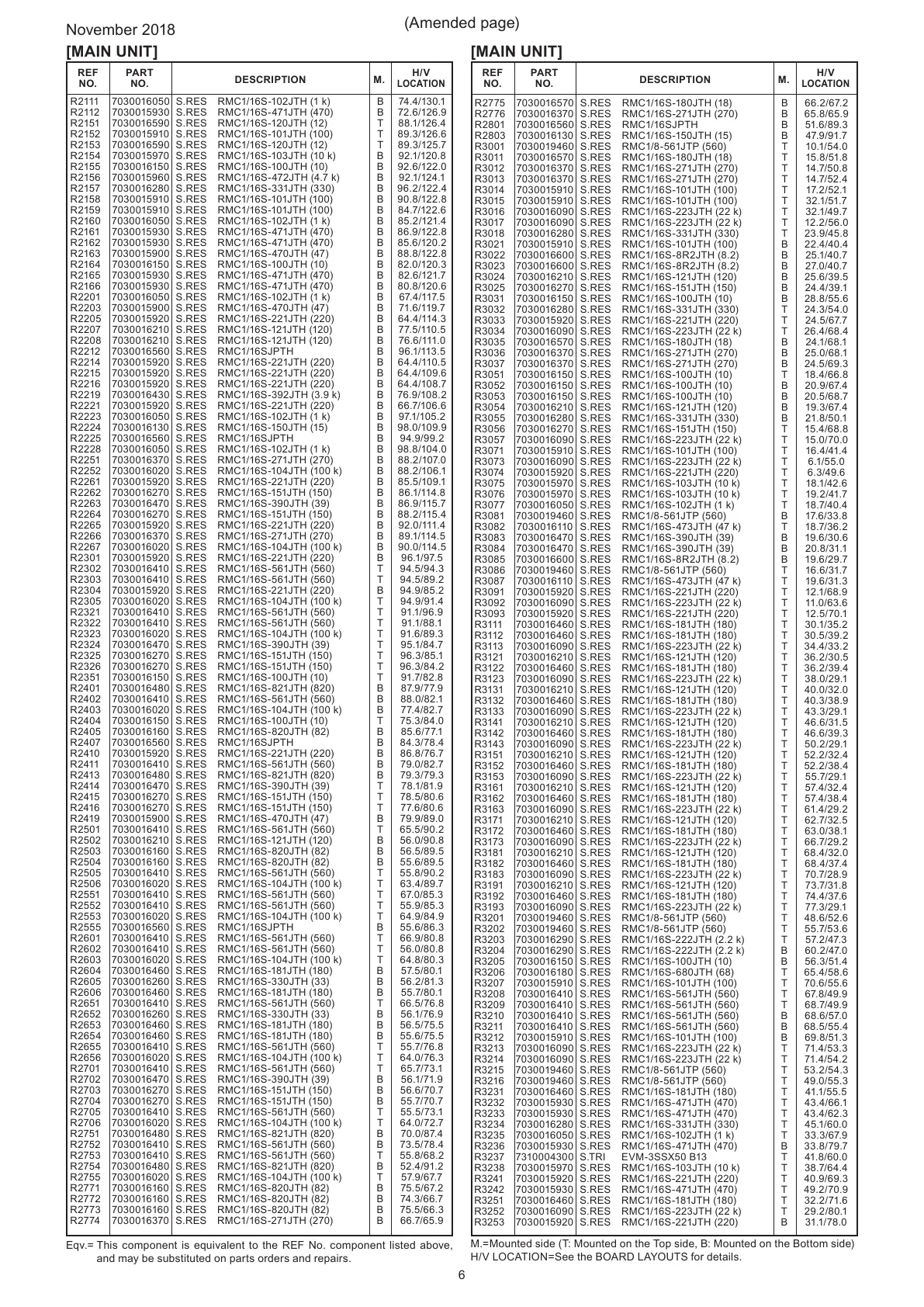

R3208 7030016410 S.RES RMC1/16S-561JTH (560) T 67.8/49.9
R3209 7030016410 S.RES RMC1/16S-561JTH (560) T 68.7/49.9
R3210 7030016410 S.RES RMC1/16S-561JTH (560) B 68.6/57.0
R3211 7030016410 S.RES RMC1/16S-561JTH (560) B 68.5/55.4
R3212 7030015910 S.RES RMC1/16S-101JTH (100) B 69.8/51.3
R3213 7030016090 S.RES RMC1/16S-223JTH (22 k) T 71.4/53.3
R3214 7030016090 S.RES RMC1/16S-223JTH (22 k) T 71.4/54.2
R3215 7030019460 S.RES RMC1/8-561JTP (560) T 53.2/54.3
R3216 7030019460 S.RES RMC1/8-561JTP (560) T 49.0/55.3
R3231 7030016460 S.RES RMC1/16S-181JTH (180) T 41.1/55.5
R3232 7030015930 S.RES RMC1/16S-471JTH (470) T 43.4/66.1
R3233 7030015930 S.RES RMC1/16S-471JTH (470) T 43.4/62.3
R3234 7030016280 S.RES RMC1/16S-331JTH (330) T 45.1/60.0
R3235 7030016050 S.RES RMC1/16S-102JTH (1 k) T 33.3/67.9
R3236 7030015930 S.RES RMC1/16S-471JTH (470) B 33.8/79.7
R3237 7310004300 S.TRI EVM-3SSX50 B13 T 41.8/60.0
R3238 7030015970 S.RES RMC1/16S-103JTH (10 k) T 38.7/64.4
R3241 7030015920 S.RES RMC1/16S-221JTH (220) T 40.9/69.3
R3242 7030015930 S.RES RMC1/16S-471JTH (470) T 49.2/70.9
R3251 7030016460 S.RES RMC1/16S-181JTH (180) T 32.2/71.6
R3252 7030016090 S.RES RMC1/16S-223JTH (22 k) T 29.2/80.1
R3253 7030015920 S.RES RMC1/16S-221JTH (220) B 31.1/78.0

Table of Contents

Other manuals for Icom IC-7100

Preview: Instruction Manual
Instruction Manual197 pages
Preview: Advanced Instructions
Advanced Instructions375 pages
Preview: Service Manual
Service Manual84 pages
Preview: Basic Manual
Basic Manual96 pages
Preview: Quick Start Guide
Quick Start Guide11 pages
Preview: Finger Touch Operation
Finger Touch Operation4 pages
Preview: Reference Manual
Reference Manual13 pages
Preview: Specification
Specification4 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Icom IC-7100 and is the answer not in the manual?

Icom IC-7100 Specifications

General IconGeneral
Supply13.8 V DC ±15%
Voltage13.8 V DC
Operating Temperature-10°C to +60°C
Frequency Coverage0.030-199.999 MHz, 400-470 MHz
ModesSSB, CW, AM, FM, DV
Output PowerHF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver TypeSuperheterodyne
Antenna ConnectorSO-239 (HF/50MHz/144MHz), N-type (430MHz)
WeightMain unit: 2.3 kg
TypeBase/Mobile
Frequency Range TX1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX0.030–199.999 MHz, 400–470 MHz
Memories505
Current ConsumptionTX: 22 A, RX: 1.2 A

Related product manuals
