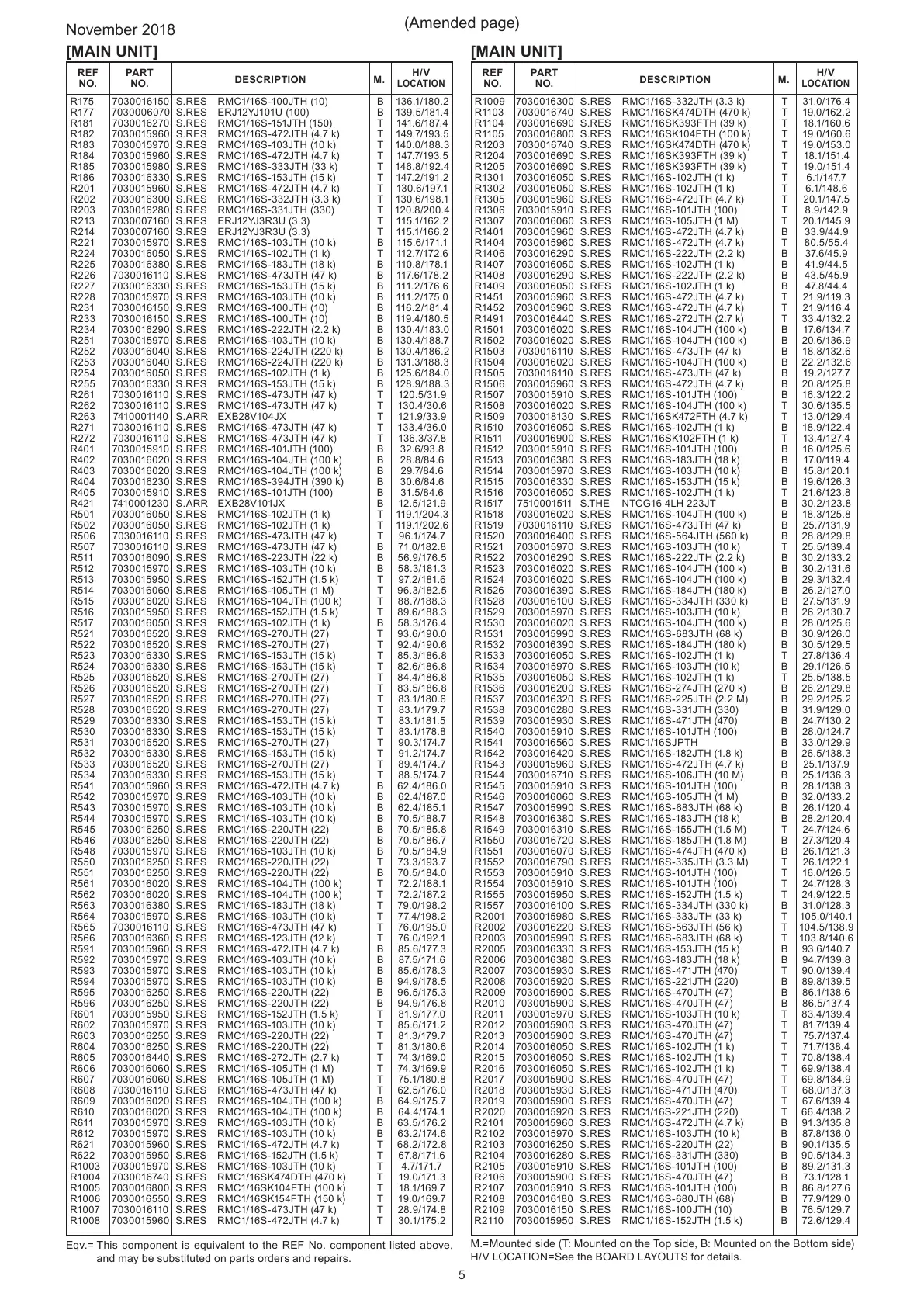

Icom IC-7100 Service Manual Addendum

5
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT]
REF PART
DESCRIPTION M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
REF PART
DESCRIPTION M.
H/V
NO. NO.
LOCATION
(Amended page)
November 2018
R175 7030016150 S.RES RMC1/16S-100JTH (10) B 136.1/180.2
R177 7030006070 S.RES ERJ12YJ101U (100) B 139.5/181.4
R181 7030016270 S.RES RMC1/16S-151JTH (150) T 141.6/187.4
R182 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 149.7/193.5
R183 7030015970 S.RES RMC1/16S-103JTH (10 k) T 140.0/188.3
R184 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 147.7/193.5
R185 7030015980 S.RES RMC1/16S-333JTH (33 k) T 146.8/192.4
R186 7030016330 S.RES RMC1/16S-153JTH (15 k) T 147.2/191.2
R201 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 130.6/197.1
R202 7030016300 S.RES RMC1/16S-332JTH (3.3 k) T 130.6/198.1
R203 7030016280 S.RES RMC1/16S-331JTH (330) T 120.8/200.4
R213 7030007160 S.RES ERJ12YJ3R3U (3.3) T 115.1/162.2
R214 7030007160 S.RES ERJ12YJ3R3U (3.3) T 115.1/166.2
R221 7030015970 S.RES RMC1/16S-103JTH (10 k) B 115.6/171.1
R224 7030016050 S.RES RMC1/16S-102JTH (1 k) T 112.7/172.6
R225 7030016380 S.RES RMC1/16S-183JTH (18 k) B 110.8/178.1
R226 7030016110 S.RES RMC1/16S-473JTH (47 k) B 117.6/178.2
R227 7030016330 S.RES RMC1/16S-153JTH (15 k) B 111.2/176.6
R228 7030015970 S.RES RMC1/16S-103JTH (10 k) B 111.2/175.0
R231 7030016150 S.RES RMC1/16S-100JTH (10) B 116.2/181.4
R233 7030016150 S.RES RMC1/16S-100JTH (10) B 119.4/180.5
R234 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 130.4/183.0
R251 7030015970 S.RES RMC1/16S-103JTH (10 k) B 130.4/188.7
R252 7030016040 S.RES RMC1/16S-224JTH (220 k) B 130.4/186.2
R253 7030016040 S.RES RMC1/16S-224JTH (220 k) B 131.3/188.3
R254 7030016050 S.RES RMC1/16S-102JTH (1 k) B 125.6/184.0
R255 7030016330 S.RES RMC1/16S-153JTH (15 k) B 128.9/188.3
R261 7030016110 S.RES RMC1/16S-473JTH (47 k) T 120.5/31.9
R262 7030016110 S.RES RMC1/16S-473JTH (47 k) T 130.4/30.6
R263 7410001140 S.ARR EXB28V104JX T 121.9/33.9
R271 7030016110 S.RES RMC1/16S-473JTH (47 k) T 133.4/36.0
R272 7030016110 S.RES RMC1/16S-473JTH (47 k) T 136.3/37.8
R401 7030015910 S.RES RMC1/16S-101JTH (100) B 32.6/93.8
R402 7030016020 S.RES RMC1/16S-104JTH (100 k) B 28.8/84.6
R403 7030016020 S.RES RMC1/16S-104JTH (100 k) B 29.7/84.6
R404 7030016230 S.RES RMC1/16S-394JTH (390 k) B 30.6/84.6
R405 7030015910 S.RES RMC1/16S-101JTH (100) B 31.5/84.6
R421 7410001230 S.ARR EXB28V101JX B 12.5/121.9
R501 7030016050 S.RES RMC1/16S-102JTH (1 k) T 119.1/204.3
R502 7030016050 S.RES RMC1/16S-102JTH (1 k) T 119.1/202.6
R506 7030016110 S.RES RMC1/16S-473JTH (47 k) T 96.1/174.7
R507 7030016110 S.RES RMC1/16S-473JTH (47 k) B 71.0/182.8
R511 7030016090 S.RES RMC1/16S-223JTH (22 k) B 56.9/176.5
R512 7030015970 S.RES RMC1/16S-103JTH (10 k) B 58.3/181.3
R513 7030015950 S.RES RMC1/16S-152JTH (1.5 k) T 97.2/181.6
R514 7030016060 S.RES RMC1/16S-105JTH (1 M) T 96.3/182.5
R515 7030016020 S.RES RMC1/16S-104JTH (100 k) T 88.7/188.3
R516 7030015950 S.RES RMC1/16S-152JTH (1.5 k) T 89.6/188.3
R517 7030016050 S.RES RMC1/16S-102JTH (1 k) B 58.3/176.4
R521 7030016520 S.RES RMC1/16S-270JTH (27) T 93.6/190.0
R522 7030016520 S.RES RMC1/16S-270JTH (27) T 92.4/190.6
R523 7030016330 S.RES RMC1/16S-153JTH (15 k) T 85.3/186.8
R524 7030016330 S.RES RMC1/16S-153JTH (15 k) T 82.6/186.8
R525 7030016520 S.RES RMC1/16S-270JTH (27) T 84.4/186.8
R526 7030016520 S.RES RMC1/16S-270JTH (27) T 83.5/186.8
R527 7030016520 S.RES RMC1/16S-270JTH (27) T 83.1/180.6
R528 7030016520 S.RES RMC1/16S-270JTH (27) T 83.1/179.7
R529 7030016330 S.RES RMC1/16S-153JTH (15 k) T 83.1/181.5
R530 7030016330 S.RES RMC1/16S-153JTH (15 k) T 83.1/178.8
R531 7030016520 S.RES RMC1/16S-270JTH (27) T 90.3/174.7
R532 7030016330 S.RES RMC1/16S-153JTH (15 k) T 91.2/174.7
R533 7030016520 S.RES RMC1/16S-270JTH (27) T 89.4/174.7
R534 7030016330 S.RES RMC1/16S-153JTH (15 k) T 88.5/174.7
R541 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 62.4/186.0
R542 7030015970 S.RES RMC1/16S-103JTH (10 k) B 62.4/187.0
R543 7030015970 S.RES RMC1/16S-103JTH (10 k) B 62.4/185.1
R544 7030015970 S.RES RMC1/16S-103JTH (10 k) B 70.5/188.7
R545 7030016250 S.RES RMC1/16S-220JTH (22) B 70.5/185.8
R546 7030016250 S.RES RMC1/16S-220JTH (22) B 70.5/186.7
R548 7030015970 S.RES RMC1/16S-103JTH (10 k) B 70.5/184.9
R550 7030016250 S.RES RMC1/16S-220JTH (22) T 73.3/193.7
R551 7030016250 S.RES RMC1/16S-220JTH (22) B 70.5/184.0
R561 7030016020 S.RES RMC1/16S-104JTH (100 k) T 72.2/188.1
R562 7030016020 S.RES RMC1/16S-104JTH (100 k) T 72.2/187.2
R563 7030016380 S.RES RMC1/16S-183JTH (18 k) T 79.0/198.2
R564 7030015970 S.RES RMC1/16S-103JTH (10 k) T 77.4/198.2
R565 7030016110 S.RES RMC1/16S-473JTH (47 k) T 76.0/195.0
R566 7030016360 S.RES RMC1/16S-123JTH (12 k) T 76.0/192.1
R591 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 85.6/177.3
R592 7030015970 S.RES RMC1/16S-103JTH (10 k) B 87.5/171.6
R593 7030015970 S.RES RMC1/16S-103JTH (10 k) B 85.6/178.3
R594 7030015970 S.RES RMC1/16S-103JTH (10 k) B 94.9/178.5
R595 7030016250 S.RES RMC1/16S-220JTH (22) B 96.5/175.3
R596 7030016250 S.RES RMC1/16S-220JTH (22) B 94.9/176.8
R601 7030015950 S.RES RMC1/16S-152JTH (1.5 k) T 81.9/177.0
R602 7030015970 S.RES RMC1/16S-103JTH (10 k) T 85.6/171.2
R603 7030016250 S.RES RMC1/16S-220JTH (22) T 81.3/179.7
R604 7030016250 S.RES RMC1/16S-220JTH (22) T 81.3/180.6
R605 7030016440 S.RES RMC1/16S-272JTH (2.7 k) T 74.3/169.0
R606 7030016060 S.RES RMC1/16S-105JTH (1 M) T 74.3/169.9
R607 7030016060 S.RES RMC1/16S-105JTH (1 M) T 75.1/180.8
R608 7030016110 S.RES RMC1/16S-473JTH (47 k) T 62.5/176.0
R609 7030016020 S.RES RMC1/16S-104JTH (100 k) B 64.9/175.7
R610 7030016020 S.RES RMC1/16S-104JTH (100 k) B 64.4/174.1
R611 7030015970 S.RES RMC1/16S-103JTH (10 k) B 63.5/176.2
R612 7030015970 S.RES RMC1/16S-103JTH (10 k) B 63.2/174.6
R621 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 68.2/172.8
R622 7030015950 S.RES RMC1/16S-152JTH (1.5 k) T 67.8/171.6
R1003 7030015970 S.RES RMC1/16S-103JTH (10 k) T 4.7/171.7
R1004 7030016740 S.RES RMC1/16SK474DTH (470 k) T 19.0/171.3
R1005 7030016800 S.RES RMC1/16SK104FTH (100 k) T 18.1/169.7
R1006 7030016550 S.RES RMC1/16SK154FTH (150 k) T 19.0/169.7
R1007 7030016110 S.RES RMC1/16S-473JTH (47 k) T 28.9/174.8
R1008 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 30.1/175.2
R1009 7030016300 S.RES RMC1/16S-332JTH (3.3 k) T 31.0/176.4
R1103 7030016740 S.RES RMC1/16SK474DTH (470 k) T 19.0/162.2
R1104 7030016690 S.RES RMC1/16SK393FTH (39 k) T 18.1/160.6
R1105 7030016800 S.RES RMC1/16SK104FTH (100 k) T 19.0/160.6
R1203 7030016740 S.RES RMC1/16SK474DTH (470 k) T 19.0/153.0
R1204 7030016690 S.RES RMC1/16SK393FTH (39 k) T 18.1/151.4
R1205 7030016690 S.RES RMC1/16SK393FTH (39 k) T 19.0/151.4
R1301 7030016050 S.RES RMC1/16S-102JTH (1 k) T 6.1/147.7
R1302 7030016050 S.RES RMC1/16S-102JTH (1 k) T 6.1/148.6
R1305 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 20.1/147.5
R1306 7030015910 S.RES RMC1/16S-101JTH (100) T 8.9/142.9
R1307 7030016060 S.RES RMC1/16S-105JTH (1 M) T 20.1/145.9
R1401 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 33.9/44.9
R1404 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 80.5/55.4
R1406 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 37.6/45.9
R1407 7030016050 S.RES RMC1/16S-102JTH (1 k) B 41.9/44.5
R1408 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 43.5/45.9
R1409 7030016050 S.RES RMC1/16S-102JTH (1 k) B 47.8/44.4
R1451 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 21.9/119.3
R1452 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 21.9/116.4
R1491 7030016440 S.RES RMC1/16S-272JTH (2.7 k) T 33.4/132.2
R1501 7030016020 S.RES RMC1/16S-104JTH (100 k) B 17.6/134.7
R1502 7030016020 S.RES RMC1/16S-104JTH (100 k) B 20.6/136.9
R1503 7030016110 S.RES RMC1/16S-473JTH (47 k) B 18.8/132.6
R1504 7030016020 S.RES RMC1/16S-104JTH (100 k) B 22.2/132.6
R1505 7030016110 S.RES RMC1/16S-473JTH (47 k) B 19.2/127.7
R1506 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 20.8/125.8
R1507 7030015910 S.RES RMC1/16S-101JTH (100) B 16.3/122.2
R1508 7030016020 S.RES RMC1/16S-104JTH (100 k) T 30.6/135.5
R1509 7030018130 S.RES RMC1/16SK472FTH (4.7 k) T 13.0/129.4
R1510 7030016050 S.RES RMC1/16S-102JTH (1 k) B 18.9/122.4
R1511 7030016900 S.RES RMC1/16SK102FTH (1 k) T 13.4/127.4
R1512 7030015910 S.RES RMC1/16S-101JTH (100) B 16.0/125.6
R1513 7030016380 S.RES RMC1/16S-183JTH (18 k) B 17.0/119.4
R1514 7030015970 S.RES RMC1/16S-103JTH (10 k) B 15.8/120.1
R1515 7030016330 S.RES RMC1/16S-153JTH (15 k) B 19.6/126.3
R1516 7030016050 S.RES RMC1/16S-102JTH (1 k) T 21.6/123.8
R1517 7510001511 S.THE NTCG16 4LH 223JT B 30.2/123.8
R1518 7030016020 S.RES RMC1/16S-104JTH (100 k) B 18.3/125.8
R1519 7030016110 S.RES RMC1/16S-473JTH (47 k) B 25.7/131.9
R1520 7030016400 S.RES RMC1/16S-564JTH (560 k) B 28.8/129.8
R1521 7030015970 S.RES RMC1/16S-103JTH (10 k) T 25.5/139.4
R1522 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 30.2/133.2
R1523 7030016020 S.RES RMC1/16S-104JTH (100 k) B 30.2/131.6
R1524 7030016020 S.RES RMC1/16S-104JTH (100 k) B 29.3/132.4
R1526 7030016390 S.RES RMC1/16S-184JTH (180 k) B 26.2/127.0
R1528 7030016100 S.RES RMC1/16S-334JTH (330 k) B 27.5/131.9
R1529 7030015970 S.RES RMC1/16S-103JTH (10 k) B 26.2/130.7
R1530 7030016020 S.RES RMC1/16S-104JTH (100 k) B 28.0/125.6
R1531 7030015990 S.RES RMC1/16S-683JTH (68 k) B 30.9/126.0
R1532 7030016390 S.RES RMC1/16S-184JTH (180 k) B 30.5/129.5
R1533 7030016050 S.RES RMC1/16S-102JTH (1 k) T 27.8/136.4
R1534 7030015970 S.RES RMC1/16S-103JTH (10 k) B 29.1/126.5
R1535 7030016050 S.RES RMC1/16S-102JTH (1 k) T 25.5/138.5
R1536 7030016200 S.RES RMC1/16S-274JTH (270 k) B 26.2/129.8
R1537 7030016320 S.RES RMC1/16S-225JTH (2.2 M) B 29.2/125.2
R1538 7030016280 S.RES RMC1/16S-331JTH (330) B 31.9/129.0
R1539 7030015930 S.RES RMC1/16S-471JTH (470) B 24.7/130.2
R1540 7030015910 S.RES RMC1/16S-101JTH (100) B 28.0/124.7
R1541 7030016560 S.RES RMC1/16SJPTH B 33.0/129.9
R1542 7030016420 S.RES RMC1/16S-182JTH (1.8 k) B 26.5/138.3
R1543 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 25.1/137.9
R1544 7030016710 S.RES RMC1/16S-106JTH (10 M) B 25.1/136.3
R1545 7030015910 S.RES RMC1/16S-101JTH (100) B 28.1/138.3
R1546 7030016060 S.RES RMC1/16S-105JTH (1 M) B 32.0/133.2
R1547 7030015990 S.RES RMC1/16S-683JTH (68 k) B 26.1/120.4
R1548 7030016380 S.RES RMC1/16S-183JTH (18 k) B 28.2/120.4
R1549 7030016310 S.RES RMC1/16S-155JTH (1.5 M) T 24.7/124.6
R1550 7030016720 S.RES RMC1/16S-185JTH (1.8 M) B 27.3/120.4
R1551 7030016070 S.RES RMC1/16S-474JTH (470 k) B 26.1/121.3
R1552 7030016790 S.RES RMC1/16S-335JTH (3.3 M) T 26.1/122.1
R1553 7030015910 S.RES RMC1/16S-101JTH (100) T 16.0/126.5
R1554 7030015910 S.RES RMC1/16S-101JTH (100) T 24.7/128.3
R1555 7030015950 S.RES RMC1/16S-152JTH (1.5 k) T 24.9/122.5
R1557 7030016100 S.RES RMC1/16S-334JTH (330 k) B 31.0/128.3
R2001 7030015980 S.RES RMC1/16S-333JTH (33 k) T 105.0/140.1
R2002 7030016220 S.RES RMC1/16S-563JTH (56 k) T 104.5/138.9
R2003 7030015990 S.RES RMC1/16S-683JTH (68 k) T 103.8/140.6
R2005 7030016330 S.RES RMC1/16S-153JTH (15 k) B 93.6/140.7
R2006 7030016380 S.RES RMC1/16S-183JTH (18 k) B 94.7/139.8
R2007 7030015930 S.RES RMC1/16S-471JTH (470) T 90.0/139.4
R2008 7030015920 S.RES RMC1/16S-221JTH (220) B 89.8/139.5
R2009 7030015900 S.RES RMC1/16S-470JTH (47) B 86.1/138.6
R2010 7030015900 S.RES RMC1/16S-470JTH (47) B 86.5/137.4
R2011 7030015970 S.RES RMC1/16S-103JTH (10 k) T 83.4/139.4
R2012 7030015900 S.RES RMC1/16S-470JTH (47) T 81.7/139.4
R2013 7030015900 S.RES RMC1/16S-470JTH (47) T 75.7/137.4
R2014 7030016050 S.RES RMC1/16S-102JTH (1 k) T 71.7/138.4
R2015 7030016050 S.RES RMC1/16S-102JTH (1 k) T 70.8/138.4
R2016 7030016050 S.RES RMC1/16S-102JTH (1 k) T 69.9/138.4
R2017 7030015900 S.RES RMC1/16S-470JTH (47) T 69.8/134.9
R2018 7030015930 S.RES RMC1/16S-471JTH (470) T 68.0/137.3
R2019 7030015900 S.RES RMC1/16S-470JTH (47) T 67.6/139.4
R2020 7030015920 S.RES RMC1/16S-221JTH (220) T 66.4/138.2
R2101 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 91.3/135.8
R2102 7030015970 S.RES RMC1/16S-103JTH (10 k) B 87.8/136.0
R2103 7030016250 S.RES RMC1/16S-220JTH (22) B 90.1/135.5
R2104 7030016280 S.RES RMC1/16S-331JTH (330) B 90.5/134.3
R2105 7030015910 S.RES RMC1/16S-101JTH (100) B 89.2/131.3
R2106 7030015900 S.RES RMC1/16S-470JTH (47) B 73.1/128.1
R2107 7030015910 S.RES RMC1/16S-101JTH (100) B 86.8/127.6
R2108 7030016180 S.RES RMC1/16S-680JTH (68) B 77.9/129.0
R2109 7030016150 S.RES RMC1/16S-100JTH (10) B 76.5/129.7
R2110 7030015950 S.RES RMC1/16S-152JTH (1.5 k) B 72.6/129.4

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
