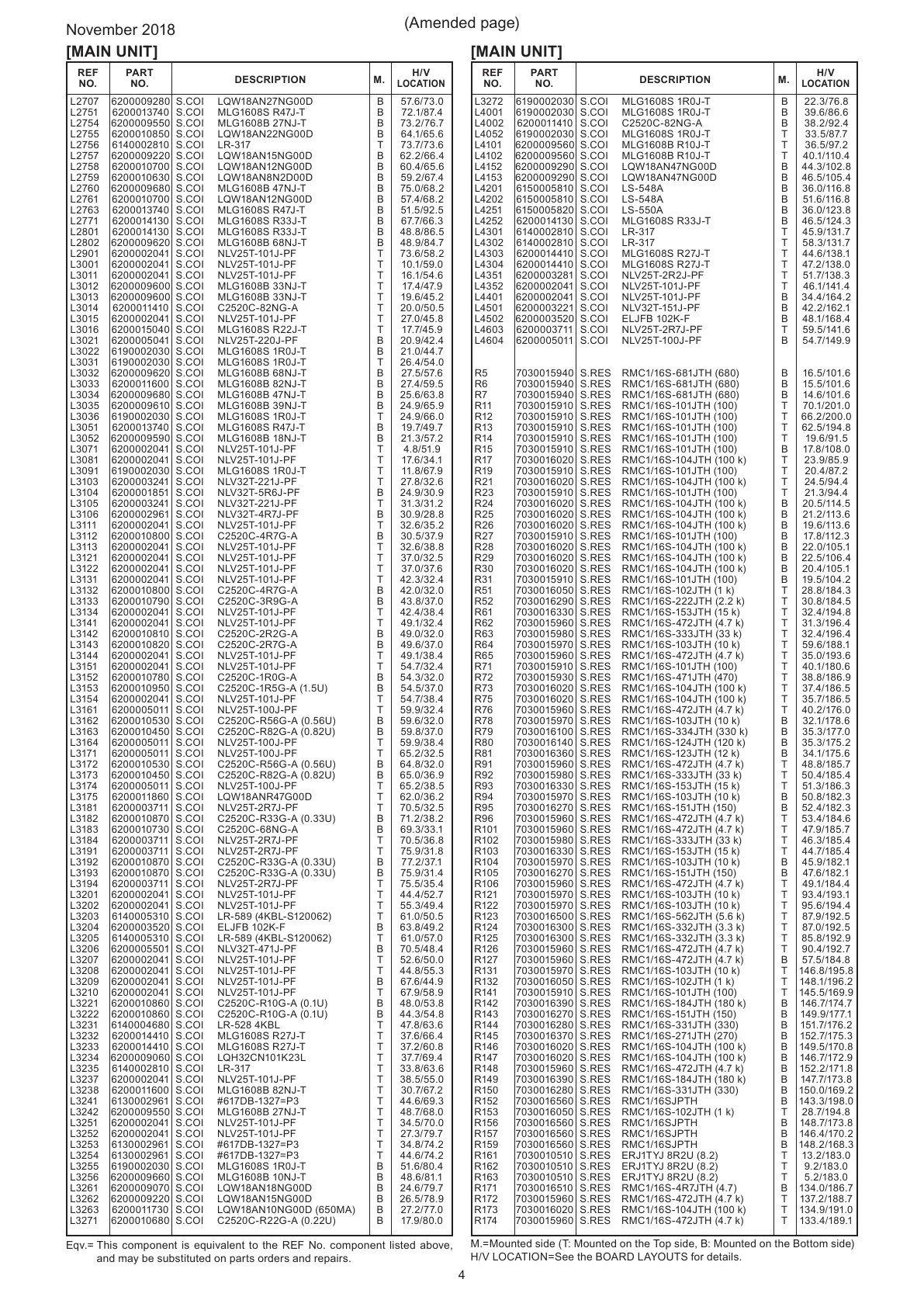

4
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
(Amended page)
November 2018
L2707 6200009280 S.COI LQW18AN27NG00D B 57.6/73.0
L2751 6200013740 S.COI MLG1608S R47J-T B 72.1/87.4
L2754 6200009550 S.COI MLG1608B 27NJ-T B 73.2/76.7
L2755 6200010850 S.COI LQW18AN22NG00D B 64.1/65.6
L2756 6140002810 S.COI LR-317 T 73.7/73.6
L2757 6200009220 S.COI LQW18AN15NG00D B 62.2/66.4
L2758 6200010700 S.COI LQW18AN12NG00D B 60.4/65.6
L2759 6200010630 S.COI LQW18AN8N2D00D B 59.2/67.4
L2760 6200009680 S.COI MLG1608B 47NJ-T B 75.0/68.2
L2761 6200010700 S.COI LQW18AN12NG00D B 57.4/68.2
L2763 6200013740 S.COI MLG1608S R47J-T B 51.5/92.5
L2771 6200014130 S.COI MLG1608S R33J-T B 67.7/66.3
L2801 6200014130 S.COI MLG1608S R33J-T B 48.8/86.5
L2802 6200009620 S.COI MLG1608B 68NJ-T B 48.9/84.7
L2901 6200002041 S.COI NLV25T-101J-PF T 73.6/58.2
L3001 6200002041 S.COI NLV25T-101J-PF T 10.1/59.0
L3011 6200002041 S.COI NLV25T-101J-PF T 16.1/54.6
L3012 6200009600 S.COI MLG1608B 33NJ-T T 17.4/47.9
L3013 6200009600 S.COI MLG1608B 33NJ-T T 19.6/45.2
L3014 6200011410 S.COI C2520C-82NG-A T 20.0/50.5
L3015 6200002041 S.COI NLV25T-101J-PF T 27.0/45.8
L3016 6200015040 S.COI MLG1608S R22J-T T 17.7/45.9
L3021 6200005041 S.COI NLV25T-220J-PF B 20.9/42.4
L3022 6190002030 S.COI MLG1608S 1R0J-T B 21.0/44.7
L3031 6190002030 S.COI MLG1608S 1R0J-T T 26.4/54.0
L3032 6200009620 S.COI MLG1608B 68NJ-T B 27.5/57.6
L3033 6200011600 S.COI MLG1608B 82NJ-T B 27.4/59.5
L3034 6200009680 S.COI MLG1608B 47NJ-T B 25.6/63.8
L3035 6200009610 S.COI MLG1608B 39NJ-T B 24.9/65.9
L3036 6190002030 S.COI MLG1608S 1R0J-T T 24.9/66.0
L3051 6200013740 S.COI MLG1608S R47J-T B 19.7/49.7
L3052 6200009590 S.COI MLG1608B 18NJ-T B 21.3/57.2
L3071 6200002041 S.COI NLV25T-101J-PF T 4.8/51.9
L3081 6200002041 S.COI NLV25T-101J-PF T 17.6/34.1
L3091 6190002030 S.COI MLG1608S 1R0J-T T 11.8/67.9
L3103 6200003241 S.COI NLV32T-221J-PF T 27.8/32.6
L3104 6200001851 S.COI NLV32T-5R6J-PF B 24.9/30.9
L3105 6200003241 S.COI NLV32T-221J-PF T 31.3/31.2
L3106 6200002961 S.COI NLV32T-4R7J-PF B 30.9/28.8
L3111 6200002041 S.COI NLV25T-101J-PF T 32.6/35.2
L3112 6200010800 S.COI C2520C-4R7G-A B 30.5/37.9
L3113 6200002041 S.COI NLV25T-101J-PF T 32.6/38.8
L3121 6200002041 S.COI NLV25T-101J-PF T 37.0/32.5
L3122 6200002041 S.COI NLV25T-101J-PF T 37.0/37.6
L3131 6200002041 S.COI NLV25T-101J-PF T 42.3/32.4
L3132 6200010800 S.COI C2520C-4R7G-A B 42.0/32.0
L3133 6200010790 S.COI C2520C-3R9G-A B 43.8/37.0
L3134 6200002041 S.COI NLV25T-101J-PF T 42.4/38.4
L3141 6200002041 S.COI NLV25T-101J-PF T 49.1/32.4
L3142 6200010810 S.COI C2520C-2R2G-A B 49.0/32.0
L3143 6200010820 S.COI C2520C-2R7G-A B 49.6/37.0
L3144 6200002041 S.COI NLV25T-101J-PF T 49.1/38.4
L3151 6200002041 S.COI NLV25T-101J-PF T 54.7/32.4
L3152 6200010780 S.COI C2520C-1R0G-A B 54.3/32.0
L3153 6200010950 S.COI C2520C-1R5G-A (1.5U) B 54.5/37.0
L3154 6200002041 S.COI NLV25T-101J-PF T 54.7/38.4
L3161 6200005011 S.COI NLV25T-100J-PF T 59.9/32.4
L3162 6200010530 S.COI C2520C-R56G-A (0.56U) B 59.6/32.0
L3163 6200010450 S.COI C2520C-R82G-A (0.82U) B 59.8/37.0
L3164 6200005011 S.COI NLV25T-100J-PF T 59.9/38.4
L3171 6200005011 S.COI NLV25T-100J-PF T 65.2/32.5
L3172 6200010530 S.COI C2520C-R56G-A (0.56U) B 64.8/32.0
L3173 6200010450 S.COI C2520C-R82G-A (0.82U) B 65.0/36.9
L3174 6200005011 S.COI NLV25T-100J-PF T 65.2/38.5
L3175 6200011860 S.COI LQW18ANR47G00D T 62.0/36.2
L3181 6200003711 S.COI NLV25T-2R7J-PF T 70.5/32.5
L3182 6200010870 S.COI C2520C-R33G-A (0.33U) B 71.2/38.2
L3183 6200010730 S.COI C2520C-68NG-A B 69.3/33.1
L3184 6200003711 S.COI NLV25T-2R7J-PF T 70.5/36.8
L3191 6200003711 S.COI NLV25T-2R7J-PF T 75.9/31.8
L3192 6200010870 S.COI C2520C-R33G-A (0.33U) B 77.2/37.1
L3193 6200010870 S.COI C2520C-R33G-A (0.33U) B 75.9/31.4
L3194 6200003711 S.COI NLV25T-2R7J-PF T 75.5/35.4
L3201 6200002041 S.COI NLV25T-101J-PF T 44.4/52.7
L3202 6200002041 S.COI NLV25T-101J-PF T 55.3/49.4
L3203 6140005310 S.COI LR-589 (4KBL-S120062) T 61.0/50.5
L3204 6200003520 S.COI ELJFB 102K-F B 63.8/49.2
L3205 6140005310 S.COI LR-589 (4KBL-S120062) T 61.0/57.0
L3206 6200005501 S.COI NLV32T-471J-PF B 70.5/48.4
L3207 6200002041 S.COI NLV25T-101J-PF T 52.6/50.0
L3208 6200002041 S.COI NLV25T-101J-PF T 44.8/55.3
L3209 6200002041 S.COI NLV25T-101J-PF B 67.6/44.9
L3210 6200002041 S.COI NLV25T-101J-PF T 67.9/58.9
L3221 6200010860 S.COI C2520C-R10G-A (0.1U) B 48.0/53.8
L3222 6200010860 S.COI C2520C-R10G-A (0.1U) B 44.3/54.8
L3231 6140004680 S.COI LR-528 4KBL T 47.8/63.6
L3232 6200014410 S.COI MLG1608S R27J-T T 37.6/66.4
L3233 6200014410 S.COI MLG1608S R27J-T T 37.2/60.8
L3234 6200009060 S.COI LQH32CN101K23L T 37.7/69.4
L3235 6140002810 S.COI LR-317 T 33.8/63.6
L3237 6200002041 S.COI NLV25T-101J-PF T 38.5/55.0
L3238 6200011600 S.COI MLG1608B 82NJ-T T 30.7/67.2
L3241 6130002961 S.COI #617DB-1327=P3 T 44.6/69.3
L3242 6200009550 S.COI MLG1608B 27NJ-T T 48.7/68.0
L3251 6200002041 S.COI NLV25T-101J-PF T 34.5/70.0
L3252 6200002041 S.COI NLV25T-101J-PF T 27.3/79.7
L3253 6130002961 S.COI #617DB-1327=P3 T 34.8/74.2
L3254 6130002961 S.COI #617DB-1327=P3 T 44.6/74.2
L3255 6190002030 S.COI MLG1608S 1R0J-T B 51.6/80.4
L3256 6200009660 S.COI MLG1608B 10NJ-T B 48.6/81.1
L3261 6200009070 S.COI LQW18AN18NG00D B 24.6/79.7
L3262 6200009220 S.COI LQW18AN15NG00D B 26.5/78.9
L3263 6200011730 S.COI LQW18AN10NG00D (650MA) B 27.2/77.0
L3271 6200010680 S.COI C2520C-R22G-A (0.22U) B 17.9/80.0
L3272 6190002030 S.COI MLG1608S 1R0J-T B 22.3/76.8
L4001 6190002030 S.COI MLG1608S 1R0J-T B 39.6/86.6
L4002 6200011410 S.COI C2520C-82NG-A B 38.2/92.4
L4052 6190002030 S.COI MLG1608S 1R0J-T T 33.5/87.7
L4101 6200009560 S.COI MLG1608B R10J-T T 36.5/97.2
L4102 6200009560 S.COI MLG1608B R10J-T T 40.1/110.4
L4152 6200009290 S.COI LQW18AN47NG00D B 44.3/102.8
L4153 6200009290 S.COI LQW18AN47NG00D B 46.5/105.4
L4201 6150005810 S.COI LS-548A B 36.0/116.8
L4202 6150005810 S.COI LS-548A B 51.6/116.8
L4251 6150005820 S.COI LS-550A B 36.0/123.8
L4252 6200014130 S.COI MLG1608S R33J-T B 46.5/124.3
L4301 6140002810 S.COI LR-317 T 45.9/131.7
L4302 6140002810 S.COI LR-317 T 58.3/131.7
L4303 6200014410 S.COI MLG1608S R27J-T T 44.6/138.1
L4304 6200014410 S.COI MLG1608S R27J-T T 47.2/138.0
L4351 6200003281 S.COI NLV25T-2R2J-PF T 51.7/138.3
L4352 6200002041 S.COI NLV25T-101J-PF T 46.1/141.4
L4401 6200002041 S.COI NLV25T-101J-PF B 34.4/164.2
L4501 6200003221 S.COI NLV32T-151J-PF B 42.2/162.1
L4502 6200003520 S.COI ELJFB 102K-F B 48.1/168.4
L4603 6200003711 S.COI NLV25T-2R7J-PF T 59.5/141.6
L4604 6200005011 S.COI NLV25T-100J-PF B 54.7/149.9
R5 7030015940 S.RES RMC1/16S-681JTH (680) B 16.5/101.6
R6 7030015940 S.RES RMC1/16S-681JTH (680) B 15.5/101.6
R7 7030015940 S.RES RMC1/16S-681JTH (680) B 14.6/101.6
R11 7030015910 S.RES RMC1/16S-101JTH (100) T 70.1/201.0
R12 7030015910 S.RES RMC1/16S-101JTH (100) T 66.2/200.0
R13 7030015910 S.RES RMC1/16S-101JTH (100) T 62.5/194.8
R14 7030015910 S.RES RMC1/16S-101JTH (100) T 19.6/91.5
R15 7030015910 S.RES RMC1/16S-101JTH (100) B 17.8/108.0
R17 7030016020 S.RES RMC1/16S-104JTH (100 k) T 23.9/85.9
R19 7030015910 S.RES RMC1/16S-101JTH (100) T 20.4/87.2
R21 7030016020 S.RES RMC1/16S-104JTH (100 k) T 24.5/94.4
R23 7030015910 S.RES RMC1/16S-101JTH (100) T 21.3/94.4
R24 7030016020 S.RES RMC1/16S-104JTH (100 k) B 20.5/114.5
R25 7030016020 S.RES RMC1/16S-104JTH (100 k) B 21.2/113.6
R26 7030016020 S.RES RMC1/16S-104JTH (100 k) B 19.6/113.6
R27 7030015910 S.RES RMC1/16S-101JTH (100) B 17.8/112.3
R28 7030016020 S.RES RMC1/16S-104JTH (100 k) B 22.0/105.1
R29 7030016020 S.RES RMC1/16S-104JTH (100 k) B 22.5/106.4
R30 7030016020 S.RES RMC1/16S-104JTH (100 k) B 20.4/105.1
R31 7030015910 S.RES RMC1/16S-101JTH (100) B 19.5/104.2
R51 7030016050 S.RES RMC1/16S-102JTH (1 k) T 28.8/184.3
R52 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 30.8/184.5
R61 7030016330 S.RES RMC1/16S-153JTH (15 k) T 32.4/194.8
R62 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 31.3/196.4
R63 7030015980 S.RES RMC1/16S-333JTH (33 k) T 32.4/196.4
R64 7030015970 S.RES RMC1/16S-103JTH (10 k) T 59.6/188.1
R65 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 35.0/193.6
R71 7030015910 S.RES RMC1/16S-101JTH (100) T 40.1/180.6
R72 7030015930 S.RES RMC1/16S-471JTH (470) T 38.8/186.9
R73 7030016020 S.RES RMC1/16S-104JTH (100 k) T 37.4/186.5
R75 7030016020 S.RES RMC1/16S-104JTH (100 k) T 35.7/186.5
R76 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 40.2/176.0
R78 7030015970 S.RES RMC1/16S-103JTH (10 k) B 32.1/178.6
R79 7030016100 S.RES RMC1/16S-334JTH (330 k) B 35.3/177.0
R80 7030016140 S.RES RMC1/16S-124JTH (120 k) B 35.3/175.2
R81 7030016360 S.RES RMC1/16S-123JTH (12 k) B 34.1/175.6
R91 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 48.8/185.7
R92 7030015980 S.RES RMC1/16S-333JTH (33 k) T 50.4/185.4
R93 7030016330 S.RES RMC1/16S-153JTH (15 k) T 51.3/186.3
R94 7030015970 S.RES RMC1/16S-103JTH (10 k) B 50.8/182.3
R95 7030016270 S.RES RMC1/16S-151JTH (150) B 52.4/182.3
R96 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 53.4/184.6
R101 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 47.9/185.7
R102 7030015980 S.RES RMC1/16S-333JTH (33 k) T 46.3/185.4
R103 7030016330 S.RES RMC1/16S-153JTH (15 k) T 44.7/185.4
R104 7030015970 S.RES RMC1/16S-103JTH (10 k) B 45.9/182.1
R105 7030016270 S.RES RMC1/16S-151JTH (150) B 47.6/182.1
R106 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 49.1/184.4
R121 7030015970 S.RES RMC1/16S-103JTH (10 k) T 93.4/193.1
R122 7030015970 S.RES RMC1/16S-103JTH (10 k) T 95.6/194.4
R123 7030016500 S.RES RMC1/16S-562JTH (5.6 k) T 87.9/192.5
R124 7030016300 S.RES RMC1/16S-332JTH (3.3 k) T 87.0/192.5
R125 7030016300 S.RES RMC1/16S-332JTH (3.3 k) T 85.8/192.9
R126 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 90.4/192.7
R127 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 57.5/184.8
R131 7030015970 S.RES RMC1/16S-103JTH (10 k) T 146.8/195.8
R132 7030016050 S.RES RMC1/16S-102JTH (1 k) T 148.1/196.2
R141 7030015910 S.RES RMC1/16S-101JTH (100) T 145.5/169.9
R142 7030016390 S.RES RMC1/16S-184JTH (180 k) B 146.7/174.7
R143 7030016270 S.RES RMC1/16S-151JTH (150) B 149.9/177.1
R144 7030016280 S.RES RMC1/16S-331JTH (330) B 151.7/176.2
R145 7030016370 S.RES RMC1/16S-271JTH (270) B 152.7/175.3
R146 7030016020 S.RES RMC1/16S-104JTH (100 k) B 149.5/170.8
R147 7030016020 S.RES RMC1/16S-104JTH (100 k) B 146.7/172.9
R148 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 152.2/171.8
R149 7030016390 S.RES RMC1/16S-184JTH (180 k) B 147.7/173.8
R150 7030016280 S.RES RMC1/16S-331JTH (330) B 150.0/169.2
R152 7030016560 S.RES RMC1/16SJPTH B 143.3/198.0
R153 7030016050 S.RES RMC1/16S-102JTH (1 k) T 28.7/194.8
R156 7030016560 S.RES RMC1/16SJPTH B 148.7/173.8
R157 7030016560 S.RES RMC1/16SJPTH B 146.4/170.2
R159 7030016560 S.RES RMC1/16SJPTH B 148.2/168.3
R161 7030010510 S.RES ERJ1TYJ 8R2U (8.2) T 13.2/183.0
R162 7030010510 S.RES ERJ1TYJ 8R2U (8.2) T 9.2/183.0
R163 7030010510 S.RES ERJ1TYJ 8R2U (8.2) T 5.2/183.0
R171 7030016510 S.RES RMC1/16S-4R7JTH (4.7) B 134.0/186.7
R172 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 137.2/188.7
R173 7030016020 S.RES RMC1/16S-104JTH (100 k) T 134.9/191.0
R174 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 133.4/189.1
To Next Page
Loading...
Need help?
General
