3
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.

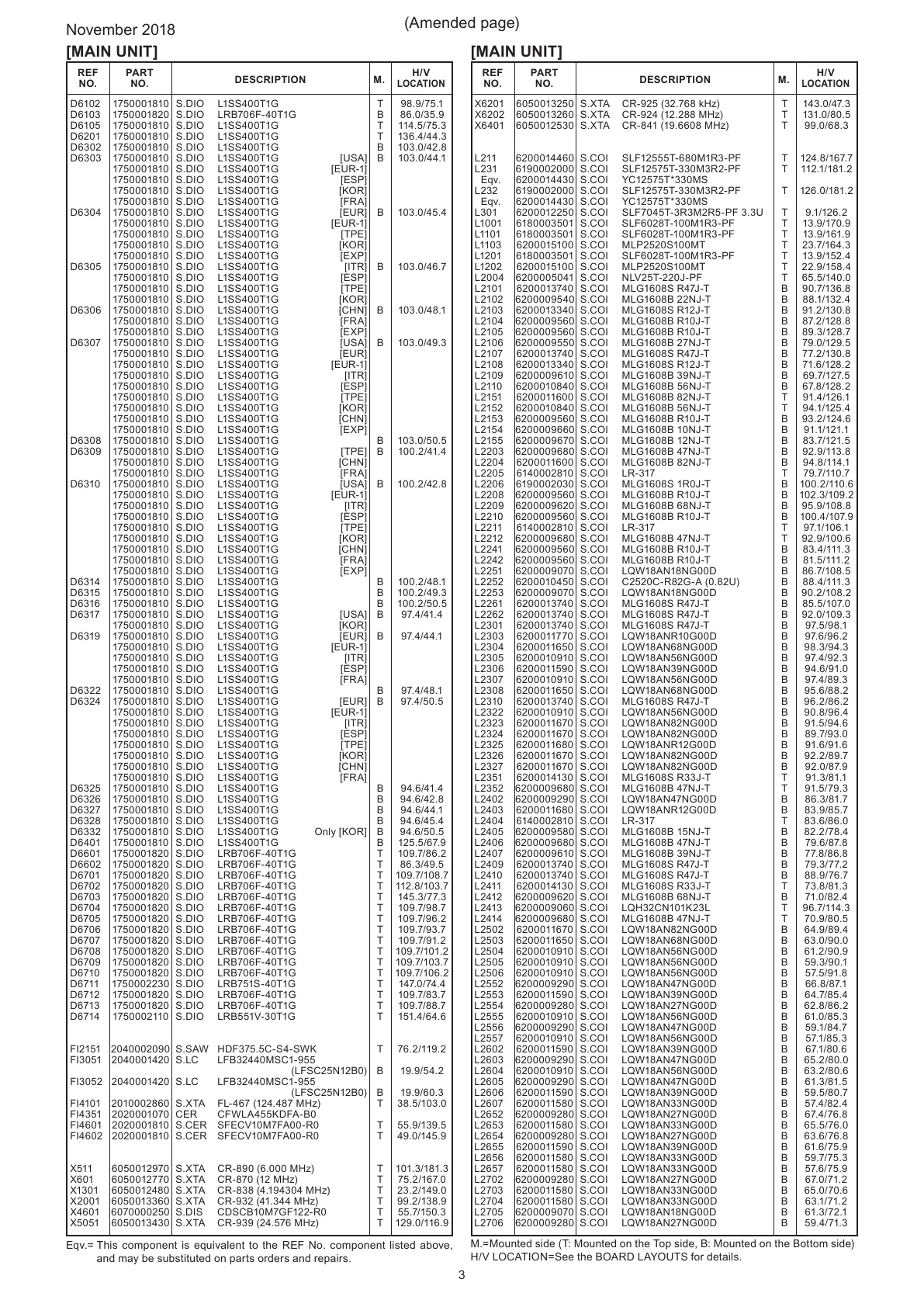

[MAIN UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
(Amended page)
November 2018
D6102 1750001810 S.DIO L1SS400T1G T 98.9/75.1
D6103 1750001820 S.DIO LRB706F-40T1G B 86.0/35.9
D6105 1750001810 S.DIO L1SS400T1G T 114.5/75.3
D6201 1750001810 S.DIO L1SS400T1G T 136.4/44.3
D6302 1750001810 S.DIO L1SS400T1G B 103.0/42.8
D6303 1750001810 S.DIO L1SS400T1G [USA] B 103.0/44.1
1750001810 S.DIO L1SS400T1G [EUR-1]
1750001810 S.DIO L1SS400T1G [ESP]
1750001810 S.DIO L1SS400T1G [KOR]
1750001810 S.DIO L1SS400T1G [FRA]
D6304 1750001810 S.DIO L1SS400T1G [EUR] B 103.0/45.4
1750001810 S.DIO L1SS400T1G [EUR-1]
1750001810 S.DIO L1SS400T1G [TPE]
1750001810 S.DIO L1SS400T1G [KOR]
1750001810 S.DIO L1SS400T1G [EXP]
D6305 1750001810 S.DIO L1SS400T1G [ITR] B 103.0/46.7
1750001810 S.DIO L1SS400T1G [ESP]
1750001810 S.DIO L1SS400T1G [TPE]
1750001810 S.DIO L1SS400T1G [KOR]
D6306 1750001810 S.DIO L1SS400T1G [CHN] B 103.0/48.1
1750001810 S.DIO L1SS400T1G [FRA]
1750001810 S.DIO L1SS400T1G [EXP]
D6307 1750001810 S.DIO L1SS400T1G [USA] B 103.0/49.3
1750001810 S.DIO L1SS400T1G [EUR]
1750001810 S.DIO L1SS400T1G [EUR-1]
1750001810 S.DIO L1SS400T1G [ITR]
1750001810 S.DIO L1SS400T1G [ESP]
1750001810 S.DIO L1SS400T1G [TPE]
1750001810 S.DIO L1SS400T1G [KOR]
1750001810 S.DIO L1SS400T1G [CHN]
1750001810 S.DIO L1SS400T1G [EXP]
D6308 1750001810 S.DIO L1SS400T1G B 103.0/50.5
D6309 1750001810 S.DIO L1SS400T1G [TPE] B 100.2/41.4
1750001810 S.DIO L1SS400T1G [CHN]
1750001810 S.DIO L1SS400T1G [FRA]
D6310 1750001810 S.DIO L1SS400T1G [USA] B 100.2/42.8
1750001810 S.DIO L1SS400T1G [EUR-1]
1750001810 S.DIO L1SS400T1G [ITR]
1750001810 S.DIO L1SS400T1G [ESP]
1750001810 S.DIO L1SS400T1G [TPE]
1750001810 S.DIO L1SS400T1G [KOR]
1750001810 S.DIO L1SS400T1G [CHN]
1750001810 S.DIO L1SS400T1G [FRA]
1750001810 S.DIO L1SS400T1G [EXP]
D6314 1750001810 S.DIO L1SS400T1G B 100.2/48.1
D6315 1750001810 S.DIO L1SS400T1G B 100.2/49.3
D6316 1750001810 S.DIO L1SS400T1G B 100.2/50.5
D6317 1750001810 S.DIO L1SS400T1G [USA] B 97.4/41.4
1750001810 S.DIO L1SS400T1G [KOR]
D6319 1750001810 S.DIO L1SS400T1G [EUR] B 97.4/44.1
1750001810 S.DIO L1SS400T1G [EUR-1]
1750001810 S.DIO L1SS400T1G [ITR]
1750001810 S.DIO L1SS400T1G [ESP]
1750001810 S.DIO L1SS400T1G [FRA]
D6322 1750001810 S.DIO L1SS400T1G B 97.4/48.1
D6324 1750001810 S.DIO L1SS400T1G [EUR] B 97.4/50.5
1750001810 S.DIO L1SS400T1G [EUR-1]
1750001810 S.DIO L1SS400T1G [ITR]
1750001810 S.DIO L1SS400T1G [ESP]
1750001810 S.DIO L1SS400T1G [TPE]
1750001810 S.DIO L1SS400T1G [KOR]
1750001810 S.DIO L1SS400T1G [CHN]
1750001810 S.DIO L1SS400T1G [FRA]
D6325 1750001810 S.DIO L1SS400T1G B 94.6/41.4
D6326 1750001810 S.DIO L1SS400T1G B 94.6/42.8
D6327 1750001810 S.DIO L1SS400T1G B 94.6/44.1
D6328 1750001810 S.DIO L1SS400T1G B 94.6/45.4
D6332 1750001810 S.DIO L1SS400T1G Only [KOR] B 94.6/50.5
D6401 1750001810 S.DIO L1SS400T1G B 125.5/67.9
D6601 1750001820 S.DIO LRB706F-40T1G T 109.7/86.2
D6602 1750001820 S.DIO LRB706F-40T1G T 86.3/49.5
D6701 1750001820 S.DIO LRB706F-40T1G T 109.7/108.7
D6702 1750001820 S.DIO LRB706F-40T1G T 112.8/103.7
D6703 1750001820 S.DIO LRB706F-40T1G T 145.3/77.3
D6704 1750001820 S.DIO LRB706F-40T1G T 109.7/98.7
D6705 1750001820 S.DIO LRB706F-40T1G T 109.7/96.2
D6706 1750001820 S.DIO LRB706F-40T1G T 109.7/93.7
D6707 1750001820 S.DIO LRB706F-40T1G T 109.7/91.2
D6708 1750001820 S.DIO LRB706F-40T1G T 109.7/101.2
D6709 1750001820 S.DIO LRB706F-40T1G T 109.7/103.7
D6710 1750001820 S.DIO LRB706F-40T1G T 109.7/106.2
D6711 1750002230 S.DIO LRB751S-40T1G T 147.0/74.4
D6712 1750001820 S.DIO LRB706F-40T1G T 109.7/83.7
D6713 1750001820 S.DIO LRB706F-40T1G T 109.7/88.7
D6714 1750002110 S.DIO LRB551V-30T1G T 151.4/64.6
FI2151 2040002090 S.SAW HDF375.5C-S4-SWK T 76.2/119.2
FI3051 2040001420 S.LC LFB32440MSC1-955
(LFSC25N12B0) B 19.9/54.2
FI3052 2040001420 S.LC LFB32440MSC1-955
(LFSC25N12B0) B 19.9/60.3
FI4101 2010002860 S.XTA FL-467 (124.487 MHz) T 38.5/103.0
FI4351 2020001070 CER CFWLA455KDFA-B0
FI4601 2020001810 S.CER SFECV10M7FA00-R0 T 55.9/139.5
FI4602 2020001810 S.CER SFECV10M7FA00-R0 T 49.0/145.9
X511 6050012970 S.XTA CR-890 (6.000 MHz) T 101.3/181.3
X601 6050012770 S.XTA CR-870 (12 MHz) T 75.2/167.0
X1301 6050012480 S.XTA CR-838 (4.194304 MHz) T 23.2/149.0
X2001 6050013360 S.XTA CR-932 (41.344 MHz) T 99.2/138.9
X4601 6070000250 S.DIS CDSCB10M7GF122-R0 T 55.7/150.3
X5051 6050013430 S.XTA CR-939 (24.576 MHz) T 129.0/116.9
X6201 6050013250 S.XTA CR-925 (32.768 kHz) T 143.0/47.3
X6202 6050013260 S.XTA CR-924 (12.288 MHz) T 131.0/80.5
X6401 6050012530 S.XTA CR-841 (19.6608 MHz) T 99.0/68.3
L211 6200014460 S.COI SLF12555T-680M1R3-PF T 124.8/167.7
L231 6190002000 S.COI SLF12575T-330M3R2-PF T 112.1/181.2
Eqv. 6200014430 S.COI YC12575T*330MS
L232 6190002000 S.COI SLF12575T-330M3R2-PF T 126.0/181.2
Eqv. 6200014430 S.COI YC12575T*330MS
L301 6200012250 S.COI SLF7045T-3R3M2R5-PF 3.3U T 9.1/126.2
L1001 6180003501 S.COI SLF6028T-100M1R3-PF T 13.9/170.9
L1101 6180003501 S.COI SLF6028T-100M1R3-PF T 13.9/161.9
L1103 6200015100 S.COI MLP2520S100MT T 23.7/164.3
L1201 6180003501 S.COI SLF6028T-100M1R3-PF T 13.9/152.4
L1202 6200015100 S.COI MLP2520S100MT T 22.9/158.4
L2004 6200005041 S.COI NLV25T-220J-PF T 65.5/140.0
L2101 6200013740 S.COI MLG1608S R47J-T B 90.7/136.8
L2102 6200009540 S.COI MLG1608B 22NJ-T B 88.1/132.4
L2103 6200013340 S.COI MLG1608S R12J-T B 91.2/130.8
L2104 6200009560 S.COI MLG1608B R10J-T B 87.2/128.8
L2105 6200009560 S.COI MLG1608B R10J-T B 89.3/128.7
L2106 6200009550 S.COI MLG1608B 27NJ-T B 79.0/129.5
L2107 6200013740 S.COI MLG1608S R47J-T B 77.2/130.8
L2108 6200013340 S.COI MLG1608S R12J-T B 71.6/128.2
L2109 6200009610 S.COI MLG1608B 39NJ-T B 69.7/127.5
L2110 6200010840 S.COI MLG1608B 56NJ-T B 67.8/128.2
L2151 6200011600 S.COI MLG1608B 82NJ-T T 91.4/126.1
L2152 6200010840 S.COI MLG1608B 56NJ-T T 94.1/125.4
L2153 6200009560 S.COI MLG1608B R10J-T B 93.2/124.6
L2154 6200009660 S.COI MLG1608B 10NJ-T B 91.1/121.1
L2155 6200009670 S.COI MLG1608B 12NJ-T B 83.7/121.5
L2203 6200009680 S.COI MLG1608B 47NJ-T B 92.9/113.8
L2204 6200011600 S.COI MLG1608B 82NJ-T B 94.8/114.1
L2205 6140002810 S.COI LR-317 T 79.7/110.7
L2206 6190002030 S.COI MLG1608S 1R0J-T B 100.2/110.6
L2208 6200009560 S.COI MLG1608B R10J-T B 102.3/109.2
L2209 6200009620 S.COI MLG1608B 68NJ-T B 95.9/108.8
L2210 6200009560 S.COI MLG1608B R10J-T B 100.4/107.9
L2211 6140002810 S.COI LR-317 T 97.1/106.1
L2212 6200009680 S.COI MLG1608B 47NJ-T T 92.9/100.6
L2241 6200009560 S.COI MLG1608B R10J-T B 83.4/111.3
L2242 6200009560 S.COI MLG1608B R10J-T B 81.5/111.2
L2251 6200009070 S.COI LQW18AN18NG00D B 86.7/108.5
L2252 6200010450 S.COI C2520C-R82G-A (0.82U) B 88.4/111.3
L2253 6200009070 S.COI LQW18AN18NG00D B 90.2/108.2
L2261 6200013740 S.COI MLG1608S R47J-T B 85.5/107.0
L2262 6200013740 S.COI MLG1608S R47J-T B 92.0/109.3
L2301 6200013740 S.COI MLG1608S R47J-T B 97.5/98.1
L2303 6200011770 S.COI LQW18ANR10G00D B 97.6/96.2
L2304 6200011650 S.COI LQW18AN68NG00D B 98.3/94.3
L2305 6200010910 S.COI LQW18AN56NG00D B 97.4/92.3
L2306 6200011590 S.COI LQW18AN39NG00D B 94.6/91.0
L2307 6200010910 S.COI LQW18AN56NG00D B 97.4/89.3
L2308 6200011650 S.COI LQW18AN68NG00D B 95.6/88.2
L2310 6200013740 S.COI MLG1608S R47J-T B 96.2/86.2
L2322 6200010910 S.COI LQW18AN56NG00D B 90.8/96.4
L2323 6200011670 S.COI LQW18AN82NG00D B 91.5/94.6
L2324 6200011670 S.COI LQW18AN82NG00D B 89.7/93.0
L2325 6200011680 S.COI LQW18ANR12G00D B 91.6/91.6
L2326 6200011670 S.COI LQW18AN82NG00D B 92.2/89.7
L2327 6200011670 S.COI LQW18AN82NG00D B 92.0/87.9
L2351 6200014130 S.COI MLG1608S R33J-T T 91.3/81.1
L2352 6200009680 S.COI MLG1608B 47NJ-T T 91.5/79.3
L2402 6200009290 S.COI LQW18AN47NG00D B 86.3/81.7
L2403 6200011680 S.COI LQW18ANR12G00D B 83.9/85.7
L2404 6140002810 S.COI LR-317 T 83.6/86.0
L2405 6200009580 S.COI MLG1608B 15NJ-T B 82.2/78.4
L2406 6200009680 S.COI MLG1608B 47NJ-T B 79.6/87.8
L2407 6200009610 S.COI MLG1608B 39NJ-T B 77.8/86.8
L2409 6200013740 S.COI MLG1608S R47J-T B 79.3/77.2
L2410 6200013740 S.COI MLG1608S R47J-T B 88.9/76.7
L2411 6200014130 S.COI MLG1608S R33J-T T 73.8/81.3
L2412 6200009620 S.COI MLG1608B 68NJ-T B 71.0/82.4
L2413 6200009060 S.COI LQH32CN101K23L T 96.7/114.3
L2414 6200009680 S.COI MLG1608B 47NJ-T T 70.9/80.5
L2502 6200011670 S.COI LQW18AN82NG00D B 64.9/89.4
L2503 6200011650 S.COI LQW18AN68NG00D B 63.0/90.0
L2504 6200010910 S.COI LQW18AN56NG00D B 61.2/90.9
L2505 6200010910 S.COI LQW18AN56NG00D B 59.3/90.1
L2506 6200010910 S.COI LQW18AN56NG00D B 57.5/91.8
L2552 6200009290 S.COI LQW18AN47NG00D B 66.8/87.1
L2553 6200011590 S.COI LQW18AN39NG00D B 64.7/85.4
L2554 6200009280 S.COI LQW18AN27NG00D B 62.8/86.2
L2555 6200010910 S.COI LQW18AN56NG00D B 61.0/85.3
L2556 6200009290 S.COI LQW18AN47NG00D B 59.1/84.7
L2557 6200010910 S.COI LQW18AN56NG00D B 57.1/85.3
L2602 6200011590 S.COI LQW18AN39NG00D B 67.1/80.6
L2603 6200009290 S.COI LQW18AN47NG00D B 65.2/80.0
L2604 6200010910 S.COI LQW18AN56NG00D B 63.2/80.6
L2605 6200009290 S.COI LQW18AN47NG00D B 61.3/81.5
L2606 6200011590 S.COI LQW18AN39NG00D B 59.5/80.7
L2607 6200011580 S.COI LQW18AN33NG00D B 57.4/82.4
L2652 6200009280 S.COI LQW18AN27NG00D B 67.4/76.8
L2653 6200011580 S.COI LQW18AN33NG00D B 65.5/76.0
L2654 6200009280 S.COI LQW18AN27NG00D B 63.6/76.8
L2655 6200011590 S.COI LQW18AN39NG00D B 61.6/75.9
L2656 6200011580 S.COI LQW18AN33NG00D B 59.7/75.3
L2657 6200011580 S.COI LQW18AN33NG00D B 57.6/75.9
L2702 6200009280 S.COI LQW18AN27NG00D B 67.0/71.2
L2703 6200011580 S.COI LQW18AN33NG00D B 65.0/70.6
L2704 6200011580 S.COI LQW18AN33NG00D B 63.1/71.2
L2705 6200009070 S.COI LQW18AN18NG00D B 61.3/72.1
L2706 6200009280 S.COI LQW18AN27NG00D B 59.4/71.3
