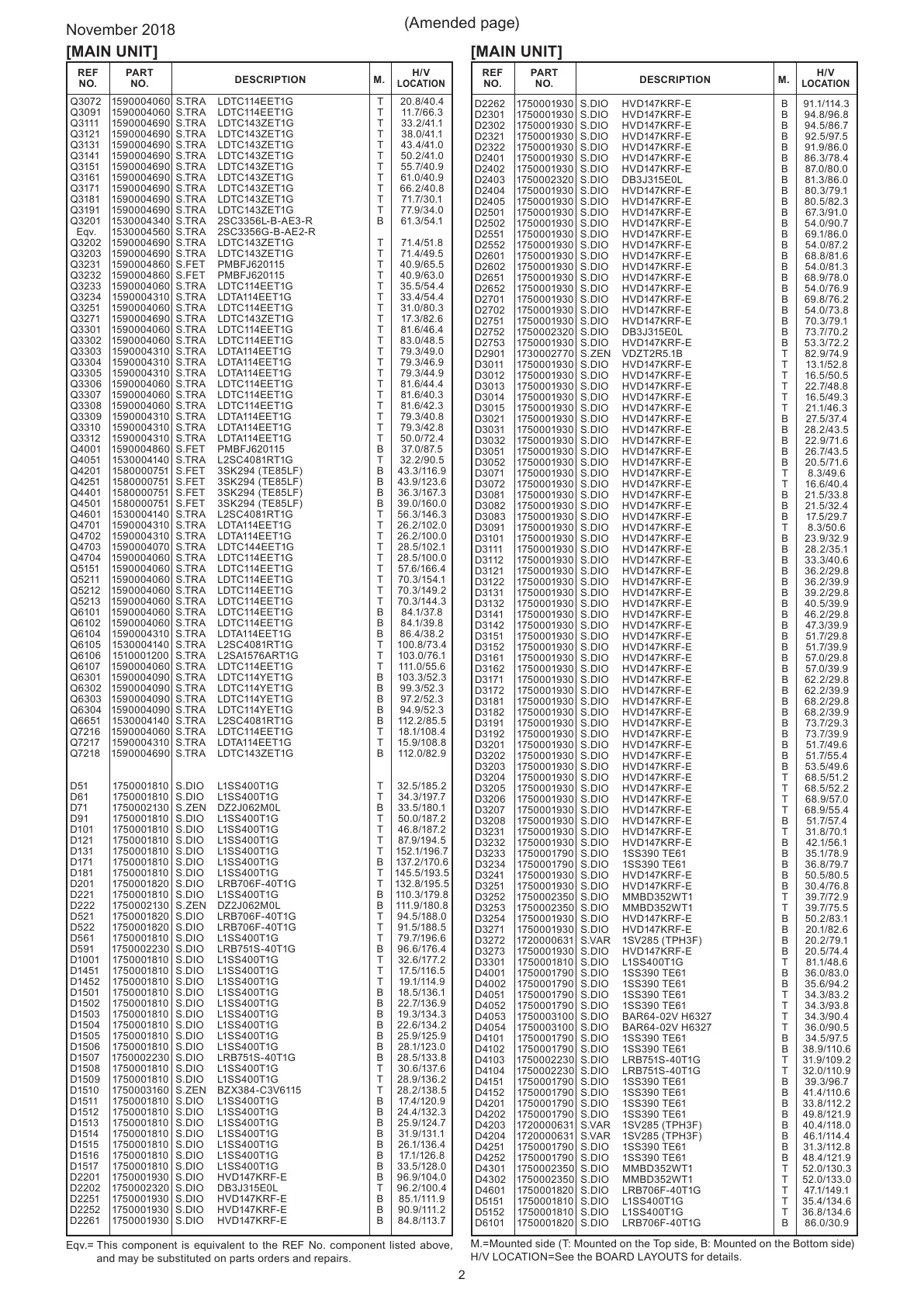

Page #9 background imageLoading...
Page #9 background image
2
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
REF PART
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
(Amended page)
November 2018
Q3072 1590004060 S.TRA LDTC114EET1G T 20.8/40.4
Q3091 1590004060 S.TRA LDTC114EET1G T 11.7/66.3
Q3111 1590004690 S.TRA LDTC143ZET1G T 33.2/41.1
Q3121 1590004690 S.TRA LDTC143ZET1G T 38.0/41.1
Q3131 1590004690 S.TRA LDTC143ZET1G T 43.4/41.0
Q3141 1590004690 S.TRA LDTC143ZET1G T 50.2/41.0
Q3151 1590004690 S.TRA LDTC143ZET1G T 55.7/40.9
Q3161 1590004690 S.TRA LDTC143ZET1G T 61.0/40.9
Q3171 1590004690 S.TRA LDTC143ZET1G T 66.2/40.8
Q3181 1590004690 S.TRA LDTC143ZET1G T 71.7/30.1
Q3191 1590004690 S.TRA LDTC143ZET1G T 77.9/34.0
Q3201 1530004340 S.TRA 2SC3356L-B-AE3-R B 61.3/54.1
Eqv. 1530004560 S.TRA 2SC3356G-B-AE2-R
Q3202 1590004690 S.TRA LDTC143ZET1G T 71.4/51.8
Q3203 1590004690 S.TRA LDTC143ZET1G T 71.4/49.5
Q3231 1590004860 S.FET PMBFJ620115 T 40.9/65.5
Q3232 1590004860 S.FET PMBFJ620115 T 40.9/63.0
Q3233 1590004060 S.TRA LDTC114EET1G T 35.5/54.4
Q3234 1590004310 S.TRA LDTA114EET1G T 33.4/54.4
Q3251 1590004060 S.TRA LDTC114EET1G T 31.0/80.3
Q3271 1590004690 S.TRA LDTC143ZET1G T 17.3/82.6
Q3301 1590004060 S.TRA LDTC114EET1G T 81.6/46.4
Q3302 1590004060 S.TRA LDTC114EET1G T 83.0/48.5
Q3303 1590004310 S.TRA LDTA114EET1G T 79.3/49.0
Q3304 1590004310 S.TRA LDTA114EET1G T 79.3/46.9
Q3305 1590004310 S.TRA LDTA114EET1G T 79.3/44.9
Q3306 1590004060 S.TRA LDTC114EET1G T 81.6/44.4
Q3307 1590004060 S.TRA LDTC114EET1G T 81.6/40.3
Q3308 1590004060 S.TRA LDTC114EET1G T 81.6/42.3
Q3309 1590004310 S.TRA LDTA114EET1G T 79.3/40.8
Q3310 1590004310 S.TRA LDTA114EET1G T 79.3/42.8
Q3312 1590004310 S.TRA LDTA114EET1G T 50.0/72.4
Q4001 1590004860 S.FET PMBFJ620115 B 37.0/87.5
Q4051 1530004140 S.TRA L2SC4081RT1G T 32.2/90.5
Q4201 1580000751 S.FET 3SK294 (TE85LF) B 43.3/116.9
Q4251 1580000751 S.FET 3SK294 (TE85LF) B 43.9/123.6
Q4401 1580000751 S.FET 3SK294 (TE85LF) B 36.3/167.3
Q4501 1580000751 S.FET 3SK294 (TE85LF) B 39.0/160.0
Q4601 1530004140 S.TRA L2SC4081RT1G T 56.3/146.3
Q4701 1590004310 S.TRA LDTA114EET1G T 26.2/102.0
Q4702 1590004310 S.TRA LDTA114EET1G T 26.2/100.0
Q4703 1590004070 S.TRA LDTC144EET1G T 28.5/102.1
Q4704 1590004060 S.TRA LDTC114EET1G T 28.5/100.0
Q5151 1590004060 S.TRA LDTC114EET1G T 57.6/166.4
Q5211 1590004060 S.TRA LDTC114EET1G T 70.3/154.1
Q5212 1590004060 S.TRA LDTC114EET1G T 70.3/149.2
Q5213 1590004060 S.TRA LDTC114EET1G T 70.3/144.3
Q6101 1590004060 S.TRA LDTC114EET1G B 84.1/37.8
Q6102 1590004060 S.TRA LDTC114EET1G B 84.1/39.8
Q6104 1590004310 S.TRA LDTA114EET1G B 86.4/38.2
Q6105 1530004140 S.TRA L2SC4081RT1G T 100.8/73.4
Q6106 1510001200 S.TRA L2SA1576ART1G T 103.0/76.1
Q6107 1590004060 S.TRA LDTC114EET1G T 111.0/55.6
Q6301 1590004090 S.TRA LDTC114YET1G B 103.3/52.3
Q6302 1590004090 S.TRA LDTC114YET1G B 99.3/52.3
Q6303 1590004090 S.TRA LDTC114YET1G B 97.2/52.3
Q6304 1590004090 S.TRA LDTC114YET1G B 94.9/52.3
Q6651 1530004140 S.TRA L2SC4081RT1G B 112.2/85.5
Q7216 1590004060 S.TRA LDTC114EET1G T 18.1/108.4
Q7217 1590004310 S.TRA LDTA114EET1G T 15.9/108.8
Q7218 1590004690 S.TRA LDTC143ZET1G B 112.0/82.9
D51 1750001810 S.DIO L1SS400T1G T 32.5/185.2
D61 1750001810 S.DIO L1SS400T1G T 34.3/197.7
D71 1750002130 S.ZEN DZ2J062M0L B 33.5/180.1
D91 1750001810 S.DIO L1SS400T1G T 50.0/187.2
D101 1750001810 S.DIO L1SS400T1G T 46.8/187.2
D121 1750001810 S.DIO L1SS400T1G T 87.9/194.5
D131 1750001810 S.DIO L1SS400T1G T 152.1/196.7
D171 1750001810 S.DIO L1SS400T1G B 137.2/170.6
D181 1750001810 S.DIO L1SS400T1G T 145.5/193.5
D201 1750001820 S.DIO LRB706F-40T1G T 132.8/195.5
D221 1750001810 S.DIO L1SS400T1G B 110.3/179.8
D222 1750002130 S.ZEN DZ2J062M0L B 111.9/180.8
D521 1750001820 S.DIO LRB706F-40T1G T 94.5/188.0
D522 1750001820 S.DIO LRB706F-40T1G T 91.5/188.5
D561 1750001810 S.DIO L1SS400T1G T 79.7/196.6
D591 1750002230 S.DIO LRB751S-40T1G B 96.6/176.4
D1001 1750001810 S.DIO L1SS400T1G T 32.6/177.2
D1451 1750001810 S.DIO L1SS400T1G T 17.5/116.5
D1452 1750001810 S.DIO L1SS400T1G T 19.1/114.9
D1501 1750001810 S.DIO L1SS400T1G B 18.5/136.1
D1502 1750001810 S.DIO L1SS400T1G B 22.7/136.9
D1503 1750001810 S.DIO L1SS400T1G B 19.3/134.3
D1504 1750001810 S.DIO L1SS400T1G B 22.6/134.2
D1505 1750001810 S.DIO L1SS400T1G B 25.9/125.9
D1506 1750001810 S.DIO L1SS400T1G B 28.1/123.0
D1507 1750002230 S.DIO LRB751S-40T1G B 28.5/133.8
D1508 1750001810 S.DIO L1SS400T1G T 30.6/137.6
D1509 1750001810 S.DIO L1SS400T1G T 28.9/136.2
D1510 1750003160 S.ZEN BZX384-C3V6115 T 28.2/138.5
D1511 1750001810 S.DIO L1SS400T1G B 17.4/120.9
D1512 1750001810 S.DIO L1SS400T1G B 24.4/132.3
D1513 1750001810 S.DIO L1SS400T1G B 25.9/124.7
D1514 1750001810 S.DIO L1SS400T1G B 31.9/131.1
D1515 1750001810 S.DIO L1SS400T1G B 26.1/136.4
D1516 1750001810 S.DIO L1SS400T1G B 17.1/126.8
D1517 1750001810 S.DIO L1SS400T1G B 33.5/128.0
D2201 1750001930 S.DIO HVD147KRF-E B 96.9/104.0
D2202 1750002320 S.DIO DB3J315E0L T 96.2/100.4
D2251 1750001930 S.DIO HVD147KRF-E B 85.1/111.9
D2252 1750001930 S.DIO HVD147KRF-E B 90.9/111.2
D2261 1750001930 S.DIO HVD147KRF-E B 84.8/113.7
D2262 1750001930 S.DIO HVD147KRF-E B 91.1/114.3
D2301 1750001930 S.DIO HVD147KRF-E B 94.8/96.8
D2302 1750001930 S.DIO HVD147KRF-E B 94.5/86.7
D2321 1750001930 S.DIO HVD147KRF-E B 92.5/97.5
D2322 1750001930 S.DIO HVD147KRF-E B 91.9/86.0
D2401 1750001930 S.DIO HVD147KRF-E B 86.3/78.4
D2402 1750001930 S.DIO HVD147KRF-E B 87.0/80.0
D2403 1750002320 S.DIO DB3J315E0L B 81.3/86.0
D2404 1750001930 S.DIO HVD147KRF-E B 80.3/79.1
D2405 1750001930 S.DIO HVD147KRF-E B 80.5/82.3
D2501 1750001930 S.DIO HVD147KRF-E B 67.3/91.0
D2502 1750001930 S.DIO HVD147KRF-E B 54.0/90.7
D2551 1750001930 S.DIO HVD147KRF-E B 69.1/86.0
D2552 1750001930 S.DIO HVD147KRF-E B 54.0/87.2
D2601 1750001930 S.DIO HVD147KRF-E B 68.8/81.6
D2602 1750001930 S.DIO HVD147KRF-E B 54.0/81.3
D2651 1750001930 S.DIO HVD147KRF-E B 68.9/78.0
D2652 1750001930 S.DIO HVD147KRF-E B 54.0/76.9
D2701 1750001930 S.DIO HVD147KRF-E B 69.8/76.2
D2702 1750001930 S.DIO HVD147KRF-E B 54.0/73.8
D2751 1750001930 S.DIO HVD147KRF-E B 70.3/79.1
D2752 1750002320 S.DIO DB3J315E0L B 73.7/70.2
D2753 1750001930 S.DIO HVD147KRF-E B 53.3/72.2
D2901 1730002770 S.ZEN VDZT2R5.1B T 82.9/74.9
D3011 1750001930 S.DIO HVD147KRF-E T 13.1/52.8
D3012 1750001930 S.DIO HVD147KRF-E T 16.5/50.5
D3013 1750001930 S.DIO HVD147KRF-E T 22.7/48.8
D3014 1750001930 S.DIO HVD147KRF-E T 16.5/49.3
D3015 1750001930 S.DIO HVD147KRF-E T 21.1/46.3
D3021 1750001930 S.DIO HVD147KRF-E B 27.5/37.4
D3031 1750001930 S.DIO HVD147KRF-E B 28.2/43.5
D3032 1750001930 S.DIO HVD147KRF-E B 22.9/71.6
D3051 1750001930 S.DIO HVD147KRF-E B 26.7/43.5
D3052 1750001930 S.DIO HVD147KRF-E B 20.5/71.6
D3071 1750001930 S.DIO HVD147KRF-E T 8.3/49.6
D3072 1750001930 S.DIO HVD147KRF-E T 16.6/40.4
D3081 1750001930 S.DIO HVD147KRF-E B 21.5/33.8
D3082 1750001930 S.DIO HVD147KRF-E B 21.5/32.4
D3083 1750001930 S.DIO HVD147KRF-E B 17.5/29.7
D3091 1750001930 S.DIO HVD147KRF-E T 8.3/50.6
D3101 1750001930 S.DIO HVD147KRF-E B 23.9/32.9
D3111 1750001930 S.DIO HVD147KRF-E B 28.2/35.1
D3112 1750001930 S.DIO HVD147KRF-E B 33.3/40.6
D3121 1750001930 S.DIO HVD147KRF-E B 36.2/29.8
D3122 1750001930 S.DIO HVD147KRF-E B 36.2/39.9
D3131 1750001930 S.DIO HVD147KRF-E B 39.2/29.8
D3132 1750001930 S.DIO HVD147KRF-E B 40.5/39.9
D3141 1750001930 S.DIO HVD147KRF-E B 46.2/29.8
D3142 1750001930 S.DIO HVD147KRF-E B 47.3/39.9
D3151 1750001930 S.DIO HVD147KRF-E B 51.7/29.8
D3152 1750001930 S.DIO HVD147KRF-E B 51.7/39.9
D3161 1750001930 S.DIO HVD147KRF-E B 57.0/29.8
D3162 1750001930 S.DIO HVD147KRF-E B 57.0/39.9
D3171 1750001930 S.DIO HVD147KRF-E B 62.2/29.8
D3172 1750001930 S.DIO HVD147KRF-E B 62.2/39.9
D3181 1750001930 S.DIO HVD147KRF-E B 68.2/29.8
D3182 1750001930 S.DIO HVD147KRF-E B 68.2/39.9
D3191 1750001930 S.DIO HVD147KRF-E B 73.7/29.3
D3192 1750001930 S.DIO HVD147KRF-E B 73.7/39.9
D3201 1750001930 S.DIO HVD147KRF-E B 51.7/49.6
D3202 1750001930 S.DIO HVD147KRF-E B 51.7/55.4
D3203 1750001930 S.DIO HVD147KRF-E B 53.5/49.6
D3204 1750001930 S.DIO HVD147KRF-E T 68.5/51.2
D3205 1750001930 S.DIO HVD147KRF-E T 68.5/52.2
D3206 1750001930 S.DIO HVD147KRF-E T 68.9/57.0
D3207 1750001930 S.DIO HVD147KRF-E T 68.9/55.4
D3208 1750001930 S.DIO HVD147KRF-E B 51.7/57.4
D3231 1750001930 S.DIO HVD147KRF-E T 31.8/70.1
D3232 1750001930 S.DIO HVD147KRF-E B 42.1/56.1
D3233 1750001790 S.DIO 1SS390 TE61 B 35.1/78.9
D3234 1750001790 S.DIO 1SS390 TE61 B 36.8/79.7
D3241 1750001930 S.DIO HVD147KRF-E B 50.5/80.5
D3251 1750001930 S.DIO HVD147KRF-E B 30.4/76.8
D3252 1750002350 S.DIO MMBD352WT1 T 39.7/72.9
D3253 1750002350 S.DIO MMBD352WT1 T 39.7/75.5
D3254 1750001930 S.DIO HVD147KRF-E B 50.2/83.1
D3271 1750001930 S.DIO HVD147KRF-E B 20.1/82.6
D3272 1720000631 S.VAR 1SV285 (TPH3F) B 20.2/79.1
D3273 1750001930 S.DIO HVD147KRF-E B 20.5/74.4
D3301 1750001810 S.DIO L1SS400T1G T 81.1/48.6
D4001 1750001790 S.DIO 1SS390 TE61 B 36.0/83.0
D4002 1750001790 S.DIO 1SS390 TE61 B 35.6/94.2
D4051 1750001790 S.DIO 1SS390 TE61 T 34.3/83.2
D4052 1750001790 S.DIO 1SS390 TE61 T 34.3/93.8
D4053 1750003100 S.DIO BAR64-02V H6327 T 34.3/90.4
D4054 1750003100 S.DIO BAR64-02V H6327 T 36.0/90.5
D4101 1750001790 S.DIO 1SS390 TE61 B 34.5/97.5
D4102 1750001790 S.DIO 1SS390 TE61 B 38.9/110.6
D4103 1750002230 S.DIO LRB751S-40T1G T 31.9/109.2
D4104 1750002230 S.DIO LRB751S-40T1G T 32.0/110.9
D4151 1750001790 S.DIO 1SS390 TE61 B 39.3/96.7
D4152 1750001790 S.DIO 1SS390 TE61 B 41.4/110.6
D4201 1750001790 S.DIO 1SS390 TE61 B 33.8/112.2
D4202 1750001790 S.DIO 1SS390 TE61 B 49.8/121.9
D4203 1720000631 S.VAR 1SV285 (TPH3F) B 40.4/118.0
D4204 1720000631 S.VAR 1SV285 (TPH3F) B 46.1/114.4
D4251 1750001790 S.DIO 1SS390 TE61 B 31.3/112.8
D4252 1750001790 S.DIO 1SS390 TE61 B 48.4/121.9
D4301 1750002350 S.DIO MMBD352WT1 T 52.0/130.3
D4302 1750002350 S.DIO MMBD352WT1 T 52.0/133.0
D4601 1750001820 S.DIO LRB706F-40T1G T 47.1/149.1
D5151 1750001810 S.DIO L1SS400T1G T 35.4/134.6
D5152 1750001810 S.DIO L1SS400T1G T 36.8/134.6
D6101 1750001820 S.DIO LRB706F-40T1G B 86.0/30.9

Table of Contents

Other manuals for Icom IC-7100

Preview: Instruction Manual
Instruction Manual197 pages
Preview: Advanced Instructions
Advanced Instructions375 pages
Preview: Service Manual
Service Manual84 pages
Preview: Basic Manual
Basic Manual96 pages
Preview: Quick Start Guide
Quick Start Guide11 pages
Preview: Finger Touch Operation
Finger Touch Operation4 pages
Preview: Reference Manual
Reference Manual13 pages
Preview: Specification
Specification4 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Icom IC-7100 and is the answer not in the manual?

Icom IC-7100 Specifications

General IconGeneral
Supply13.8 V DC ±15%
Voltage13.8 V DC
Operating Temperature-10°C to +60°C
Frequency Coverage0.030-199.999 MHz, 400-470 MHz
ModesSSB, CW, AM, FM, DV
Output PowerHF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver TypeSuperheterodyne
Antenna ConnectorSO-239 (HF/50MHz/144MHz), N-type (430MHz)
WeightMain unit: 2.3 kg
TypeBase/Mobile
Frequency Range TX1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX0.030–199.999 MHz, 400–470 MHz
Memories505
Current ConsumptionTX: 22 A, RX: 1.2 A

Related product manuals
