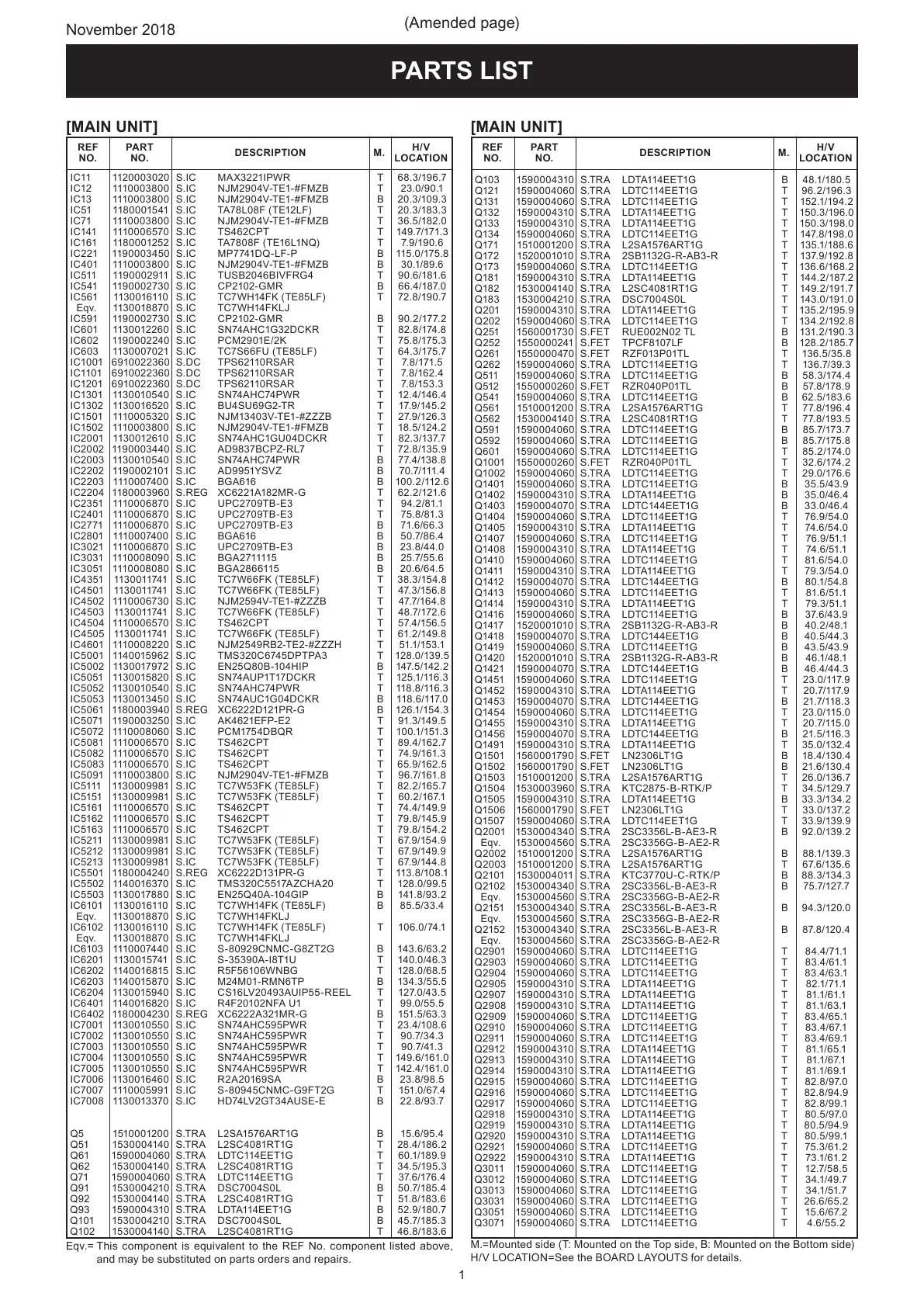

SECTION 1 PARTS LIST
1
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT]
REF PART
DESCRIPTION M.
H/V
NO. NO. LOCATION
[MAIN UNIT]
REF PART
DESCRIPTION M.
H/V
NO. NO. LOCATION
(Amended page)
November 2018
IC11 1120003020 S.IC MAX3221IPWR T 68.3/196.7
IC12 1110003800 S.IC NJM2904V-TE1-#FMZB T 23.0/90.1
IC13 1110003800 S.IC NJM2904V-TE1-#FMZB B 20.3/109.3
IC51 1180001541 S.IC TA78L08F (TE12LF) T 20.3/183.3
IC71 1110003800 S.IC NJM2904V-TE1-#FMZB T 36.5/182.0
IC141 1110006570 S.IC TS462CPT T 149.7/171.3
IC161 1180001252 S.IC TA7808F (TE16L1NQ) T 7.9/190.6
IC221 1190003450 S.IC MP7741DQ-LF-P B 115.0/175.8
IC401 1110003800 S.IC NJM2904V-TE1-#FMZB B 30.1/89.6
IC511 1190002911 S.IC TUSB2046BIVFRG4 T 90.6/181.6
IC541 1190002730 S.IC CP2102-GMR B 66.4/187.0
IC561 1130016110 S.IC TC7WH14FK (TE85LF) T 72.8/190.7
Eqv. 1130018870 S.IC TC7WH14FKLJ
IC591 1190002730 S.IC CP2102-GMR B 90.2/177.2
IC601 1130012260 S.IC SN74AHC1G32DCKR T 82.8/174.8
IC602 1190002240 S.IC PCM2901E/2K T 75.8/175.3
IC603 1130007021 S.IC TC7S66FU (TE85LF) T 64.3/175.7
IC1001 6910022360 S.DC TPS62110RSAR T 7.8/171.5
IC1101 6910022360 S.DC TPS62110RSAR T 7.8/162.4
IC1201 6910022360 S.DC TPS62110RSAR T 7.8/153.3
IC1301 1130010540 S.IC SN74AHC74PWR T 12.4/146.4
IC1302 1130016520 S.IC BU4SU69G2-TR T 17.9/145.2
IC1501 1110005320 S.IC NJM13403V-TE1-#ZZZB T 27.9/126.3
IC1502 1110003800 S.IC NJM2904V-TE1-#FMZB T 18.5/124.2
IC2001 1130012610 S.IC SN74AHC1GU04DCKR T 82.3/137.7
IC2002 1190003440 S.IC AD9837BCPZ-RL7 T 72.8/135.9
IC2003 1130010540 S.IC SN74AHC74PWR B 77.4/138.8
IC2202 1190002101 S.IC AD9951YSVZ B 70.7/111.4
IC2203 1110007400 S.IC BGA616 B 100.2/112.6
IC2204 1180003960 S.REG XC6221A182MR-G T 62.2/121.6
IC2351 1110006870 S.IC UPC2709TB-E3 T 94.2/81.1
IC2401 1110006870 S.IC UPC2709TB-E3 T 75.8/81.3
IC2771 1110006870 S.IC UPC2709TB-E3 B 71.6/66.3
IC2801 1110007400 S.IC BGA616 B 50.7/86.4
IC3021 1110006870 S.IC UPC2709TB-E3 B 23.8/44.0
IC3031 1110 00 809 0 S . I C BGA 2711115 B 25.7/55.6
IC3051 1110008080 S.IC BGA2866115 B 20.6/64.5
IC4351 1130011741 S.IC TC7W66FK (TE85LF) T 38.3/154.8
IC4501 1130011741 S.IC TC7W66FK (TE85LF) T 47.3/156.8
IC4502 1110006730 S.IC NJM2594V-TE1-#ZZZB T 47.7/164.8
IC4503 1130011741 S.IC TC7W66FK (TE85LF) T 48.7/172.6
IC4504 1110006570 S.IC TS462CPT T 57.4/156.5
IC4505 1130011741 S.IC TC7W66FK (TE85LF) T 61.2/149.8
IC4601 1110008220 S.IC NJM2549RB2-TE2-#ZZZH T 51.1/153.1
IC5001 1140015962 S.IC TMS320C6745DPTPA3 T 128.0/139.5
IC5002 1130017972 S.IC EN25Q80B-104HIP B 147.5/142.2
IC5051 1130015820 S.IC SN74AUP1T17DCKR T 125.1/116.3
IC5052 1130010540 S.IC SN74AHC74PWR T 118.8/116.3
IC5053 1130013450 S.IC SN74AUC1G04DCKR B 118.6/117.0
IC5061 1180003940 S.REG XC6222D121PR-G B 126.1/154.3
IC5071 1190003250 S.IC AK4621EFP-E2 T 91.3/149.5
IC5072 1110008060 S.IC PCM1754DBQR T 100.1/151.3
IC5081 1110006570 S.IC TS462CPT T 89.4/162.7
IC5082 1110006570 S.IC TS462CPT T 74.9/161.3
IC5083 1110006570 S.IC TS462CPT T 65.9/162.5
IC5091 1110003800 S.IC NJM2904V-TE1-#FMZB T 96.7/161.8
IC5111 1130009981 S.IC TC7W53FK (TE85LF) T 82.2/165.7
IC5151 1130009981 S.IC TC7W53FK (TE85LF) T 60.2/167.1
IC5161 1110006570 S.IC TS462CPT T 74.4/149.9
IC5162 1110006570 S.IC TS462CPT T 79.8/145.9
IC5163 1110006570 S.IC TS462CPT T 79.8/154.2
IC5211 1130009981 S.IC TC7W53FK (TE85LF) T 67.9/154.9
IC5212 1130009981 S.IC TC7W53FK (TE85LF) T 67.9/149.9
IC5213 1130009981 S.IC TC7W53FK (TE85LF) T 67.9/144.8
IC5501 1180004240 S.REG XC6222D131PR-G T 113.8/108.1
IC5502 1140016370 S.IC TMS320C5517AZCHA20 T 128.0/99.5
IC5503 1130017880 S.IC EN25Q40A-104GIP B 141.8/93.2
IC6101 1130016110 S.IC TC7WH14FK (TE85LF) B 85.5/33.4
Eqv. 1130018870 S.IC TC7WH14FKLJ
IC6102 1130016110 S.IC TC7WH14FK (TE85LF) T 106.0/74.1
Eqv. 1130018870 S.IC TC7WH14FKLJ
IC6103 1110007440 S.IC S-80929CNMC-G8ZT2G B 143.6/63.2
IC6201 1130015741 S.IC S-35390A-I8T1U T 140.0/46.3
IC6202 1140016815 S.IC R5F56106WNBG T 128.0/68.5
IC6203 1140015870 S.IC M24M01-RMN6TP B 134.3/55.5
IC6204 1130015940 S.IC CS16LV20493AUIP55-REEL T 127.0/43.5
IC6401 1140016820 S.IC R4F20102NFA U1 T 99.0/55.5
IC6402 1180004230 S.REG XC6222A321MR-G B 151.5/63.3
IC7001 1130010550 S.IC SN74AHC595PWR T 23.4/108.6
IC7002 1130010550 S.IC SN74AHC595PWR T 90.7/34.3
IC7003 1130010550 S.IC SN74AHC595PWR T 90.7/41.3
IC7004 1130010550 S.IC SN74AHC595PWR T 149.6/161.0
IC7005 1130010550 S.IC SN74AHC595PWR T 142.4/161.0
IC7006 1130016460 S.IC R2A20169SA B 23.8/98.5
IC7007 1110005991 S.IC S-80945CNMC-G9FT2G T 151.0/67.4
IC7008 1130013370 S.IC HD74LV2GT34AUSE-E B 22.8/93.7
Q5 1510001200 S.TRA L2SA1576ART1G B 15.6/95.4
Q51 1530004140 S.TRA L2SC4081RT1G T 28.4/186.2
Q61 1590004060 S.TRA LDTC114EET1G T 60.1/189.9
Q62 1530004140 S.TRA L2SC4081RT1G T 34.5/195.3
Q71 1590004060 S.TRA LDTC114EET1G T 37.6/176.4
Q91 1530004210 S.TRA DSC7004S0L B 50.7/185.4
Q92 1530004140 S.TRA L2SC4081RT1G T 51.8/183.6
Q93 1590004310 S.TRA LDTA114EET1G B 52.9/180.7
Q101 1530004210 S.TRA DSC7004S0L B 45.7/185.3
Q102 1530004140 S.TRA L2SC4081RT1G T 46.8/183.6
Q103 1590004310 S.TRA LDTA114EET1G B 48.1/180.5
Q121 1590004060 S.TRA LDTC114EET1G T 96.2/196.3
Q131 1590004060 S.TRA LDTC114EET1G T 152.1/194.2
Q132 1590004310 S.TRA LDTA114EET1G T 150.3/196.0
Q133 1590004310 S.TRA LDTA114EET1G T 150.3/198.0
Q134 1590004060 S.TRA LDTC114EET1G T 147.8/198.0
Q171 1510001200 S.TRA L2SA1576ART1G T 135.1/188.6
Q172 1520001010 S.TRA 2SB1132G-R-AB3-R T 137.9/192.8
Q173 1590004060 S.TRA LDTC114EET1G T 136.6/168.2
Q181 1590004310 S.TRA LDTA114EET1G T 144.2/187.2
Q182 1530004140 S.TRA L2SC4081RT1G T 149.2/191.7
Q183 1530004210 S.TRA DSC7004S0L T 143.0/191.0
Q201 1590004310 S.TRA LDTA114EET1G T 135.2/195.9
Q202 1590004060 S.TRA LDTC114EET1G T 134.2/192.8
Q251 1560001730 S.FET RUE002N02 TL B 131.2/190.3
Q252 1550000241 S.FET TPCF8107LF B 128.2/185.7
Q261 1550000470 S.FET RZF013P01TL T 136.5/35.8
Q262 1590004060 S.TRA LDTC114EET1G T 136.7/39.3
Q511 1590004060 S.TRA LDTC114EET1G B 58.3/174.4
Q512 1550000260 S.FET RZR040P01TL B 57.8/178.9
Q541 1590004060 S.TRA LDTC114EET1G B 62.5/183.6
Q561 1510001200 S.TRA L2SA1576ART1G T 77.8/196.4
Q562 1530004140 S.TRA L2SC4081RT1G T 77.8/193.5
Q591 1590004060 S.TRA LDTC114EET1G B 85.7/173.7
Q592 1590004060 S.TRA LDTC114EET1G B 85.7/175.8
Q601 1590004060 S.TRA LDTC114EET1G T 85.2/174.0
Q1001 1550000260 S.FET RZR040P01TL T 32.6/174.2
Q1002 1590004060 S.TRA LDTC114EET1G T 29.0/176.6
Q1401 1590004060 S.TRA LDTC114EET1G B 35.5/43.9
Q1402 1590004310 S.TRA LDTA114EET1G B 35.0/46.4
Q1403 1590004070 S.TRA LDTC144EET1G B 33.0/46.4
Q1404 1590004060 S.TRA LDTC114EET1G T 76.9/54.0
Q1405 1590004310 S.TRA LDTA114EET1G T 74.6/54.0
Q1407 1590004060 S.TRA LDTC114EET1G T 76.9/51.1
Q1408 1590004310 S.TRA LDTA114EET1G T 74.6/51.1
Q1410 1590004060 S.TRA LDTC114EET1G T 81.6/54.0
Q1411 1590004310 S.TRA LDTA114EET1G T 79.3/54.0
Q1412 1590004070 S.TRA LDTC144EET1G B 80.1/54.8
Q1413 1590004060 S.TRA LDTC114EET1G T 81.6/51.1
Q1414 1590004310 S.TRA LDTA114EET1G T 79.3/51.1
Q1416 1590004060 S.TRA LDTC114EET1G B 37.6/43.9
Q1417 1520001010 S.TRA 2SB1132G-R-AB3-R B 40.2/48.1
Q1418 1590004070 S.TRA LDTC144EET1G B 40.5/44.3
Q1419 1590004060 S.TRA LDTC114EET1G B 43.5/43.9
Q1420 1520001010 S.TRA 2SB1132G-R-AB3-R B 46.1/48.1
Q1421 1590004070 S.TRA LDTC144EET1G B 46.4/44.3
Q1451 1590004060 S.TRA LDTC114EET1G T 23.0/117.9
Q1452 1590004310 S.TRA LDTA114EET1G T 20.7/117.9
Q1453 1590004070 S.TRA LDTC144EET1G B 21.7/118.3
Q1454 1590004060 S.TRA LDTC114EET1G T 23.0/115.0
Q1455 1590004310 S.TRA LDTA114EET1G T 20.7/115.0
Q1456 1590004070 S.TRA LDTC144EET1G B 21.5/116.3
Q1491 1590004310 S.TRA LDTA114EET1G T 35.0/132.4
Q1501 1560001790 S.FET LN2306LT1G B 18.4/130.4
Q1502 1560001790 S.FET LN2306LT1G B 21.6/130.4
Q1503 1510001200 S.TRA L2SA1576ART1G T 26.0/136.7
Q1504 1530003960 S.TRA KTC2875-B-RTK/P T 34.5/129.7
Q1505 1590004310 S.TRA LDTA114EET1G B 33.3/134.2
Q1506 1560001790 S.FET LN2306LT1G T 33.0/137.2
Q1507 1590004060 S.TRA LDTC114EET1G T 33.9/139.9
Q2001 1530004340 S.TRA 2SC3356L-B-AE3-R B 92.0/139.2
Eqv. 1530004560 S.TRA 2SC3356G-B-AE2-R
Q2002 1510001200 S.TRA L2SA1576ART1G B 88.1/139.3
Q2003 1510001200 S.TRA L2SA1576ART1G T 67.6/135.6
Q2101 1530004011 S.TRA KTC3770U-C-RTK/P B 88.3/134.3
Q2102 1530004340 S.TRA 2SC3356L-B-AE3-R B 75.7/127.7
Eqv. 1530004560 S.TRA 2SC3356G-B-AE2-R
Q2151 1530004340 S.TRA 2SC3356L-B-AE3-R B 94.3/120.0
Eqv. 1530004560 S.TRA 2SC3356G-B-AE2-R
Q2152 1530004340 S.TRA 2SC3356L-B-AE3-R B 87.8/120.4
Eqv. 1530004560 S.TRA 2SC3356G-B-AE2-R
Q2901 1590004060 S.TRA LDTC114EET1G T 84.4/71.1
Q2903 1590004060 S.TRA LDTC114EET1G T 83.4/61.1
Q2904 1590004060 S.TRA LDTC114EET1G T 83.4/63.1
Q2905 1590004310 S.TRA LDTA114EET1G T 82.1/71.1
Q2907 1590004310 S.TRA LDTA114EET1G T 81.1/61.1
Q2908 1590004310 S.TRA LDTA114EET1G T 81.1/63.1
Q2909 1590004060 S.TRA LDTC114EET1G T 83.4/65.1
Q2910 1590004060 S.TRA LDTC114EET1G T 83.4/67.1
Q2911 1590004060 S.TRA LDTC114EET1G T 83.4/69.1
Q2912 1590004310 S.TRA LDTA114EET1G T 81.1/65.1
Q2913 1590004310 S.TRA LDTA114EET1G T 81.1/67.1
Q2914 1590004310 S.TRA LDTA114EET1G T 81.1/69.1
Q2915 1590004060 S.TRA LDTC114EET1G T 82.8/97.0
Q2916 1590004060 S.TRA LDTC114EET1G T 82.8/94.9
Q2917 1590004060 S.TRA LDTC114EET1G T 82.8/99.1
Q2918 1590004310 S.TRA LDTA114EET1G T 80.5/97.0
Q2919 1590004310 S.TRA LDTA114EET1G T 80.5/94.9
Q2920 1590004310 S.TRA LDTA114EET1G T 80.5/99.1
Q2921 1590004060 S.TRA LDTC114EET1G T 75.3/61.2
Q2922 1590004310 S.TRA LDTA114EET1G T 73.1/61.2
Q3011 1590004060 S.TRA LDTC114EET1G T 12.7/58.5
Q3012 1590004060 S.TRA LDTC114EET1G T 34.1/49.7
Q3013 1590004060 S.TRA LDTC114EET1G T 34.1/51.7
Q3031 1590004060 S.TRA LDTC114EET1G T 26.6/65.2
Q3051 1590004060 S.TRA LDTC114EET1G T 15.6/67.2
Q3071 1590004060 S.TRA LDTC114EET1G T 4.6/55.2
