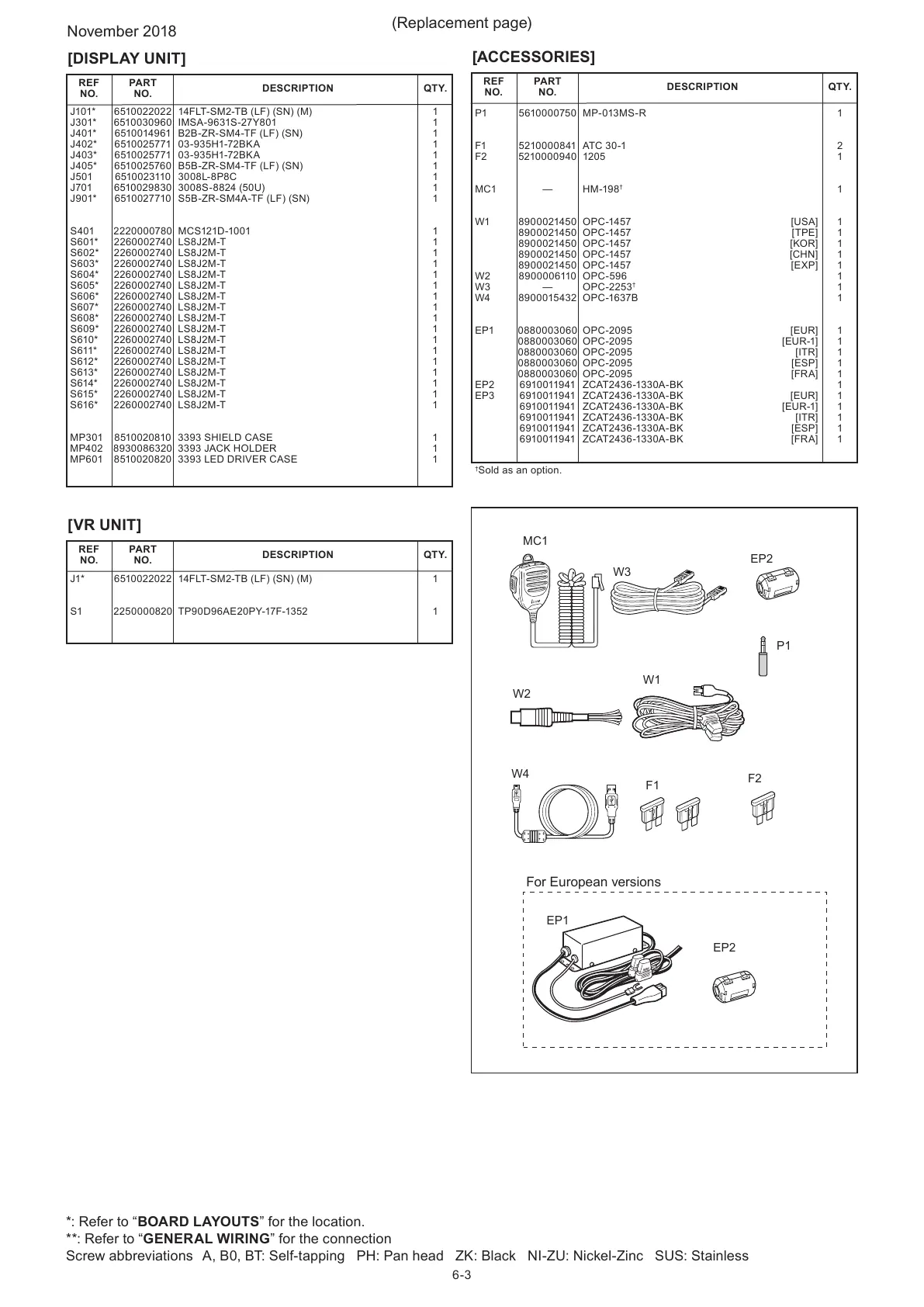

Icom IC-7100 Service Manual Addendum

(Replacement page)
6-3
[ACCESSORIES]
REF PART
DESCRIPTION QTY.
NO. NO.
November 2018
*: Refer to “BOARD LAYOUTS” for the location.
**: Refer to “GENERAL WIRING” for the connection
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
MC1
P1
W2
W4
W1
W3
EP1
EP2
EP2
F2
F1
For European versions
REF PART
DESCRIPTION QTY.
NO. NO.
[DISPLAY UNIT]
J101* 6510022022 14FLT-SM2-TB (LF) (SN) (M) 1
J301* 6510030960 IMSA-9631S-27Y801 1
J401* 6510014961 B2B-ZR-SM4-TF (LF) (SN) 1
J402* 6510025771 03-935H1-72BKA 1
J403* 6510025771 03-935H1-72BKA 1
J405* 6510025760 B5B-ZR-SM4-TF (LF) (SN) 1
J501 6510023110 3008L-8P8C 1
J701 6510029830 3008S-8824 (50U) 1
J901* 6510027710 S5B-ZR-SM4A-TF (LF) (SN) 1
S401 2220000780 MCS121D-1001 1
S601* 2260002740 LS8J2M-T 1
S602* 2260002740 LS8J2M-T 1
S603* 2260002740 LS8J2M-T 1
S604* 2260002740 LS8J2M-T 1
S605* 2260002740 LS8J2M-T 1
S606* 2260002740 LS8J2M-T 1
S607* 2260002740 LS8J2M-T 1
S608* 2260002740 LS8J2M-T 1
S609* 2260002740 LS8J2M-T 1
S610* 2260002740 LS8J2M-T 1
S611* 2260002740 LS8J2M-T 1
S612* 2260002740 LS8J2M-T 1
S613* 2260002740 LS8J2M-T 1
S614* 2260002740 LS8J2M-T 1
S615* 2260002740 LS8J2M-T 1
S616* 2260002740 LS8J2M-T 1
MP301 8510020810 3393 SHIELD CASE 1
MP402 8930086320 3393 JACK HOLDER 1
MP601 8510020820 3393 LED DRIVER CASE 1
[VR UNIT]
REF PART
DESCRIPTION QTY.
NO. NO.
J1* 6510022022 14FLT-SM2-TB (LF) (SN) (M) 1
S1 2250000820 TP90D96AE20PY-17F-1352 1
P1 5610000750 MP-013MS-R 1
F1 5210000841 ATC 30-1 2
F2 5210000940 1205 1
MC1 — HM-198
†
1
W1 8900021450 OPC-1457 [USA] 1
8900021450 OPC-1457 [TPE] 1
8900021450 OPC-1457 [KOR] 1
8900021450 OPC-1457 [CHN] 1
8900021450 OPC-1457 [EXP] 1
W2 8900006110 OPC-596 1
W3 — OPC-2253
†
1
W4 8900015432 OPC-1637B 1
EP1 0880003060 OPC-2095 [EUR] 1
0880003060 OPC-2095 [EUR-1] 1
0880003060 OPC-2095 [ITR] 1
0880003060 OPC-2095 [ESP] 1
0880003060 OPC-2095 [FRA] 1
EP2 6910011941 ZCAT2436-1330A-BK 1
EP3 6910011941 ZCAT2436-1330A-BK [EUR] 1
6910011941 ZCAT2436-1330A-BK [EUR-1] 1
6910011941 ZCAT2436-1330A-BK [ITR] 1
6910011941 ZCAT2436-1330A-BK [ESP] 1
6910011941 ZCAT2436-1330A-BK [FRA] 1
†
Sold as an option.

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
