Icom IC-7100 Service Manual Addendum

REF PART
DESCRIPTION QTY.
NO. NO.
J101 6510028210 SJ050010 (TMP-J01X-V6) 1
J701* 6510021722 30FLT-SM2-TB (LF) (SN) (M) 1
J711* 6510021722 30FLT-SM2-TB (LF) (SN) (M) 1
J741* 6510018971 B4B-PH-SM4-TB (LF) (SN) 1
J791* 6510019371 B3B-ZR-SM4-TF (LF) (SN) 1
F1 5220000341 FHA010-03F 1
F2 5210000940 1205 1
EP3 6910020710 OT-047 M3 1
EP4 6910020710 OT-047 M3 1
MP301 8930075440 3015 RUG SPRING 1
MP302 8930075440 3015 RUG SPRING 1
MP381 8930004071 EARTH SPRING (C)-1 1
MP502 8930062580 SHIELD TAPE (Q) 1
MP503 8930088820 3393 EARTH SPRING [EUR] 1
8930088820 3393 EARTH SPRING [EUR-1] 1
8930088820 3393 EARTH SPRING [ITR] 1
8930088820 3393 EARTH SPRING [ESP] 1
8930088820 3393 EARTH SPRING [FRA] 1
MP504 8930063270 2590 EARTH SPRING [EUR] 1
8930063270 2590 EARTH SPRING [EUR-1] 1
8930063270 2590 EARTH SPRING [ITR] 1
8930063270 2590 EARTH SPRING [ESP] 1
8930063270 2590 EARTH SPRING [FRA] 1
MP601 8930075430 3015 ANT SPRING 1
MP602 8930062740 2590 M-SPRING 1
MP711 8930071160 2427 F-EARTH SPRING 1
MP712 8930071160 2427 F-EARTH SPRING 1
MP871 8930071160 2427 F-EARTH SPRING 1
MP872 8930071160 2427 F-EARTH SPRING 1
MP901 8930075430 3015 ANT SPRING 1

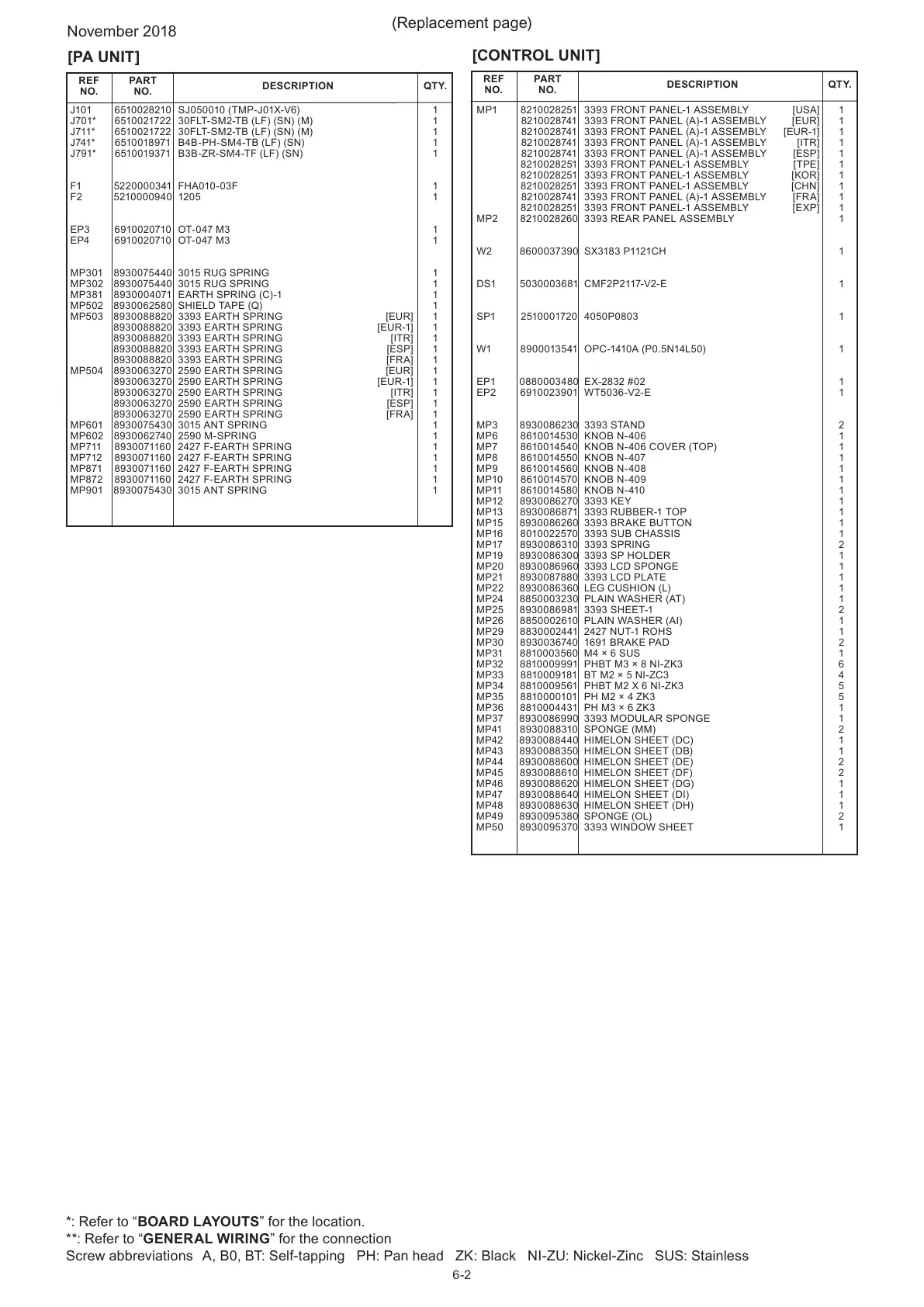

(Replacement page)
6-2
REF PART
DESCRIPTION QTY.
NO. NO.
[CONTROL UNIT]
November 2018
[PA UNIT]
*: Refer to “BOARD LAYOUTS” for the location.
**: Refer to “GENERAL WIRING” for the connection
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
MP1 8210028251 3393 FRONT PANEL-1 ASSEMBLY [USA] 1
8210028741 3393 FRONT PANEL (A)-1 ASSEMBLY [EUR] 1
8210028741 3393 FRONT PANEL (A)-1 ASSEMBLY [EUR-1] 1
8210028741 3393 FRONT PANEL (A)-1 ASSEMBLY [ITR] 1
8210028741 3393 FRONT PANEL (A)-1 ASSEMBLY [ESP] 1
8210028251 3393 FRONT PANEL-1 ASSEMBLY [TPE] 1
8210028251 3393 FRONT PANEL-1 ASSEMBLY [KOR] 1
8210028251 3393 FRONT PANEL-1 ASSEMBLY [CHN] 1
8210028741 3393 FRONT PANEL (A)-1 ASSEMBLY [FRA] 1
8210028251 3393 FRONT PANEL-1 ASSEMBLY [EXP] 1
MP2 8210028260 3393 REAR PANEL ASSEMBLY 1
W2 8600037390 SX3183 P1121CH 1
DS1 5030003681 CMF2P2117-V2-E 1
SP1 2510001720 4050P0803 1
W1 8900013541 OPC-1410A (P0.5N14L50) 1
EP1 0880003480 EX-2832 #02 1
EP2 6910023901 WT5036-V2-E 1
MP3 8930086230 3393 STAND 2
MP6 8610014530 KNOB N-406 1
MP7 8610014540 KNOB N-406 COVER (TOP) 1
MP8 8610014550 KNOB N-407 1
MP9 8610014560 KNOB N-408 1
MP10 8610014570 KNOB N-409 1
MP11 8610014580 KNOB N-410 1
MP12 8930086270 3393 KEY 1
MP13 8930086871 3393 RUBBER-1 TOP 1
MP15 8930086260 3393 BRAKE BUTTON 1
MP16 8010022570 3393 SUB CHASSIS 1
MP17 8930086310 3393 SPRING 2
MP19 8930086300 3393 SP HOLDER 1
MP20 8930086960 3393 LCD SPONGE 1
MP21 8930087880 3393 LCD PLATE 1
MP22 8930086360 LEG CUSHION (L) 1
MP24 8850003230 PLAIN WASHER (AT) 1
MP25 8930086981 3393 SHEET-1 2
MP26 8850002610 PLAIN WASHER (AI) 1
MP29 8830002441 2427 NUT-1 ROHS 1
MP30 8930036740 1691 BRAKE PAD 2
MP31 8810003560 M4 × 6 SUS 1
MP32 8810009991 PHBT M3 × 8 NI-ZK3 6
MP33 8810009181 BT M2 × 5 NI-ZC3 4
MP34 8810009561 PHBT M2 X 6 NI-ZK3 5
MP35 8810000101 PH M2 × 4 ZK3 5
MP36 8810004431 PH M3 × 6 ZK3 1
MP37 8930086990 3393 MODULAR SPONGE 1
MP41 8930088310 SPONGE (MM) 2
MP42 8930088440 HIMELON SHEET (DC) 1
MP43 8930088350 HIMELON SHEET (DB) 1
MP44 8930088600 HIMELON SHEET (DE) 2
MP45 8930088610 HIMELON SHEET (DF) 2
MP46 8930088620 HIMELON SHEET (DG) 1
MP47 8930088640 HIMELON SHEET (DI) 1
MP48 8930088630 HIMELON SHEET (DH) 1
MP49 8930095380 SPONGE (OL) 2
MP50 8930095370 3393 WINDOW SHEET 1

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
