Icom IC-756PRO - SECTION 2 INSIDE VIEWS; BOTTOM VIEW

SECTION 2
INSIDE VIEWS
2 - 1

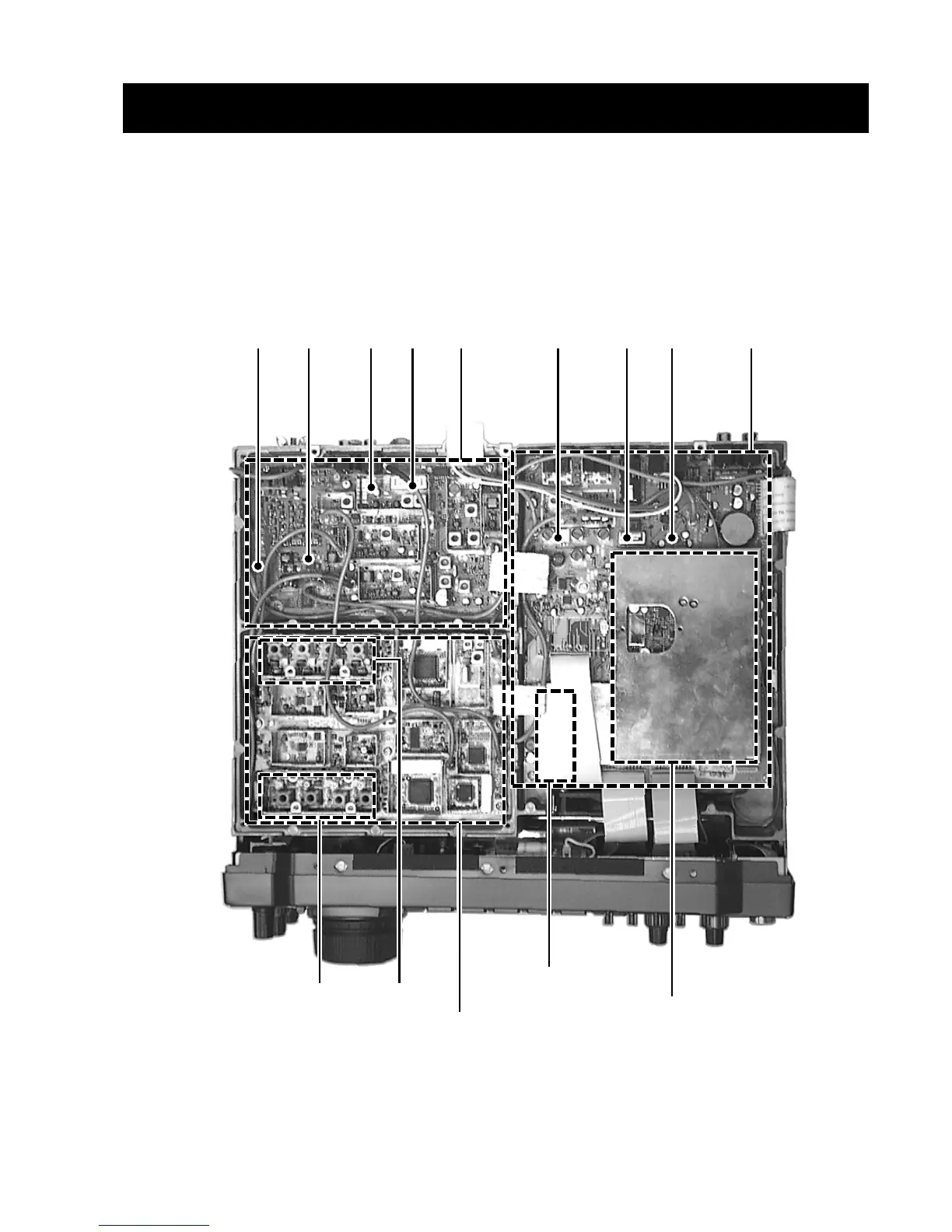

• BOTTOM VIEW
VCO-B circuit
YGR amplifier (IC151: µPC1678G) Pre amplifier (IC451: µPC1658G) FM IF IC (IC841: TA31136FN) RF unit 1st IF filter (FI132: SFPC455E-TC01) 2nd IF filter (FI111: CFK455E10) 3rd mixer (IC151: NJM1496V) MAIN unit
PLL unit MEMORY board DSP board VCO-A circuit
Ceramic filter (FI842: CFJ455K8)
