Icom IC-A16 Basic Manual

1
BASIC MANUAL
1
PANEL DESCRIPTION

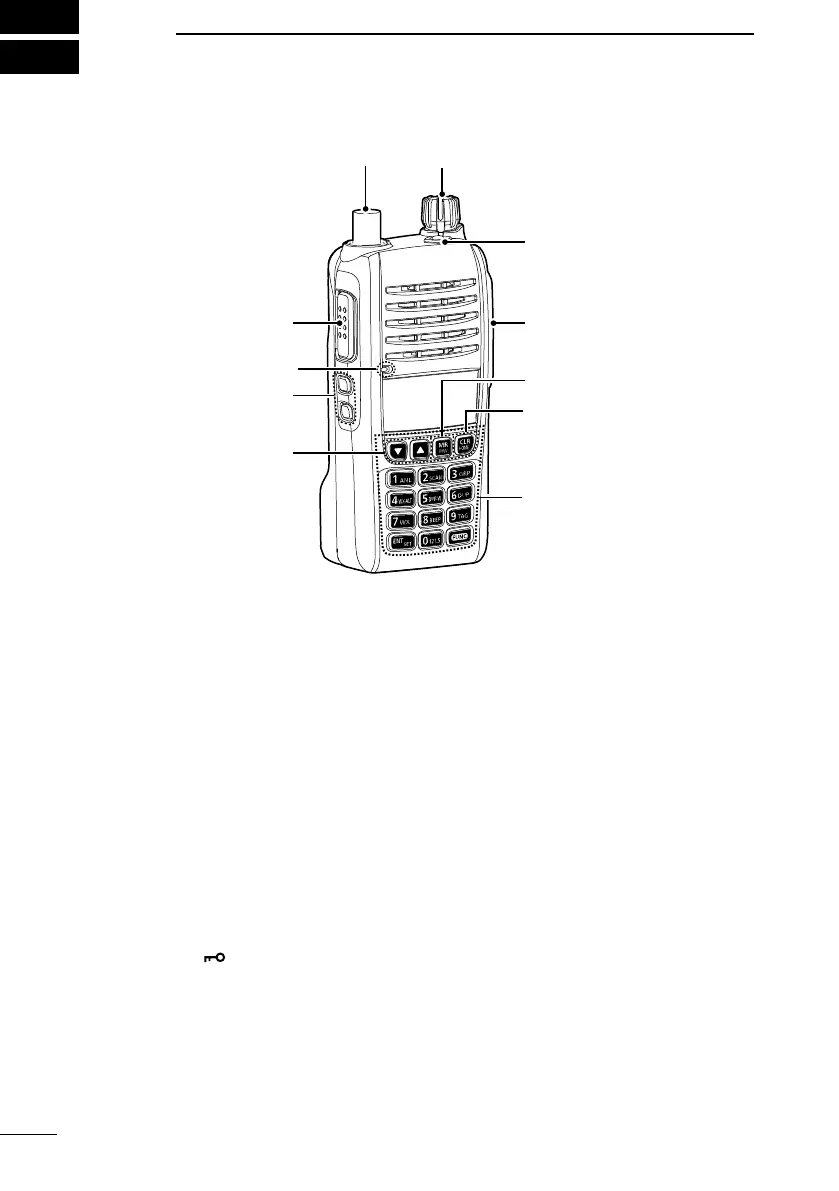

■ Front, top and side panels
1 ANTENNA CONNECTOR
Connect the supplied antenna.
2 PTT SWITCH [PTT]
Hold down to transmit, release to receive.
3 SQUELCH ADJUSTMENT KEYS [SQL∫]/[SQL√]
Push to adjust the squelch level.
4 UP/DOWN KEYS [∫]/[√]
z Push to change or select the frequency, Memory channel, Set mode settings, and
so on.
z While scanning, push to change the scanning direction.
5 CLEAR/HOME KEY [CLR]/[HOME]
z Push to return to the VFO mode.
6 MEMORY/MEMORY WRITE KEY [MR]/[MW]
z Push to enter the Memory Channel Selection mode.
z Push [FUNC], and then push this key to enter the Memory Write mode.
7 HEADSET JACK
Connects a third party headset through the optional headset adapter.
8 LOCK KEY [
]
z Push to lock the keypad.
z Hold down for 2 seconds to unlock the keypad.
9 VOLUME/POWER SWITCH [VOL]
z Rotate to turn the transceiver ON or OFF.
z Rotate to adjust the audio output level.
1 9
8
7
6
5
4
3
2
Microphone
Keypad

Icom IC-A16 Specifications

General

Channel Spacing	8.33 kHz/25 kHz
Number of Memory Channels	200 channels
Antenna Impedance	50 Ω
Waterproof	IP67
Display	LCD
Frequency Range	118.000–136.9916 MHz
Output Power	6 W (PEP), 1.8 W (carrier)
Weight	Approx. 300 g (with standard battery)
Power Supply Requirement	7.2 V DC
Current Drain (Transmit)	1.5 A
Mode	AM
Channels	200
Voltage	7.2V
