Icom IC-A23 User Manual

26
7
BATTERY PACKS

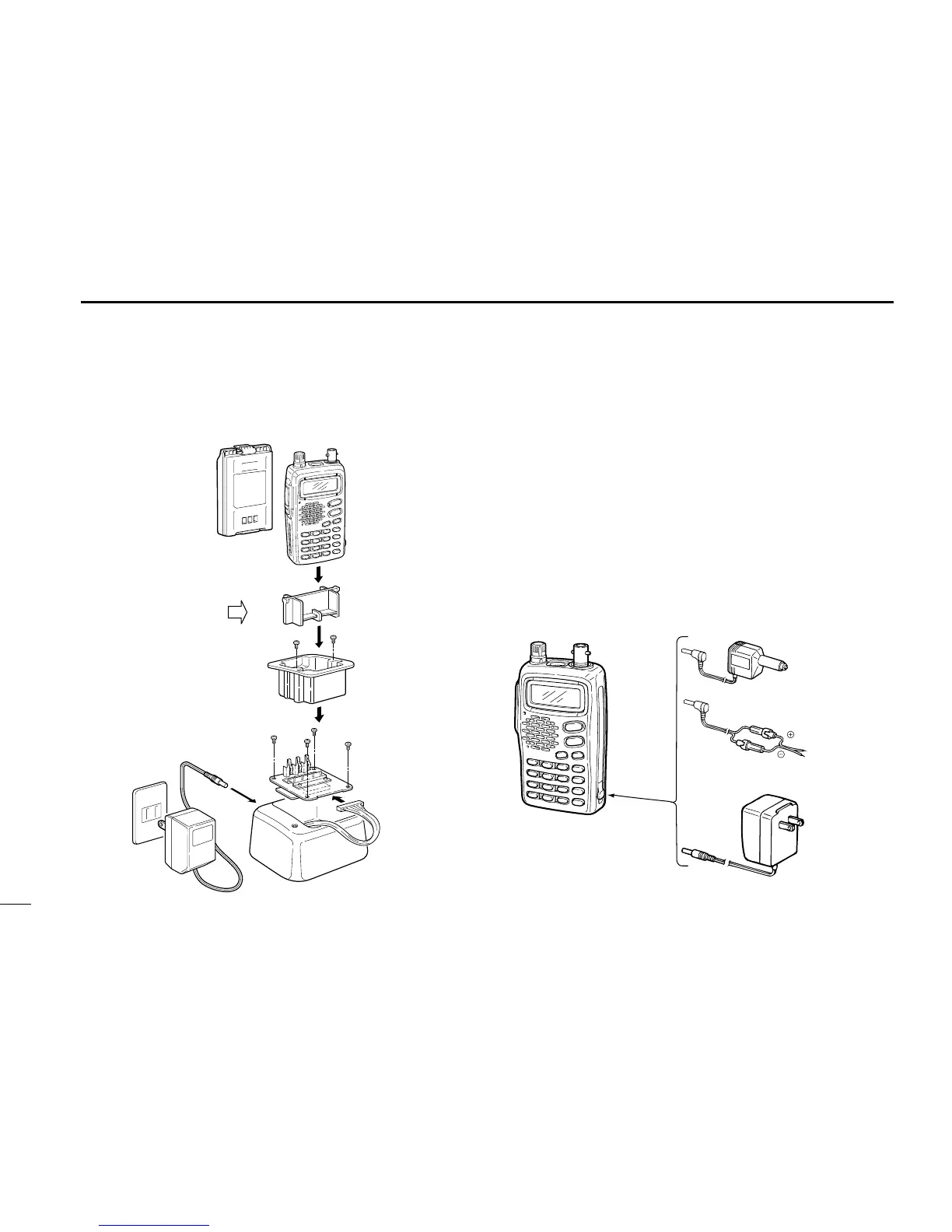

D Rapid charging with the BC-119 D Regular charging
q Attach the battery pack to the transceiver.
w Be sure to turn the transceiver power OFF.
e Connect the Wall charger (BC-110A) or optional cable
(CP-12L or OPC-254L) as shown below.
•Charging period: 15 hours

IC-A23/A5 with
attached
battery case
Wall charger
CP-12L
(optional)
OPC-254L
(optional)
To a 12 to
14 V DC
power source
To
[CHARGE]
white
black
*AD-87B
(supplied with AD-87A)
AD-88
(optional)
Check orientation
for correct charging
AD-87A
(optional)
BC-119
(optional)
*
