■ Optional battery chargers

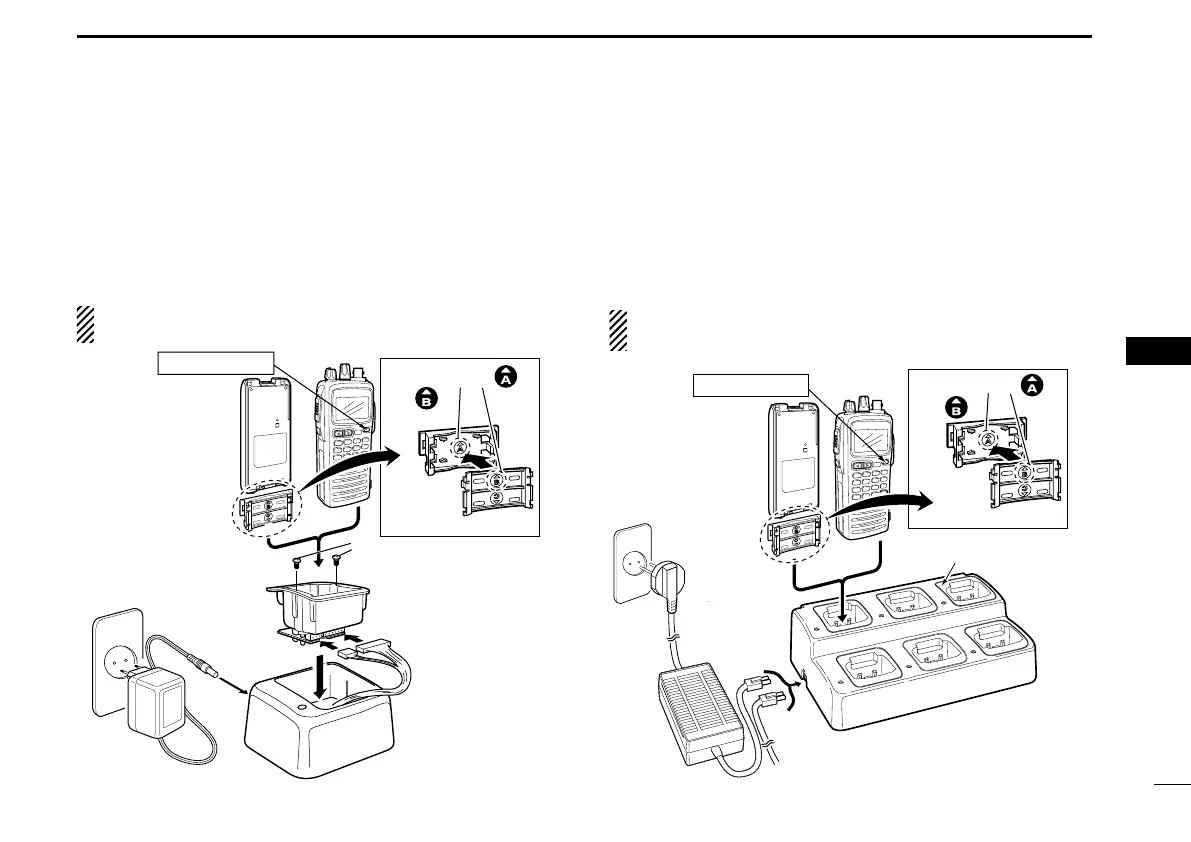

D Rapid charging with the BC-119N+AD-101
The optional BC-119N provides rapid charging of battery
packs. The following are additionally required.
• AD-101 charger adapter.
• An AC adapter (may be supplied with BC-119N depending on ver-
sions).
NOTE: Attach the spacer (Spacer B/C) to the adapter (Spacer A)
with orientation as illustrated below.
D Rapid charging with the BC-121N+AD-101
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following are additionally re-
quired.
• Six AD-101 charger adapters.
• An AC adapter (BC-124) or the DC power cable (OPC-656).
NOTE: Attach the spacer (Spacer B/C) to the adapter (Spacer A)
with orientation as illustrated below.
AD-99 (supplied
with AD-101)
AD-101
(optional)
AC adapter
Supplied screws
with AD-101.
BC-119N
(optional)
IC-A24E/A6E
BP-209N/BP-210N/
BP-211N
Turn power OFF
Spacer A
Spacer B/C
Check orientation
and
IC-A24E/A6E
BP-209N/BP-210N/
BP-211N
AC adapter
(BC-124:
Purchase
separately)
AD-101 charger adapters are
installed in each slot.
DC power cable (OPC-656)
(Connect with the DC power supply;
13.8 V/at least 7 A)
Turn power OFF
AD-99 (supplied
with AD-101)
Spacer A
Spacer B/C
Check orientation
and
