5
2
PANEL DESCRIPTION
r EXTERNAL SPEAKER-MICROPHONE JACK [SP MIC]
Connectstheoptionalspeaker-microphone,etc.

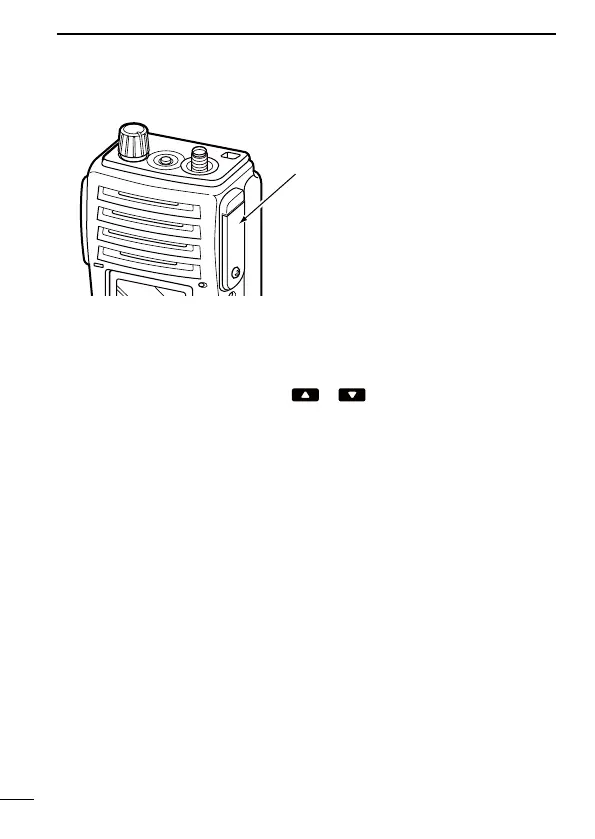

[SP MIC] jack cover
NOTE: KEEP the [SP MIC]
jack cover attached to the
transceiver when the optional
equipment is not used.
(See page 3 for details)
t DEALER-PROGRAMMABLE KEYS [P0] to [P3]
The desired functions can be assigned independently by your
dealer.(p.7)
y CH UP AND DOWN KEYS [
]/[ ]
Push to select an operating channel, etc.
*Desiredfunctionscanbeassignedindependentlybyyourdealer.
(p.7)
u TRANSMIT/BUSY INDICATOR
Lights red while transmitting; lights green while receiving a
signal, or when the squelch is open.
i PTT SWITCH [PTT]
➥ Push and hold to transmit; release to receive.
➥Whentherecordingfunctionisactivated,TXvoicemessage
canberecordedwhilepushingandholding[PTT].(p.21)
