q ANTENNA CONNECTOR
Connects to an antenna. Ask your Dealer about antenna
selection and placement.
w MICROPHONE HANGER
Connect the supplied microphone hanger to the vehicle’s
ground for microphone on/off hook functions.
(See p. 2)
e DC POWER RECEPTACLE
Connects to a
12 V DC battery. Pay attention to polarities.
NEVER connect to a 24 V battery. This could damage
the transceiver.
r EXTERNAL SPEAKER JACK
Connect a 4–8
ø external speaker, if desired.
t OPTIONAL CABLE (OPC-617)
Connect an external modem unit, LCD backlight control,
etc.

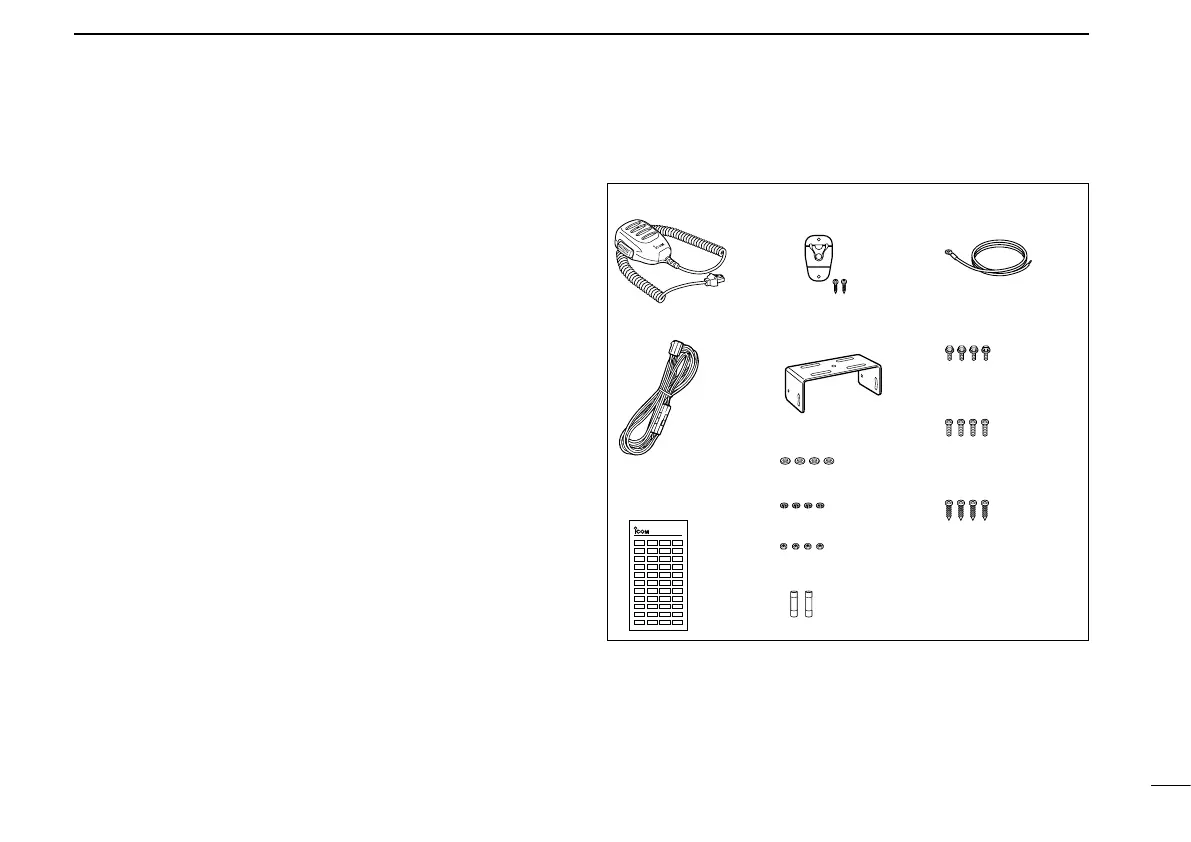

■Supplied Accessories
LCD-STICKER
Microphone*
Mounting bracket
Microphone
hanger cable*
DC power cable*
Microphone hanger
and screw set
Nuts
Fuses (20 A)
Function name
stickers
Bracket bolts
Mounting screws
(M5×12)
Self-tapping screws
(M5×20)
Flat washers
Spring washers
* Not supplied with
some versions.
• Function name stickers
There are no names on the programmable function keys
since the functions can be freely assigned to these keys.
Attach the supplied function name stickers to the the appro
-
priate keys for easy recognition of that key’s assigned func
-
tion.
12
3
CONNECTION AND MAINTENANCE
