5 - 2

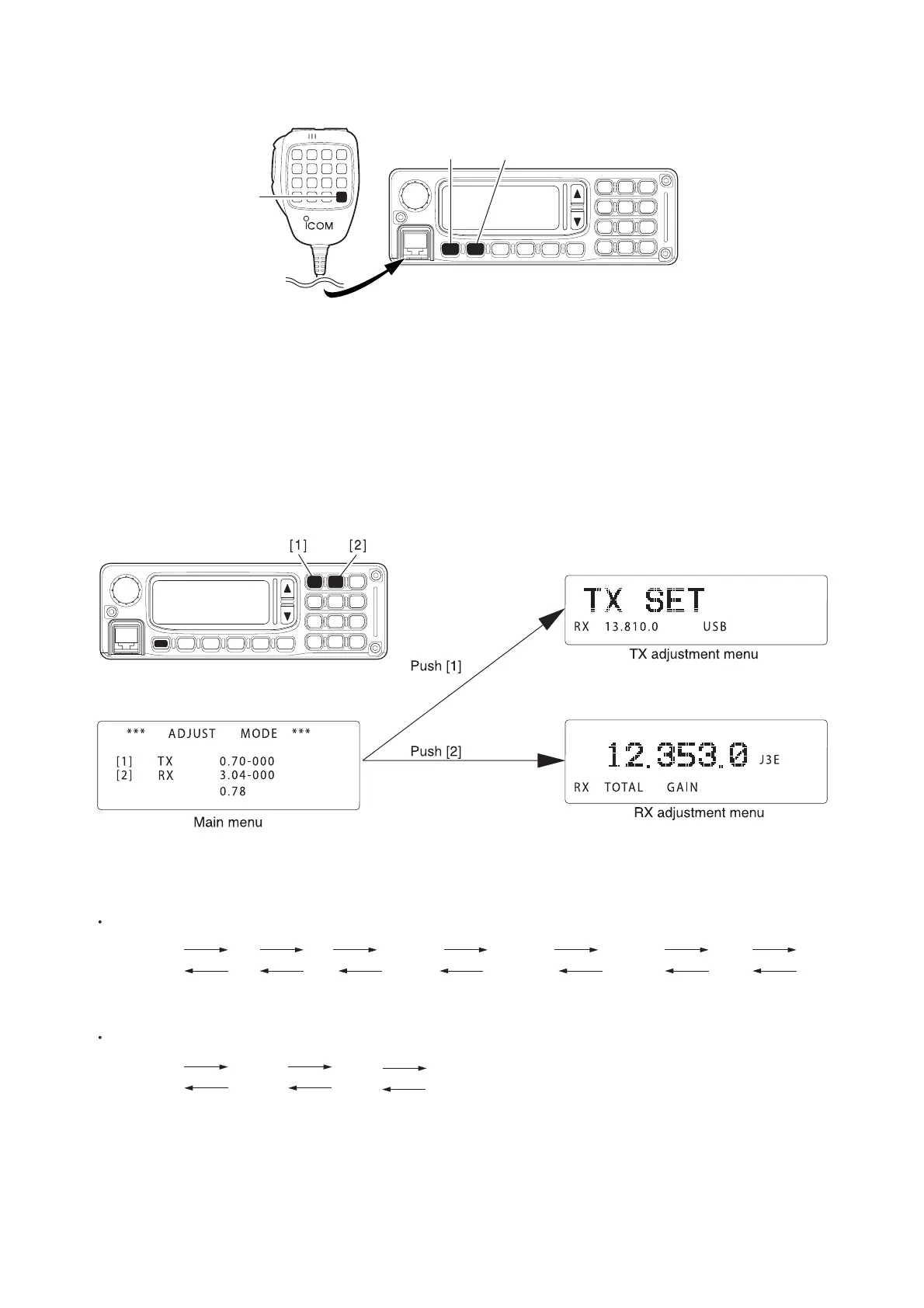

M ENTERING THE ADJUSTMENT MODE
q Turn the power OFF.
w Push and hold the HM-146’s [CALL] and RC-26’s [EMG] switches, then turn the power ON.
M OPERATING ON THE ADJUSTMENT MODE
• Enter the TX adjustment from the MAIN menu. : Push the RC-26 [1] button
• Enter the RX adjustment from the MAIN menu. : Push the RC-26 [2] button
• Change the adjustmet value. : Turn the RC-26 [VOL]
• Write the adjustment data to the memory, and
then change the next adjustmet item. : Push the RC-26 [OK] button
• Selects the next adjustment item. : Push the RC-26 [0] button
• Selects to the previous adjustment item. : Push the RC-26 [CLR ] button
[CALL]
Connect to [MIC] connector.
[POWER] [EMG]
MAIN
menu
TX ADJUSTMENT ITEM CHANGING
[1] [0] [0] [0] [0] [0]
[CLR][CLR][CLR][CLR][CLR][CLR]
TX
set
TX
gain
TX power
(High)
TX power
(Middle)
TX power
(Low)
SWR
1.0
SWR
2.0
[0]
[CLR]
MAIN
menu
RX ADJUSTMENT ITEM CHANGING
[2] [0]
[0]
[CLR]
[CLR][CLR]
RX total
gain
S level
zero
S level
8
To Next Page
