July 2016
(Amended page)
[MAIN-B UNIT]
REF PART
DESCRIPTION
QTY.
NO. NO.
J1* 6510026770 AXK540147YG 1
J2* 6510023092 20FLT-SM2-TB (LF) (SN) (M) 1
J4* 6510023512 28FLT-SM2-TB (LF) (SN) (M) 1
J5 6510023110 3008L-8P8C 1
J6 6450002470 JY-3510A*01-130 1
J8* 6510023092 20FLT-SM2-TB (LF) (SN) (M) 1
J9* 6510019371 B3B-ZR-SM4-TF (LF) (SN) 1
J10 6510004910 NR-DS-E 01 1
J11 6510004910 NR-DS-E 01 1
J12* 6510025970 41-002AA-R 1
MF1 2710000870 AFB0512HB-7X22 HK 1
W1 7030014230 RJ20S0OHM 1
W2 7030014230 RJ20S0OHM 1
W4 8920000830 CAB-1116 1
W5 8900020500 OPC-2249 [#37] 1
8900020500 OPC-2249 [#82] 1
EP10 6910011560 HF70BB4.5X5X1.6 2
EP13 6910011330 OT-009 M3 1
EP14 6910011330 OT-009 M3 1
MP1 8510018070 2979 VCO CASE Y1005 1
MP2 8510018060 2979 VCO COVER Y1006 1
MP3 8510018070 2979 VCO CASE Y1005 1
MP4 8510018060 2979 VCO COVER Y1006 1
MP5 8210024440 3063 SUB M-PANEL 1
MP6 8310070880 3063 S-LED PLATE [#07] 1
8310070880 3063 S-LED PLATE [#14] 1
8310070880 3063 S-LED PLATE [#15] 1
8310070880 3063 S-LED PLATE [#16] 1
8310070880 3063 S-LED PLATE [#23] 1
8310083910 3063 S-LED PLATE (B) [#35] 1
8310083910 3063 S-LED PLATE (B) [#36] 1
8310083910 3063 S-LED PLATE (B) [#37] 1
8310083910 3063 S-LED PLATE (B) [#82] 1
MP7 8930073920 3063 SP COVER 1
MP8 8010020981 3063 CHASSIS-1 1
MP9 8110009360 3063 SU-COVER 1
MP10 8110009370 3063 SL-COVER 1
MP11 8930074300 3063 PC PLATE [#07] 1
8930074300 3063 PC PLATE [#14] 1
8930074300 3063 PC PLATE [#15] 1
8930074300 3063 PC PLATE [#16] 1
8930074300 3063 PC PLATE [#23] 1
8930074300 3063 PC PLATE [#35] 1
8930074300 3063 PC PLATE [#36] 1
8930085080 3063 IF PLATE [#37] 1
8930085080 3063 IF PLATE [#82] 1
MP12 8930074180 O-RING (BR) (TOP) 1
MP13 8930075020 3063 B-PACKING (TOP) 1
MP14 8930075030 3063 C-PACKING (TOP) 1
MP15 8930073930 3063 SP RUBBER (TOP) 1
MP17 8930062160 HIMELON SHEET (CL) 1
MP18 8930079651 2979 D-SUB PLATE (A)-1 Y2142A 1
MP19 8930058990 SHIELD SPONGE (V) 1
MP20 8510015660 2681 F-SHIELD PLATE 1
MP21 8930048550 2177 CLIP 1
MP22 8810008451 BIND M4 X 8 ZK3 4
MP23 8930075080 HR25F DUST CAP 1
MP24 8810009611 FLAT M2.6X 6 ZK3 8
MP25 8810009611 FLAT M2.6X 6 ZK3 9
MP26 8810010780 PH BT M3 X20 NI-ZK3 4
MP27 8810008661 PHBT M3 X 8 NI-ZC3 19
MP28 8810008661 PHBT M3 X 8 NI-ZC3 2
MP29 8810008661 PHBT M3 X 8 NI-ZC3 1
MP30 8810008661 PHBT M3 X 8 NI-ZC3 2
MP31 8810008661 PHBT M3 X 8 NI-ZC3 3
MP32 8810008661 PHBT M3 X 8 NI-ZC3 4
MP33 8510018780 3063 ANT CASE Y1076 2
MP35 8810003361 SET SCREWC M3 X 6 ZC3 2
MP37 8510018790 3063 VCO SHIELD Y1078 1
MP38 8510018820 3063 SHIELD PLATE Y1085 1
MP40 8930050472 SHIELD SPONGE (A)-2 1
MP41 8930050472 SHIELD SPONGE (A)-2 1
MP42 8930050472 SHIELD SPONGE (A)-2 1

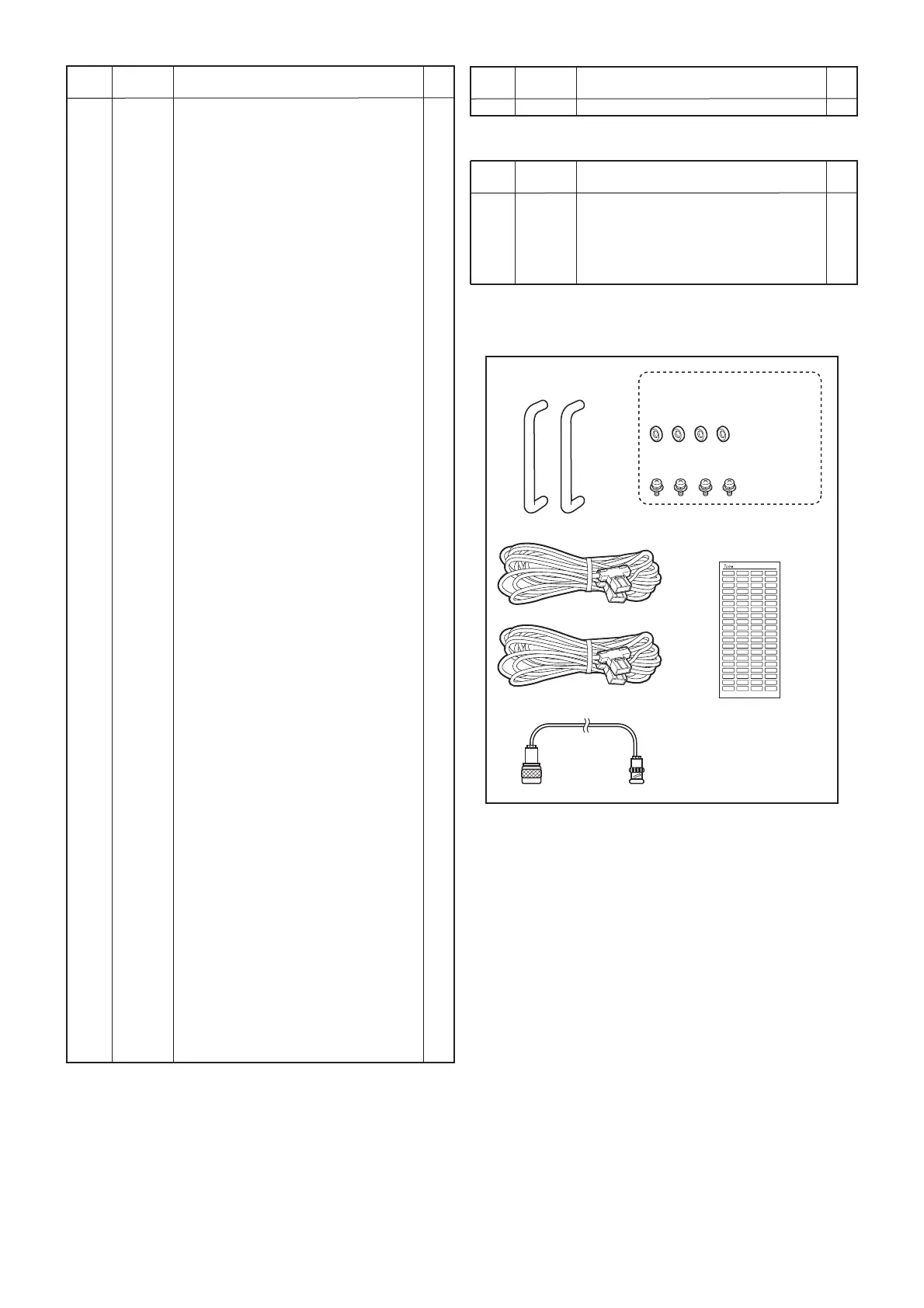

[ACCESSORIES]
REF PART
DESCRIPTION
QTY.
NO. NO.
W1 8900017530 OPC-1784 M2K 1
W2 8900017530 OPC-1784 M2K Only [#82] 1
W3 8900021150 OPC-2243 Only [#82] 1
W4 8920001160 CAB-1149 Only [#07] 1
MP1 8930075520 3063 HANDLE 1
MP4 8310071490 3063 KEY SEAL 1
[PA UNIT] (For only FR5100H])
REF PART
DESCRIPTION
QTY.
NO. NO.
EP1 (Option) UR-PA5000 1
MP1 For handle attachment
MP2
MP3
W1
W2
W3
MP4
KEY SEAL
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
*: Refer to “BOARD LAYOUTS” for the location.
8-2
