Icom IC-M24 Service Manual

7 - 1
[CHASSIS PARTS]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J31 6910014190 2497 ANT CONNECTOR <EIK> 1
SP1 2510001410 036D0803-1 1
W1 8900009640 OPC-963 1
W2 8900020040 OPC-2138 1
MP1 8210026940 3340 FRONT PANELASSEMBLY [M24] 1
8210027040 3340 FRONT PANEL (A)ASSEMBLY [M23] 1
MP5 8930082450 3340 KEYBOARD <SEP> [M24] 1
8930082590 3340 KEYBOARD (A) <SEP> [M23] 1
MP6 8930082510 3340 PTT BUTTON (TOP) 1
MP7 8930082370 3340 PTT HOLDER 1
MP10 8110010040 3340 REAR COVER 1
MP11 8930082480 3340 COVER SEAL (TOP) 1
MP12 8930082400 3340 RELEASE BUTTON 1
MP13 8930056540 PUSH SPRING (AH) 2
MP14 8850001950 SEALING WASHER (Y) (TOT) 1
MP15 8830003440 3285 ANT NUT 1
MP16 8930082360 3340 JACK CAP 1
MP17 8930082380 3340 CAP HOLDER 1
MP18 8930082470 3340 MIC SEAL (TOP) 1
MP21 8210026930 3340 REAR PANEL 1
MP22 8930082500 3340 MAIN SEAL (TOP) 1
MP24 8820001510 3062 SCREW 6
MP25 8930063690 O-RING (BA) (TOP) 6
MP31 8010022080 3340 CHASSIS 2X1 1
MP32 8930082440 3340 TERMINAL HOLDER 1
MP33 8810009561 PHBT M2 X 6 NI-ZK3 10
MP34 8930082560 3340 A-TERMINAL Y1233 [USA] 1
8930082560 3340 A-TERMINAL Y1233 [EXP] 1
8930083330 3340 C-TERMINAL Y1242 [CHN] 1
8930083330 3340 C-TERMINAL Y1242 [EUR-1] 1
8930083330 3340 C-TERMINAL Y1242 [EUR] 1
8930083330 3340 C-TERMINAL Y1242 [UK] 1
8930083330 3340 C-TERMINAL Y1242 [FRG] 1
8930083330 3340 C-TERMINAL Y1242 [HOL] 1
8930082560 3340 A-TERMINAL Y1233 [AUS] 1
MP35 8930082570 3340 B-TERMINAL Y1234 2
MP39 8810009511 PHBT M2 X 4 NI-ZC3 (3.6-4.0) 1
MP42 8810008751 PHBT M2 X15 NI-ZK3 1
MP48 8930030920 1301 SHEET 1
MP50 8930082490 O-RING (CH) (TOP) 1
MP51 8930082680 3340 DETECTION PIN 2
MP52 8930082630 INSULATION SHEET (MU) 1
MP53 8930083180 SPONGE (LG) 1
MP54 8930083370 3340 FERRITE SHEET [CHN] 2
8930083370 3340 FERRITE SHEET [EUR-1] 2
8930083370 3340 FERRITE SHEET [EUR] 2
8930083370 3340 FERRITE SHEET [UK] 2
8930083370 3340 FERRITE SHEET [FRG] 2
8930083370 3340 FERRITE SHEET [HOL] 2
[ACCESSORIES]
[MAIN UNIT]
REF ORDER
DESCRIPTION QTY.
NO. NO.
J251* 6510021901 BM02B-ASRS-TF (LF) (SN) 1
J601* 6510027970 LGP2631-0200FC 1
J602* 6510009351 B2B-ZR (LF) (SN) 1
DS246* 5030003400 TAK-35920 FX3340 <ITAK> 1
DS247* 5040003560 RT3-234HRH16T-BNS <ROD> 1
MC250* 7700002710 EM6027P-46C33-G <HOR> 1
S250* 2260001900 SW-149 (SKHLLD) 1
EP360 8930082550 SRCN-3340-SP-N-W (SHJ) 1
MP20* 8510014940 2601 VCO CASE Y641 1
MP21* 8510014950 2601 VCO COVER Y642 1
MP22* 6910014760 OG-503040 [CHN] 1
6910014760 OG-503040 [EUR-1] 1
6910014760 OG-503040 [EUR] 1
6910014760 OG-503040 [UK] 1
6910014760 OG-503040 [FRG] 1
6910014760 OG-503040 [HOL] 1
MP360 8210026950 3340 REFLECTOR 1
MP361 8930082580 3340 LCD HOLDER Y1232 1
MP362 8930080490 THERMAL SHEET (BU) TC200HSV1.4 (6.8X14) 1
MP363 8930082620 3340 WHITE SHEET 1
REF ORDER
DESCRIPTION QTY.
NO. NO.
EP1 (Optional) FA-SC58V-1 1
EP2 (Optional) BC-199SA [USA] 1
(Optional) BC-199SE [EXP] 1
(Optional) BC-199SE [CHN] 1
(Optional) BC-199SE [EUR-1] 1
(Optional) BC-199SE [EUR] 1
(Optional) BC-199SE [FRG] 1
(Optional) BC-199SE [HOL] 1
(Optional) BC-199SV [AUS] 1
EP4 (Optional) BP-266 1
EP6 6910018620 BLACK HANDY STRAP <TOM> 1
MP2 (Optional) MB-124 1

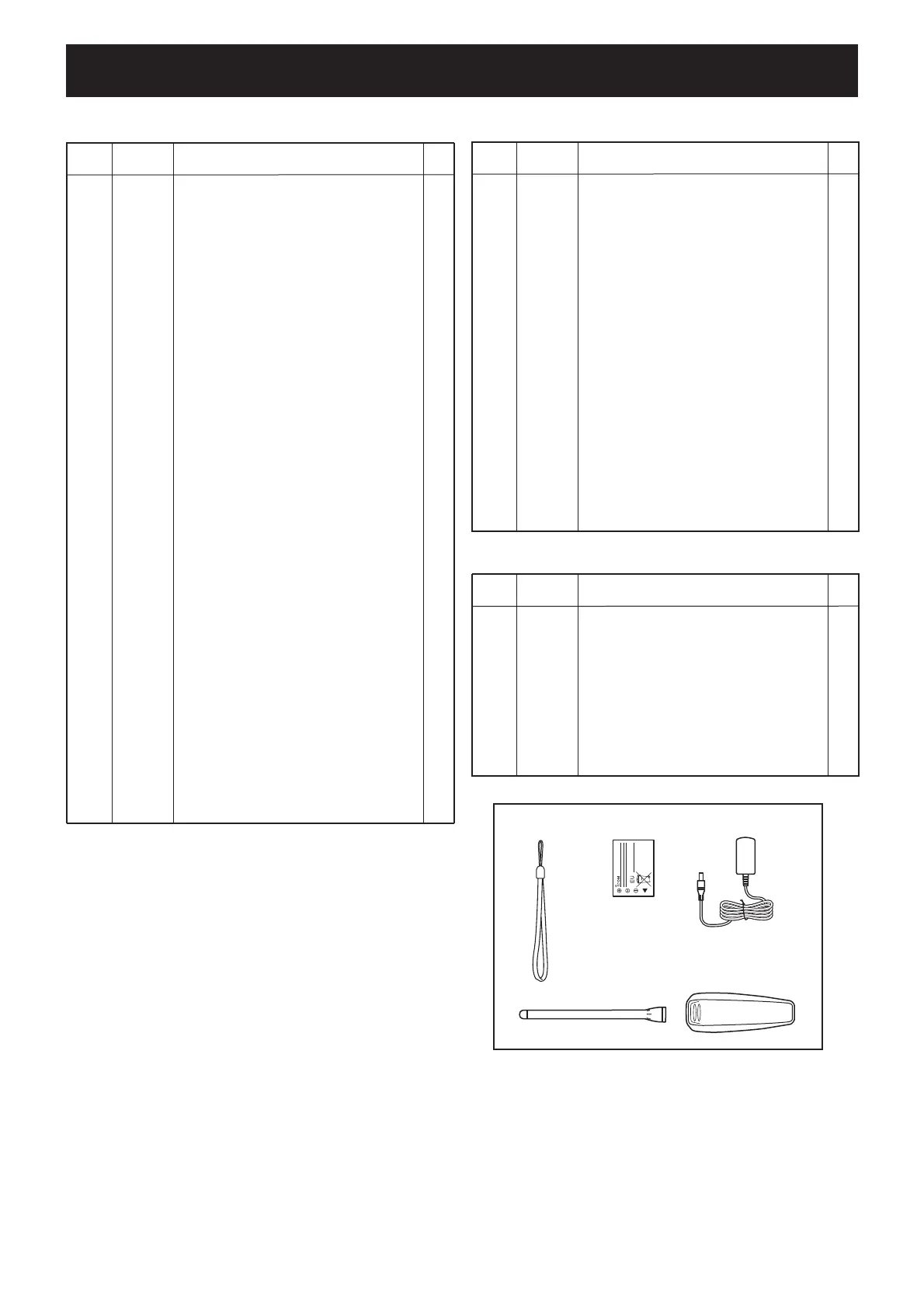

SECTION 7
.
MECHANICAL PARTS
*: Refer to “BOARD LAYOUTS” for the location.
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
EP4
EP6
MP2
EP1
EP2
