9 - 4

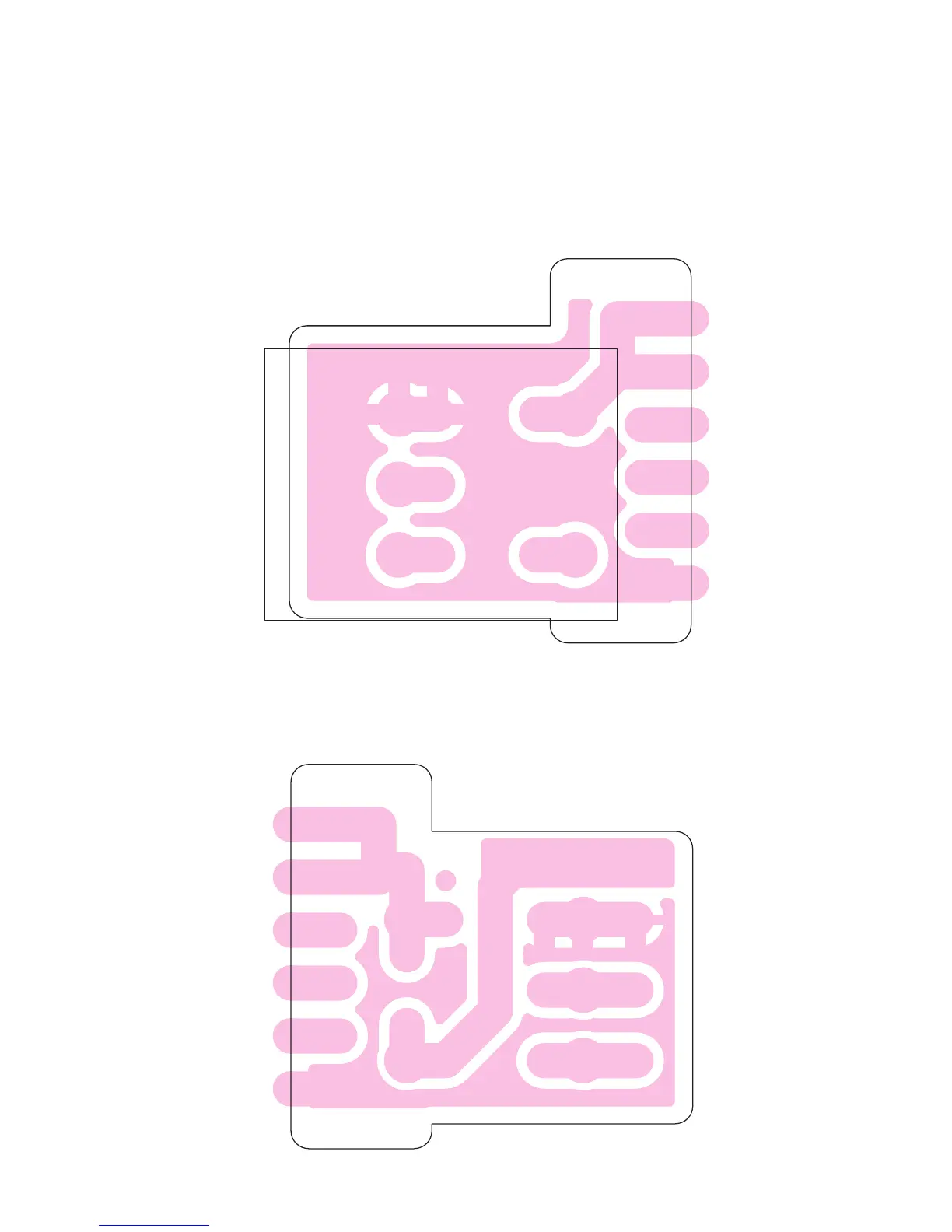

9-3 VR UNIT
• TOP VIEW
R500
B5715A
to the MAIN unit
J240
VCC
VCC
NC
VOLIN
VOLO
GND
• BOTTOM VIEW
