Icom IC-M34

5 - 4
ADJUSTMENT ADJUSTMENT CONDITION OPERATION VALUE
PLL LOCK
VOLTAGE
(Verify)
1 • Operating CH. : 16
• Receiving

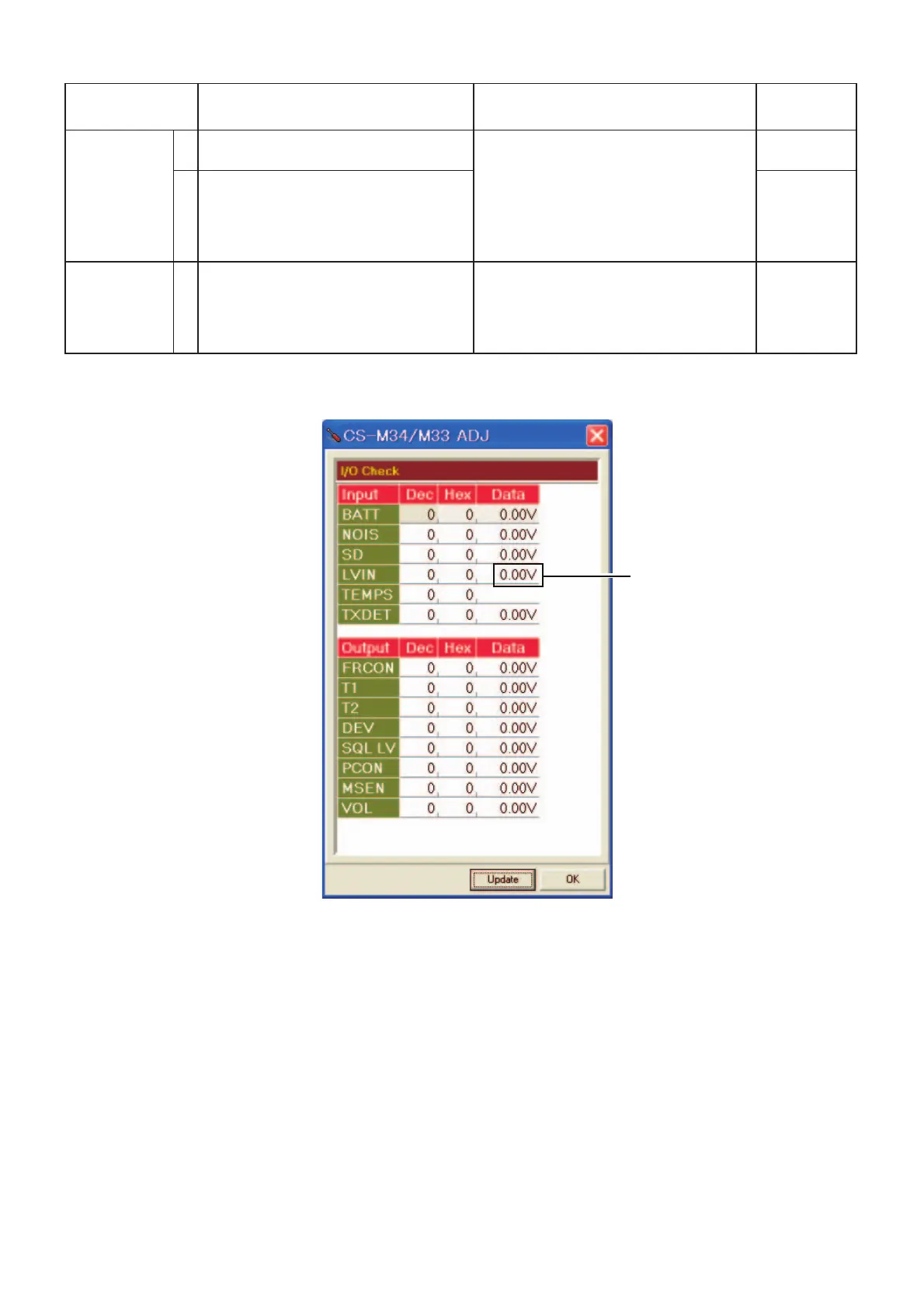

Click the “I/O check button” on the CS-M34
ADJ's screen (see page 5-3) to open the
I/O check window as below.
1.3–2.3 V
(Verify)
2 • Operating CH. : 16
• RF power : Low
• Connect an RF power meter to the ant-
enna connector.
• Transmitting
1.25–2.25 V
(Verify)
REFERENCE
FREQUENCY
[Ref. Freq.]
1 • Operating CH. : 16
• RF power : Low
• Connect an RF power meter to the ant-
enna connector.
• Transmitting
Loosely couple a frequency counter to the
antenna conector.
156.8000
MHz
5-2 SOFTWARE ADJUSTMENT (FREQUENCY)
Select an adjustment item using [
↑
] / [
↓
] keys, then set to the specifi ed value using [
←
] / [
→
] keys on the connected PC’s keyboard.
NOTE: The above screen is an example only.
Each item’s voltage will appear when clicking [Update] button.
PLL LOCK VOLTAGE
will be appeared here
• I/O CHECK WINDOW
