4-2 FREqUENCY ADJUSTMENT
Select an adjustment item by pushing [↑]/[↓]/[←]/[→] on the PC's keyboard.1.
Set or modify the adjustment value as specified using [Space]/[BackSpace] on the PC's keyboard.2.
ADJUSTMENT
TRANSCEIVER'S
CONDITION
OPER ATION
ADJUSTMENT
ITEM
VALUE
PLL LOCK
VOLTAGE
1 Channel: 1•
Receiving•
Click the "I/O check button" on the
ADJ-M85's screen (see page 4-2) to
open the I/O check window as below.
[RX LVA]
3.2 V: 163
2 Channel: 2•
Transmitting•
[TX LVA]
3.4 V: 174
3 Channel: 3•
Receiving•
[LVIN]
(On the I/O
Check window)
0.8 V ±0.3 V
(Verify)
4 Channel: 4•
Transmitting•
0.9 V ±0.3 V
(Verify)
REFERENCE
FREqUENCY
1 Channel: 5•
Transmitting•
Loosely couple the frequency
counter to the antenna connector, as
shown on page 4-1.
[REF]
155.0000 MHz
(±300 Hz)

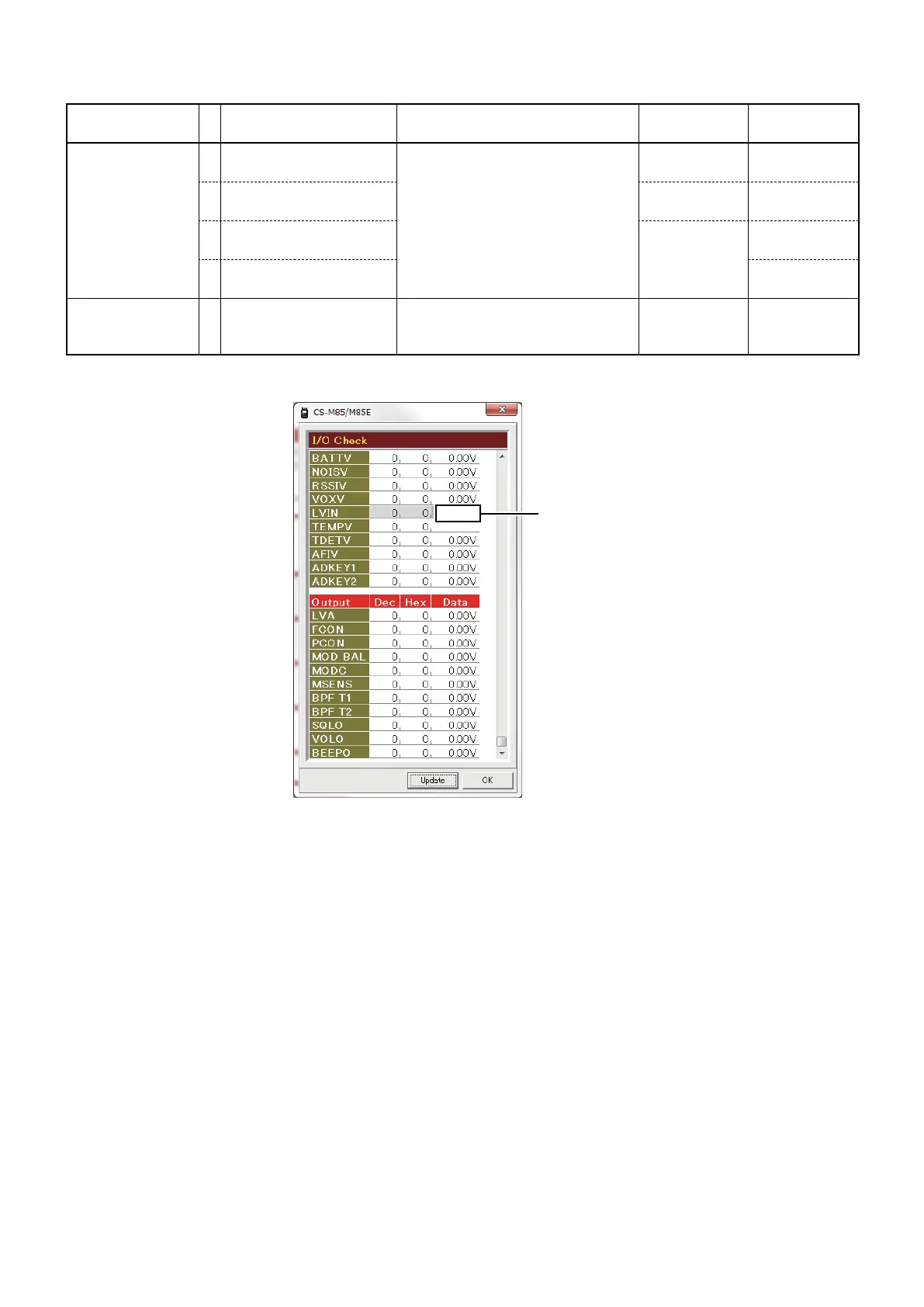

• I/O Check window
(The values shown above are example
only. Each transceiver has own values.)
Lock voltage is
displayed here.
* * * *
