3 - 1
SECTION 3
.
DISASSEMBLY INSTRUCTION

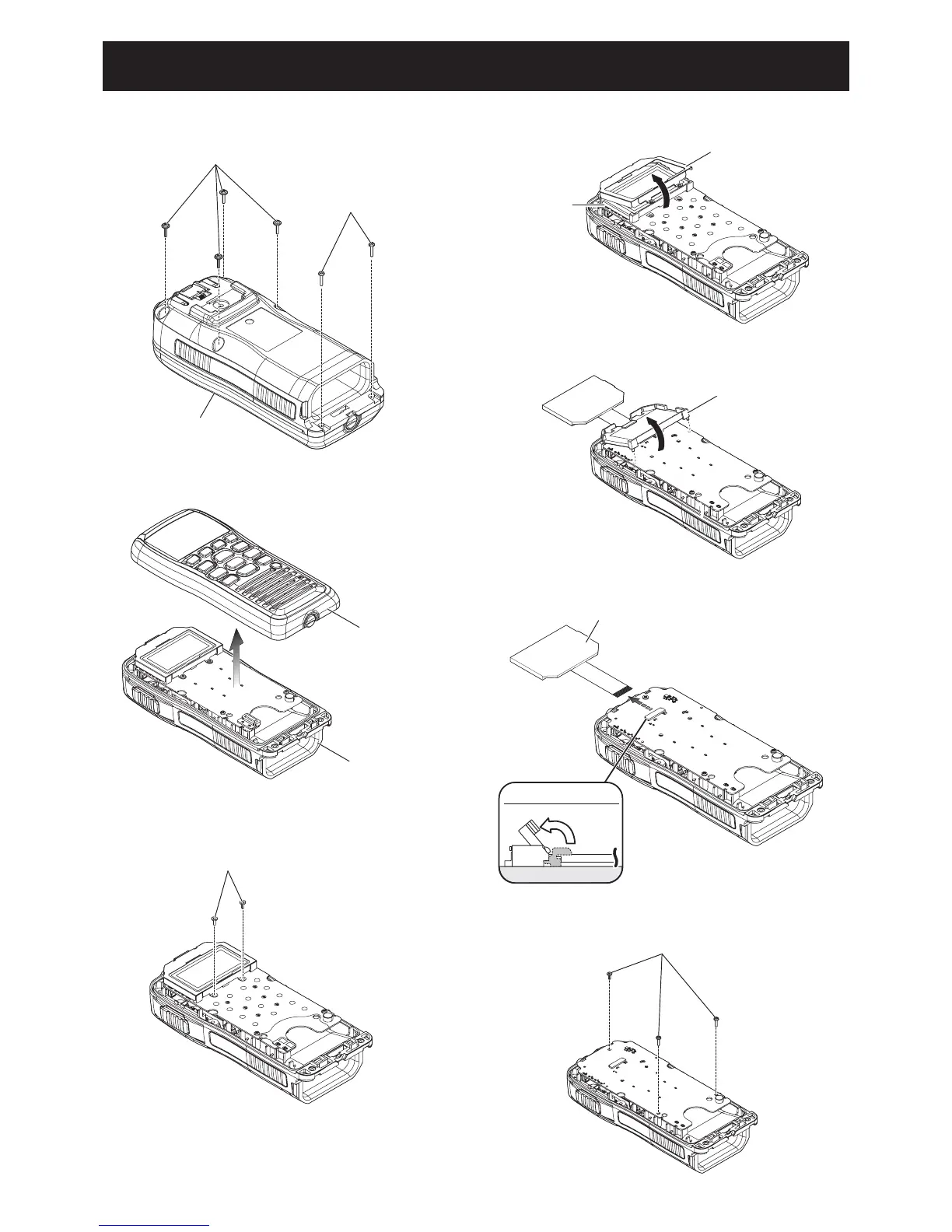

1. REMOVING THE MAIN UNIT
1) Remove 6 screws from the rear panel.
2) Separate the FRONT PANEL from the rear panel.
3) Remove 2 screws from the MAIN UNIT.
4) Remove the LCD holder from the MAIN UNIT.
MAIN UNIT
MAIN UNIT
MAIN UNIT
Screws
Screws
Rear panel
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
Front panel
Rear panel
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
Screws
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
LCD holder
Reflector
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
Reflector
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
LCD
MAIN UNIT
FLAT CABLE
Lift up
flat cable
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
Screws
MAIN UNIT
5) Remove the refl ector from the MAIN UNIT.
6) Disconnect the fl at cable.
7) Remove 3 screws from the MAIN UNIT.
(Continued on next page.)
