Icom IC-M91D Service Manual Addendum

3 - 2
BE CAREFUL about the fl atl cables when separating the
MAIN UNIT from the chassis.
8) Disconnect flat cables from J271, J280 and J290,
and then remove the MAIN UNIT from the rear pan-
el.
MAIN UNIT
MAIN UNIT
MAIN UNIT
CHASSIS
with the RF UNIT
Rear panel
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
J290
J280
J271
Rear panel
MAIN UNIT
MAIN UNIT
FLAT
CABLE
MAIN UNIT
MAIN UNIT
MAIN UNIT
Remove with;
“ICOM Driver (K)”
(8960000110)
Screws
Antenna nut
Rear panel
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
Screws
CHASSIS
RF UNIT
MAIN UNIT

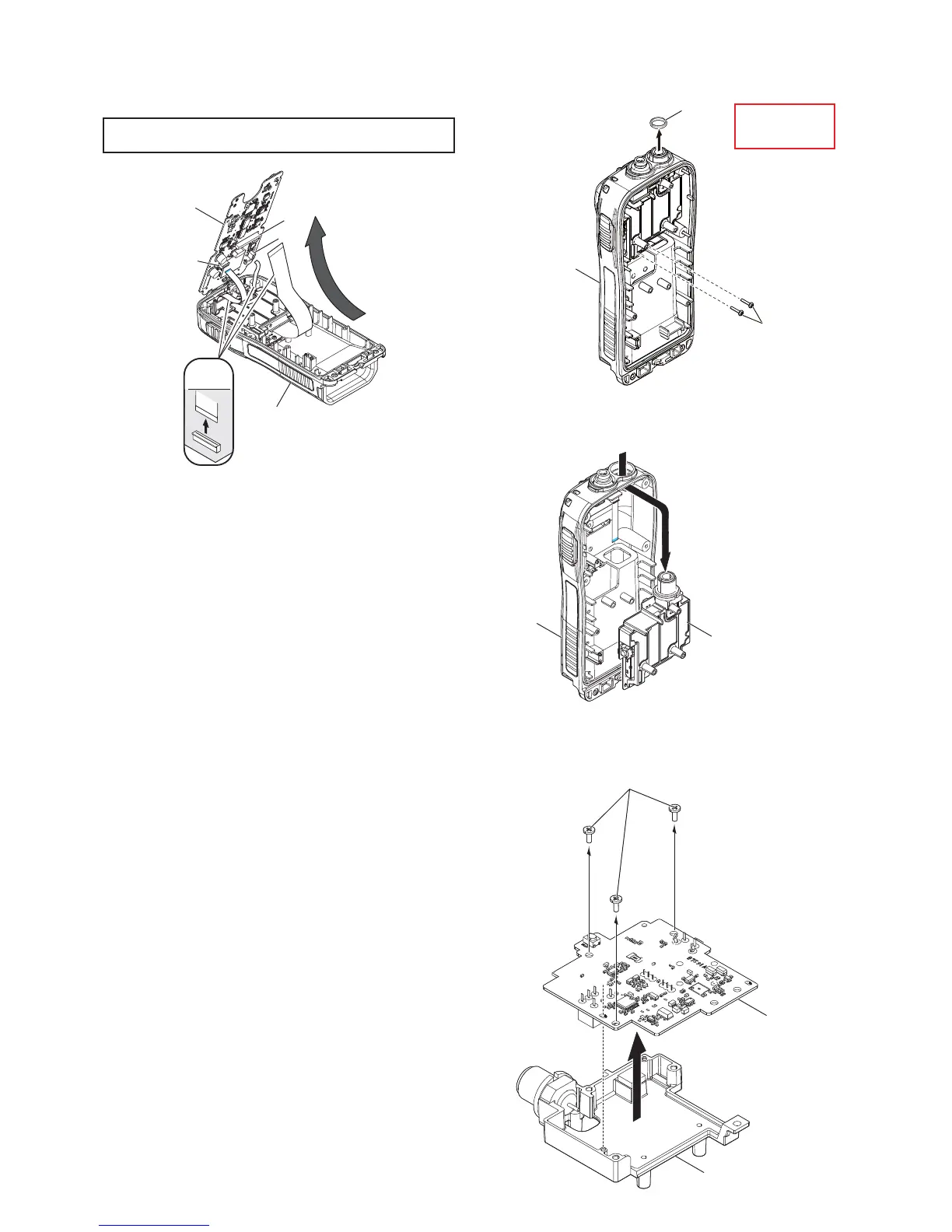

2. REMOVING THE RF UNIT
1) Remove 2 screws and antenna nut from the rear
panel.
2) Remove chassis from the rear panel.
3) Remove 3 screws from the CHASSIS, and then
remove the RF UNIT from the CHASSIS.
1. REMOVING THE MAIN UNIT (Continued)
