Icom IC-R20

7 - 1

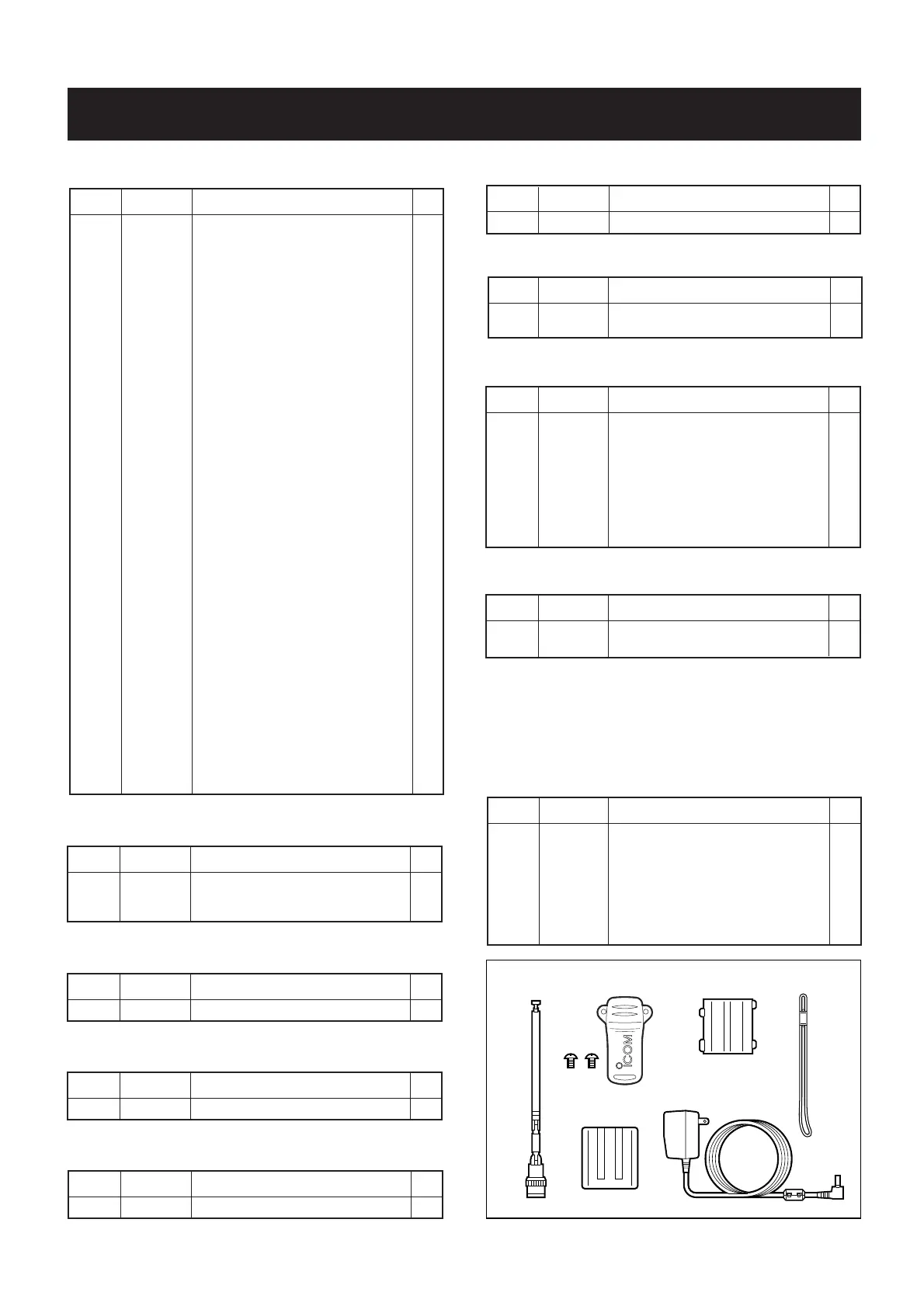

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
S24 2250000200 Encoder TP90N00E20-16F-1517 1
S25 2250000200 Encoder TP90N00E20-16F-1517 1
DS12 5030002690 LCD M3-0243TIY 1
MP2 8930062480 2699 LCD holder 1
MP3 8930062530 2699 battery spring 2
MP4 8930062540 Sponge (HO) 1
MP5 8510016370 2699 LOGIC shield plate Y725 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
[CHASSIS PARTS]
REF. NO. ORDER NO.
DESCRIPTION
[DOWNCONV BOARD]
[REC UNIT]
MP1 8510016250 2699 A-REC case 1
MP2 8510016260 2699 B-REC case 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
Screw abbreviations B0, BT: Self-tapping
PH: Pan head, FH: Flat head,
NI-ZU: Nickel-Zinc
ZK: Black
[ACCESSORIES]
EP1 3310002670 Antenna FA-B04RE 1
EP2 0800005460 Battery BP-206 ACC except [SEA] 1
EP3 0800006350
AC adapter BC-149A [USA], [EXP-01], [CAN] only 1
0800006360
AC adapter BC-149D [EUR], [FRA], [EXP-02] only 1
MP1 8930061480 Clip MB-98 ACC (2742 clip assembly) 1
MP2 8930050410 2304 spacer 1
MP3 8010018080 Strap belt HK-009 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
MP1 8510016240 2699 conv case 1
MP2 8930062490 2699 conv plate 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
[RF UNIT]
EP1
EP2 EP3
MP1 MP2 MP3
MP4
EP 2 3310003010 Antenna KY-058-006-2 <KAI> 1
MP1 8930063280 Double side tape (AP) 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
[1STAVCO BOARD]
MP1 8510016210 2699 A-VCO case Y723 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
[1STBVCO BOARD]
MP1 8510016220 2699 B-VCO case Y724 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
[2NDCVCO BOARD]
MP1 8510016230 2699 C-VCO case 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
[2NDDVCO BOARD]
MP1 8510016230 2699 C-VCO case 1
J1 6510024470 Connector BNC-R168 1
W1 8900009640 Cable OPC-963 1
MP1 8210020700 2699 front panel assembly 1
MP2 8210020710 2699 rear panel assembly 1
MP3 8110008140 2699 battery cover 1
MP4 8310061220 2699 lock plate 1
MP5 8930062400 2699 jack cap 1
MP6 8930062410 2699 USB cap 1
MP7 8610011940 Knob N320 2
MP8 8930062440 2699 detection button 1
MP9 8930062450 2699 button 1
MP11 8930062470 2699 TOP PLATE 1
MP12 8930062500 2699 A-terminal Y713 1
MP13 8930062510 2699 B-terminal Y714 1
MP14 8930062520 2699 C-terminal Y715 3
MP15 8930051630 2304 sheet 1
MP16 8930050560 2304 C1-terminal 1
MP17 8930050570 2304 C2-terminal 1
MP18 8930051390 2304 shaft 1
MP19 8830000570 knut (A) FX643 2
MP20 8810005700 Screw PH No.0 M2 × 4 black 1
MP21 8810009220 Screw PH B0 M2 × 8 ZK (BT) 2
MP22 8810008750 Screw PH BT M2 × 15 ZK 4
MP23 8930051851 891 terminal rubber (B)-1 3
MP24 8610007510
Knob spring No.7800 [SEA], [EXP], [CAN] only
2
MP26 8810008640 Screw FH BT No.0 M2 × 4 NI-ZU 3
MP27 8810008640 Screw FH BT No.0 M2 × 4 NI-ZU 4
MP28 8810008640 Screw FH BT No.0 M2 × 4 NI-ZU 2
MP29 8310061230 2699 window plate 1
MP30 8930062390 2699 window sheet 1
MP31 8930062420 2699 lens 1
MP32 8930062430 2699 keyboard 1
MP34 8810008640 Screw FH BT No.0 M2 × 4 NI-ZU 1
MP35 8810005700 Screw FH No.0 M2 × 4 black 1
MP36 8930063290 Insulation sheet (HW) 3
SP 1 2510000960 speaker K036NA500-26 1
