Icom IC-R7000 Service Manual

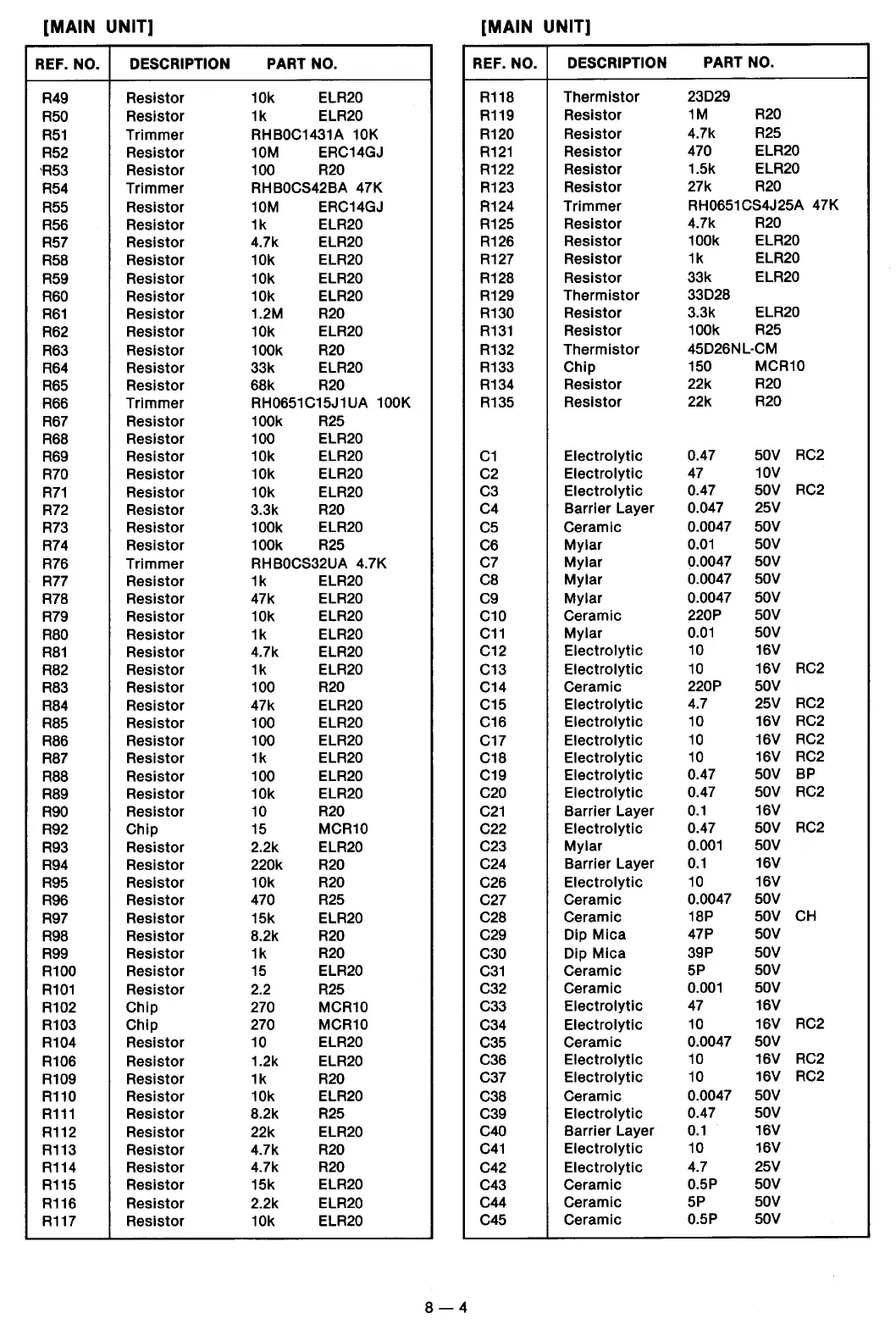

[MAIN UNIT] [MAIN UNIT]
REF. NO.
DESCRIPTION
PART NO.
REF. NO.
DESCRIPTION
PART NO.
R49
Resistor 10k
ELR20
R118
Thermistor
23D29
R50
Resistor 1k ELR20
R119
Resistor
1M R20
R51
Trimmer RHBOC1431A 10K
R120
Resistor
4.7k
R25
R52
Resistor 10M
ERC14GJ
R121
Resistor
470
ELR20
'R53
Resistor 100
R20
R122
Resistor
1.5k
ELR20
R54
Trimmer
RHBOCS42BA 47K R123
Resistor
27k
R20
R55
Resistor 10M
ERC14GJ
R124
Trimmer
RH0651CS4J25A 47K
R56 Resistor
1k ELR20
R125
Resistor
4.7k
R20
R57
Resistor
4.7k ELR20
R126
Resistor
100k ELR20
R58
Resistor 10k
ELR20
R127
Resistor
1k
ELR20
R59
Resistor 10k
ELR20 R128
Resistor
33k ELR20
R60
Resistor 10k ELR20
R129
Thermistor
33D28
R61 Resistor
1.2M
R20
R130
Resistor
3.3k
ELR20
R62
Resistor 10k
ELR20
R131
Resistor
100k
R25
R63
Resistor 100k R20
R132
Thermistor
45D26NL-CM
R64
Resistor 33k ELR20
R133
Chip
150
MCR10
R65 Resistor
68k
R20
R134
Resistor
22k
R20
R66
Trimmer
RH0651C15J1UA 100K
R135
Resistor
22k
R20
R67 Resistor
100k
R25
R68
Resistor 100
ELR20
R69
Resistor 10k
ELR20
C1
Electrolytic
0.47 50V
RC2
R70
Resistor 10k
ELR20
C2
Electrolytic 47
10V
R71
Resistor 10k ELR20
C3
Electrolytic
0.47 50V
RC2
R72 Resistor 3.3k
R20
C4
Barrier Layer
0.047
25V
R73
Resistor 100k
ELR20
C5
Ceramic
0.0047
50V
R74
Resistor 100k R25
C6
Mylar
0.01
50V
R76 Trimmer
RHBOCS32UA 4.7K
C7
Mylar
0.0047 50V
R77 Resistor 1k
ELR20
ca
Mylar
0.0047 50V
R78
Resistor 47k
ELR20
C9
Mylar
0.0047
50V
R79
Resistor 10k
ELR20
C10
Ceramic
220P
50V
R80
Resistor 1k ELR20
C11
Mylar
0.01 50V
R81
Resistor 4.7k ELR20
C12
Electrolytic
10 16V
R82
Resistor 1k ELR20 C13
Electrolytic
10
16V RC2
R83
Resistor
100
R20 C14
Ceramic
220P
50V
R84
Resistor 47k ELR20
C15
Electrolytic
4.7
25V RC2
R85 Resistor
100 ELR20
C16
Electrolytic
10
16V RC2
R86 Resistor
100 ELR20
C17
Electrolytic
10 16V
RC2
R87 Resistor
1k ELR20
C18
Electrolytic
10
16V RC2
R88 Resistor
100 ELR20
C19
Electrolytic
0.47
50V BP
R89
Resistor 10k
ELR20
C20
Electrolytic
0.47
50V RC2
R90
Resistor 10
R20
C21
Barrier Layer
0.1 16V
R92
Chip 15 MCR10 C22
Electrolytic
0.47
50V
RC2
R93
Resistor 2.2k ELR20
C23
Mylar
0.001 50V
R94 Resistor
220k
R20
C24
Barrier Layer 0.1
16V
R95 Resistor
10k
R20
C26
Electrolytic 10
16V
R96 Resistor
470
R25
C27
Ceramic
0.0047
50V
R97 Resistor 15k ELR20
C28
Ceramic
18P
50V
CH
R98
Resistor 8.2k R20
C29
Dip Mica
47P 50V
R99
Resistor 1k
R20
C30
Dip Mica
39P
50V
R100
Resistor 15 ELR20
C31
Ceramic
5P
50V
R101 Resistor 2.2 R25
C32
Ceramic
0.001 50V
R102
Chip 270 MCR10
C33
Electrolytic 47
16V
R103
Chip 270 MCR10
C34
Electrolytic
10
16V RC2
R104 Resistor 10
ELR20
C35
Ceramic
0.0047
50V
R106
Resistor
1.2k ELR20
C36
Electrolytic
10
16V
RC2
R109
Resistor 1k R20
C37
Electrolytic
10
16V RC2
R110
Resistor 10k ELR20
C38
Ceramic
0.0047
50V
R111
Resistor 8.2k R25
C39
Electrolytic
0.47
50V
R112 Resistor 22k
ELR20
C40
Barrier Layer
0.1
16V
R113 Resistor 4.7k
R20
C41
Electrolytic
10
16V
R114 Resistor
4.7k
R20
C42
Electrolytic
4.7
25V
R115 Resistor 15k
ELR20
C43
Ceramic
0.5P
50V
R116 Resistor 2.2k
ELR20
C44
Ceramic
5P
50V
R117 Resistor 10k ELR20
C45
Ceramic
0.5P
50V
8-4
