Icom IC-R7000 Service Manual

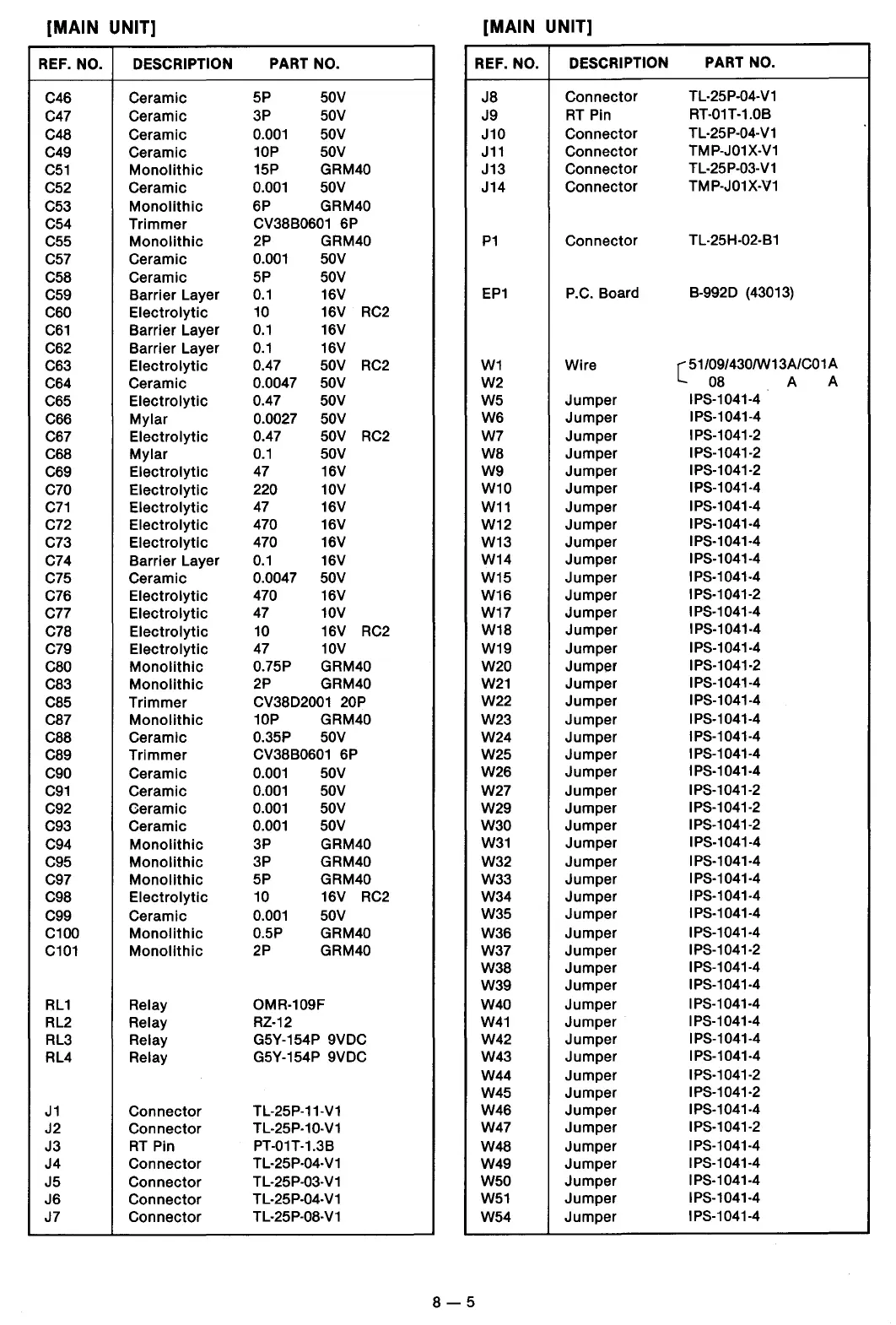

[MAIN UNIT]
[MAIN UNIT]
REF. NO. DESCRIPTION
PART NO. REF. NO.
DESCRIPTION
PART NO.
C46 Ceramic
5P
50V JS
Connector
TL-25P-04-V1
C47 Ceramic
3P
50V J9
RT Pin
RT-01T-1.0B
C48
Ceramic
0.001 50V J10
Connector
TL-25P-04-V1
C49 Ceramic
10P 50V
J11 Connector
TMP-J01X-V1
C51 Monolithic
15P GRM40 J13
Connector
TL·25P-03-V1
C52 Ceramic
0.001 50V J14
Connector
TMP-J01X-V1
C53
Monolithic
6P GRM40
C54 Trimmer
CV38B0601 6P
C55
Monolithic
2P GRM40 P1
Connector
TL-25H-02-B1
C57
Ceramic
0.001 50V
C58 Ceramic
5P
50V
C59 Barrier Layer
0.1 16V
EP1
P.C. Board
B-9920
(43013)
C60
Electrolytic
10 16V RC2
C61
Barrier Layer 0.1
16V
C62
Barrier Layer 0.1 16V
C63 Electrolytic
0.47 50V RC2
C64 Ceramic
0.0047 50V
W1 Wire
(
51/09/430/W13A/C01A
W2
08 A A
C65
Electrolytic
0.47 50V
W5
Jumper
IPS-1041-4
C66
Mylar
0.0027 50V
W6
Jumper
IPS-1041-4
C67
Electrolytic 0.47 50V
RC2
W7 Jumper
IPS-1041-2
C68 Mylar
0.1 50V W8
Jumper
IPS-1041-2
C69
Electrolytic
47 16V
W9 Jumper
IPS-1041-2
C70
Electrolytic
220 10V
W10
Jumper
IPS-1041-4
C71 Electrolytic
47 16V
W11
Jumper
IPS-1041-4
C72
Electrolytic
470 16V
W12
Jumper
IPS-1041-4
C73
Electrolytic
470 16V W13
Jumper
IPS-1041-4
C74
Barrier Layer
0.1 16V
W14
Jumper
IPS-1041-4
C75
Ceramic
0.0047 50V W15
Jumper
IPS-1041-4
C76 Electrolytic
470 16V
W16
Jumper
IPS-1041-2
C77
Electrolytic
47 10V W17
Jumper
IPS-1041-4
C78 Electrolytic
10 16V RC2
W18
Jumper
IPS-1041-4
C79 Electrolytic
47 10V W19
Jumper
IPS-1041-4
C80
Monolithic
0.75P GRM40 W20 Jumper
IPS-1041-2
C83
Monolithic
2P GRM40 W21
Jumper
IPS-1041·4
C85
Trimmer
CV38D2001 20P
W22 Jumper
IPS-1041-4
C87
Monolithic
10P GRM40 W23 Jumper
IPS-1041-4
C88
Ceramic
0.35P 50V W24 Jumper
IPS-1041-4
C89
Trimmer
CV38B0601 6P W25
Jumper
IPS-1041·4
C90
Ceramic
0.001 50V
W26
Jumper
IPS-1041-4
C91
Ceramic
0.001 50V W27
Jumper
IPS-1041-2
C92
Ceramic
0.001 50V
W29
Jumper
IPS-1041-2
C93
Ceramic
0.001 50V
W30
Jumper
IPS-1041-2
C94
Monolithic
3P GRM40
W31 Jumper
IPS-1041-4
C95
Monolithic
3P GRM40 W32
Jumper
IPS-1041-4
C97
Monolithic
5P GRM40 W33
Jumper
IPS-1041·4
C98
Electrolytic
10 16V RC2 W34
Jumper
IPS-1041-4
C99
Ceramic
0.001 50V
W35
Jumper
IPS-1041-4
C100
Monolithic 0.5P GRM40 W36
Jumper
IPS-1041-4
C101 Monolithic
2P
GRM40 W37
Jumper
IPS-1041-2
W38
Jumper
IPS-1041-4
W39
Jumper
IPS-1041-4
RL1 Relay
OMR-109F W40
Jumper
IPS-1041-4
RL2 Relay
RZ-12 W41
Jumper
IPS-1041·4
RL3 Relay
G5Y-154P 9VDC W42
Jumper
IPS-1041·4
RL4
Relay
G5Y-154P 9VDC W43
Jumper
IPS-1041·4
W44
Jumper
IPS-1041-2
W45
Jumper
IPS-1041-2
J1
Connector
TL-25P-11-V1
W46
Jumper
IPS-1041-4
J2 Connector
TL-25P-10-V1
W47 Jumper
IPS-1041-2
J3
RT Pin
PT-01T-1.3B
W48
Jumper
IPS-1041·4
J4
Connector
TL-25P-04-V1
W49
Jumper
IPS-1041·4
J5 Connector
TL-25P-03-V1
W50
Jumper
IPS-1041-4
J6 Connector
TL-25P-04-V1
W51 Jumper
IPS-1041-4
J7 Connector
TL-25P-08-V1
W54
Jumper
IPS-1041-4
8-5
