Icom IC-R7000

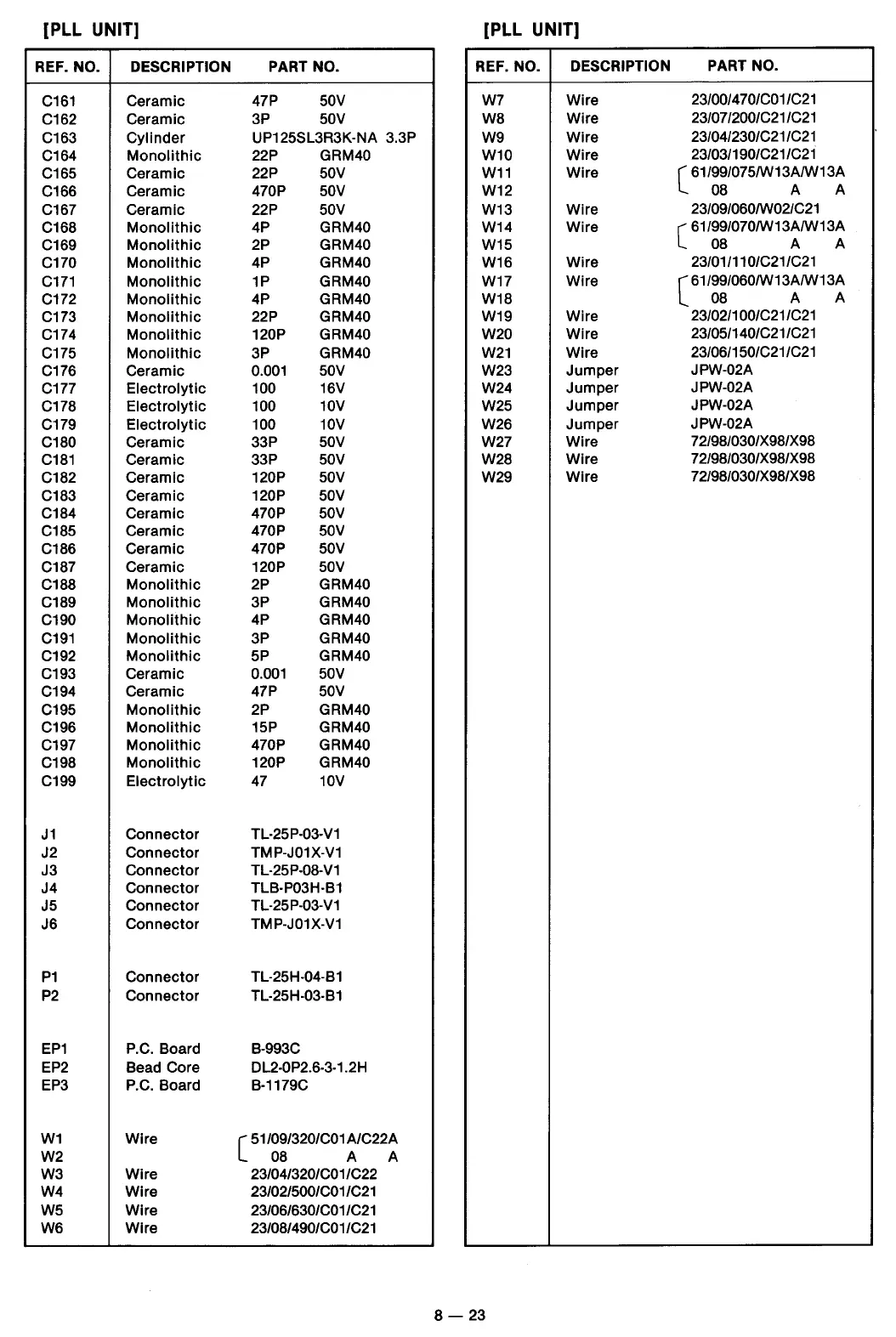

[PLL UNIT] [PLL UNIT]
REF. NO. DESCRIPTION
PART NO.
REF. NO. DESCRIPTION
PART NO.
C161 Ceramic 47P
50V
W7 Wire
23/00/470/C01/C21
C162
Ceramic 3P
50V
W8 Wire
23/07/200/C21
/C21
C163
Cylinder UP125SL3R3K·NA 3.3P W9
Wire
23/04/230/C21
/C21
C164
Monolithic 22P GRM40
W10
Wire
23/03/190/C21/C21
C165 Ceramic
22P
50V
C166 Ceramic
470P
50V
W11
Wire c 61/99/075/W13A/W13A
W12
08 A A
C167 Ceramic
22P
50V W13 Wire
23/09/060/W02/C21
C168 Monolithic 4P GRM40
C169
Monolithic 2P GRM40
W14 Wire ( 61/99/070/W13A/W13A
W15
08 A A
C170 Monolithic 4P
GRM40 W16
Wire
23/01/110/C21/C21
C171 Monolithic 1P
GRM40
C172 Monolithic 4P GRM40
W17
Wire
[ 61/99/060/W13A/W13A
W18
08 A A
C173
Monolithic 22P GRM40
W19 Wire
23/02/1 OO/C21 /C21
C174 Monolithic 120P
GRM40
W20
Wire
23/05/140/C21
/C21
C175 Monolithic 3P GRM40
W21 Wire
23/06/150/C21 /C21
C176
Ceramic
0.001 50V W23
Jumper
JPW·02A
C177
Electrolytic
100
16V
W24
Jumper
JPW·02A
C178 Electrolytic 100
10V
W25
Jumper
JPW·02A
C179 Electrolytic 100 10V
W26 Jumper
JPW-02A
C180
Ceramic
33P
50V W27
Wire
72/98/030/X98/X98
C181
Ceramic 33P 50V W28
Wire
72/98/030/X98/X98
C182 Ceramic
120P
50V W29
Wire
72/98/030/X98/X98
C183
Ceramic 120P
50V
C184 Ceramic 470P
50V
C185 Ceramic
470P
50V
C186
Ceramic 470P
50V
C187 Ceramic 120P 50V
C188 Monolithic 2P GRM40
C189
Monolithic 3P GRM40
C190
Monolithic 4P GRM40
C191 Monolithic 3P GRM40
C192
Monolithic 5P GRM40
C193 Ceramic
0.001 50V
C194
Ceramic
47P
50V
C195 Monolithic 2P GRM40
C196 Monolithic 15P GRM40
C197
Monolithic 470P GRM40
C198
Monolithic 120P GRM40
C199
Electrolytic 47 10V
J1 Connector TL·25P·03·V1
J2 Connector TMP·J01X·V1
J3
Connector
TL·25P·08·V1
J4
Connector
TLB·P03H·B1
J5 Connector TL·25P·03·V1
J6
Connector
TMP·J01X·V1
P1
Connector
TL·25H·04·B1
P2 Connector TL·25H·03·B1
EP1 P.C. Board B·993C
EP2
Bead Core
DL2·0P2.6·3·1.2H
EP3 P.C. Board B·1179C
W1 Wire
[
51/09/320/C01A/C22A
W2 08 A A
W3 Wire
23/04/320/C01 /C22
W4 Wire
23/02/500/C01 /C21
W5 Wire 23/06/630/C01 /C21
W6 Wire 23/08/490/C01 /C21
8-23
