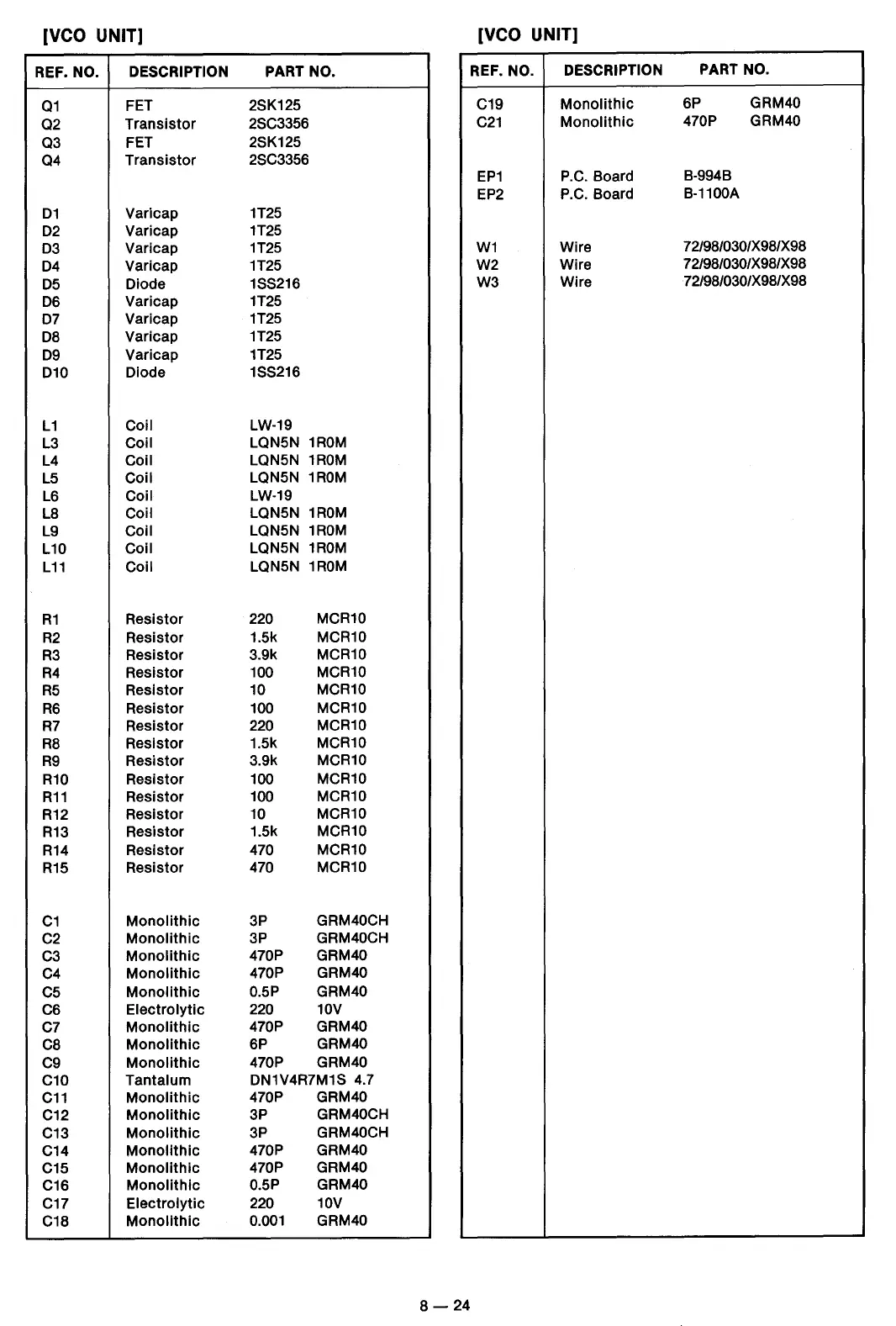

Icom IC-R7000 Service Manual

[VCO UNIT]
[VCO UNIT]
REF. NO.
DESCRIPTION
PART NO.
REF. NO.
DESCRIPTION
PART NO.
Q1
FET
25K125
C19
Monolithic
6P
GRM40
02
Transistor
25C3356
C21
Monolithic
470P
GRM40
Q3
FET
25K125
Q4
Transistor 25C3356
EP1
P.C. Board
B-994B
EP2
P.C. Board
B-1100A
D1
Vari cap 1T25
D2
Vari cap
1T25
D3
Vari cap
1T25
W1
Wire
72/9B/030/X9B/X9B
D4
Vari cap 1T25
W2
Wire
72/9B/030/X9B/X9B
D5
Diode 155216
W3
Wire
72/9B/030/X9B/X9B
D6
Vari cap 1T25
D7
Varicap
1T25
DB
Vari cap 1T25
D9
Vari cap 1T25
D10
Diode 155216
L1
Coil
LW-19
L3
Coil
LQN5N
1ROM
L4
Coil
LQN5N
1ROM
L5
Coil
LQN5N
1ROM
L6
Coil
LW-19
LB
Coil
LQN5N
1ROM
L9
Coil
LQN5N
1ROM
L10
Coil
LQN5N
1ROM
L11
Coil
LQN5N
1ROM
R1
Resistor 220
MCR10
R2
Resistor 1.5k
MCR10
R3
Resistor 3.9k
MCR10
R4
Resistor
100
MCR10
R5
Resistor 10
MCR10
R6
Resistor 100
MCR10
R7
Resistor 220
MCR10
RB
Resistor
1.5k
MCR10
R9
Resistor 3.9k
MCR10
R10
Resistor 100
MCR10
R11
Resistor
100
MCR10
R12
Resistor 10
MCR10
R13
Resistor
1.5k
MCR10
R14
Resistor 470
MCR10
R15
Resistor 470
MCR10
C1
Monolithic 3P
GRM40CH
C2
Monolithic 3P
GRM40CH
C3
Monolithic 470P
GRM40
C4
Monolithic
470P
GRM40
C5
Monolithic 0.5P
GRM40
C6
Electrolytic
220 10V
C7
Monolithic 470P
GRM40
CB
Monolithic 6P
GRM40
C9
Monolithic
470P
GRM40
C10
Tantalum
DN1V4R7M15 4.7
C11
Monolithic 470P
GRM40
C12
Monolithic 3P
GRM40CH
C13
Monolithic 3P
GRM40CH
C14
Monolithic 470P
GRM40
C15
Monolithic
470P
GRM40
C16
Monolithic
0.5P
GRM40
C17
Electrolytic 220
10V
C1B
Monolithic 0.001
GRM40
B-24
