7-4
REF PART
DESCRIPTION QTY.
NO. NO.
[ENCODER-3 UNIT]
[ENCODER-3 UNIT]
[ENCODER-2 UNIT]
REF PART
DESCRIPTION QTY.
NO. NO.
J1* 6510031640 52793-0670 1
S1* 2250001030 RE1107CM1-V03-4673 1
J1* 6510031640 52793-0670 1
S1* 2250001030 RE1107CM1-V03-4673 1
REF PART
DESCRIPTION QTY.
NO. NO.
[SD UNIT]
J1* 6510028980 SCDABA0500 1
J31* 6510028200 UB-M5BR-S14-4S (LF) (SN) 1
J41* 6510023092 20FLT-SM2-TB (LF) (SN) (M) 1
MP21* 8930093190 SPONGE (NT) 1
J1* 6510031640 52793-0670 1
S1* 2250001020 RE1107CM1-V03-4672 1
*: Refer to “BOARD LAYOUTS” for the location.
**: Refer to “GENERAL WIRING” for the connection
Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless
REF PART
DESCRIPTION QTY.
NO. NO.
[CONV-BPF UNIT]
J2101* 6510032350 20279-001E-01 1
J2102* 6510031640 52793-0670 1
J2901* 6510032350 20279-001E-01 1
MP1* 8930097340 FERRITE SHEET (BG) 1
MP2 8930091060 RUBBER SHEET (CS) 1
MP2901* 8930071160 2427 F-EARTH SPRING 1
REF PART
DESCRIPTION QTY.
NO. NO.

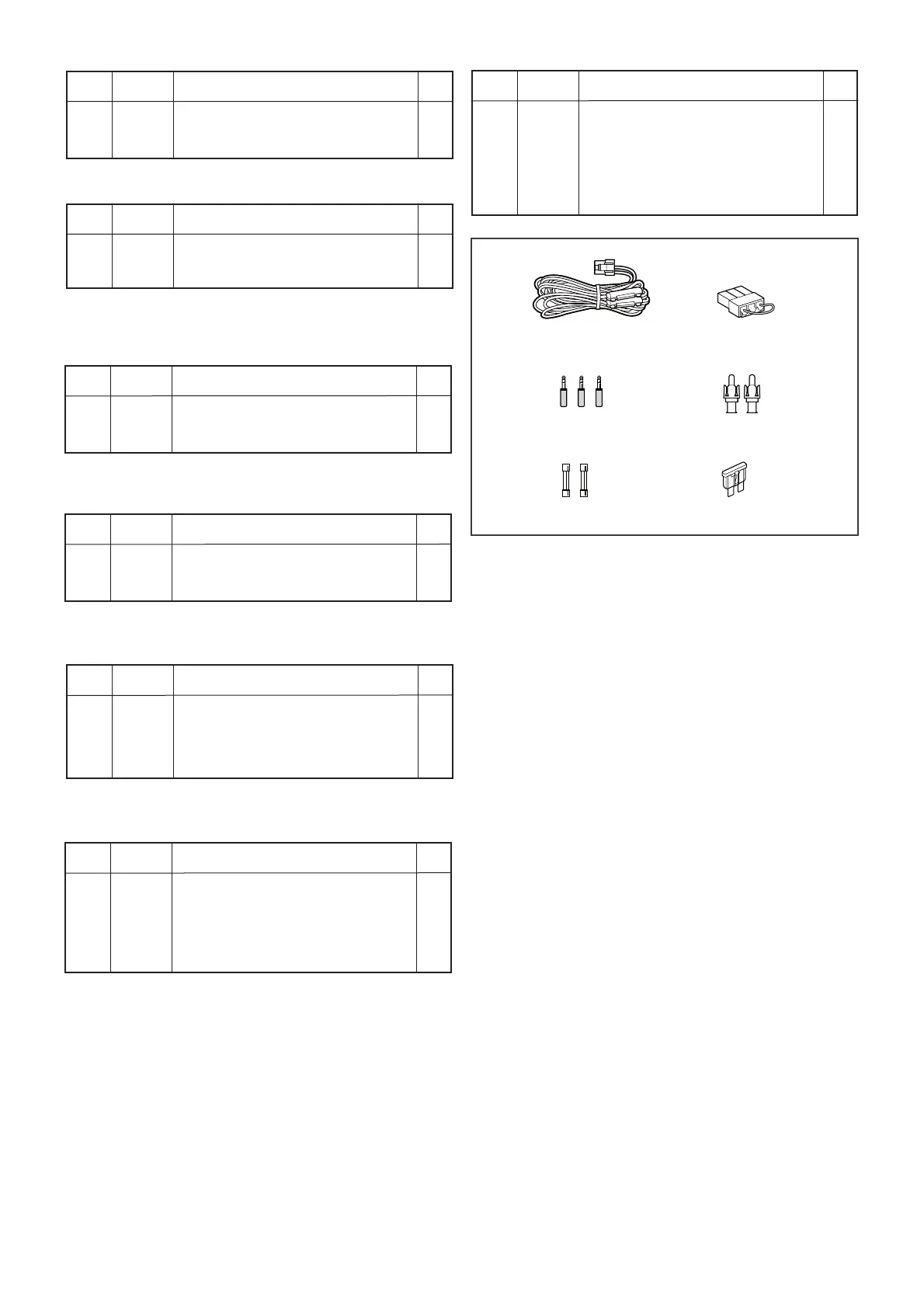

[ACCESSORIES]
P1 5610000430 AP331BK 3
P2 5610000660 P030050 FL 2
F1 5210000051 FGB 3A PBF (FGB0 125V) 2
F2 5210001390 0297003.WXNV OS> 1
W1 8920002220 CAB-1258 1
W2 8900015720 OPC-1605 1
[ENCODER-1 UNIT]
REF PART
DESCRIPTION QTY.
NO. NO.
J1* 6510031640 52793-0670 1
S1* 2250001020 RE1107CM1-V03-4672 1
REF PART
DESCRIPTION QTY.
NO. NO.
W1
F2
F1
P1
P2
W2
