7-5

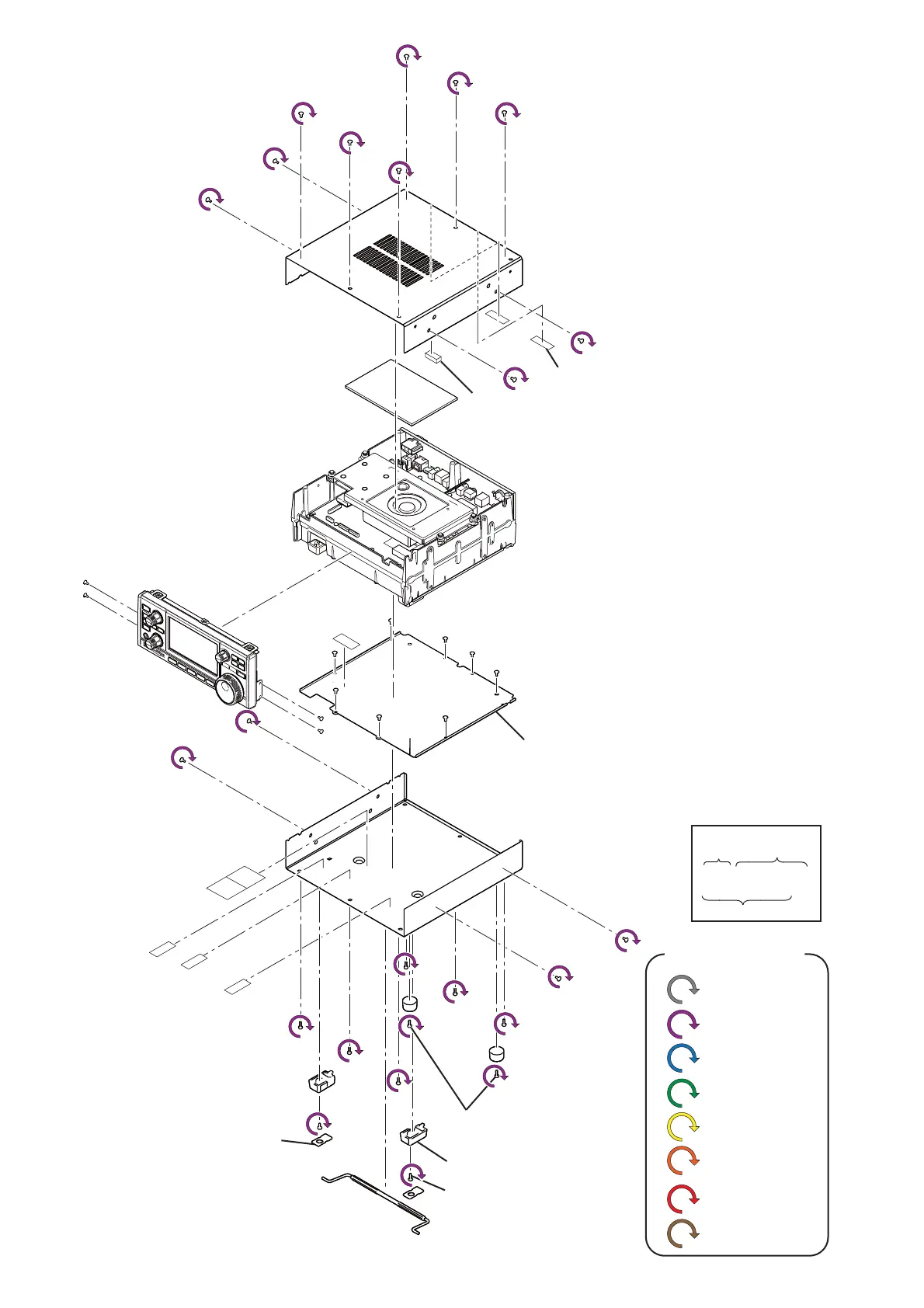

MP72 (CHASSIS)
(Refere to the parts list.)
MP74 (CHASSIS)
(Refere to the parts list.)
MP75 (CHASSIS)
(Refere to the parts list.)
MP1 (CHASSIS)
(1234567890)
Ref. No.
Legend:
Unit Name
Parts No.
Tightening torque
: <0.7 (N
･
m)>
: <0.8 (N
･
m)>
: <0.6 (N
･
m)>
: <0.5 (N
･
m)>
: <0.4 (N
･
m)>
: <0.3 (N
･
m)>
: <0.2 (N
･
m)>
: <0.1 (N
･
m)>
MP32 (CHASSIS)
(8810009311)
MP31 (CHASSIS)
(8810009061)
MP31 (CHASSIS)
(8810009061)
MP6 (CHASSIS)
(8110011070)
MP23 (CHASSIS)
(8930096190)
MP73 (CHASSIS)
(Refere to the parts list.)
MP9 (CHASSIS)
(8930095550)
MP13 (CHASSIS)
(8930002900)
MP43 (CHASSIS)
(8810004301)
MP5 (CHASSIS)
(8110011080)
MP7 (CHASSIS)
(Refere to the parts list.)
MP8 (CHASSIS)
(Refere to the parts list.)
MP10 (CHASSIS)
(8930095520)
MP44 (CHASSIS)
(8810004301)
MP46 (CHASSIS)
(8810008661)
MP78 (CHASSIS)
(Refere to the parts list.)
MP71 (CHASSIS)
(Refere to the parts list.)
