Icom IC-R8600 - Rear Panel Connectors

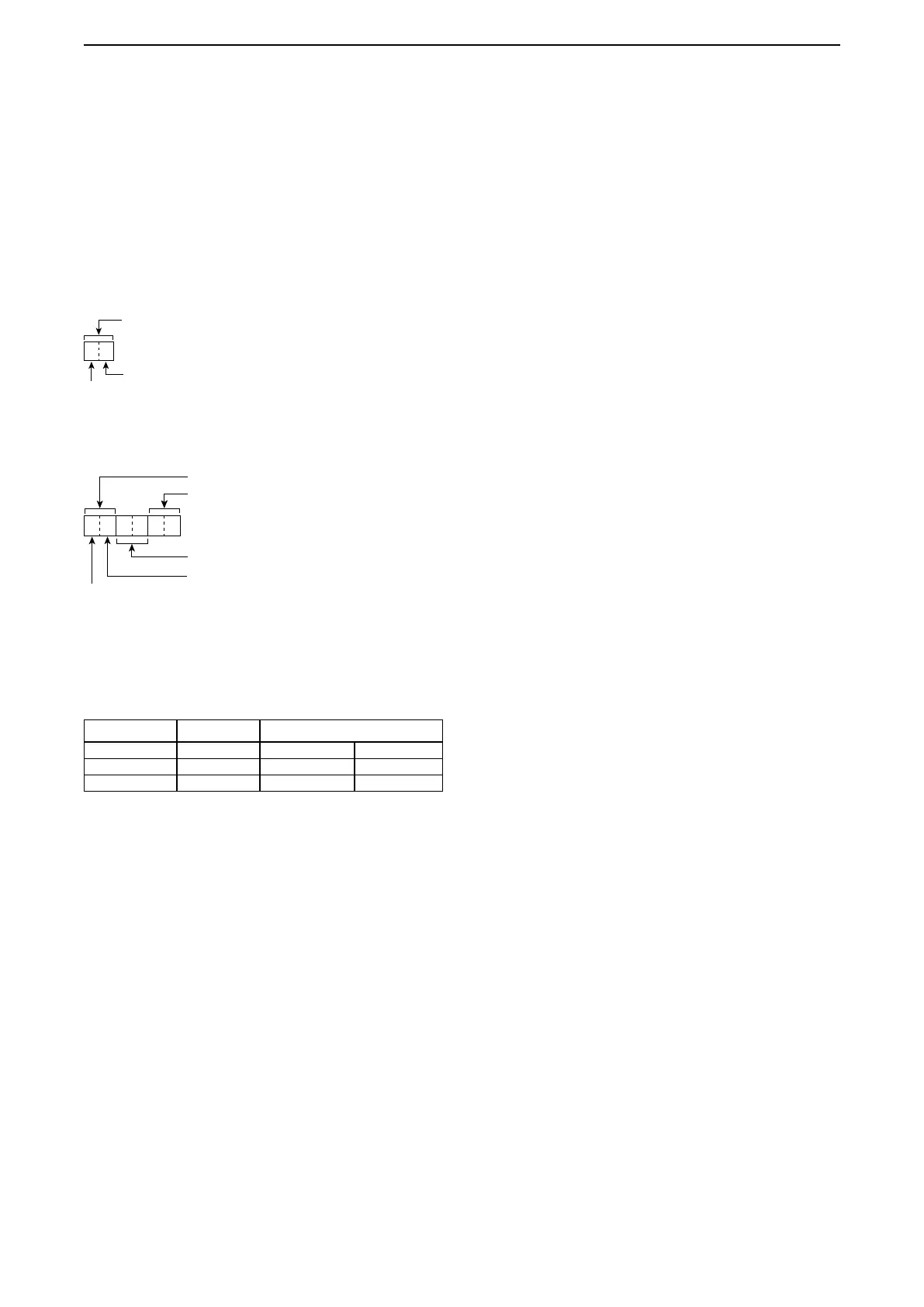

D I/Q Output setting
Command: 1A 13 01
PC to IC-R8600 (Write data format):
Sets the I/Q output setting to ON or OFF.
• Turning OFF the I/Q signal output
I/Q output setting
0=OFF
0 (Fixed)
0 0
• Turning ON the I/Q signal output
Also sends the bit depth and sampling frequency data.
I/Q output setting
Sampling frequency
Bit depth
1=ON
0 (Fixed)
0 X 0 X0 1
You can set the I/Q signal output setting by sending the command through the [I/Q OUT] port.
Only when the I/Q mode is set to “ON,” you can set the I/Q output to ON.
When the sent command is valid and accepted by the IC-R8600, the acknowledgement “OK (FB)” will be
returned. “NG (FA)” will be returned if invalid.
I/Q Output Bit depth Sampling frequency
00: OFF 00: 16-bit 01 5.12 MHz 04 960 kHz
01: ON 01: 24-bit 02 3.84 MHz 05 480 kHz
– – 03 1.92 MHz 06 240 kHz
NOTE: The combination of 5.12 MHz and 24 bit is invalid, and “NG (FA)” will be returned.
■ Control commands relative to I/Q port setting (Continued)
I/Q SIGNAL
11
