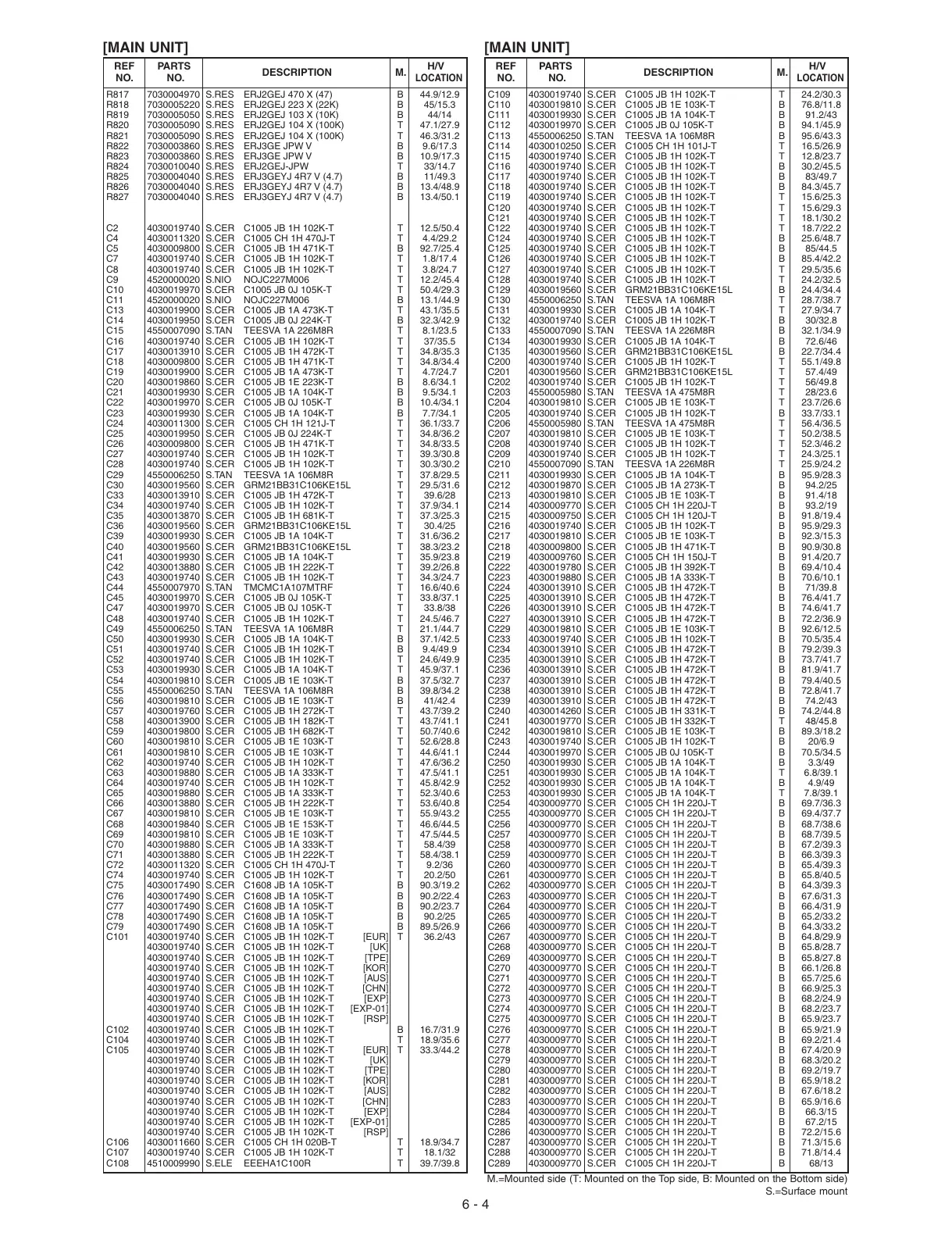

6 - 4
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
R817 7030004970 S.RES ERJ2GEJ 470 X (47) B 44.9/12.9
R818 7030005220 S.RES ERJ2GEJ 223 X (22K) B 45/15.3
R819 7030005050 S.RES ERJ2GEJ 103 X (10K) B 44/14
R820 7030005090 S.RES ERJ2GEJ 104 X (100K) T 47.1/27.9
R821 7030005090 S.RES ERJ2GEJ 104 X (100K) T 46.3/31.2
R822 7030003860 S.RES ERJ3GE JPW V B 9.6/17.3
R823 7030003860 S.RES ERJ3GE JPW V B 10.9/17.3
R824 7030010040 S.RES ERJ2GEJ-JPW T 33/14.7
R825 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) B 11/49.3
R826 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) B 13.4/48.9
R827 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) B 13.4/50.1
C2 4030019740 S.CER C1005 JB 1H 102K-T T 12.5/50.4
C4 4030011320 S.CER C1005 CH 1H 470J-T T 4.4/29.2
C5 4030009800 S.CER C1005 JB 1H 471K-T B 92.7/25.4
C7 4030019740 S.CER C1005 JB 1H 102K-T T 1.8/17.4
C8 4030019740 S.CER C1005 JB 1H 102K-T T 3.8/24.7
C9 4520000020 S.NIO NOJC227M006 T 12.2/45.4
C10 4030019970 S.CER C1005 JB 0J 105K-T T 50.4/29.3
C11 4520000020 S.NIO NOJC227M006 B 13.1/44.9
C13 4030019900 S.CER C1005 JB 1A 473K-T T 43.1/35.5
C14 4030019950 S.CER C1005 JB 0J 224K-T B 32.3/42.9
C15 4550007090 S.TAN TEESVA 1A 226M8R T 8.1/23.5
C16 4030019740 S.CER C1005 JB 1H 102K-T T 37/35.5
C17 4030013910 S.CER C1005 JB 1H 472K-T T 34.8/35.3
C18 4030009800 S.CER C1005 JB 1H 471K-T T 34.8/34.4
C19 4030019900 S.CER C1005 JB 1A 473K-T T 4.7/24.7
C20 4030019860 S.CER C1005 JB 1E 223K-T B 8.6/34.1
C21 4030019930 S.CER C1005 JB 1A 104K-T B 9.5/34.1
C22 4030019970 S.CER C1005 JB 0J 105K-T B 10.4/34.1
C23 4030019930 S.CER C1005 JB 1A 104K-T B 7.7/34.1
C24 4030011300 S.CER C1005 CH 1H 121J-T T 36.1/33.7
C25 4030019950 S.CER C1005 JB 0J 224K-T T 34.8/36.2
C26 4030009800 S.CER C1005 JB 1H 471K-T T 34.8/33.5
C27 4030019740 S.CER C1005 JB 1H 102K-T T 39.3/30.8
C28 4030019740 S.CER C1005 JB 1H 102K-T T 30.3/30.2
C29 4550006250 S.TAN TEESVA 1A 106M8R T 37.8/29.5
C30 4030019560 S.CER GRM21BB31C106KE15L T 29.5/31.6
C33 4030013910 S.CER C1005 JB 1H 472K-T T 39.6/28
C34 4030019740 S.CER C1005 JB 1H 102K-T T 37.9/34.1
C35 4030013870 S.CER C1005 JB 1H 681K-T T 37.3/25.3
C36 4030019560 S.CER GRM21BB31C106KE15L T 30.4/25
C39 4030019930 S.CER C1005 JB 1A 104K-T T 31.6/36.2
C40 4030019560 S.CER GRM21BB31C106KE15L T 38.3/23.2
C41 4030019930 S.CER C1005 JB 1A 104K-T T 35.9/23.8
C42 4030013880 S.CER C1005 JB 1H 222K-T T 39.2/26.8
C43 4030019740 S.CER C1005 JB 1H 102K-T T 34.3/24.7
C44 4550007970 S.TAN TMCMC1A107MTRF T 16.6/40.6
C45 4030019970 S.CER C1005 JB 0J 105K-T T 33.8/37.1
C47 4030019970 S.CER C1005 JB 0J 105K-T T 33.8/38
C48 4030019740 S.CER C1005 JB 1H 102K-T T 24.5/46.7
C49 4550006250 S.TAN TEESVA 1A 106M8R T 21.1/44.7
C50 4030019930 S.CER C1005 JB 1A 104K-T B 37.1/42.5
C51 4030019740 S.CER C1005 JB 1H 102K-T B 9.4/49.9
C52 4030019740 S.CER C1005 JB 1H 102K-T T 24.6/49.9
C53 4030019930 S.CER C1005 JB 1A 104K-T T 45.9/37.1
C54 4030019810 S.CER C1005 JB 1E 103K-T B 37.5/32.7
C55 4550006250 S.TAN TEESVA 1A 106M8R B 39.8/34.2
C56 4030019810 S.CER C1005 JB 1E 103K-T B 41/42.4
C57 4030019760 S.CER C1005 JB 1H 272K-T T 43.7/39.2
C58 4030013900 S.CER C1005 JB 1H 182K-T T 43.7/41.1
C59 4030019800 S.CER C1005 JB 1H 682K-T T 50.7/40.6
C60 4030019810 S.CER C1005 JB 1E 103K-T T 52.6/28.8
C61 4030019810 S.CER C1005 JB 1E 103K-T T 44.6/41.1
C62 4030019740 S.CER C1005 JB 1H 102K-T T 47.6/36.2
C63 4030019880 S.CER C1005 JB 1A 333K-T T 47.5/41.1
C64 4030019740 S.CER C1005 JB 1H 102K-T T 45.8/42.9
C65 4030019880 S.CER C1005 JB 1A 333K-T T 52.3/40.6
C66 4030013880 S.CER C1005 JB 1H 222K-T T 53.6/40.8
C67 4030019810 S.CER C1005 JB 1E 103K-T T 55.9/43.2
C68 4030019840 S.CER C1005 JB 1E 153K-T T 46.6/44.5
C69 4030019810 S.CER C1005 JB 1E 103K-T T 47.5/44.5
C70 4030019880 S.CER C1005 JB 1A 333K-T T 58.4/39
C71 4030013880 S.CER C1005 JB 1H 222K-T T 58.4/38.1
C72 4030011320 S.CER C1005 CH 1H 470J-T T 9.2/36
C74 4030019740 S.CER C1005 JB 1H 102K-T T 20.2/50
C75 4030017490 S.CER C1608 JB 1A 105K-T B 90.3/19.2
C76 4030017490 S.CER C1608 JB 1A 105K-T B 90.2/22.4
C77 4030017490 S.CER C1608 JB 1A 105K-T B 90.2/23.7
C78 4030017490 S.CER C1608 JB 1A 105K-T B 90.2/25
C79 4030017490 S.CER C1608 JB 1A 105K-T B 89.5/26.9
C101 4030019740 S.CER C1005 JB 1H 102K-T [EUR] T 36.2/43
4030019740 S.CER C1005 JB 1H 102K-T [UK]
4030019740 S.CER C1005 JB 1H 102K-T [TPE]
4030019740 S.CER C1005 JB 1H 102K-T [KOR]
4030019740 S.CER C1005 JB 1H 102K-T [AUS]
4030019740 S.CER C1005 JB 1H 102K-T [CHN]
4030019740 S.CER C1005 JB 1H 102K-T [EXP]
4030019740 S.CER C1005 JB 1H 102K-T [EXP-01]
4030019740 S.CER C1005 JB 1H 102K-T [RSP]
C102 4030019740 S.CER C1005 JB 1H 102K-T B 16.7/31.9
C104 4030019740 S.CER C1005 JB 1H 102K-T T 18.9/35.6
C105 4030019740 S.CER C1005 JB 1H 102K-T [EUR] T 33.3/44.2
4030019740 S.CER C1005 JB 1H 102K-T [UK]
4030019740 S.CER C1005 JB 1H 102K-T [TPE]
4030019740 S.CER C1005 JB 1H 102K-T [KOR]
4030019740 S.CER C1005 JB 1H 102K-T [AUS]
4030019740 S.CER C1005 JB 1H 102K-T [CHN]
4030019740 S.CER C1005 JB 1H 102K-T [EXP]
4030019740 S.CER C1005 JB 1H 102K-T [EXP-01]
4030019740 S.CER C1005 JB 1H 102K-T [RSP]
C106 4030011660 S.CER C1005 CH 1H 020B-T T 18.9/34.7
C107 4030019740 S.CER C1005 JB 1H 102K-T T 18.1/32
C108 4510009990 S.ELE EEEHA1C100R T 39.7/39.8
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
C109 4030019740 S.CER C1005 JB 1H 102K-T T 24.2/30.3
C110 4030019810 S.CER C1005 JB 1E 103K-T B 76.8/11.8
C111 4030019930 S.CER C1005 JB 1A 104K-T B 91.2/43
C112 4030019970 S.CER C1005 JB 0J 105K-T B 94.1/45.9
C113 4550006250 S.TAN TEESVA 1A 106M8R B 95.6/43.3
C114 4030010250 S.CER C1005 CH 1H 101J-T T 16.5/26.9
C115 4030019740 S.CER C1005 JB 1H 102K-T T 12.8/23.7
C116 4030019740 S.CER C1005 JB 1H 102K-T B 30.2/45.5
C117 4030019740 S.CER C1005 JB 1H 102K-T B 83/49.7
C118 4030019740 S.CER C1005 JB 1H 102K-T B 84.3/45.7
C119 4030019740 S.CER C1005 JB 1H 102K-T T 15.6/25.3
C120 4030019740 S.CER C1005 JB 1H 102K-T T 15.6/29.3
C121 4030019740 S.CER C1005 JB 1H 102K-T T 18.1/30.2
C122 4030019740 S.CER C1005 JB 1H 102K-T T 18.7/22.2
C124 4030019740 S.CER C1005 JB 1H 102K-T B 25.6/48.7
C125 4030019740 S.CER C1005 JB 1H 102K-T B 85/44.5
C126 4030019740 S.CER C1005 JB 1H 102K-T B 85.4/42.2
C127 4030019740 S.CER C1005 JB 1H 102K-T T 29.5/35.6
C128 4030019740 S.CER C1005 JB 1H 102K-T T 24.2/32.5
C129 4030019560 S.CER GRM21BB31C106KE15L B 24.4/34.4
C130 4550006250 S.TAN TEESVA 1A 106M8R T 28.7/38.7
C131 4030019930 S.CER C1005 JB 1A 104K-T T 27.9/34.7
C132 4030019740 S.CER C1005 JB 1H 102K-T B 30/32.8
C133 4550007090 S.TAN TEESVA 1A 226M8R B 32.1/34.9
C134 4030019930 S.CER C1005 JB 1A 104K-T B 72.6/46
C135 4030019560 S.CER GRM21BB31C106KE15L B 22.7/34.4
C200 4030019740 S.CER C1005 JB 1H 102K-T T 55.1/49.8
C201 4030019560 S.CER GRM21BB31C106KE15L T 57.4/49
C202 4030019740 S.CER C1005 JB 1H 102K-T T 56/49.8
C203 4550005980 S.TAN TEESVA 1A 475M8R T 28/23.6
C204 4030019810 S.CER C1005 JB 1E 103K-T T 23.7/26.6
C205 4030019740 S.CER C1005 JB 1H 102K-T B 33.7/33.1
C206 4550005980 S.TAN TEESVA 1A 475M8R T 56.4/36.5
C207 4030019810 S.CER C1005 JB 1E 103K-T T 50.2/38.5
C208 4030019740 S.CER C1005 JB 1H 102K-T T 52.3/46.2
C209 4030019740 S.CER C1005 JB 1H 102K-T T 24.3/25.1
C210 4550007090 S.TAN TEESVA 1A 226M8R T 25.9/24.2
C211 4030019930 S.CER C1005 JB 1A 104K-T B 95.9/28.3
C212 4030019870 S.CER C1005 JB 1A 273K-T B 94.2/25
C213 4030019810 S.CER C1005 JB 1E 103K-T B 91.4/18
C214 4030009770 S.CER C1005 CH 1H 220J-T B 93.2/19
C215 4030009750 S.CER C1005 CH 1H 120J-T B 91.8/19.4
C216 4030019740 S.CER C1005 JB 1H 102K-T B 95.9/29.3
C217 4030019810 S.CER C1005 JB 1E 103K-T B 92.3/15.3
C218 4030009800 S.CER C1005 JB 1H 471K-T B 90.9/30.8
C219 4030009760 S.CER C1005 CH 1H 150J-T B 91.4/20.7
C222 4030019780 S.CER C1005 JB 1H 392K-T B 69.4/10.4
C223 4030019880 S.CER C1005 JB 1A 333K-T B 70.6/10.1
C224 4030013910 S.CER C1005 JB 1H 472K-T B 71/39.8
C225 4030013910 S.CER C1005 JB 1H 472K-T B 76.4/41.7
C226 4030013910 S.CER C1005 JB 1H 472K-T B 74.6/41.7
C227 4030013910 S.CER C1005 JB 1H 472K-T B 72.2/36.9
C229 4030019810 S.CER C1005 JB 1E 103K-T B 92.6/12.5
C233 4030019740 S.CER C1005 JB 1H 102K-T B 70.5/35.4
C234 4030013910 S.CER C1005 JB 1H 472K-T B 79.2/39.3
C235 4030013910 S.CER C1005 JB 1H 472K-T B 73.7/41.7
C236 4030013910 S.CER C1005 JB 1H 472K-T B 81.9/41.7
C237 4030013910 S.CER C1005 JB 1H 472K-T B 79.4/40.5
C238 4030013910 S.CER C1005 JB 1H 472K-T B 72.8/41.7
C239 4030013910 S.CER C1005 JB 1H 472K-T B 74.2/43
C240 4030014260 S.CER C1005 JB 1H 331K-T B 74.2/44.8
C241 4030019770 S.CER C1005 JB 1H 332K-T T 48/45.8
C242 4030019810 S.CER C1005 JB 1E 103K-T B 89.3/18.2
C243 4030019740 S.CER C1005 JB 1H 102K-T B 20/6.9
C244 4030019970 S.CER C1005 JB 0J 105K-T B 70.5/34.5
C250 4030019930 S.CER C1005 JB 1A 104K-T B 3.3/49
C251 4030019930 S.CER C1005 JB 1A 104K-T T 6.8/39.1
C252 4030019930 S.CER C1005 JB 1A 104K-T B 4.9/49
C253 4030019930 S.CER C1005 JB 1A 104K-T T 7.8/39.1
C254 4030009770 S.CER C1005 CH 1H 220J-T B 69.7/36.3
C255 4030009770 S.CER C1005 CH 1H 220J-T B 69.4/37.7
C256 4030009770 S.CER C1005 CH 1H 220J-T B 68.7/38.6
C257 4030009770 S.CER C1005 CH 1H 220J-T B 68.7/39.5
C258 4030009770 S.CER C1005 CH 1H 220J-T B 67.2/39.3
C259 4030009770 S.CER C1005 CH 1H 220J-T B 66.3/39.3
C260 4030009770 S.CER C1005 CH 1H 220J-T B 65.4/39.3
C261 4030009770 S.CER C1005 CH 1H 220J-T B 65.8/40.5
C262 4030009770 S.CER C1005 CH 1H 220J-T B 64.3/39.3
C263 4030009770 S.CER C1005 CH 1H 220J-T B 67.6/31.3
C264 4030009770 S.CER C1005 CH 1H 220J-T B 66.4/31.9
C265 4030009770 S.CER C1005 CH 1H 220J-T B 65.2/33.2
C266 4030009770 S.CER C1005 CH 1H 220J-T B 64.3/33.2
C267 4030009770 S.CER C1005 CH 1H 220J-T B 64.8/29.9
C268 4030009770 S.CER C1005 CH 1H 220J-T B 65.8/28.7
C269 4030009770 S.CER C1005 CH 1H 220J-T B 65.8/27.8
C270 4030009770 S.CER C1005 CH 1H 220J-T B 66.1/26.8
C271 4030009770 S.CER C1005 CH 1H 220J-T B 65.7/25.6
C272 4030009770 S.CER C1005 CH 1H 220J-T B 66.9/25.3
C273 4030009770 S.CER C1005 CH 1H 220J-T B 68.2/24.9
C274 4030009770 S.CER C1005 CH 1H 220J-T B 68.2/23.7
C275 4030009770 S.CER C1005 CH 1H 220J-T B 65.9/23.7
C276 4030009770 S.CER C1005 CH 1H 220J-T B 65.9/21.9
C277 4030009770 S.CER C1005 CH 1H 220J-T B 69.2/21.4
C278 4030009770 S.CER C1005 CH 1H 220J-T B 67.4/20.9
C279 4030009770 S.CER C1005 CH 1H 220J-T B 68.3/20.2
C280 4030009770 S.CER C1005 CH 1H 220J-T B 69.2/19.7
C281 4030009770 S.CER C1005 CH 1H 220J-T B 65.9/18.2
C282 4030009770 S.CER C1005 CH 1H 220J-T B 67.6/18.2
C283 4030009770 S.CER C1005 CH 1H 220J-T B 65.9/16.6
C284 4030009770 S.CER C1005 CH 1H 220J-T B 66.3/15
C285 4030009770 S.CER C1005 CH 1H 220J-T B 67.2/15
C286 4030009770 S.CER C1005 CH 1H 220J-T B 72.2/15.6
C287 4030009770 S.CER C1005 CH 1H 220J-T B 71.3/15.6
C288 4030009770 S.CER C1005 CH 1H 220J-T B 71.8/14.4
C289 4030009770 S.CER C1005 CH 1H 220J-T B 68/13
All manuals and user guides at all-guides.com

Table of Contents

Other manuals for Icom IC-T70A

Preview: Instruction Manual
Instruction Manual96 pages
Preview: Product Review
Product Review3 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Icom IC-T70A and is the answer not in the manual?

Icom IC-T70A Specifications

General IconGeneral
Operating frequency144 – 148, 440 – 450 MHz
Display typeLCD
Backlight displayYes
Antenna connector typeFA-S270C
Number of antenna connectors1
Battery typeBP-265
Product colorBlack
Operating temperature (T-T)-20 - 60 °C
Number of batteries included1 pc(s)
Weight and Dimensions IconWeight and Dimensions
Depth30 mm
Width58 mm
Height111 mm
Weight380 g

Related product manuals
