Icom IC-T70A Service Manual

3 - 1

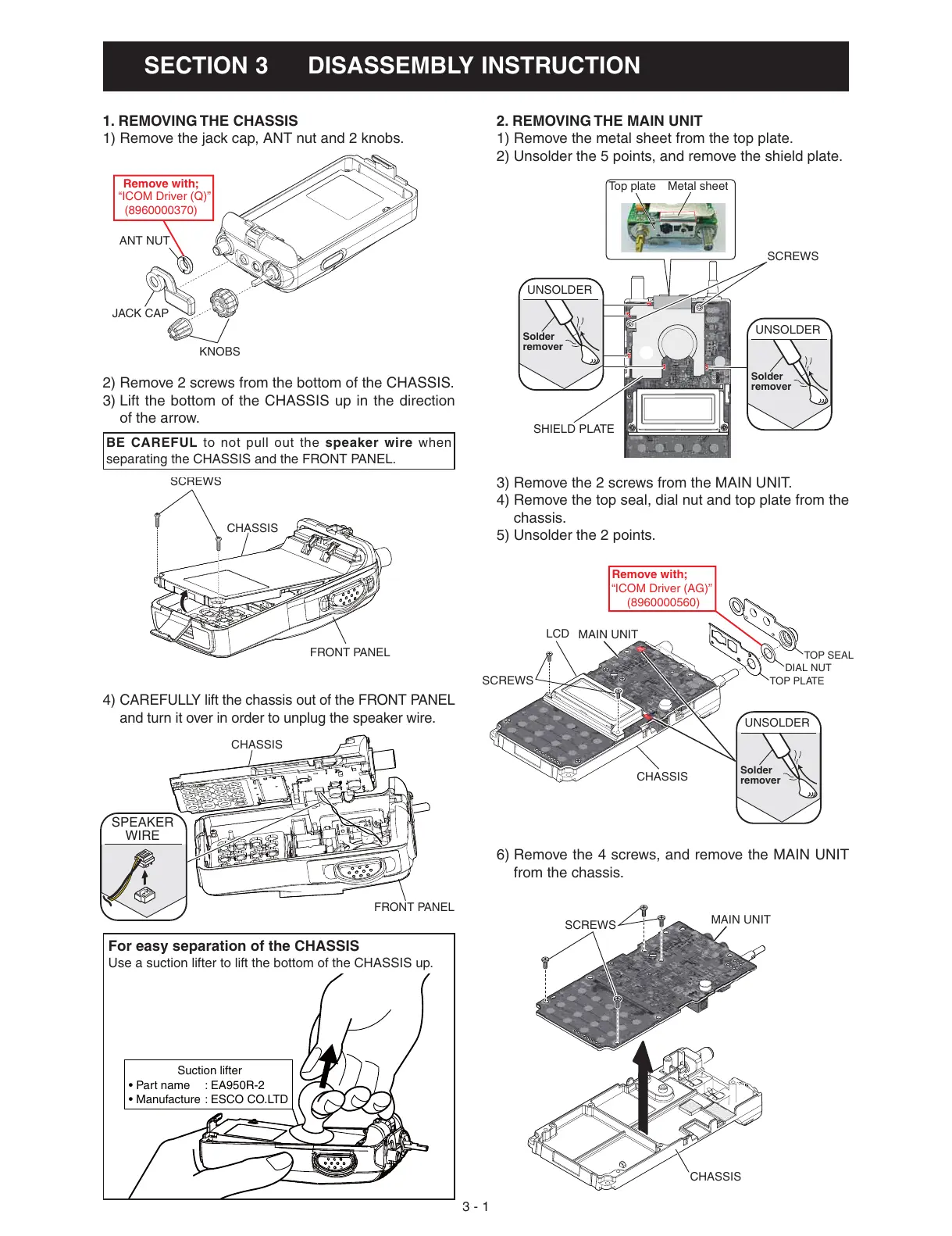

SECTION 3
.
DISASSEMBLY INSTRUCTION
1. REMOVING THE CHASSIS
1) Remove the jack cap, ANT nut and 2 knobs.
4)
CAREFULLY lift the chassis out of the FRONT PANEL
and turn it over in order to unplug the speaker wire.
2) Remove 2 screws from the bottom of the CHASSIS.
3) Lift the bottom of the CHASSIS up in the direction
of the arrow.
2. REMOVING THE MAIN UNIT
1) Remove the metal sheet from the top plate.
2) Unsolder the 5 points, and remove the shield plate.
KNOBS
JACK CAP
ANT NUT
Remove with;
“ICOM Driver (Q)”
(8960000370)
FRONT PANEL
SPEAKER
WIRE
CHASSIS
SHIELD PLATE
SCREWS
UNSOLDER
Solder
remover
UNSOLDER
Solder
remover
Top plate
Metal sheet
CHASSIS
MAIN UNIT
SCREWS
SCREWS
CHASSIS
LCD
DIAL NUT
TOP PLATE
TOP SEAL
MAIN UNIT
UNSOLDER
Solder
remover
Remove with;
“ICOM Driver (AG)”
(8960000560)
FRONT PANEL
SCREWS
CHASSIS
Suction lifter
• Part name : EA950R-2
• Manufacture : ESCO CO.LTD
BE CAREFUL to not pull out the speaker wire when
separating the CHASSIS and the FRONT PANEL.
3) Remove the 2 screws from the MAIN UNIT.
4) Remove the top seal, dial nut and top plate from the
chassis.
5) Unsolder the 2 points.
6) Remove the 4 screws, and remove the MAIN UNIT
from the chassis.
For easy separation of the CHASSIS
Use a suction lifter to lift the bottom of the CHASSIS up.
All manuals and user guides at all-guides.com

Icom IC-T70A Specifications

General

Operating frequency	144 – 148, 440 – 450 MHz
Display type	LCD
Backlight display	Yes
Antenna connector type	FA-S270C
Number of antenna connectors	1
Battery type	BP-265
Product color	Black
Operating temperature (T-T)	-20 - 60 °C
Number of batteries included	1 pc(s)

Weight and Dimensions

Depth	30 mm
Width	58 mm
Height	111 mm
Weight	380 g
