Icom IC-T70A Service Manual

2 - 1

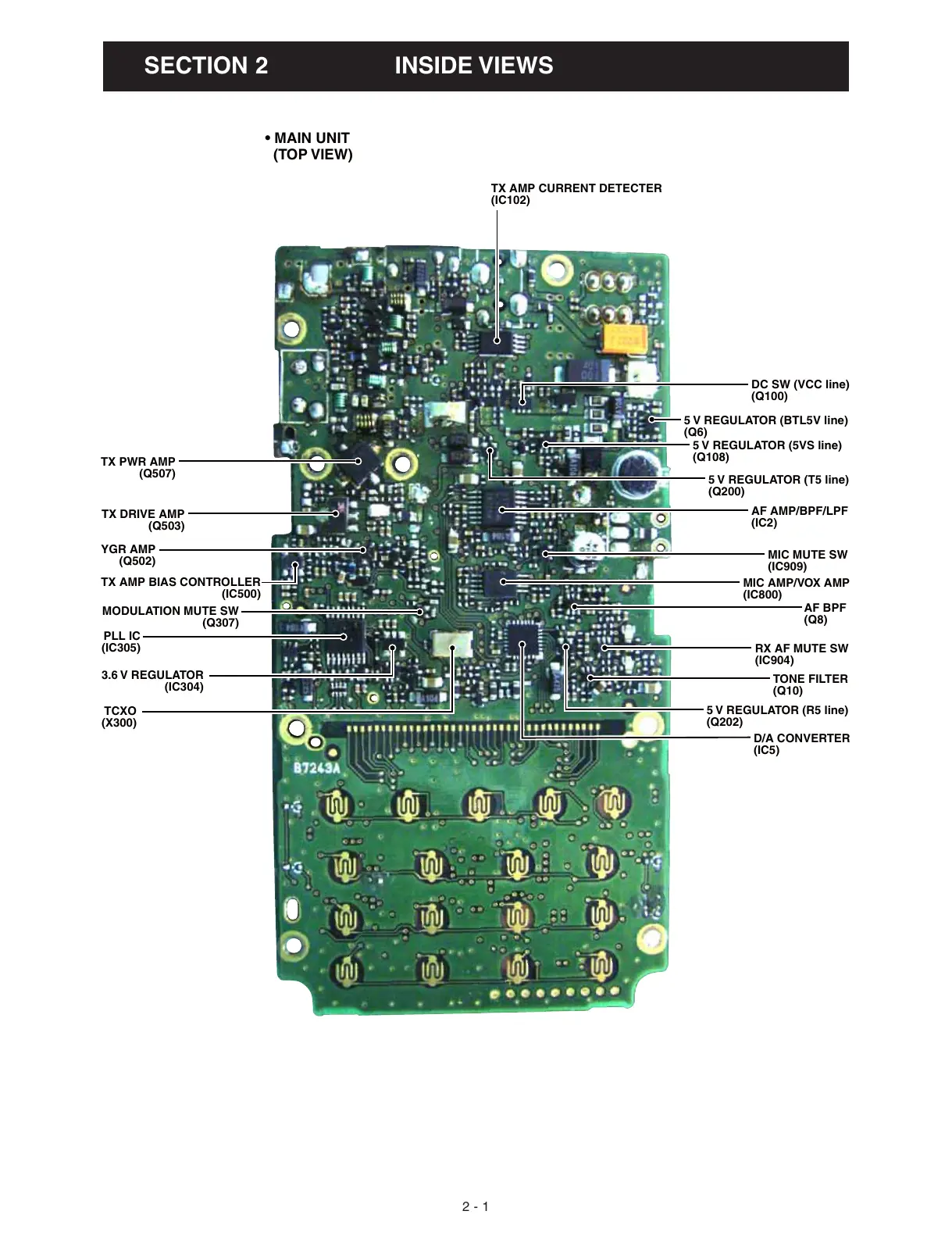

SECTION 2
.
INSIDE VIEWS
• MAIN UNIT
(TOP VIEW)
5 V REGULATOR (5VS line)
(Q108)
5 V REGULATOR (BTL5V line)
(Q6)
MIC AMP/VOX AMP
(IC800)
MIC MUTE SW
(IC909)
AF AMP/BPF/LPF
(IC2)
RX AF MUTE SW
(IC904)
TONE FILTER
(Q10)
AF BPF
(Q8)
YGR AMP
(Q502)
TX DRIVE AMP
(Q503)
TX PWR AMP
(Q507)
PLL IC
(IC305)
MODULATION MUTE SW
(Q307)
DC SW (VCC line)
(Q100)
5 V REGULATOR (T5 line)
(Q200)
D/A CONVERTER
(IC5)
5 V REGULATOR (R5 line)
(Q202)
TX AMP BIAS CONTROLLER
(IC500)
3.6 V REGULATOR
(IC304)
TCXO
(X300)
TX AMP CURRENT DETECTER
(IC102)
