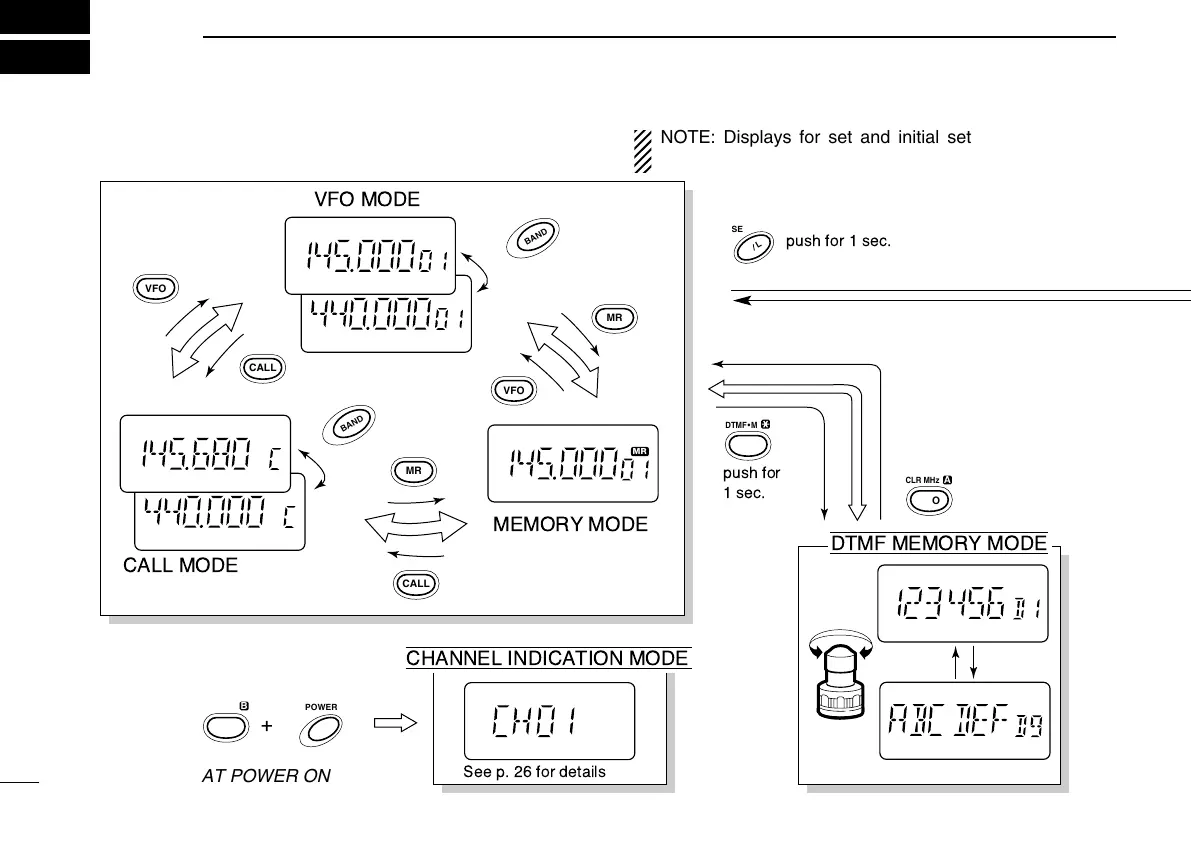

MODE ARRANGEMENT
9
CHANNEL INDICATION MODE
VFO MODE
MEMORY MODE
CALL MODE
MR
DTMF MEMORY MODE
+
AT POWER ON
See p. 26 for details
push for 1 sec.
push for
1 sec.
VFO
VFO
MR
MR
CALL
CALL
BAND
BAND
CLR MHz
VFO
A
POWER
DTMF•M
SET
SKIP
MR
.
H L
B
NOTE: Displays for set and initial set modes show the
default settings—rotate [DIAL] to change the condition.
