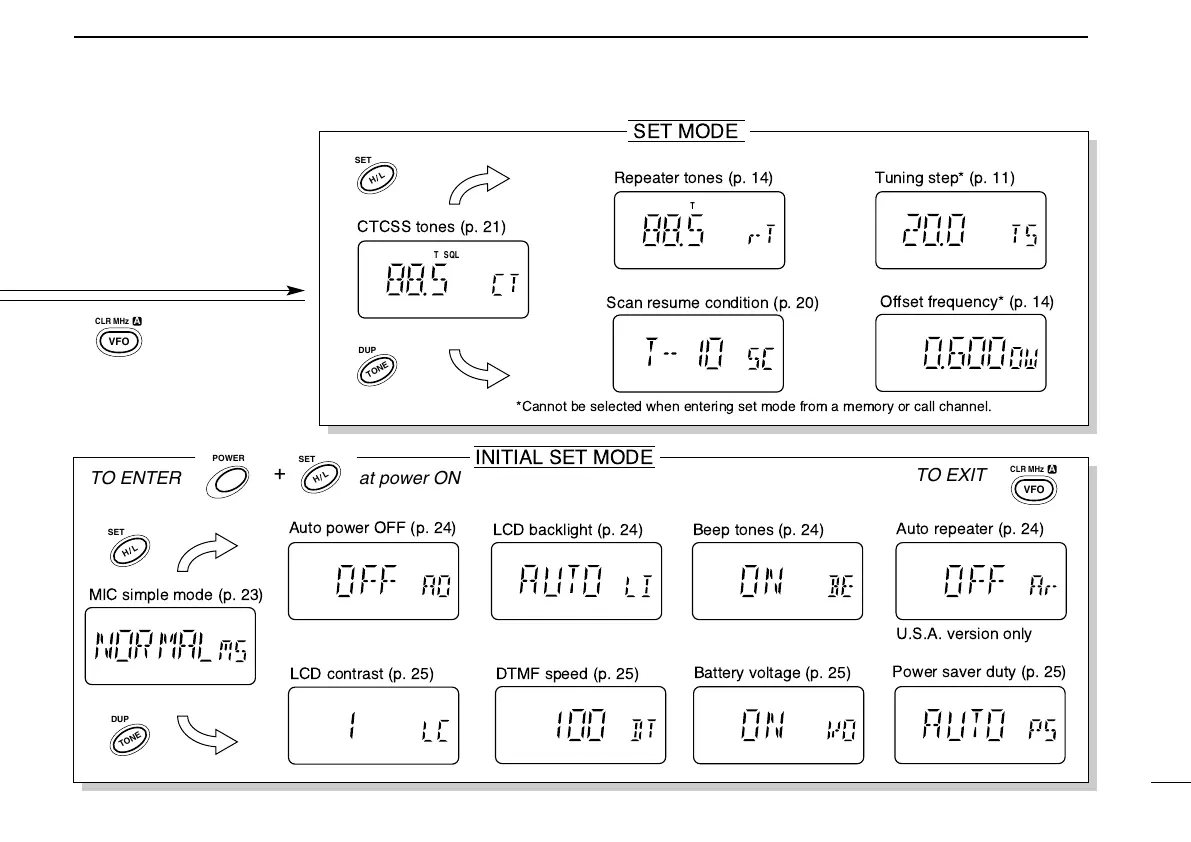

MODE ARRANGEMENT
SET MODE
INITIAL SET MODE
MIC simple mode (p. 23)
Auto power OFF (p. 24)
LCD backlight (p. 24)
LCD contrast (p. 25)
DTMF speed (p. 25)
Offset frequency* (p. 14)
Auto repeater (p. 24)
U.S.A. version only
Beep tones (p. 24)
Battery voltage (p. 25)
Tuning step* (p. 11)
*Cannot be selected when entering set mode from a memory or call channel.
Power saver duty (p. 25)
Scan resume condition (p. 20)
+
TO ENTER at power ON
TO EXIT
Repeater tones (p. 14)
T
CTCSS tones (p. 21)
TSQL
POWER
DUP
SET
TONE
DUP
TONE
H L
SET
H L
SET
H L
CLR MHz
VFO
A
CLR MHz
VFO
A
