• Frequency coverage :
IC-V82 136–174MHz*
1
IC-U82 400–479MHz*
2
Guaranteed range *
1
144–148MHz, *
2
430–440MHz
• Mode : F3E, F2D, F7W*
* Optional UT-114/UT-118 required.
•No. of memory Ch. : 207
(incl. 6 scan edges and 1 call)
•
Operating Temp. range
:
–10˚C to +60˚C; +14˚F to +140˚F
• Frequency stability : ±2.5ppm
(–10˚C to +60˚C)
•Power supply : 7.2V DC
(6.0–10.3V DC accept-
requirement able; Icom’s battery pack only)
• Current drain
(at 7.2V DC):
• Antenna impedance : 50Ω
(BNC)
• Dimensions (W×H×D) : 54 × 139 × 36.7 mm;
(Projections not included)
2
1
⁄
8
× 5
15
⁄
32
× 1
7
⁄
16 in
•Weight (approx.) : 390g; 13.8oz
(w/ant. and BP-222N)
• Output power (at 7.2V DC):
IC-V82 7.0/4.0/0.5W
(High/mid/low)
IC-U82 5.0/2.0/0.5W (High/mid/low)
• Spurious emissions : Less than –60dBc
• Max. freq. deviation : ±5.0/±2.5kHz
(Wide/narrow)
• Ext. microphone : 3-conductor 2.5(d)mm (
1
⁄10″)
connector /2.2kΩ
• Intermediate freq. : 46.35MHz/450kHz
(1st/2nd)
• Sensitivity : 0.16µV
(typ.; at 12dB SINAD)
• Squelch sensitivity : 0.11µV
(typ.; threshold)
• Selectivity :
More than 55/50dB (wide/narrow)
• Spurious and image : 80dB
(typ.; VHF)
rejection 70dB (typ.; UHF)
• Intermodulation : 65dB
(typ.)
• Audio output power : 300mW with an 8Ω load
•
Ext. speaker connector
: 3-conductor 3.5(d)mm (
1
⁄8″)/8Ω
• Ext. Data connector : 3-conductor 2.5(d)mm (
1
⁄10″)
GENERAL
1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan Phone: +81 (06) 6793 5302 Fax: +81 (06) 6793 0013
Count on us!
URL: http://www.icom.co.jp/world/index.html
Printed in Japan
2380 116th Avenue NE,
Bellevue, WA 98004, U.S.A.
Phone : +1
(
425
)
454-8155
Fax : +1
(
425
)
454-1509
E-mail : sales@icomamerica.com
URL : http://www.icomamerica.com
Communication Equipment
Himmelgeister Str. 100,
D-40225 Düsseldorf, Germany
Phone : +49 (0211) 346047
Fax: +49 (0211) 333639
E-mail : info@icomeurope.com
URL : http://www.icomeurope.com
A.B.N. 88 006 092 575
Unit 1 / 103 Garden Road,
Clayton VIC 3168 Australia
Phone : +61 (03) 9549 7500
Fax: +61 (03) 9549 7505
E-mail : sales@icom.net.au
URL : http://www.icom.net.au
Unit 9, Sea St., Herne Bay,
Kent, CT6 8LD, U.K.
Phone : +44 (01227) 741741
Fax : +44 (01227) 741742
E-mail : info@icomuk.co.uk
URL : http://www.icomuk.co.uk
Zac de la Plaine, 1,
Rue Brindejonc des Moulinais BP 5804,
31505 Toulouse Cedex, France
Phone : +33 (5) 61 36 03 03
Fax: +33 (5) 61 36 03 00
E-mail : icom@icom-france.com
URL : http://www.icom-france.com
Ctra. Rubi, No. 88 "Edificio Can Castanyer"
08190, Sant Cugat del Valles, Barcelona, Spain
Phone : +34
(
93
)
590 26 70
Fax: +34
(
93
)
589 04 46
E-mail : icom@icomspain.com
URL : http://www.icomspain.com
146A Harris Road, East Tamaki,
Auckland, New Zealand
Phone : +64 (09) 274 4062
Fax : +64 (09) 274 4708
E-mail : inquiries@icom.co.nz
URL : http://www.icom.co.nz
Glenwood Centre #150-6165 Highway 17,
Delta, B.C., V4K 5B8, Canada
Phone : +1
(
604
)
952-4266
Fax : +1
(
604
)
952-0090
E-mail : info@icomcanada.com
URL : http://www.icomcanada.com
Your local distributor/dealer:
6F No. 68, Sec. 1 Cheng-Teh Road,
Taipei, Taiwan, R.O.C.
Phone : +886 (02) 2559 1899
Fax : +886 (02) 2559 1874
E-mail : sales@asia-icom.com
URL : http://www.asia-icom.com
10C07, Long Silver Mansion, No.88, Yong Ding
Road, Haidian District, Beijing, 100039, China
Phone : +86 (010) 5889 5391/5392/5393
Fax: +86 (010) 5889 5395
E-mail : bjicom@bjicom.com
URL : http://www.bjicom.com
Sopot, 3 maja 54, Poland
Phone : +48
(
58
)
550 7135
Fax: +48
(
58
)
551 0484
E-mail : icompolska@icompolska.com.pl
URL : http://www.icompolska.com.pl
JP98/14190QA
TW03/00288EM
Icom Inc. (Japan), is an ISO 9001 and ISO
14001 certification acquired company.

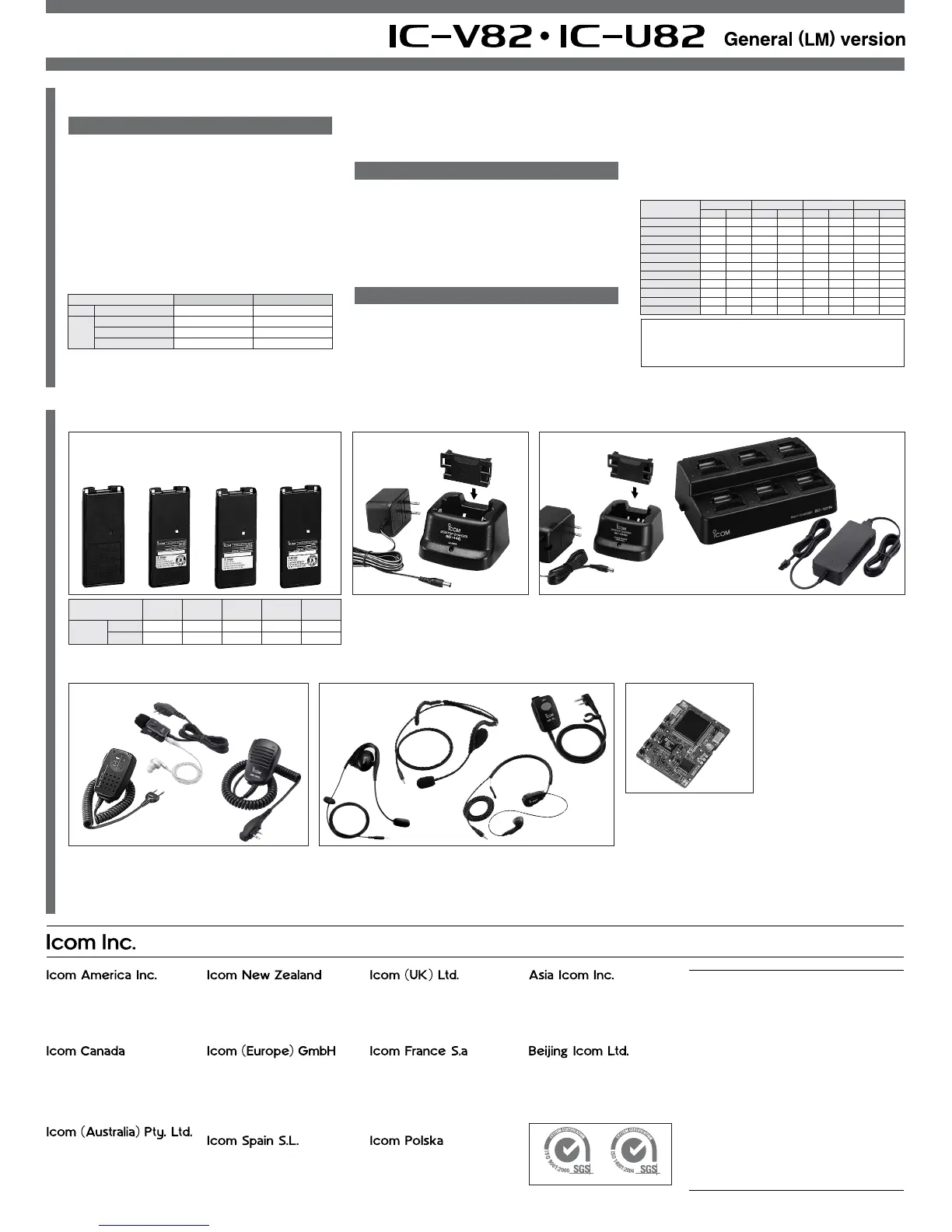

VHF AND UHF TRANSCEIVERS
SPECIFICATIONS
04YS019A © 2004–2005 Icom Inc.
TRANSMITTER
RECEIVER
Supplied accessories
● Battery case or battery pack* ● Desktop charger*
● Antenna ● Belt clip
*depending on version
All stated specifications are subject to change without notice or obligation.
HM-75A : Allows you to remotely select operating channel,
etc., according to program.
HM-158L: Compact and durable body with screw-type con-
nector. Equipped with an earphone jack and a re-
volving clip.
HM-153L: Durable earphone-microphone with revolving clip.
UT-108 DTMF DECODER
Provides DTMF decode and ANI
capabilities.
UT-109/UT-110 VOICE
SCRAMBLER UNITS
Provides operating security.
UT-109: Non rolling type.
UT-110: Rolling type.
UT-114/UT-118
DIGITAL UNITS
UT-114: With voice scrambler.
UT-118: Without voice scrambler.
▲HM-75A
IC-V82 IC-U82
Tx High (7W/5W) 2.6A 2.0A
Max. audio 250mA 250mA
Rx Standby 80mA 80mA
Power save 30mA 30mA
OPTIONS
CS-V82 CLONING SOFTWARE
+ OPC-478/U CLONING CABLE
Provides quick and easy program-
ming of memory channel, names, etc.
OPC-478U is USB cable type.
OPC-474 CLONING CABLE
Use for transceiver-to-transceiver data
cloning.
MB-86/MB-103 BELT CLIPS
MB-103: Alligator type clip.
Same as supplied.
MB-86: Swivel belt clip.
MB-96N/MB-96F
LEATHER BELT HANGERS
MB-96N: Swivel belt hanger.
MB-96F: Fixed type belt hanger.
Use with MB-103.
SP-13 EARPHONE
Provides clear audio even in noisy en-
vironments.
BC-146 DESKTOP CHARGER
+ BC-147A/E AC ADAPTER
Charges the Ni-Cd or Ni-MH battery pack, BP-209N,
BP-210N, BP-222N with/without transceiver in 12,
18.5, 6.5 hours (approx.), respectively. The BC-147
AC adapter is additionally required. Cannot charge
Li-Ion battery pack, BP-211N.
BC-144N DESKTOP CHARGER + BC-145A/E/VAC ADAPTER
For rapid charging of battery pack, BP-209N, BP-210N or BP-222N. An AC adapter, BC-145, is supplied with
the charger depending on version. Charging time: 1.5 to 2 hours. Cannot charge Li-Ion battery pack, BP-211N.
BC-119N+AD-101+BC-145A/E/V Rapidly charges BP-211N as well as other battery packs.
BC-121N MULTI-CHARGER + AD-101 CHARGER ADAPTER + BC-157 AC ADAPTER
For rapid charging of up to 6 battery packs (including BP-211N) in 1.5 to 2 hours. Six AD-101s are required.
OPC-656 DC POWER CABLE
;
For use with the BC-121N.
(12–20 V DC required)
BP-211N
Li-Ion
7.4V/1800mAh
BP-208N
AA (LR6)
batteries × 6
Battery life is approx. time; Tx (Hi): Rx: standby=1:1: 8 power save func-
tion when set at auto.
BP-210N
Ni-MH
7.2V/1650mAh
▲BC-146
▼BC-147A/E
BATTERY PACKS
BP-208N BP-209N BP-210N BP-211N BP-222N
AND CASE
BATTERY
VHF (7W)
–3 h 20 min 6 hours 6 h 10 min 2 h 15 min
LIFE
UHF (5W)
–3 h 40 min 7 hours 8 h 15 min 2 h 50 min
BP-209N Ni-Cd
7.2V/1100mAh
BP-222N Ni-Cd
7.2V/600mAh
HS-94: Earhook headset with flexible boom microphone.
HS-95: Behind-the-head headset with flexible boom microphone.
HS-97
: Throat microphone fits around your neck and picks up speech vibration.
VS-1L
: PTT/VOX unit. Required when using these headsets with the transceiver.
HS-85: Includes VOX, PTT and “one-touch” PTT with a time-out timer.
▼HS-94
▲HS-95
▲HS-97
HEADSETS and
PTT/VOX UNIT
▼BC-145
A/E/V
▲BC-144N
▲VS-1L
▲UT-114
INTERNAL UNITS
REGULAR CHARGER RAPID CHARGERS
Applicable U.S. Military Specifications
Standard
MIL 810 C MIL 810 D MIL 810 E MIL 810 F
Method
Proc.
Method
Proc.
Method
Proc.
Method
Proc.
Low Pressure 500.1 I 500.2 I, II 500.3 I, II 500.4 I, II
High Temp. 501.1 I 501.2 I, II 501.3 I, II 501.4 I, II
Low Temp. 502.1 I 502.2 I, II 502.3 I, II
502.4-3
I, II
Temp. Shock 503.1 I 503.2 I 503.3 I 503.4 I
Solar Radiation 505.1 I 505.2 I 505.3 I 505.4 I
Rain Drip 506.1 II 506.2 II 506.3 II 506.4 III
Humidity 507.1 I, II 507.2 II, III 507.3 II, III 507.4 –
Salt Fog 509.1 I 509.2 I 509.3 I 509.4 –
Dust Blowing 510.1 I 510.2 I 510.3 I 510.4 I
Vibration 514.2 VIII, X 514.3 I 514.4 I 514.5 I
Shock 516.2 I, II, V 516.3 I, IV 516.4 I, IV 516.5 I, IV
▼BC-157
▲BC-121N+AD-101
(6 pcs.)
HM-158L
▼HM-153L
SPEAKER-MICROPHONES
▼
