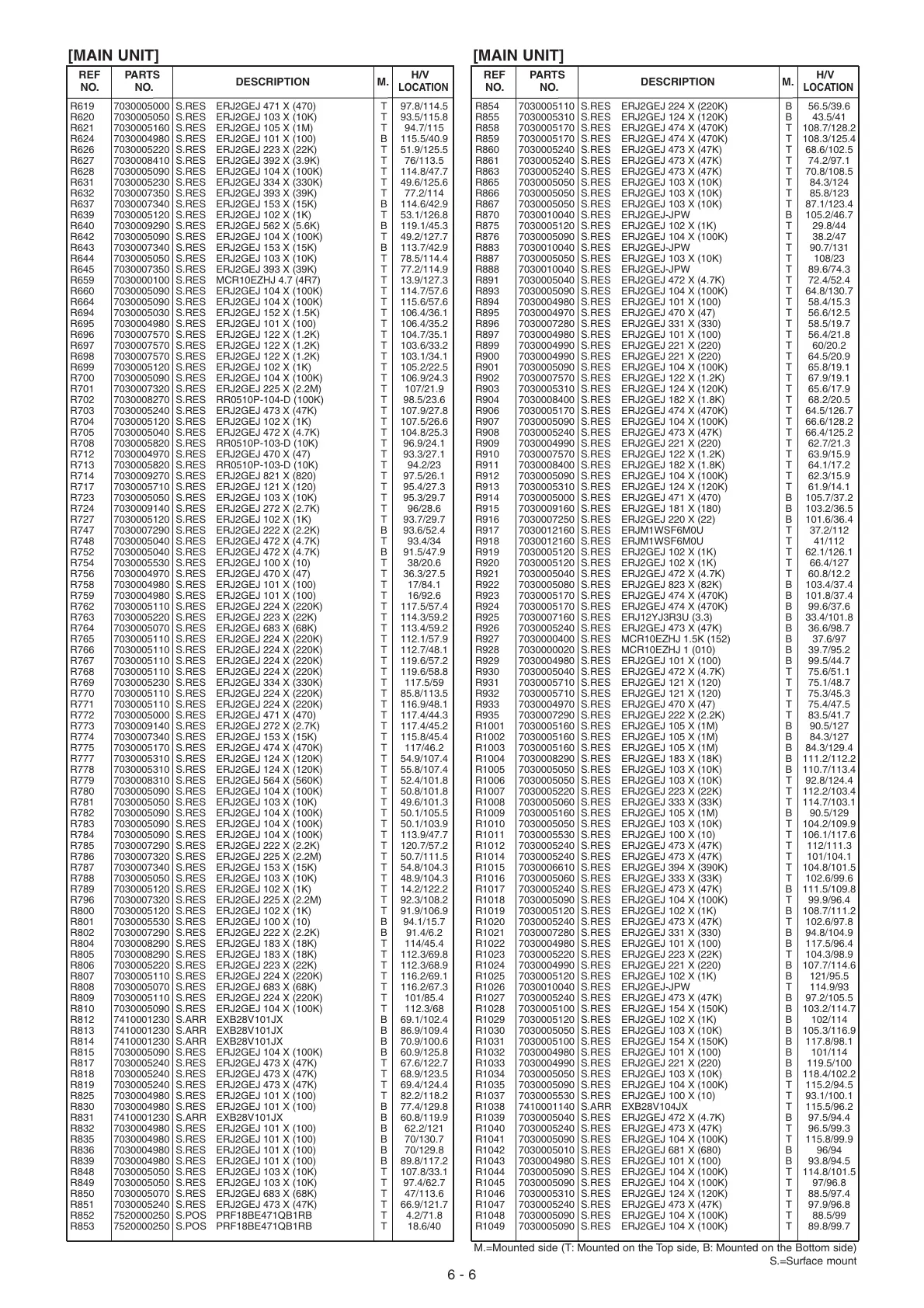

Icom ID-880H

6 - 6
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[MAIN UNIT]
REF PARTS
DESCRIPTION M.
H/V
NO. NO.
LOCATION
R619 7030005000 S.RES ERJ2GEJ 471 X (470) T 97.8/114.5
R620 7030005050 S.RES ERJ2GEJ 103 X (10K) T 93.5/115.8
R621 7030005160 S.RES ERJ2GEJ 105 X (1M) T 94.7/115
R624 7030004980 S.RES ERJ2GEJ 101 X (100) B 115.5/40.9
R626 7030005220 S.RES ERJ2GEJ 223 X (22K) T 51.9/125.5
R627 7030008410 S.RES ERJ2GEJ 392 X (3.9K) T 76/113.5
R628 7030005090 S.RES ERJ2GEJ 104 X (100K) T 114.8/47.7
R631 7030005230 S.RES ERJ2GEJ 334 X (330K) T 49.6/125.6
R632 7030007350 S.RES ERJ2GEJ 393 X (39K) T 77.2/114
R637 7030007340 S.RES ERJ2GEJ 153 X (15K) B 114.6/42.9
R639 7030005120 S.RES ERJ2GEJ 102 X (1K) T 53.1/126.8
R640 7030009290 S.RES ERJ2GEJ 562 X (5.6K) B 119.1/45.3
R642 7030005090 S.RES ERJ2GEJ 104 X (100K) T 49.2/127.7
R643 7030007340 S.RES ERJ2GEJ 153 X (15K) B 113.7/42.9
R644 7030005050 S.RES ERJ2GEJ 103 X (10K) T 78.5/114.4
R645 7030007350 S.RES ERJ2GEJ 393 X (39K) T 77.2/114.9
R659 7030000100 S.RES MCR10EZHJ 4.7 (4R7) T 13.9/127.3
R660 7030005090 S.RES ERJ2GEJ 104 X (100K) T 114.7/57.6
R664 7030005090 S.RES ERJ2GEJ 104 X (100K) T 115.6/57.6
R694 7030005030 S.RES ERJ2GEJ 152 X (1.5K) T 106.4/36.1
R695 7030004980 S.RES ERJ2GEJ 101 X (100) T 106.4/35.2
R696 7030007570 S.RES ERJ2GEJ 122 X (1.2K) T 104.7/35.1
R697 7030007570 S.RES ERJ2GEJ 122 X (1.2K) T 103.6/33.2
R698 7030007570 S.RES ERJ2GEJ 122 X (1.2K) T 103.1/34.1
R699 7030005120 S.RES ERJ2GEJ 102 X (1K) T 105.2/22.5
R700 7030005090 S.RES ERJ2GEJ 104 X (100K) T 106.9/24.3
R701 7030007320 S.RES ERJ2GEJ 225 X (2.2M) T 107/21.9
R702 7030008270 S.RES RR0510P-104-D (100K) T 98.5/23.6
R703 7030005240 S.RES ERJ2GEJ 473 X (47K) T 107.9/27.8
R704 7030005120 S.RES ERJ2GEJ 102 X (1K) T 107.5/26.6
R705 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 104.8/25.3
R708 7030005820 S.RES RR0510P-103-D (10K) T 96.9/24.1
R712 7030004970 S.RES ERJ2GEJ 470 X (47) T 93.3/27.1
R713 7030005820 S.RES RR0510P-103-D (10K) T 94.2/23
R714 7030009270 S.RES ERJ2GEJ 821 X (820) T 97.5/26.1
R717 7030005710 S.RES ERJ2GEJ 121 X (120) T 95.4/27.3
R723 7030005050 S.RES ERJ2GEJ 103 X (10K) T 95.3/29.7
R724 7030009140 S.RES ERJ2GEJ 272 X (2.7K) T 96/28.6
R727 7030005120 S.RES ERJ2GEJ 102 X (1K) T 93.7/29.7
R747 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 93.6/52.4
R748 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 93.4/34
R752 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 91.5/47.9
R754 7030005530 S.RES ERJ2GEJ 100 X (10) T 38/20.6
R756 7030004970 S.RES ERJ2GEJ 470 X (47) T 36.3/27.5
R758 7030004980 S.RES ERJ2GEJ 101 X (100) T 17/84.1
R759 7030004980 S.RES ERJ2GEJ 101 X (100) T 16/92.6
R762 7030005110 S.RES ERJ2GEJ 224 X (220K) T 117.5/57.4
R763 7030005220 S.RES ERJ2GEJ 223 X (22K) T 114.3/59.2
R764 7030005070 S.RES ERJ2GEJ 683 X (68K) T 113.4/59.2
R765 7030005110 S.RES ERJ2GEJ 224 X (220K) T 112.1/57.9
R766 7030005110 S.RES ERJ2GEJ 224 X (220K) T 112.7/48.1
R767 7030005110 S.RES ERJ2GEJ 224 X (220K) T 119.6/57.2
R768 7030005110 S.RES ERJ2GEJ 224 X (220K) T 119.6/58.8
R769 7030005230 S.RES ERJ2GEJ 334 X (330K) T 117.5/59
R770 7030005110 S.RES ERJ2GEJ 224 X (220K) T 85.8/113.5
R771 7030005110 S.RES ERJ2GEJ 224 X (220K) T 116.9/48.1
R772 7030005000 S.RES ERJ2GEJ 471 X (470) T 117.4/44.3
R773 7030009140 S.RES ERJ2GEJ 272 X (2.7K) T 117.4/45.2
R774 7030007340 S.RES ERJ2GEJ 153 X (15K) T 115.8/45.4
R775 7030005170 S.RES ERJ2GEJ 474 X (470K) T 117/46.2
R777 7030005310 S.RES ERJ2GEJ 124 X (120K) T 54.9/107.4
R778 7030005310 S.RES ERJ2GEJ 124 X (120K) T 55.8/107.4
R779 7030008310 S.RES ERJ2GEJ 564 X (560K) T 52.4/101.8
R780 7030005090 S.RES ERJ2GEJ 104 X (100K) T 50.8/101.8
R781 7030005050 S.RES ERJ2GEJ 103 X (10K) T 49.6/101.3
R782 7030005090 S.RES ERJ2GEJ 104 X (100K) T 50.1/105.5
R783 7030005090 S.RES ERJ2GEJ 104 X (100K) T 50.1/103.9
R784 7030005090 S.RES ERJ2GEJ 104 X (100K) T 113.9/47.7
R785 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 120.7/57.2
R786 7030007320 S.RES ERJ2GEJ 225 X (2.2M) T 50.7/111.5
R787 7030007340 S.RES ERJ2GEJ 153 X (15K) T 54.8/104.3
R788 7030005050 S.RES ERJ2GEJ 103 X (10K) T 48.9/104.3
R789 7030005120 S.RES ERJ2GEJ 102 X (1K) T 14.2/122.2
R796 7030007320 S.RES ERJ2GEJ 225 X (2.2M) T 92.3/108.2
R800 7030005120 S.RES ERJ2GEJ 102 X (1K) T 91.9/106.9
R801 7030005530 S.RES ERJ2GEJ 100 X (10) B 94.1/15.7
R802 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 91.4/6.2
R804 7030008290 S.RES ERJ2GEJ 183 X (18K) T 114/45.4
R805 7030008290 S.RES ERJ2GEJ 183 X (18K) T 112.3/69.8
R806 7030005220 S.RES ERJ2GEJ 223 X (22K) T 112.3/68.9
R807 7030005110 S.RES ERJ2GEJ 224 X (220K) T 116.2/69.1
R808 7030005070 S.RES ERJ2GEJ 683 X (68K) T 116.2/67.3
R809 7030005110 S.RES ERJ2GEJ 224 X (220K) T 101/85.4
R810 7030005090 S.RES ERJ2GEJ 104 X (100K) T 112.3/68
R812 7410001230 S.ARR EXB28V101JX B 69.1/102.4
R813 7410001230 S.ARR EXB28V101JX B 86.9/109.4
R814 7410001230 S.ARR EXB28V101JX B 70.9/100.6
R815 7030005090 S.RES ERJ2GEJ 104 X (100K) B 60.9/125.8
R817 7030005240 S.RES ERJ2GEJ 473 X (47K) T 67.6/122.7
R818 7030005240 S.RES ERJ2GEJ 473 X (47K) T 68.9/123.5
R819 7030005240 S.RES ERJ2GEJ 473 X (47K) T 69.4/124.4
R825 7030004980 S.RES ERJ2GEJ 101 X (100) T 82.2/118.2
R830 7030004980 S.RES ERJ2GEJ 101 X (100) B 77.4/129.8
R831 7410001230 S.ARR EXB28V101JX B 60.8/119.9
R832 7030004980 S.RES ERJ2GEJ 101 X (100) B 62.2/121
R835 7030004980 S.RES ERJ2GEJ 101 X (100) B 70/130.7
R836 7030004980 S.RES ERJ2GEJ 101 X (100) B 70/129.8
R839 7030004980 S.RES ERJ2GEJ 101 X (100) B 89.8/117.2
R848 7030005050 S.RES ERJ2GEJ 103 X (10K) T 107.8/33.1
R849 7030005050 S.RES ERJ2GEJ 103 X (10K) T 97.4/62.7
R850 7030005070 S.RES ERJ2GEJ 683 X (68K) T 47/113.6
R851 7030005240 S.RES ERJ2GEJ 473 X (47K) T 66.9/121.7
R852 7520000250 S.POS PRF18BE471QB1RB T 4.2/71.8
R853 7520000250 S.POS PRF18BE471QB1RB T 18.6/40
S.=Surface mount
[MAIN UNIT]
REF PARTS
DESCRIPTION M.
H/V
NO. NO.
LOCATION
R854 7030005110 S.RES ERJ2GEJ 224 X (220K) B 56.5/39.6
R855 7030005310 S.RES ERJ2GEJ 124 X (120K) B 43.5/41
R858 7030005170 S.RES ERJ2GEJ 474 X (470K) T 108.7/128.2
R859 7030005170 S.RES ERJ2GEJ 474 X (470K) T 108.3/125.4
R860 7030005240 S.RES ERJ2GEJ 473 X (47K) T 68.6/102.5
R861 7030005240 S.RES ERJ2GEJ 473 X (47K) T 74.2/97.1
R863 7030005240 S.RES ERJ2GEJ 473 X (47K) T 70.8/108.5
R865 7030005050 S.RES ERJ2GEJ 103 X (10K) T 84.3/124
R866 7030005050 S.RES ERJ2GEJ 103 X (10K) T 85.8/123
R867 7030005050 S.RES ERJ2GEJ 103 X (10K) T 87.1/123.4
R870 7030010040 S.RES ERJ2GEJ-JPW B 105.2/46.7
R875 7030005120 S.RES ERJ2GEJ 102 X (1K) T 29.8/44
R876 7030005090 S.RES ERJ2GEJ 104 X (100K) T 38.2/47
R883 7030010040 S.RES ERJ2GEJ-JPW T 90.7/131
R887 7030005050 S.RES ERJ2GEJ 103 X (10K) T 108/23
R888 7030010040 S.RES ERJ2GEJ-JPW T 89.6/74.3
R891 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 72.4/52.4
R893 7030005090 S.RES ERJ2GEJ 104 X (100K) T 64.8/130.7
R894 7030004980 S.RES ERJ2GEJ 101 X (100) T 58.4/15.3
R895 7030004970 S.RES ERJ2GEJ 470 X (47) T 56.6/12.5
R896 7030007280 S.RES ERJ2GEJ 331 X (330) T 58.5/19.7
R897 7030004980 S.RES ERJ2GEJ 101 X (100) T 56.4/21.8
R899 7030004990 S.RES ERJ2GEJ 221 X (220) T 60/20.2
R900 7030004990 S.RES ERJ2GEJ 221 X (220) T 64.5/20.9
R901 7030005090 S.RES ERJ2GEJ 104 X (100K) T 65.8/19.1
R902 7030007570 S.RES ERJ2GEJ 122 X (1.2K) T 67.9/19.1
R903 7030005310 S.RES ERJ2GEJ 124 X (120K) T 65.6/17.9
R904 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 68.2/20.5
R906 7030005170 S.RES ERJ2GEJ 474 X (470K) T 64.5/126.7
R907 7030005090 S.RES ERJ2GEJ 104 X (100K) T 66.6/128.2
R908 7030005240 S.RES ERJ2GEJ 473 X (47K) T 66.4/125.2
R909 7030004990 S.RES ERJ2GEJ 221 X (220) T 62.7/21.3
R910 7030007570 S.RES ERJ2GEJ 122 X (1.2K) T 63.9/15.9
R911 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 64.1/17.2
R912 7030005090 S.RES ERJ2GEJ 104 X (100K) T 62.3/15.9
R913 7030005310 S.RES ERJ2GEJ 124 X (120K) T 61.9/14.1
R914 7030005000 S.RES ERJ2GEJ 471 X (470) B 105.7/37.2
R915 7030009160 S.RES ERJ2GEJ 181 X (180) B 103.2/36.5
R916 7030007250 S.RES ERJ2GEJ 220 X (22) B 101.6/36.4
R917 7030012160 S.RES ERJM1WSF6M0U T 37.2/112
R918 7030012160 S.RES ERJM1WSF6M0U T 41/112
R919 7030005120 S.RES ERJ2GEJ 102 X (1K) T 62.1/126.1
R920 7030005120 S.RES ERJ2GEJ 102 X (1K) T 66.4/127
R921 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 60.8/12.2
R922 7030005080 S.RES ERJ2GEJ 823 X (82K) B 103.4/37.4
R923 7030005170 S.RES ERJ2GEJ 474 X (470K) B 101.8/37.4
R924 7030005170 S.RES ERJ2GEJ 474 X (470K) B 99.6/37.6
R925 7030007160 S.RES ERJ12YJ3R3U (3.3) B 33.4/101.8
R926 7030005240 S.RES ERJ2GEJ 473 X (47K) B 36.6/98.7
R927 7030000400 S.RES MCR10EZHJ 1.5K (152) B 37.6/97
R928 7030000020 S.RES MCR10EZHJ 1 (010) B 39.7/95.2
R929 7030004980 S.RES ERJ2GEJ 101 X (100) B 99.5/44.7
R930 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 75.6/51.1
R931 7030005710 S.RES ERJ2GEJ 121 X (120) T 75.1/48.7
R932 7030005710 S.RES ERJ2GEJ 121 X (120) T 75.3/45.3
R933 7030004970 S.RES ERJ2GEJ 470 X (47) T 75.4/47.5
R935 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 83.5/41.7
R1001 7030005160 S.RES ERJ2GEJ 105 X (1M) B 90.5/127
R1002 7030005160 S.RES ERJ2GEJ 105 X (1M) B 84.3/127
R1003 7030005160 S.RES ERJ2GEJ 105 X (1M) B 84.3/129.4
R1004 7030008290 S.RES ERJ2GEJ 183 X (18K) B 111.2/112.2
R1005 7030005050 S.RES ERJ2GEJ 103 X (10K) B 110.7/113.4
R1006 7030005050 S.RES ERJ2GEJ 103 X (10K) T 92.8/124.4
R1007 7030005220 S.RES ERJ2GEJ 223 X (22K) T 112.2/103.4
R1008 7030005060 S.RES ERJ2GEJ 333 X (33K) T 114.7/103.1
R1009 7030005160 S.RES ERJ2GEJ 105 X (1M) B 90.5/129
R1010 7030005050 S.RES ERJ2GEJ 103 X (10K) T 104.2/109.9
R1011 7030005530 S.RES ERJ2GEJ 100 X (10) T 106.1/117.6
R1012 7030005240 S.RES ERJ2GEJ 473 X (47K) T 112/111.3
R1014 7030005240 S.RES ERJ2GEJ 473 X (47K) T 101/104.1
R1015 7030006610 S.RES ERJ2GEJ 394 X (390K) T 104.8/101.5
R1016 7030005060 S.RES ERJ2GEJ 333 X (33K) T 102.6/99.6
R1017 7030005240 S.RES ERJ2GEJ 473 X (47K) B 111.5/109.8
R1018 7030005090 S.RES ERJ2GEJ 104 X (100K) T 99.9/96.4
R1019 7030005120 S.RES ERJ2GEJ 102 X (1K) B 108.7/111.2
R1020 7030005240 S.RES ERJ2GEJ 473 X (47K) T 102.6/97.8
R1021 7030007280 S.RES ERJ2GEJ 331 X (330) B 94.8/104.9
R1022 7030004980 S.RES ERJ2GEJ 101 X (100) B 117.5/96.4
R1023 7030005220 S.RES ERJ2GEJ 223 X (22K) T 104.3/98.9
R1024 7030004990 S.RES ERJ2GEJ 221 X (220) B 107.7/114.6
R1025 7030005120 S.RES ERJ2GEJ 102 X (1K) B 121/95.5
R1026 7030010040 S.RES ERJ2GEJ-JPW T 114.9/93
R1027 7030005240 S.RES ERJ2GEJ 473 X (47K) B 97.2/105.5
R1028 7030005100 S.RES ERJ2GEJ 154 X (150K) B 103.2/114.7
R1029 7030005120 S.RES ERJ2GEJ 102 X (1K) B 102/114
R1030 7030005050 S.RES ERJ2GEJ 103 X (10K) B 105.3/116.9
R1031 7030005100 S.RES ERJ2GEJ 154 X (150K) B 117.8/98.1
R1032 7030004980 S.RES ERJ2GEJ 101 X (100) B 101/114
R1033 7030004990 S.RES ERJ2GEJ 221 X (220) B 119.5/100
R1034 7030005050 S.RES ERJ2GEJ 103 X (10K) B 118.4/102.2
R1035 7030005090 S.RES ERJ2GEJ 104 X (100K) T 115.2/94.5
R1037 7030005530 S.RES ERJ2GEJ 100 X (10) T 93.1/100.1
R1038 7410001140 S.ARR EXB28V104JX T 115.5/96.2
R1039 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 97.5/94.4
R1040 7030005240 S.RES ERJ2GEJ 473 X (47K) T 96.5/99.3
R1041 7030005090 S.RES ERJ2GEJ 104 X (100K) T 115.8/99.9
R1042 7030005010 S.RES ERJ2GEJ 681 X (680) B 96/94
R1043 7030004980 S.RES ERJ2GEJ 101 X (100) B 93.8/94.5
R1044 7030005090 S.RES ERJ2GEJ 104 X (100K) T 114.8/101.5
R1045 7030005090 S.RES ERJ2GEJ 104 X (100K) T 97/96.8
R1046 7030005310 S.RES ERJ2GEJ 124 X (120K) T 88.5/97.4
R1047 7030005240 S.RES ERJ2GEJ 473 X (47K) T 97.9/96.8
R1048 7030005090 S.RES ERJ2GEJ 104 X (100K) T 88.5/99
R1049 7030005090 S.RES ERJ2GEJ 104 X (100K) T 89.8/99.7
