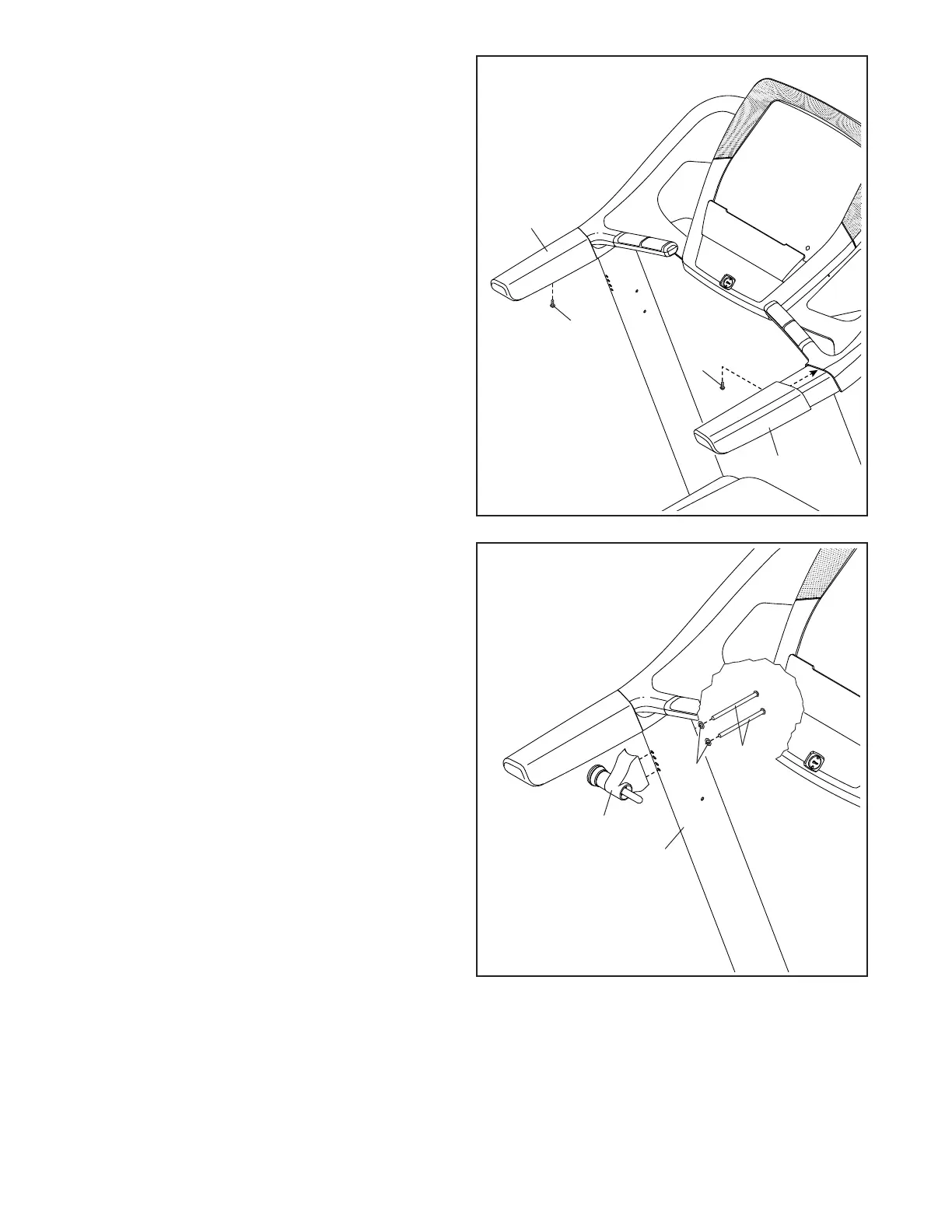

13. Orient the Latch Assembly (66) as shown. Attach
the Latch Assembly to the Left Upright (89) with
two 1/4" x 4 1/2" Screws (6) and two 1/4" Star
Washers (26) ; start both Screws, and then
tighten them.
66
89
6
12. Slide the Right and Left Handrail Grips (8, 79)
onto the Right and Left Handrail Covers (not
shown). Attach the Handrail Grips with two
#8 x 3/4" Screws (4); do not overtighten the
Screws.
12
79
8
4
4
26
To Next Page
