Tiny Modbus/TCP to RTU/ASCII Gateway

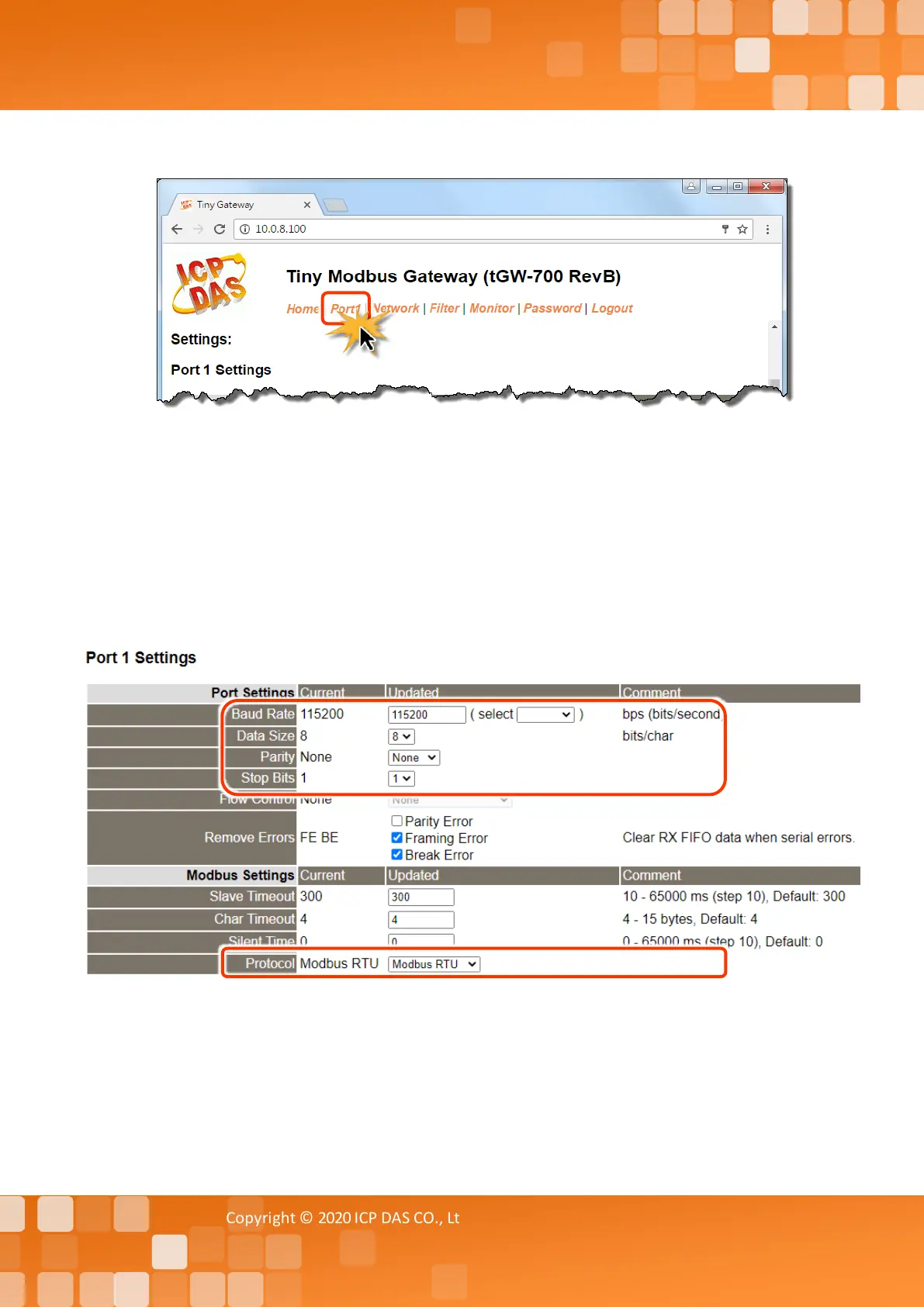

3. Click the “Port1” tab to display the Port1 Settings page.

4. Select the appropriate Baud Rate, Data Format and Modbus Protocol settings from the relevant

drop down options. The following is an example: Baud Rate (bps) “115200”, Data Bits (bits) “8”,

Parity “None”, Stop Bits (bits) “1” and Modbus Protocol “Modbus RTU”.

Figure 6-15

Figure 6-16
