21
Copyright © 2005 ICS, Blount Inc.
633GC SHOP MANUAL

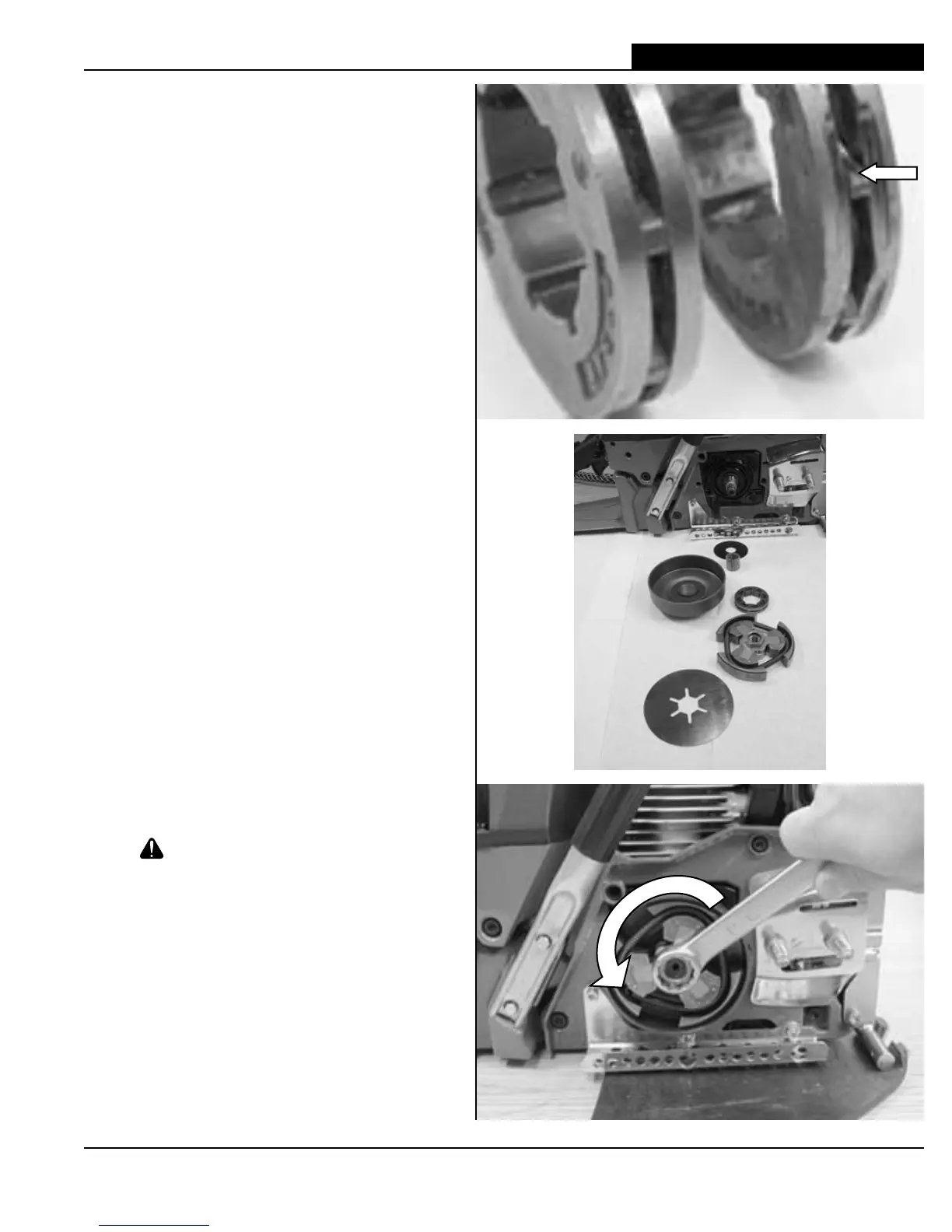

7.10 Inspect the rim sprocket for wear.
A Replace if the rim sprocket teeth are
worn to points, as shown on right.
7.11 Clean and assemble.
A Clean all parts in solvent.
B Grease clutch cup bearing with a
waterproof grease (ICS
®
P/N 70885).
C Assemble clutch: use spacer washer,
bearing, clutch cup with rim sprocket,
inside clutch spacer washer, and
clutch assembly.
7.12 Install clutch.
A Tighten firmly.
Left hand threads.
7. CLUTCH & RIM SPROCKET
