ICS 633GC - Starter; Starter Assembly and Disassembly

22
Copyright © 2005 ICS, Blount Inc.
633GC SHOP MANUAL
8 This section covers the
removal of the starter cover,
replacement of the starter rope,
and replacement of the recoil
spring.

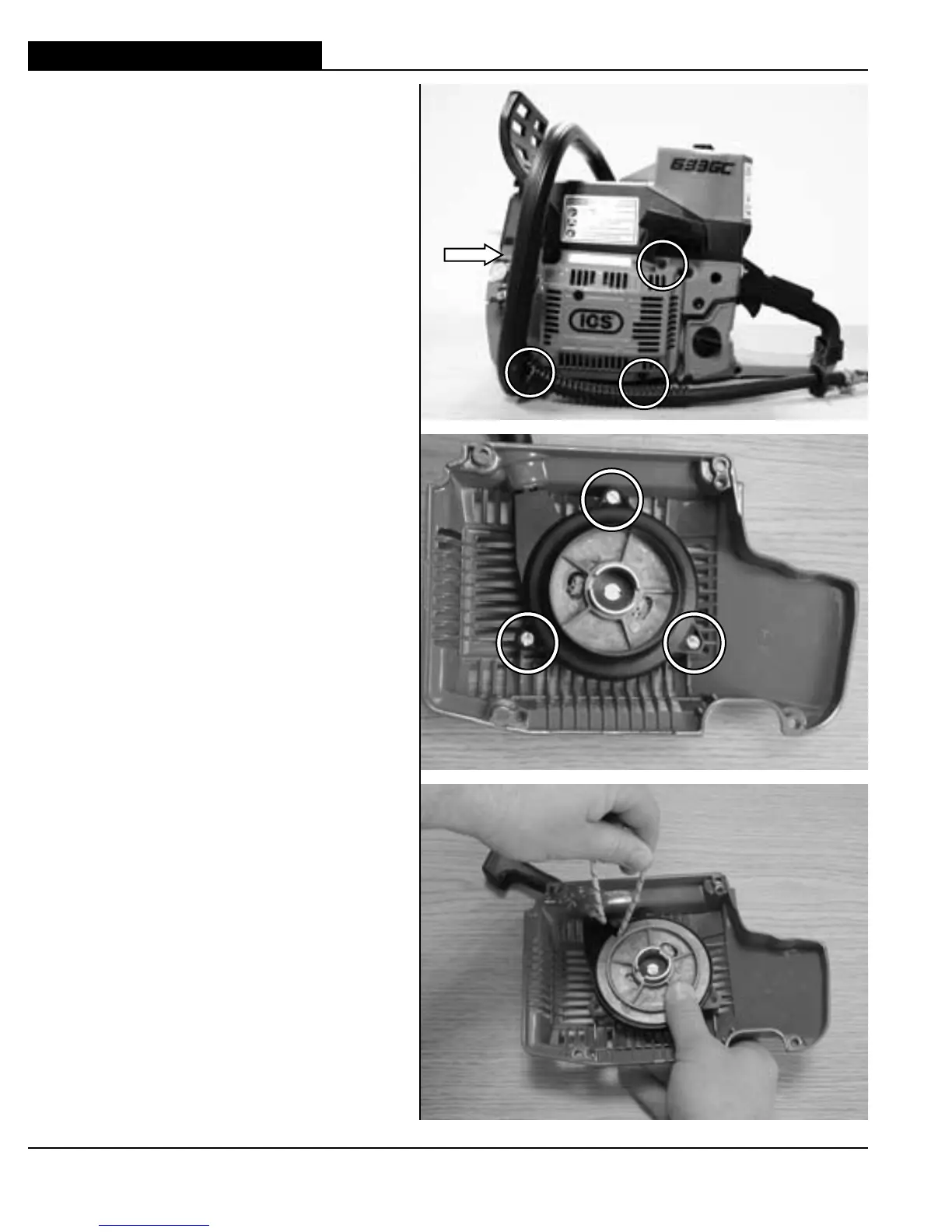

8.1 Remove starter cover screws.
8.2 Remove starter cover assembly from
saw.
8.3 Remove starter cord shield screws.
8.4 Relieve spring tension.
A Pull 4-6” (10-15 cm) of rope out.
B Line rope up with notch on pulley.
C Slowly rotate pulley counterclockwise
until spring pressure is released. Use
thumb as a brake.
8.5 Remove starter pulley screw and
washer.
NOTE:
Hold starter cover firmly.
8. STARTER
