26
Copyright © 2005 ICS, Blount Inc.
633GC SHOP MANUAL

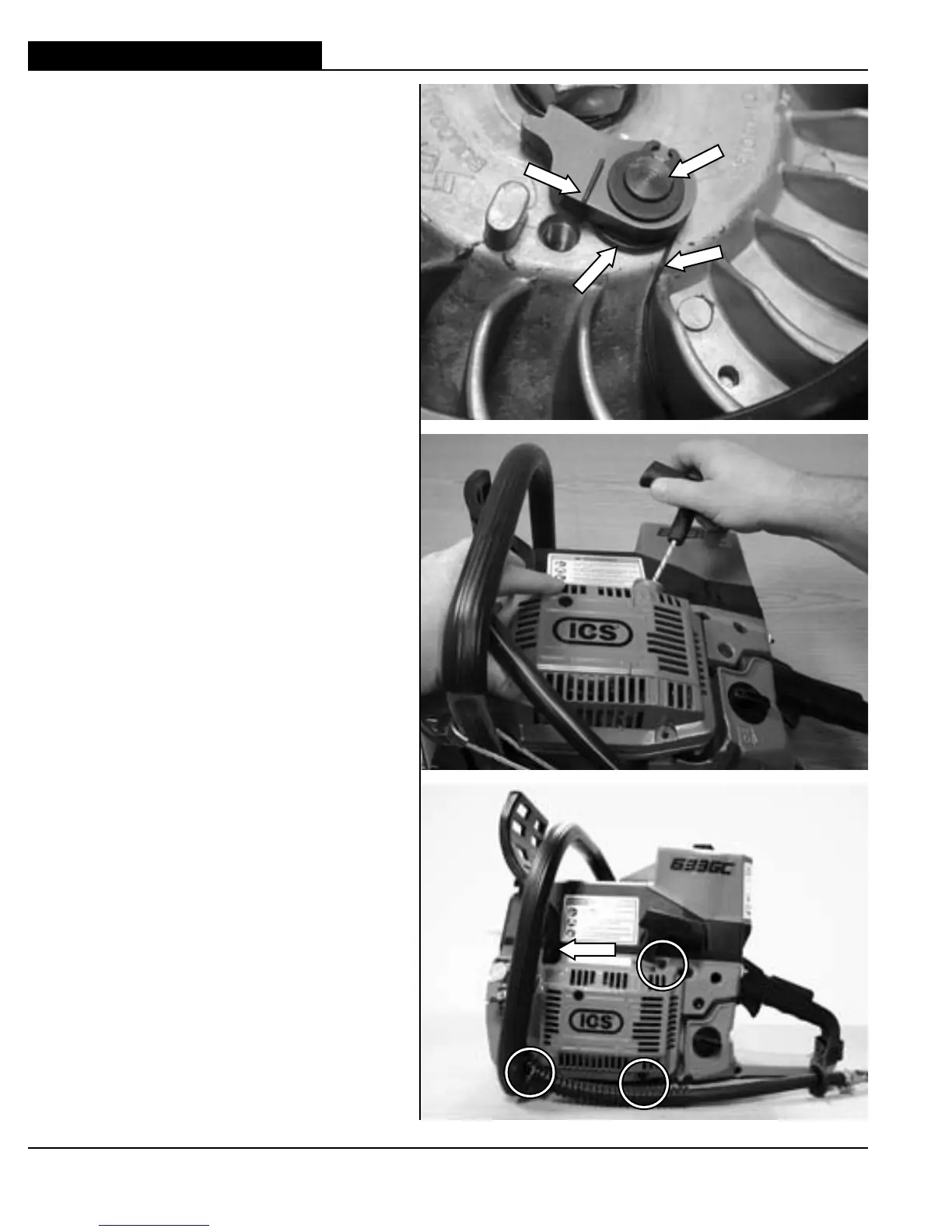

8.18 Assemble components
A Make sure the snap ring spring is in
the correct position.
B Make sure the spring is in the correct
position.
8.19 Install starter cover.
A Pull out cord 4-6” (10-15 cm). Slowly
release while placing cover to allow
pawls to engage.
8.20 Install starter cover screws.
A Use blue Loctite”.
B Torque to 60 in-lbs. (6.8 Nm).
8. STARTER
